Wireless Adapter
WE3000

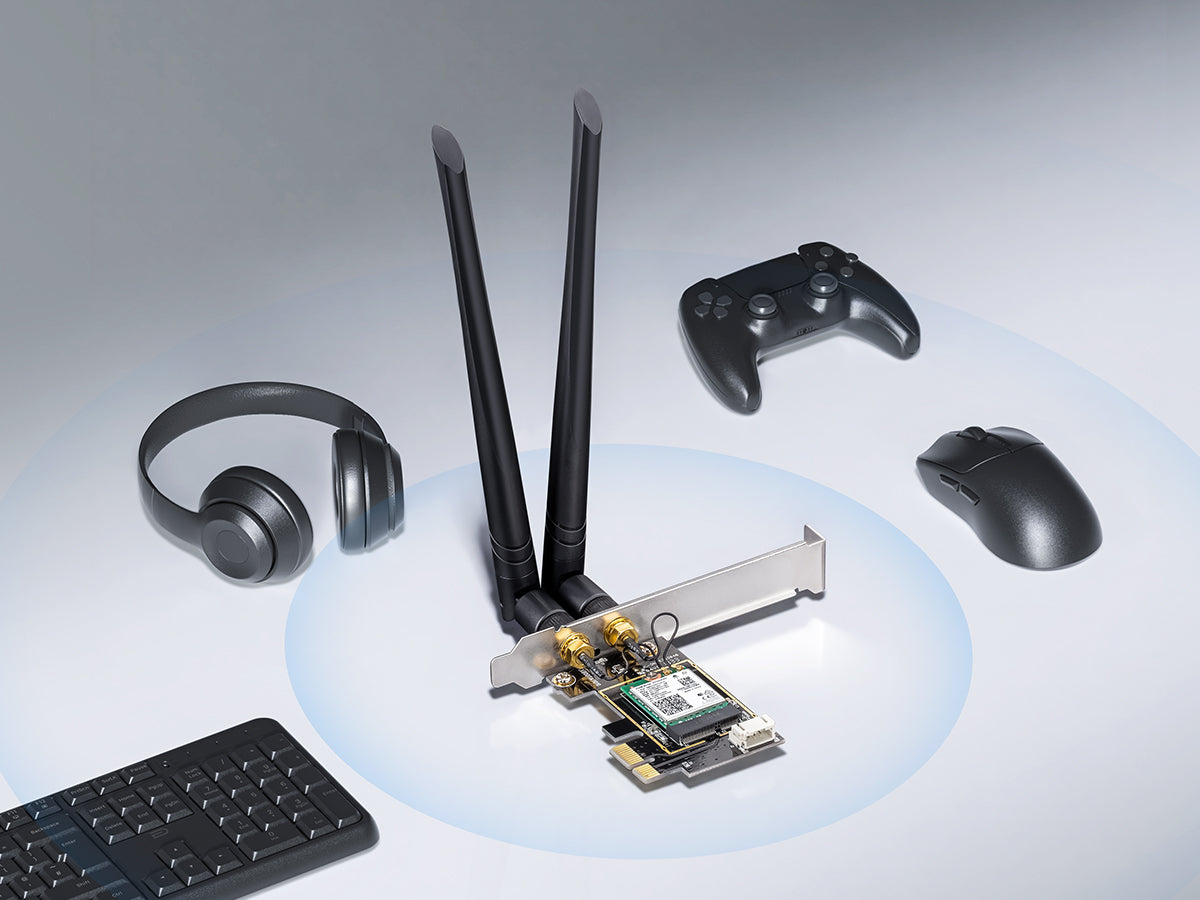

Bluetooth 5.2 Technology

Equipped with Bluetooth 5.2 technology, offering twice the speed and four times the range of Bluetooth 4.2. Experience stable, multi-device connectivity for game controllers, headphones, and keyboards with minimal latency.

Bluetooth 5.2 Technology

Equipped with Bluetooth 5.2 technology, offering twice the speed and four times the range of Bluetooth 4.2. Experience stable, multi-device connectivity for game controllers, headphones, and keyboards with minimal latency.

Windows 10/11 64-bit Compatible

The device is usually driver-free on newer Windows 10/11 64-bit systems, while the driver is available for download on the Cudy official website.

Latest Wi-Fi Encryption

With WPA3, the latest Wi-Fi encryption protocol, your network is better protected against brute-force attacks for safer connections.

Standard and Lower Brakets Included

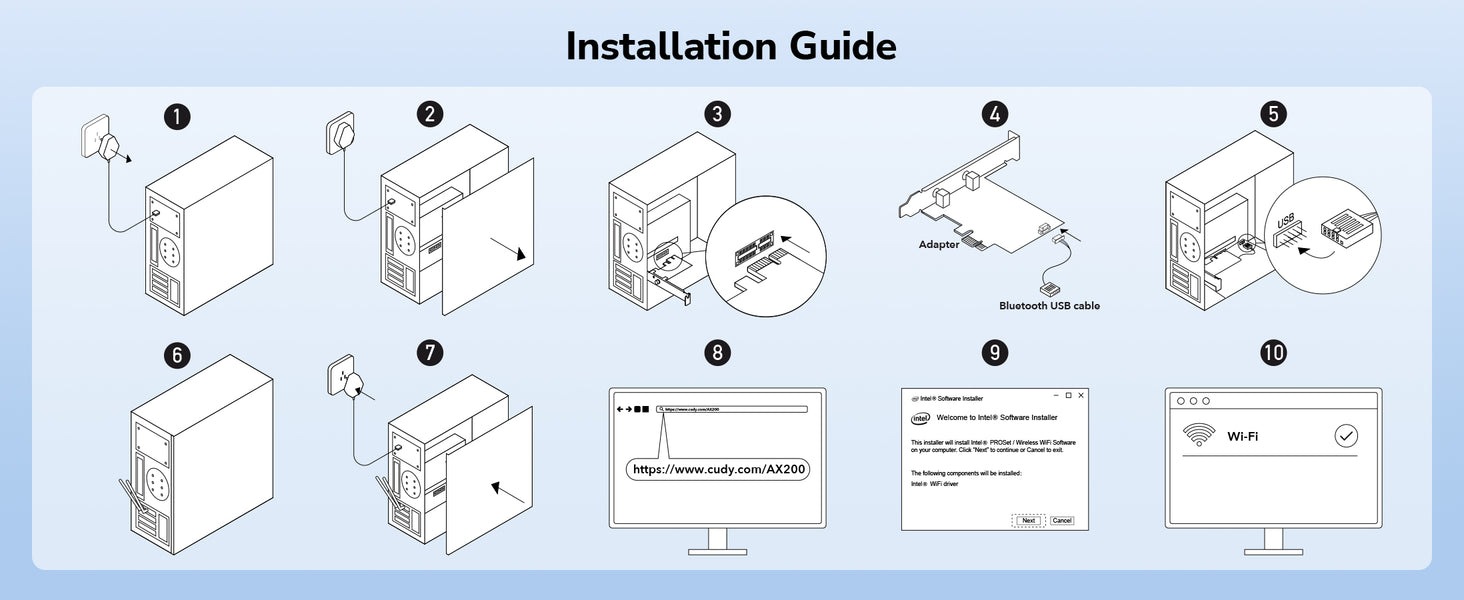

Suitable for both standard tower PCs and low-profile HTPC builds. Install the antennas and position them vertically facing your router for the optimal signal quality.

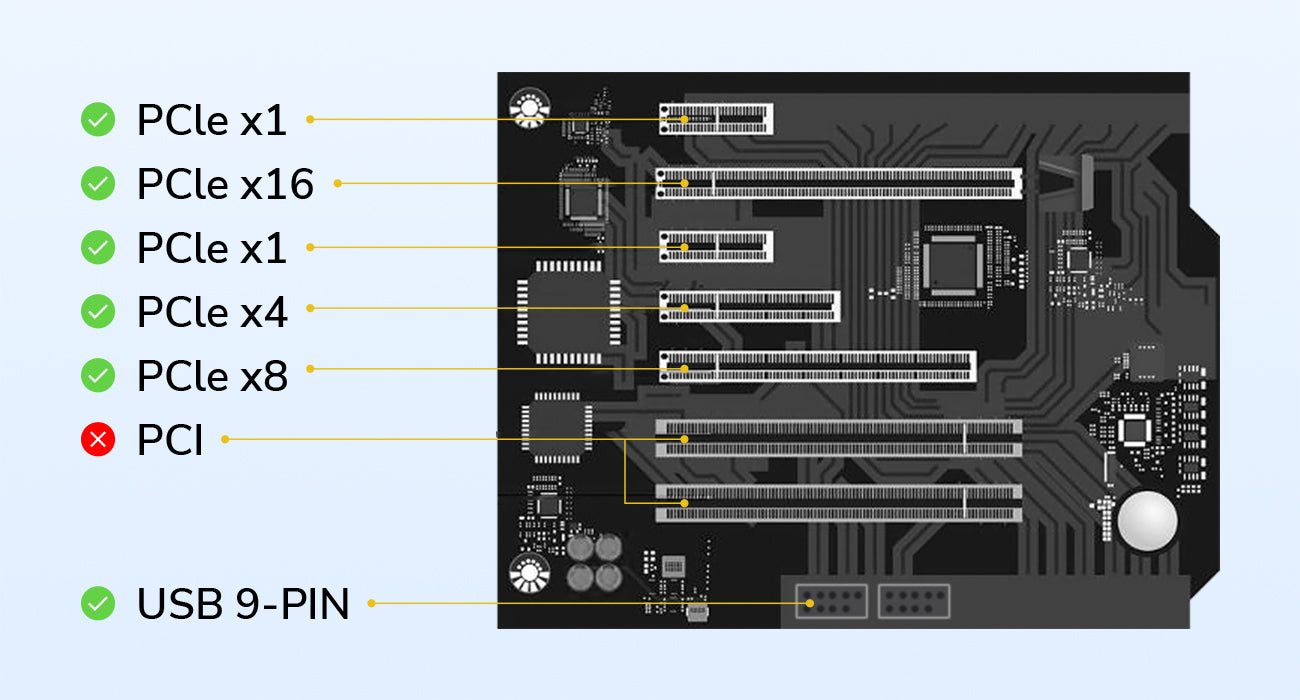

Compatible with Mainstream Motherboards

The Wi-Fi and powering requires a PCI-E 1x, 4x, 8x, or 16x slot on the motherboard. The Bluetooth function requires a USB 9-Pin connector on the motherboard.

1 6

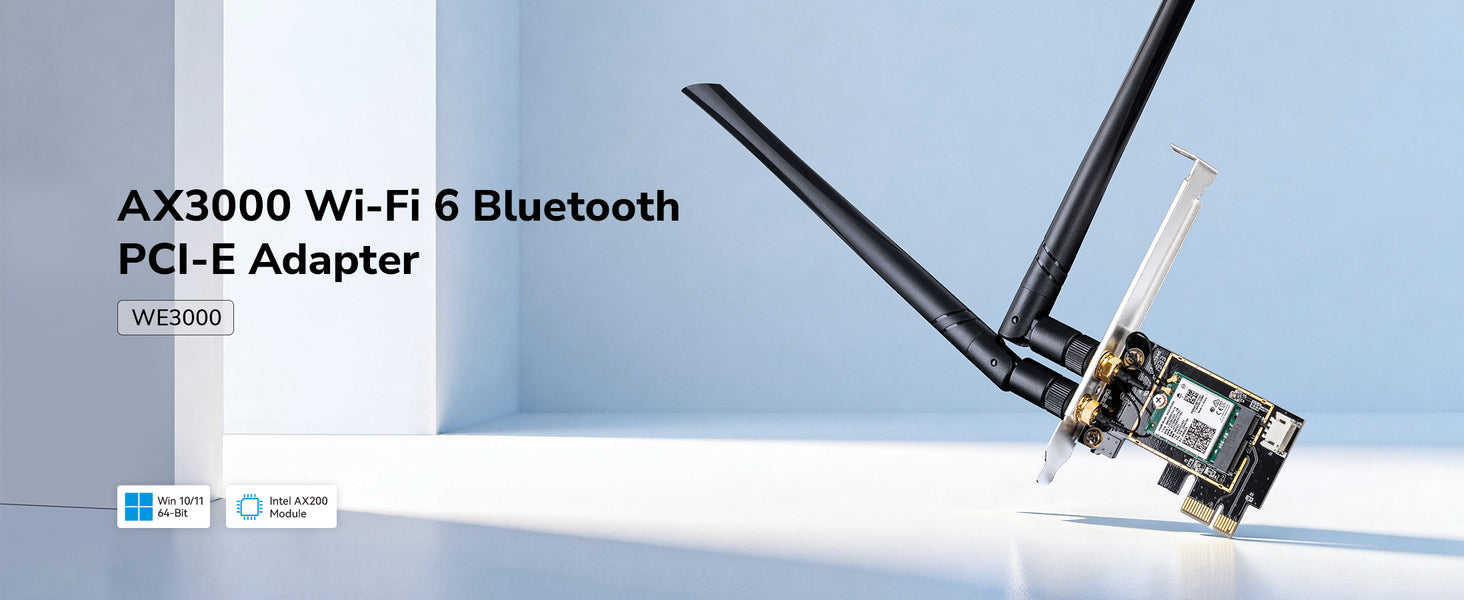

AX3000 Wi-Fi 6 Bluetooth PCI-E Adapter

AX3000 Wi-Fi 6 Bluetooth PCI-E Adapter, WE3000 1.0

WE3000 1.0

A Wi-Fi 6 and Bluetooth PCI-E adapter built on an AX200 Intel module. Install it to equip your Windows 10/11 PC with advanced wireless connectivity.

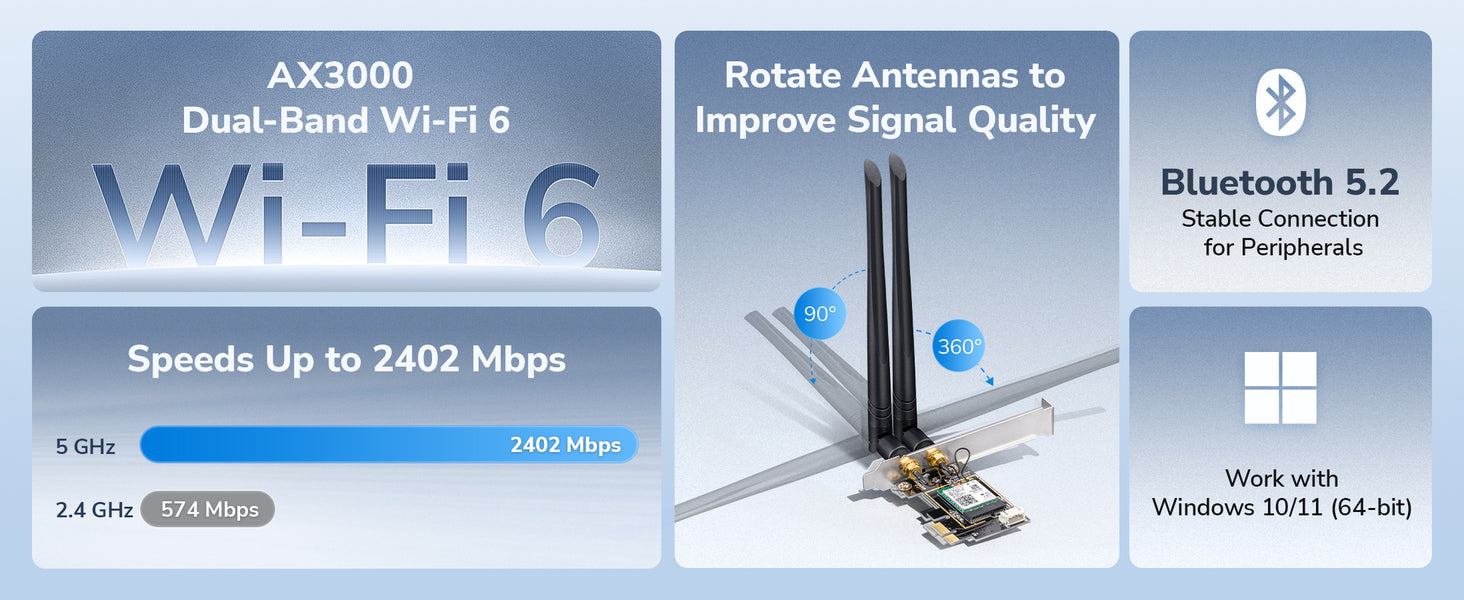

  • Dual-Band Wi-Fi 6
  • 2.4 Gbps + 574 Mbps Wi-Fi 1
  • Bluetooth 5.2
  • Intel AX200 Module
  • Works on Windows 10/11
View full details
Hardware Specs
Software Specs
Model Version
Model Version WE3000 1.0
Wireless
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 2× Detachable
Detachable Wi-Fi Antennas Connector RP-SMA Female
Reliability
Reliability Environment
  • Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Requirements
Requirements Hardware Requirement
  • Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the WiFi function
  • Requires a USB 9-PIN slot on the motherboard for the Bluetooth function
Compatible OS Windows 10/11 64-Bit
Driver Installation Manual driver installation for Windows. Driver available in the Download Center.
Certifications
Certifications FCC, CE
Mechanical

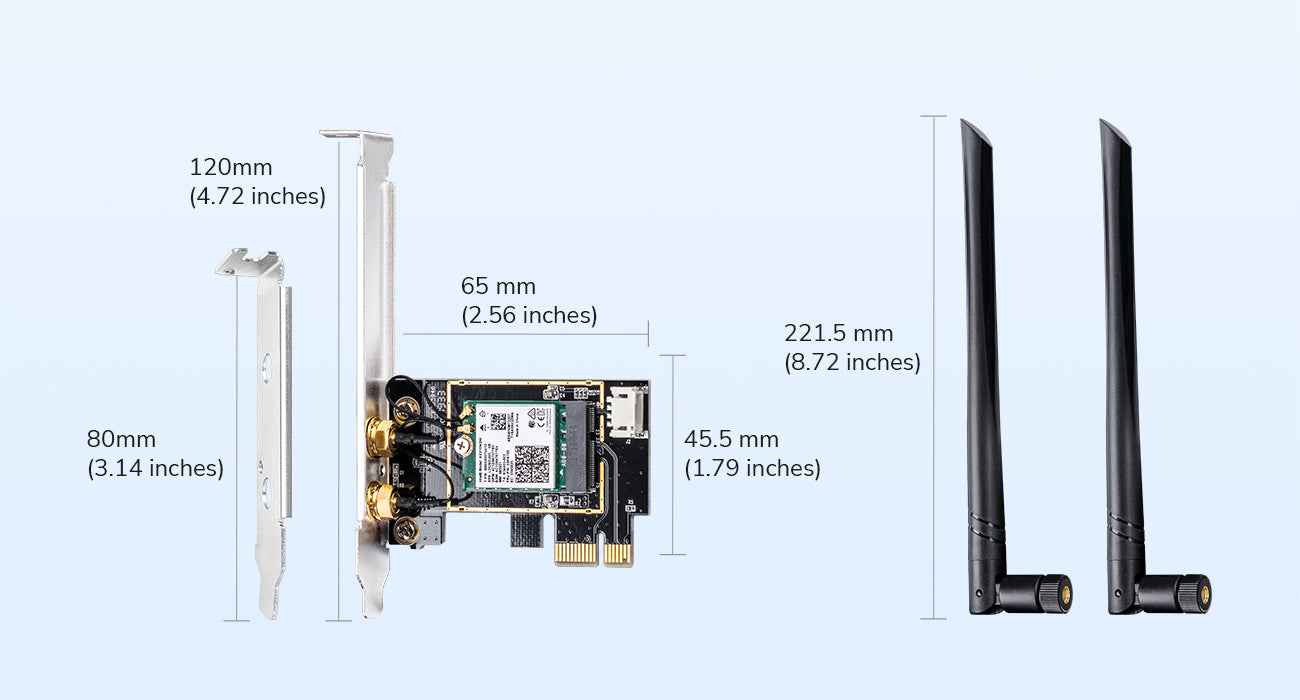

Mechanical Dimension Main Part (without the bracket):
65×45.5×16 mm
2.56×1.79×0.63 inches
Each Antenna:
Φ15×221.5 mm
Φ0.59×8.72 inches
Product Weight 71 g (2.5 oz.)
Package Content
Package Content
  • WE3000
  • Detachable Antennas
  • Bluetooth to 9-PIN USB Cable
  • Low-Profile Bracket
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight 197 g (6.95 oz.)
Retail Package Dimension 230×105×35 mm
9.06×4.13×1.38 inches
Carton Net Weight 9.9 kg (21.83 lbs)
Carton Gross Weight 10.8 kg (23.81 lbs)
Units per Carton 50
Carton Dimension 55.2×38×25.5 cm
21.73×14.96×10.04 inches
Model Version
Model Version WE3000 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Bluetooth Standards Bluetooth 5.2
Drivers
Drivers Manual Installation. Driver is available in the download center.
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
