POE350

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af/bt. Max 90W Output.

The generous 90W power budget easily supports a wide range of devices, including high-power clients like PTZ cameras with heaters, multi-screen kiosks, and advanced access control terminals.

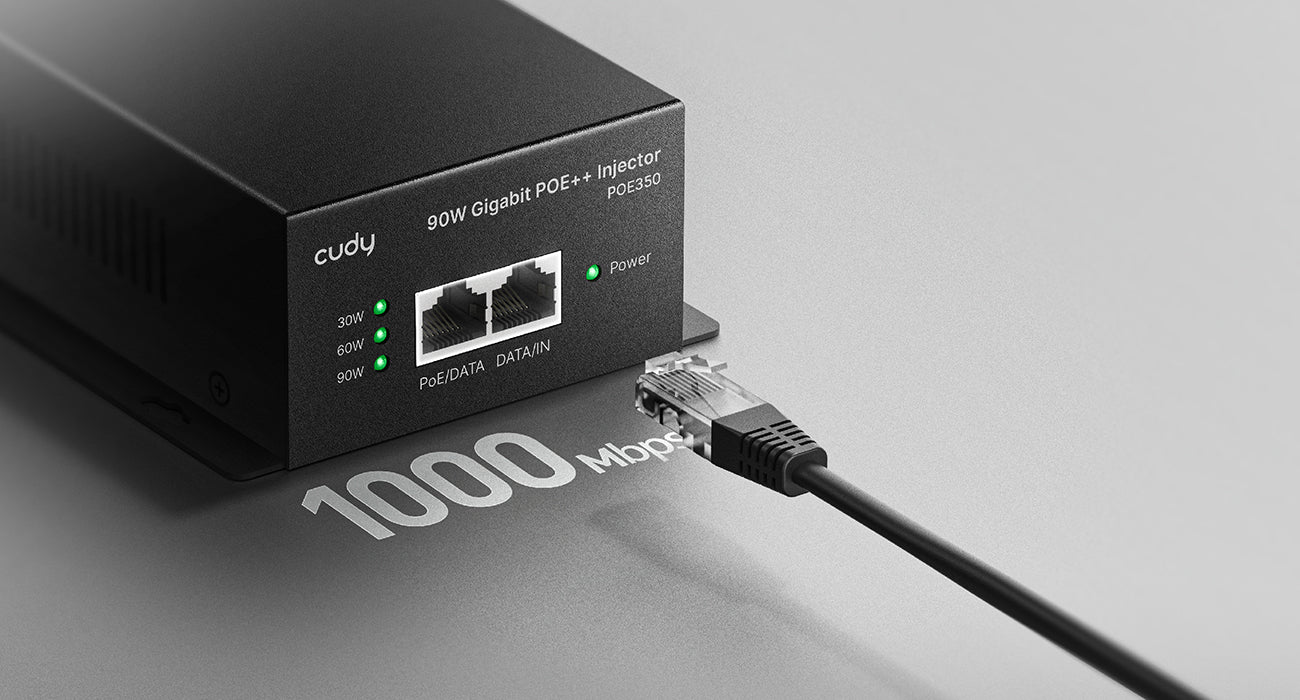

10/100/1000 Mbps Speeds

Stream data at full speed for bandwidth-intensive clients such as access points and AV encorders/decoders with no performance loss.

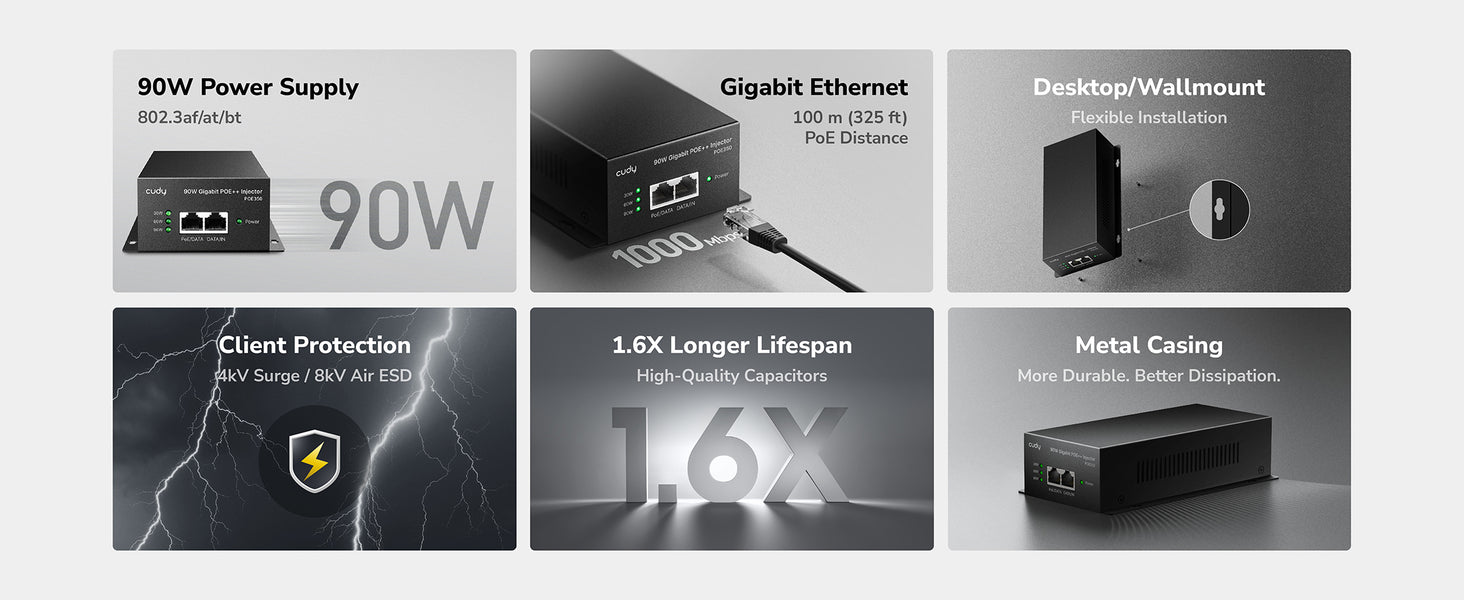

Exceptional Built-Quality for Stable Operation

Protect Clients with Outstanding EMC

Robust EMC design protects itself and clients from power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV

Built to Last Longer with High-Quality Capacitors

Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.

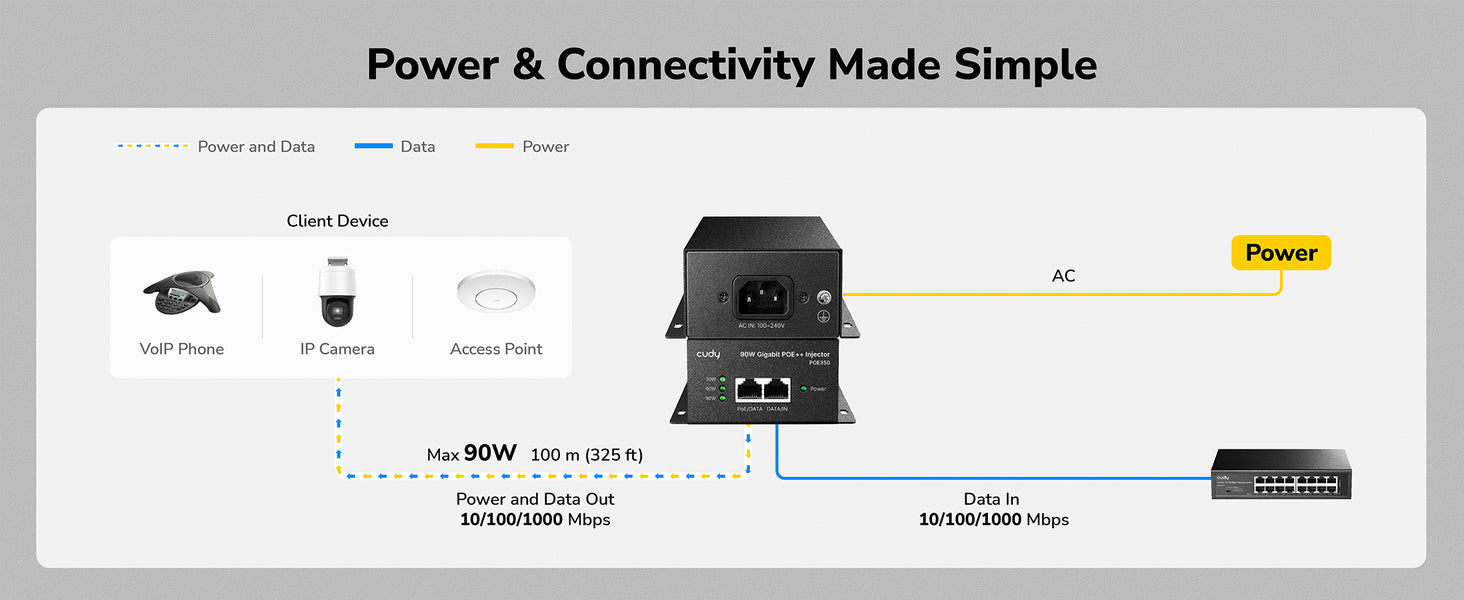

Easy to Use. Plug and Play.

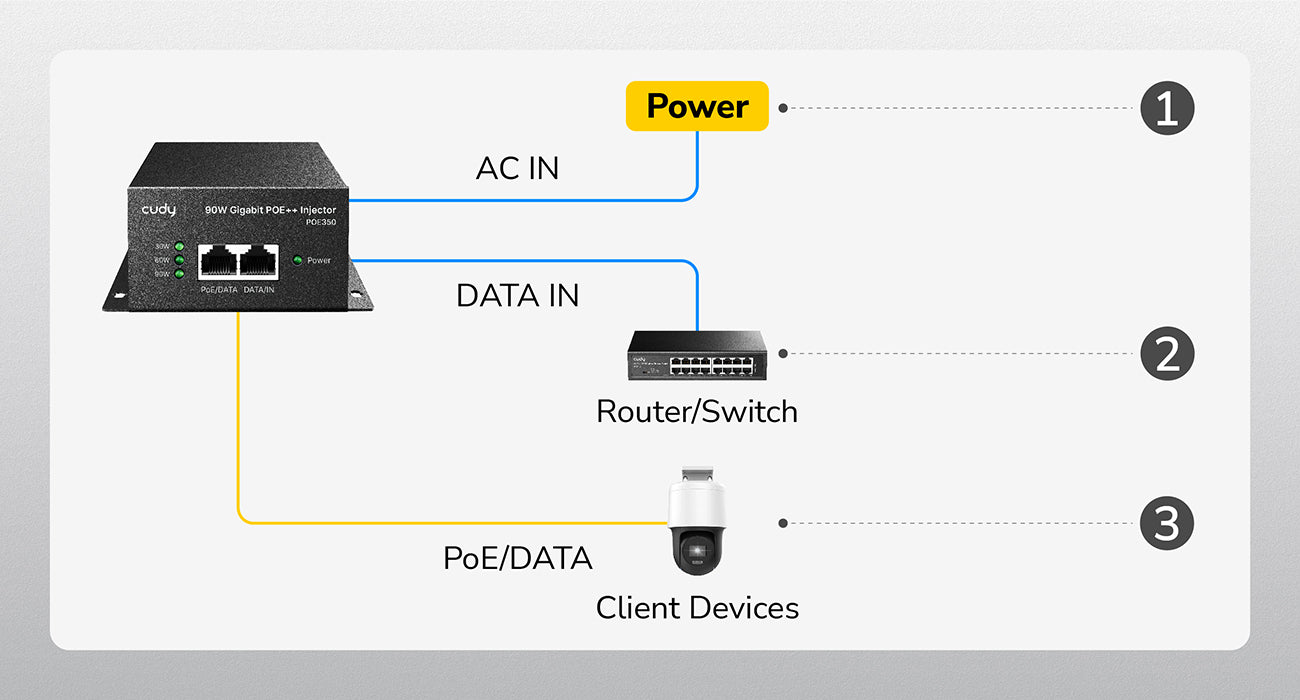

Auto Negotiating the Power Needed

Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.

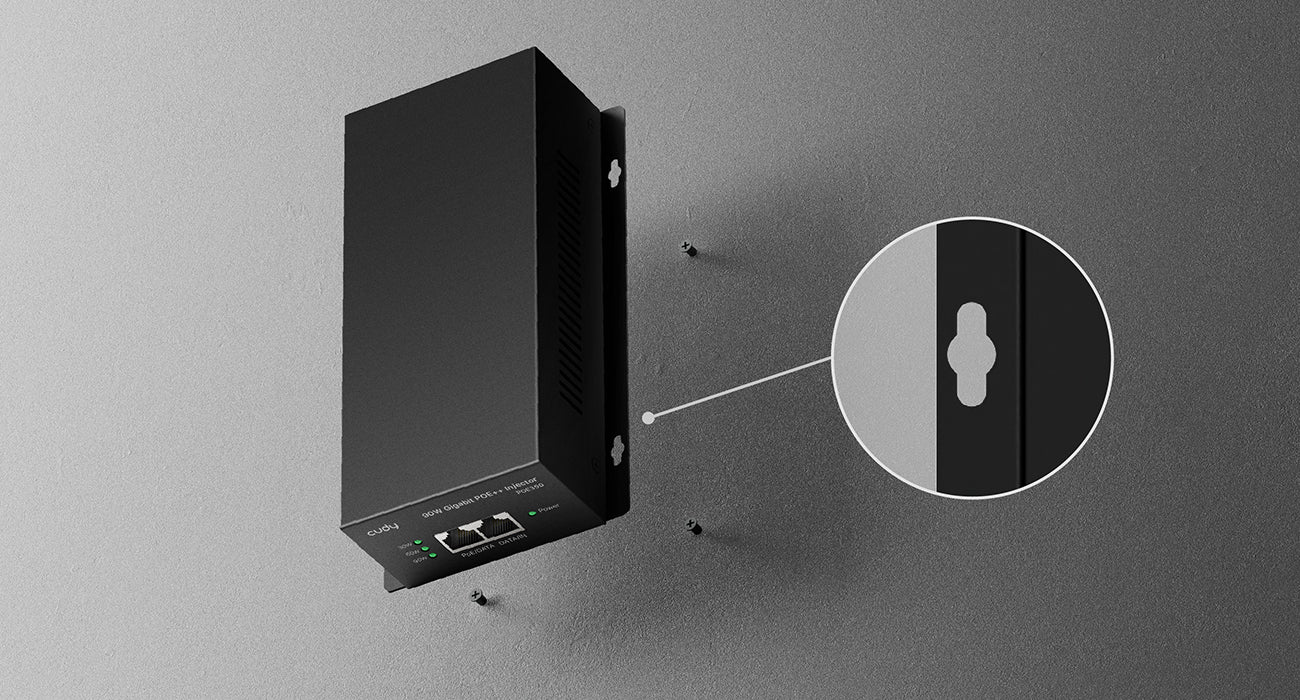

Wallmount Ready

Featuring two mounting holes on the back to allow you mount it on the walls.

1 6

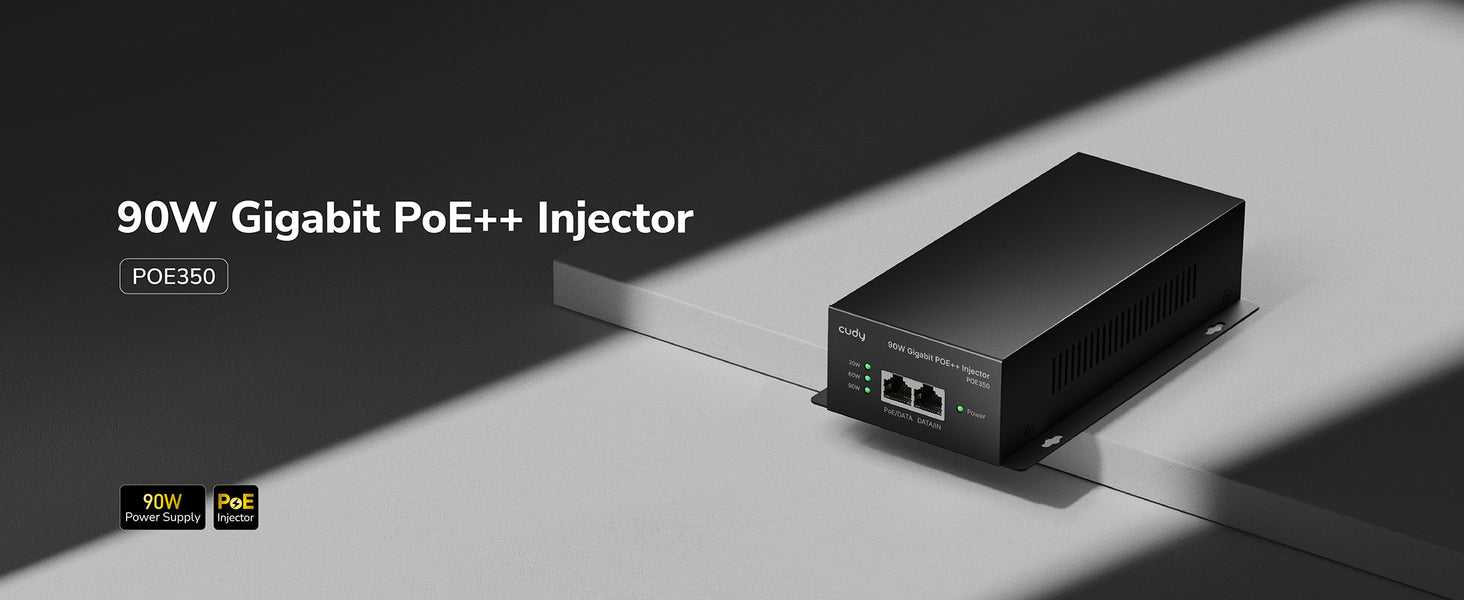

90W Gigabit PoE++ Injector

90W Gigabit PoE++ Injector, POE350 2.0

POE350 2.0

A wall-mounted metal casing PoE adapter injecting up to 90W power to the Ethernet cable to power up the PoE device.

  • GbE-Eingang, GbE-Ausgang
  • 100 m Übertragungsreichweite
  • 802.3bt/at/af, max. 90 W
  • Power- und PoE-Modus-LED
  • Überspannungsschutz
Vollständige Details anzeigen
Modellversion
Modellversion POE350 2.0
Protocols
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3af PoE
  • 802.3at PoE
  • 802.3bt PoE
PoE
PoE Uplink Stream 1× GbE
Downlink Stream 1× GbE, 802.3at/af/bt
Downlink Pin Assignment Four-Pair
Transimission Distance
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces
Interfaces LED
  • Power
  • PoE Wattage
Power Input AC Inlet
Power
Power AC 100-240V, 50/60Hz, 2.2A
Max Power Output 90W, 54V⎓1.67A
Reliability
Reliability Power Protection
  • Surge Protection
  • ESD Protection
  • Overvoltage Protection
  • Short-Circuit Protection
EMC EN55032 Class A
EN55035 Class A
EMI FCC 47 CFR Part 15B Class A
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
Grounding Methods
  • Grounding Point
  • Three-Prong Plug
Environment Ambient Operating Temperature: -10~40 ℃ (14~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension Main Part:
178×80×46 mm
7.01×3.15×1.81 inches
Each Bracket:
10 mm
0.39 inches
Casing Material Metal
Package Content
Package Content
  • POE350
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 193×145×55 mm
7.6×5.71×2.17 inches
Units per Carton 20
Carton Dimension 40.8×31.5×29.5 cm
16.06×12.4×11.61 inches
