2-Kanal-PoE-Extender für den Außenbereich

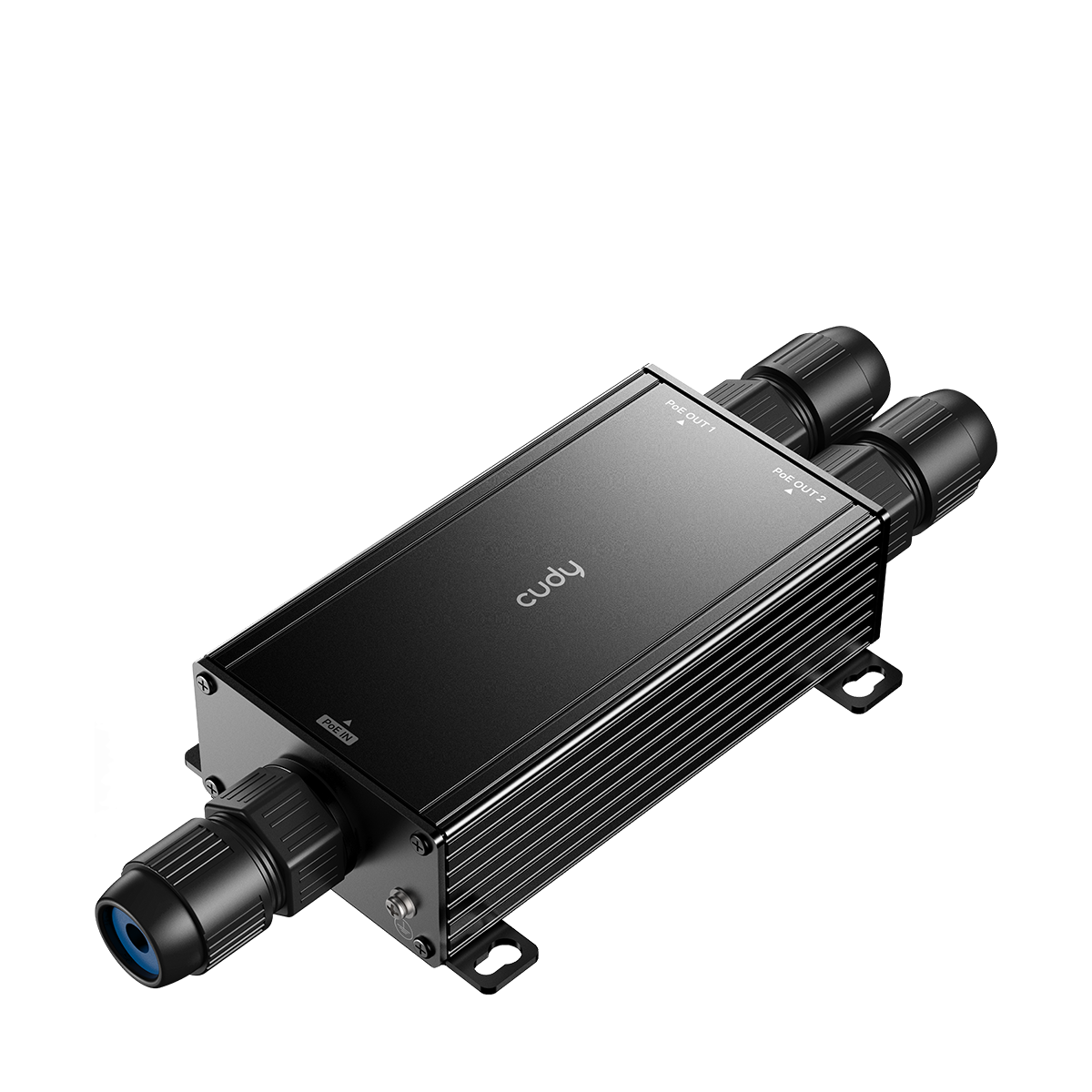

Name: 2-Kanal-PoE-Extender für den Außenbereich, POE25 2.0
Brand: Cudy

2-Kanal-PoE-Extender für den Außenbereich, POE25 2.0

Produktvarianten

Ein wetterfester 2-Kanal-PoE-Extender, der die PoE-Entfernung um 100 m verlängert.

Modellversion
Modellversion	POE25 2.0
Protocols
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE 802.3bt PoE
PoE
PoE	Uplink Stream	1× GbE, 802.3bt/at/af
	Uplink PIN Assignment	Mode A / Mode B / Four-Pair
	Downlink Stream	2× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit
Power
Power	Power Input	≥60W is recommended
	Max Power Output	2× 30W
	Max Power Output Note	The actual power output depends on input
Reliability
Reliability	Client Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection Automatic Voltage Regulation
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level X Surge: RJ45: CM 6kV
	Grounding Methods	Grounding Point
	Environment	Ambient Operating Temperature: -20~70 ℃ (-4~158 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~100% non-condensing Storage Humidity: 5%~95% non-condensing
	Ingress Protection Rating	IP67
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Desktop Wall-mount
	Dimension	241×95×41.3 mm 9.49×3.74×1.63 inches
	Casing Material	Metal
Package Content
Package Content	POE25 Mounting Kit Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	210×127×52 mm 8.27×5×2.05 inches
	Units per Carton	20
	Carton Dimension	44.3×28.4×27.9 cm 17.44×11.18×10.98 inches
