Responsive and Wide-Coverage Wi-Fi for SMB

AP1200 delivers seamless, high-speed dual-band Wi-Fi that supports both new and legacy devices on their respective bands. Ideal for small-sized offices, and classrooms.

Responsive and Wide-Coverage Wi-Fi for SMB

AP1200 delivers seamless, high-speed dual-band Wi-Fi that supports both new and legacy devices on their respective bands. Ideal for small-sized offices, and classrooms.

Connect More Devices

With MU-MIMO technology, multiple devices can receive data simultaneously, enhancing efficiency and performance even under heavy usage.

Boosted Coverage

Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.

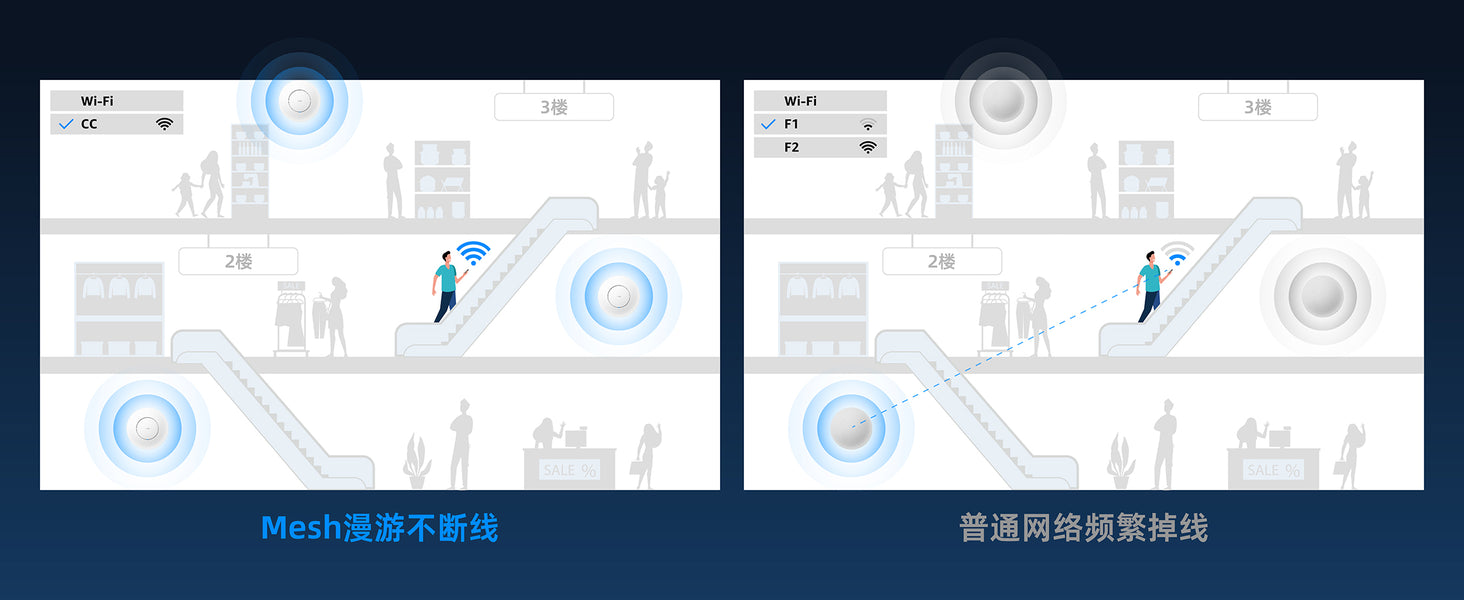

無縫覆蓋、快速漫遊

Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

先進的業務功能

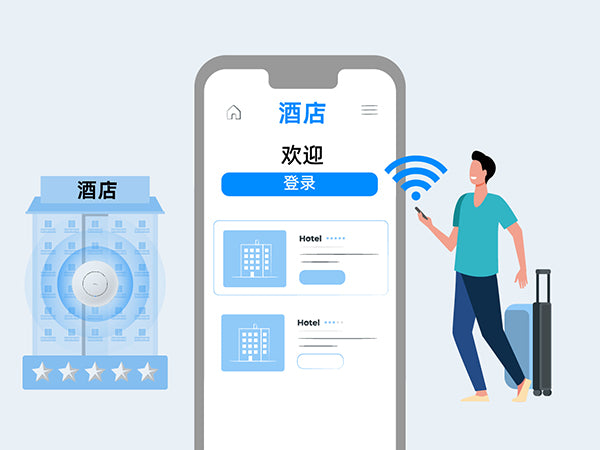

強制門戶

Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).

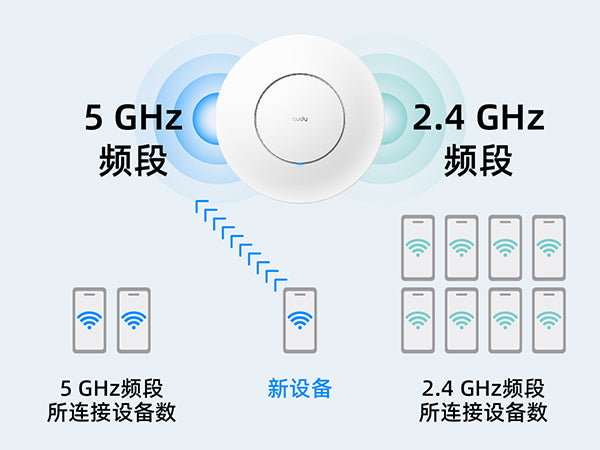

樂團轉向

Assign devices to less congested bands.

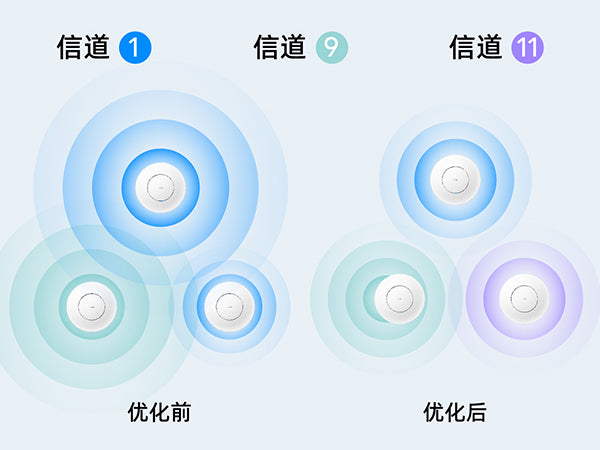

自動頻道選擇

Avoid signal interruptions with nearby access points.

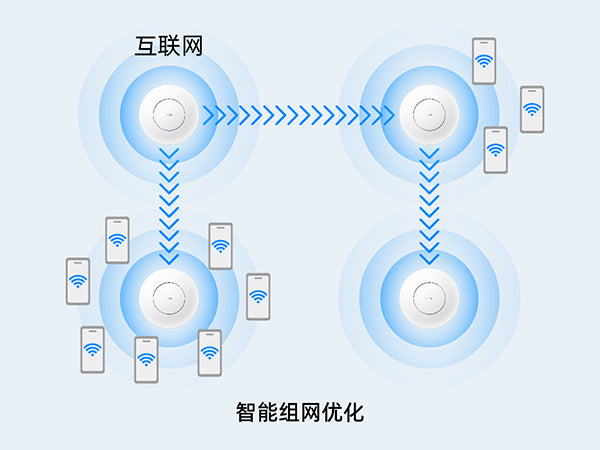

自動網格優化

自動透過較不擁塞的路由形成網狀回程.

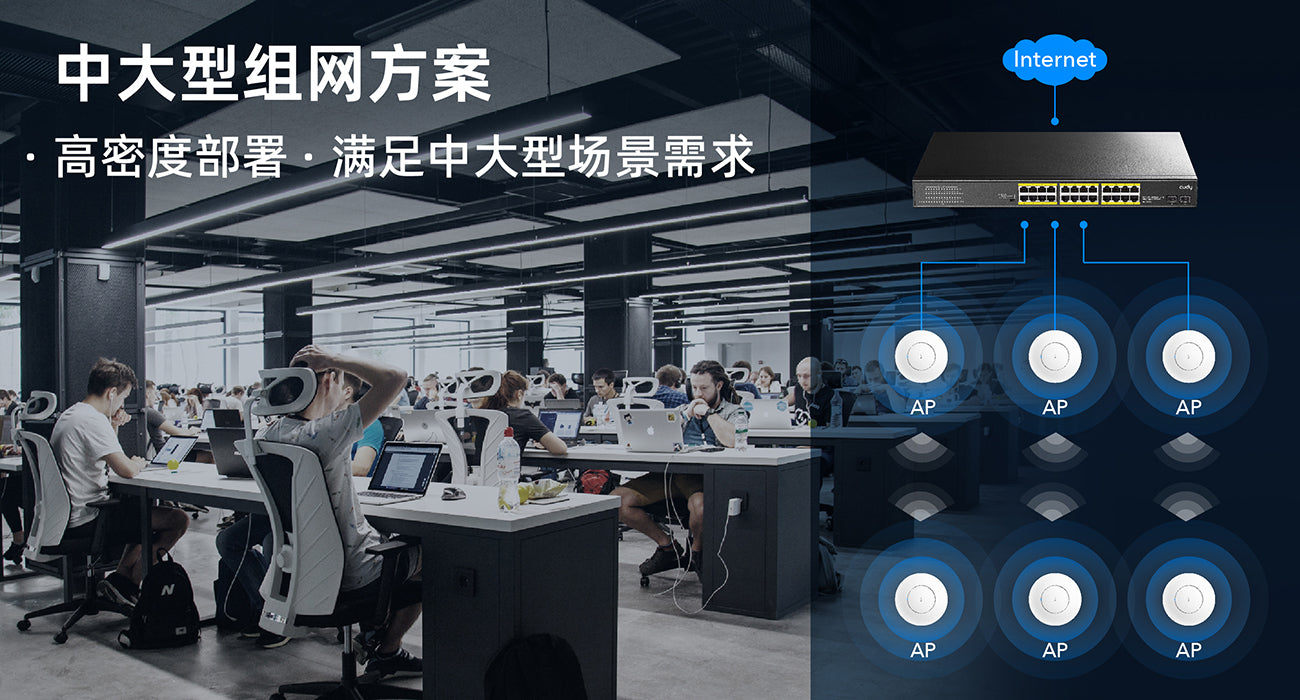

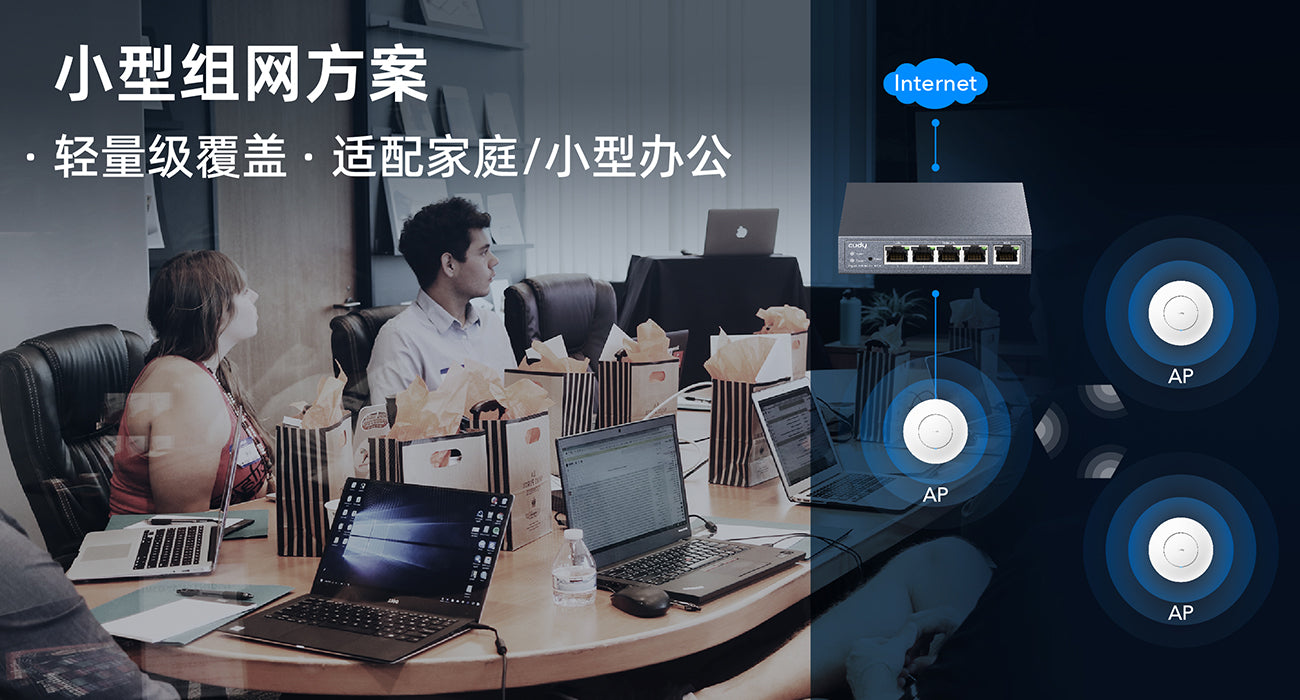

靈活的有線和無線混合回程

簡單的無線網狀回程

混合回程實現更高效能

Multi-Mode for Multiple Scenarios

Access Point

Simply create a Wi-Fi spot behind a router.

Wi-Fi Router

Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.

Range Extender

The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

WISP

WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

Versatile Powering and Installation

PoE or DC Power Supply

Supports 802.3at/af PoE, 24-57V Passive PoE, and DC Power Supply. DC power adapter is included in the box.

Versatile Mounting

Mounting kits are included in the box.

NaN -Infinity

AC1200 Wi-Fi 存取點、AP1200 1.0

Name: AC1200 Wi-Fi 存取點、AP1200 1.0
Brand: Cudy

AP1200 1.0

產品子類

專為小型辦公室和教室設計的壁掛式/吸頂式 WiFi AP。

4 筆資料流雙頻 Wi-Fi 5
867 Mbps + 300 Mbps 無線網絡 ¹
1× 快速乙太網路連接埠（PoE 輸入）
802.3at/af、被動 PoE、直流
佔地 100 平方米（1,100 平方英尺） ²
50 個連接設備 ³

查看完整資訊

硬體規格

軟體規格

型號版本
型號版本	AP1200 1.0
CPU
CPU	CPU Details	580 MHZ Single-Core CPU
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR2
Wireless
Wireless	5 GHz Wi-Fi Speed	867 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Internal
	5 GHz Antenna Gain Max	4.64dBi
	2.4 GHz Antenna Gain Max	5.31 dBi
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces	Gigabit RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
	Power Input	DC Jack PoE via Ethernet Port
Power
Power	Power Methods	DC Passive PoE 802.3at/af PoE
	DC	12V 1A
	Passive PoE	24V
	Power Adapter	AP1200 \| DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC AP1200P \| PoE Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 24V Passive PoE
	Max Power Consumption (W)	12 W
	Idle Power Consumption (W)	2.5 W
Reliability
Reliability	EMS	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	Φ231.9×57.1 mm Φ9.13×2.25 inches
	Product Weight	370.5 g (13.07 oz.)
Package Content
Package Content	AP1200 Power Adapter Mounting Kit Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	EU: 781.1 g (27.55 oz.)
	Retail Package Dimension	283×238×68 mm 11.14×9.37×2.68 inches
	Units per Carton	20
	Carton Net Weight	9.26 kg (20.41 lbs) EU: 15.6 kg (34.39 lbs)
	Carton Gross Weight	10.24 kg (22.58 lbs) EU: 16.7 kg (36.82 lbs)
	Carton Dimension	58×37.5×49.5 cm 22.83×14.76×19.49 inches

型號版本
型號版本	AP1200 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	50
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	Captive Portal	True
	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	True
	Online Detection	True
Management
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
General
General	Internet Failover Sequence	WAN WISP

實際無線資料吞吐量會因網路條件、客戶端限制和環境因素（包括建築佈局、障礙物和客戶端位置）而有所不同。
無線覆蓋範圍聲明僅供參考。覆蓋性能會因環境因素（包括建築佈局、障礙物、交通量和密度以及設備位置）而有所不同。為了獲得最佳覆蓋範圍，請將裝置放置在需要 Wi-Fi 的區域的中心位置。
多個設備的實際性能可能會受到所使用的應用程式類型、總可用頻寬和設備功能的影響。連接較舊的 Wi-Fi 設備（舊標準）可能會降低整體效率。使用效率功能需要也支援這些功能的相容客戶端設備。在規格電子表格的軟體部分中尋找有關支援的效率功能的更多資訊。
