AX3000 2.5G Wi-Fi 6 存取點、AP3000 1.0

AX3000 2.5G Wi-Fi 6 存取點、AP3000 1.0

AP3000 1.0

包裝盒內的轉接器

壁掛式/吸頂式 WiFi 6 AP，具有大內存和屏蔽 2.5G 端口，專為連接交通樞紐、酒店、辦公室、報告廳和教室而設計。

  • 1.3GHz 雙核心 CPU
  • 512MB 內存
  • 4 筆資料流雙頻 Wi-Fi 6
  • 2402 Mbps + 574 Mbps 無線網絡 1
  • 1× 屏蔽 2.5GbE PoE 輸入
  • 802.3at、被動 PoE、直流
  • 看門狗，安排重啟
  • 300 個連接設備 2
  • 佔地 130 平方米（1,400 平方英尺） 3
查看完整資訊

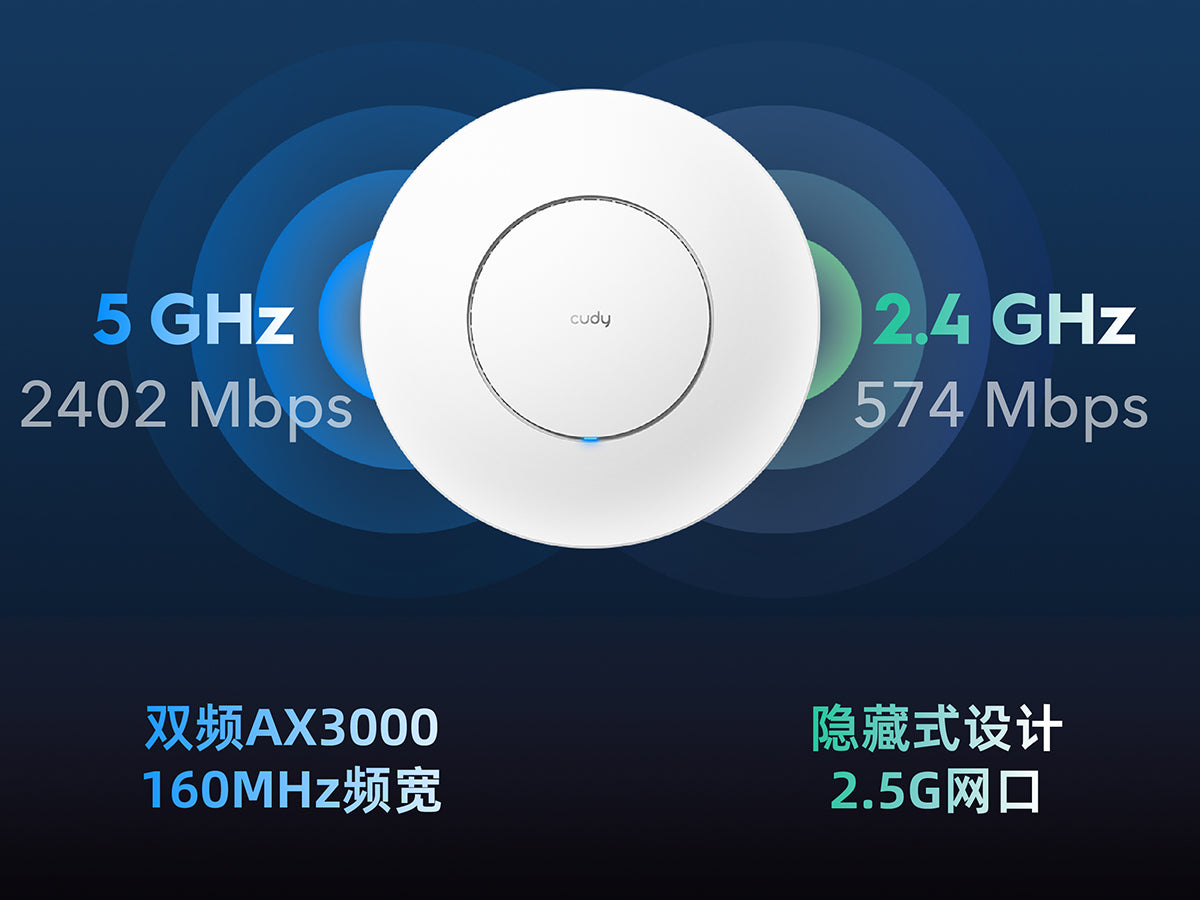

帶 2.5G 連接埠的高級 Wi-Fi 6

Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.

帶 2.5G 連接埠的高級 Wi-Fi 6

Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth, enabled by the highest 160 MHz channel width in Wi-Fi 6. A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering, even in a complex electromagnetic environment.

連接 512 個具有 512 MB RAM 的設備

1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.

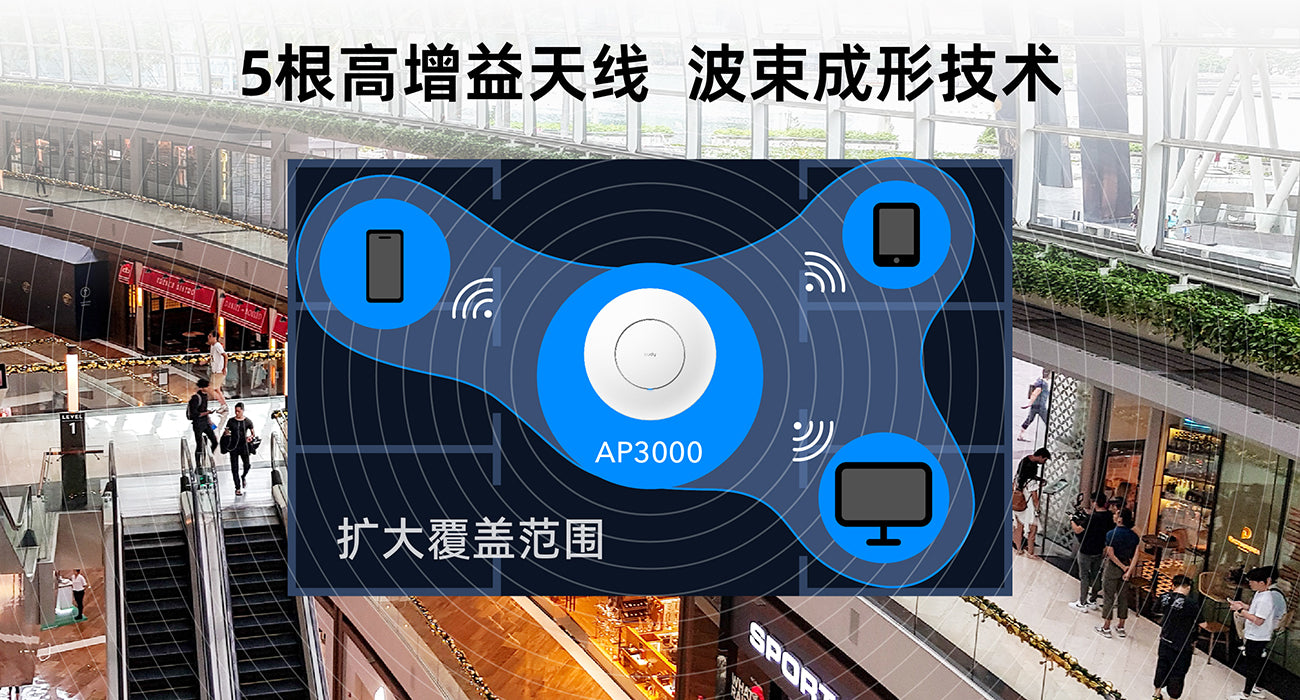

5根天線和3+2結構增強覆蓋

Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices' directions and boosts signal towards them.

無縫覆蓋、快速漫遊

Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

先進的業務功能

強制門戶

Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).

樂團轉向

將裝置指派到不太擁擠的頻段。

自動頻道選擇

避免附近存取點的訊號中斷。

自動網格優化

自動透過較不擁塞的路由形成網狀回程.

多模式多場景

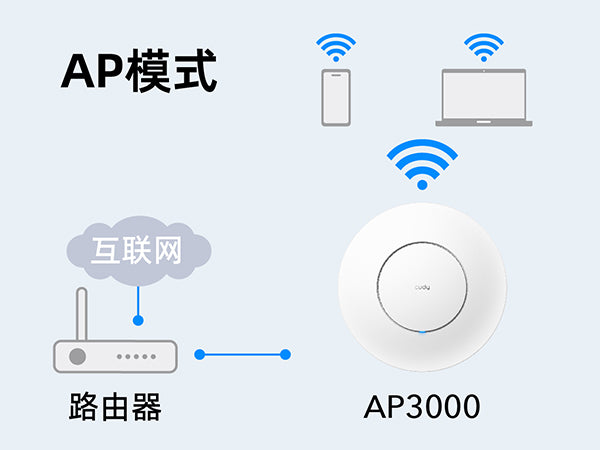

存取點

只需在路由器後面建立一個 Wi-Fi 熱點。

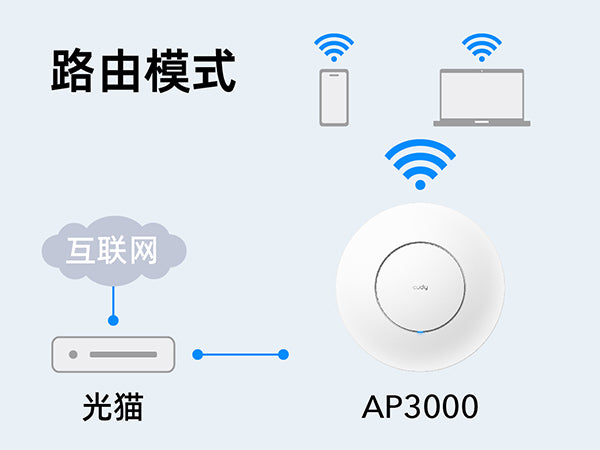

無線路由器

當需要 PPPoE 授權或建立單獨子網路時，請使用 Router 模式。

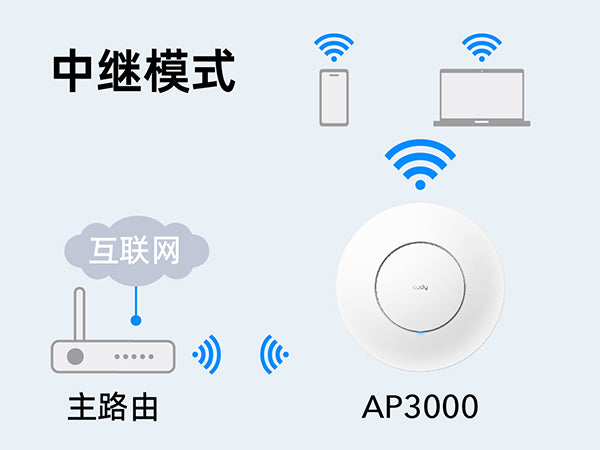

範圍擴展器

The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

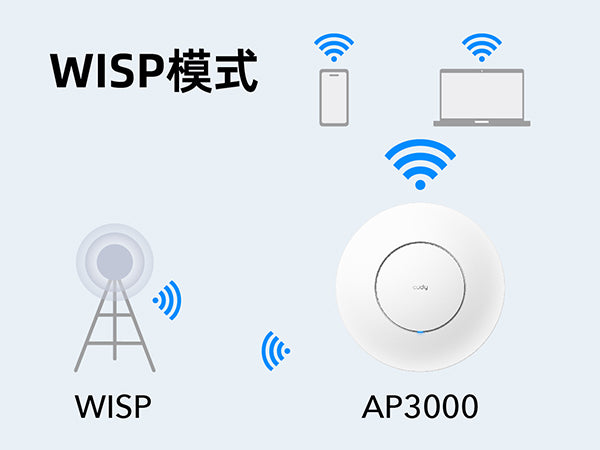

維普資訊網

WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

靈活的有線和無線混合回程

簡單的無線網狀回程

混合回程實現更高效能

多功能供電和安裝

PoE 或直流電源

  • Supports 802.3at/af PoE
  • 48-57V Passive PoE
  • 12-48V DC

多功能安裝

  • Ceiling Mounting
  • Wall Mounting
硬體規格
軟體規格
型號版本
型號版本 AP3000 1.0
CPU
CPU CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 256 MB (2 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Wireless
Wireless 5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 5× Internal
5 GHz Antenna Gain Max 5.6 dBi
2.4 GHz Antenna Gain Max 4.8 dBi
FEM or PA/LNA
  • 5 GHz: 3× External
  • 2.4 GHz: 2× External
Beamforming True
Range Performance Max: 200 m (656 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces 2.5G RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input
  • DC Jack
  • PoE via Ethernet Port
Power
Power Power Methods
  • DC
  • 802.3at/af PoE
  • Passive PoE
DC 12V 1.5A
Passive PoE 48 ~ 57V
Power Adapter AP3000 | DC Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
AP3000_P | PoE Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 12 W (48 V PoE) 12 W (DC)
Idle Power Consumption (W) 6.1 W (48 V PoE) 6.1 W (DC)
Reliability
Reliability Advanced Hardware Watchdog
EMS ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches
Product Weight 494 g (17.43 oz.)
Package Content
Package Content
  • AP3000
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight
  • With PoE Adapter (_P) | EU: 1015 g (35.8 oz.)
  • With DC Adapter | EU: 941 g (33.19 oz.)
Retail Package Dimension 283×238×68 mm
11.14×9.37×2.68 inches
Units per Carton 20
Carton Net Weight
  • With PoE Adapter (_P) | EU: 20.3 kg (44.75 lbs)
  • With DC Adapter | EU: 18.8 kg (41.45 lbs)
  • With DC Adapter | UK: 19 kg (41.89 lbs)
Carton Gross Weight
  • With PoE Adapter (_P) | EU: 21.7 kg (47.84 lbs)
  • With DC Adapter | EU: 20.0 kg (44.09 lbs)
  • With DC Adapter | UK: 20.2 kg (44.53 lbs)
Carton Dimension 58×37.5×49.5 cm
22.83×14.76×19.49 inches
型號版本
型號版本 AP3000 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 256
Recommended Client Upper Limit 100
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul True
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities Captive Portal True
VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
General
General Internet Failover Sequence
  • WAN
  • WISP
  1. 實際無線資料吞吐量會因網路條件、客戶端限制和環境因素（包括建築佈局、障礙物和客戶端位置）而有所不同。
  2. 多個設備的實際性能可能會受到所使用的應用程式類型、總可用頻寬和設備功能的影響。連接較舊的 Wi-Fi 設備（舊標準）可能會降低整體效率。使用效率功能需要也支援這些功能的相容客戶端設備。在規格電子表格的軟體部分中尋找有關支援的效率功能的更多資訊。
  3. 無線覆蓋範圍聲明僅供參考。覆蓋性能會因環境因素（包括建築佈局、障礙物、交通量和密度以及設備位置）而有所不同。為了獲得最佳覆蓋範圍，請將裝置放置在需要 Wi-Fi 的區域的中心位置。
