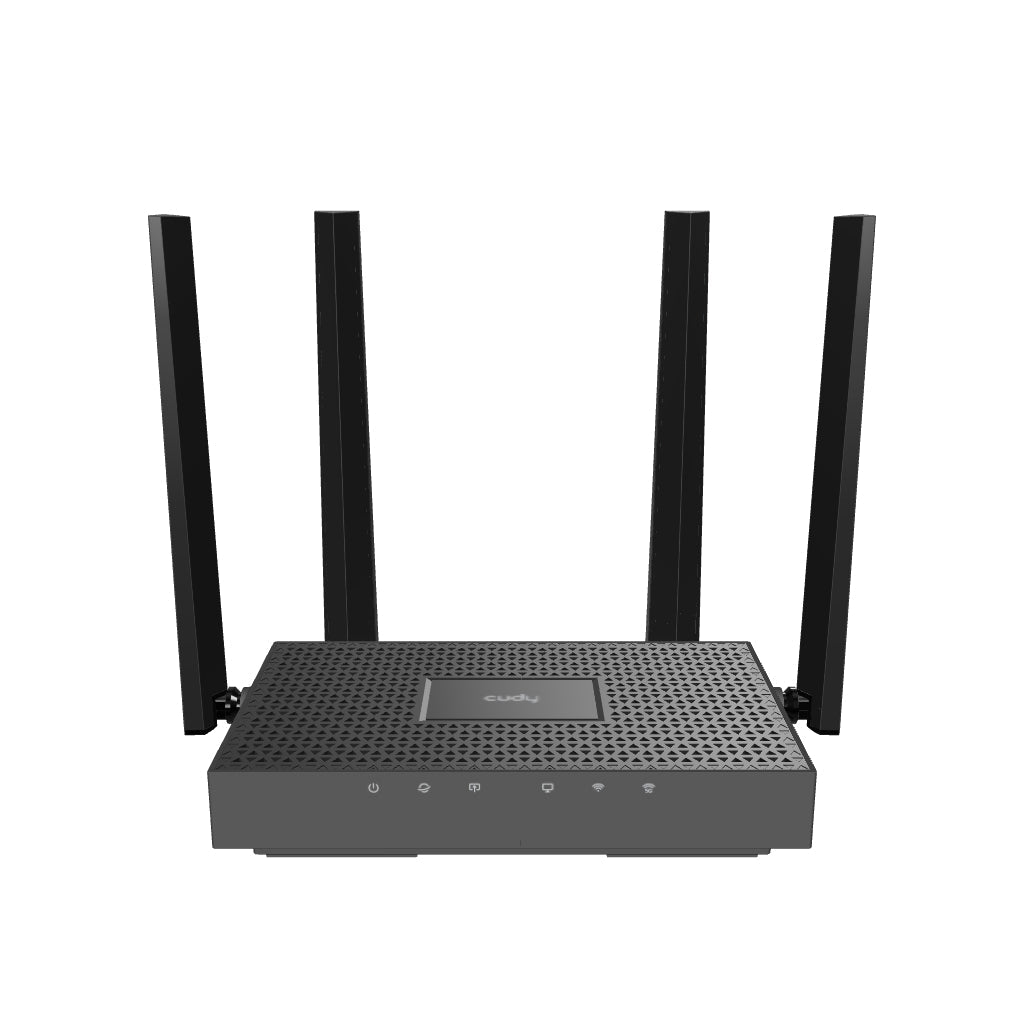

Router Wi-Fi 7 mesh BE5000 2.5G

Router Wi-Fi 7 mesh BE5000 2.5G, WR5000 1.0

WR5000 1.0

Un router WiFi 7 dual-band con una velocità complessiva di 5 Gbps, caratterizzato da un design con copertura extra 3T3R, adatto all'accesso a Internet multi-Gig, ai giochi e a scenari su larga scala.

  • Wi-Fi dual band a 5 flussi 7
  • Wi-Fi 4320Mbps + 688Mbps 1
  • 1×2,5GbE e 4×GbE
  • 200 dispositivi connessi 2
  • Cudy Mesh, server e client VPN
  • App Cudy, controllo tramite cloud
Visualizza dettagli completi
Specifiche hardware
Specifiche del software
Versione del modello
Versione del modello WR5000 1.0
CPU
CPU CPU Details Quad-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3L
Wireless
Wireless 5 GHz Wi-Fi Speed 4324 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 4
Ethernet Notes The 2.5G port is WAN port, the Gigabit ports are LAN ports
LED
  • System
  • Internet
  • WAN
  • LAN
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power
Power Power Methods DC
DC Input 12V 1.5A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
Max Power Consumption (W) 14W
Idle Power Consumption (W) 4.9W
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension Main Part:
183.3×109×38 mm
7.22×4.29×1.5 inches
Antenna:
175 mm
6.89 inches
Package Content
Package Content
  • WR5000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 330×256×60 mm
12.99×10.08×2.36 inches
Units per Carton 10
Carton Dimension 52.8×31.7×34.7 cm
20.79×12.48×13.66 inches
Versione del modello
Versione del modello WR5000 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 7
Max Wi-Fi Modulation 4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul True
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. La velocità effettiva dei dati wireless varierà in base alle condizioni della rete, alle limitazioni del client e a fattori ambientali tra cui la disposizione dell'edificio, gli ostacoli e la posizione del client.
  2. Le prestazioni effettive per più dispositivi potrebbero essere influenzate dai tipi di applicazioni utilizzate, dalla larghezza di banda totale disponibile e dalle funzionalità dei dispositivi. Il collegamento di dispositivi Wi-Fi meno recenti (standard legacy) può ridurre l'efficienza complessiva. L'utilizzo delle funzionalità di efficienza richiede dispositivi client compatibili che supportino anche tali funzionalità. Puoi trovare ulteriori informazioni sulle funzionalità di efficienza supportate nella sezione software del foglio di calcolo delle specifiche.
