Sistema a rete
M1500

Always Connected to the Best Signal

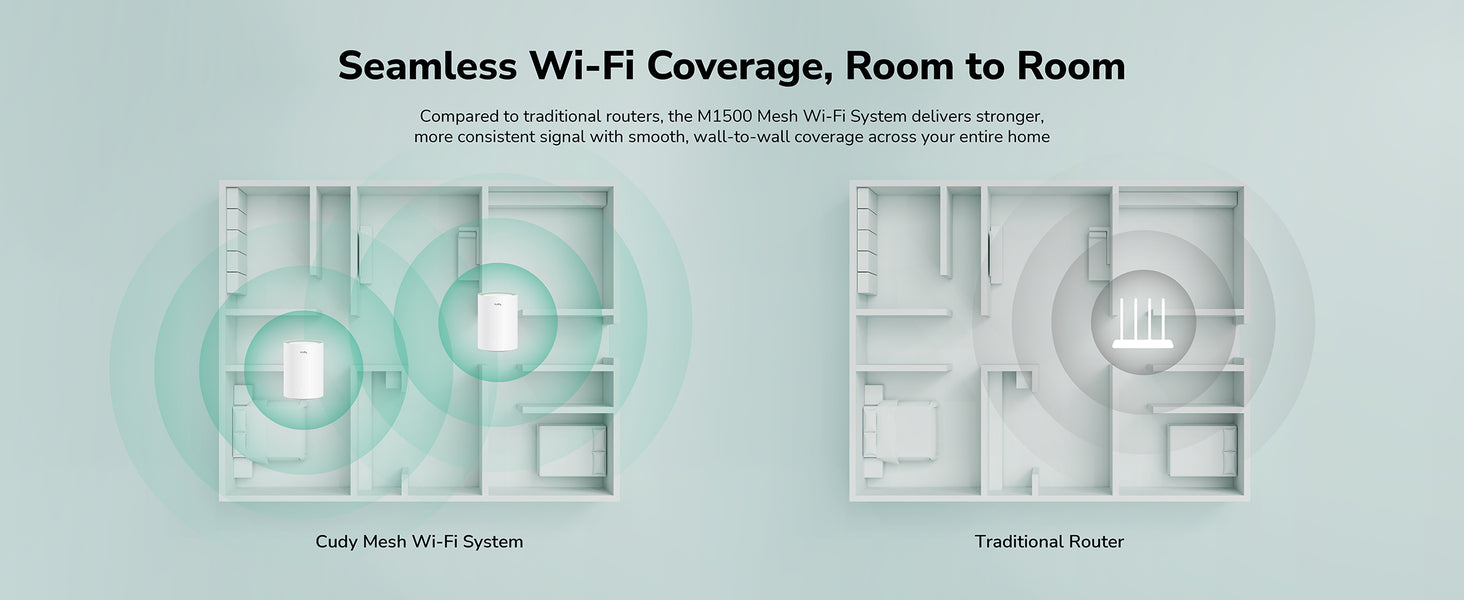

Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.

Always Connected to the Best Signal

Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.

Wired Power Meets Whole-Home Performance

Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1500 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Wired Power Meets Whole-Home Performance

Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1500 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Parental Controls

Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

Parental Controls

Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

Applicazione Cudy

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

Applicazione Cudy

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

1 6

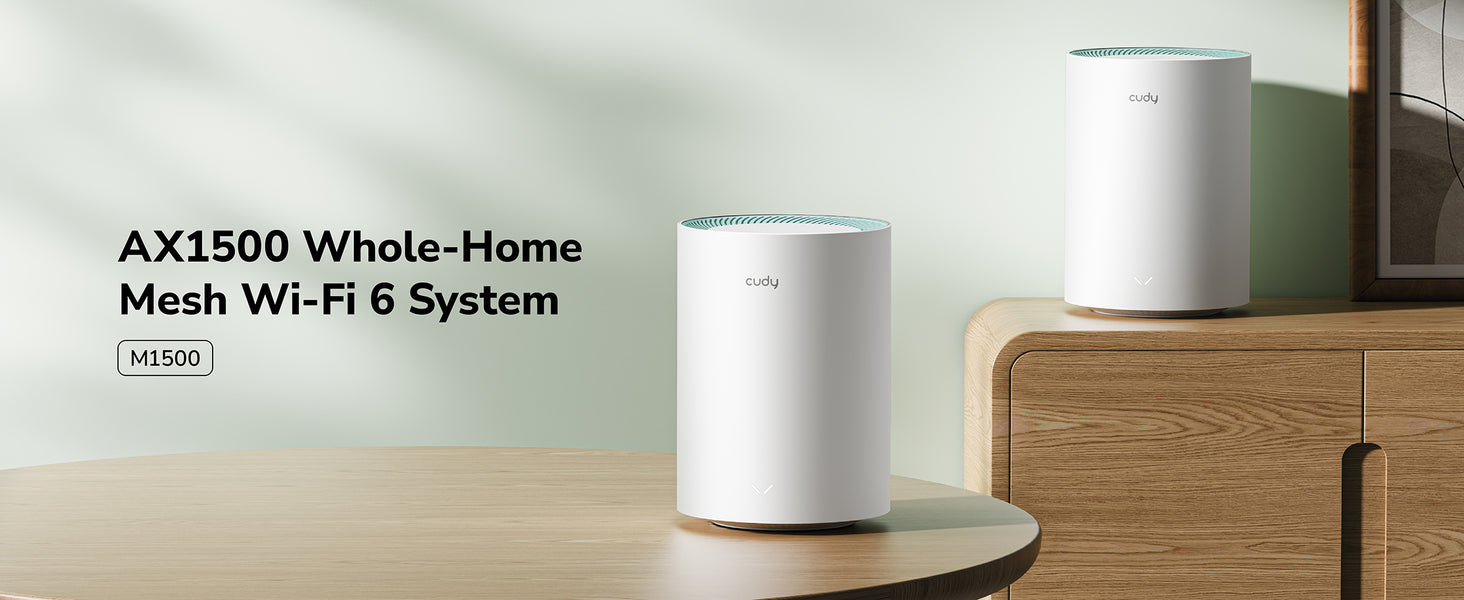

AX1500 Gigabit Mesh Wi-Fi 6 System

AX1500 Gigabit Mesh Wi-Fi 6 System, M1500 1.0

M1500 1.0

Un sistema WiFi mesh ideale per le case di grandi dimensioni con esigenze di streaming e giochi 4K. L'installazione è semplice: configura un'unità e sincronizza automaticamente il resto.

  • Wi-Fi 1201Mbps + 300Mbps 1
  • 3 porte Gigabit Ethernet
  • Roaming veloce
  • Beamforming
  • Cudy Mesh, client VPN
  • Backhaul simultaneo multibanda
  • App Cudy, controllo tramite cloud
Visualizza dettagli completi
Specifiche hardware
Specifiche del software
Versione del modello
Versione del modello M1500 1.0
CPU
CPU CPU Details 1 GHz Single-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 1201 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Internal
5 GHz Antenna Gain Max 5.56 dBi
2.4 GHz Antenna Gain Max 4.41 dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Indoor Coverage Reference 2 Pack: 170 m² (1800 sq ft)
3 Pack: 230 m² (2500 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
Interfaces
Interfaces Gigabit RJ45 Ports 3
Ethernet Notes 1× WAN port, the rest are LAN ports
LED System
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 10W
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation Desktop
Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
Package Content
Package Content
  • M1500
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension
  • 1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches
  • 2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches
  • 3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
  • 3-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
Versione del modello
Versione del modello M1500 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency Beamforming
Max Capacity 128
Recommended Client Upper Limit 60
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul True
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • Block PING
Utilities

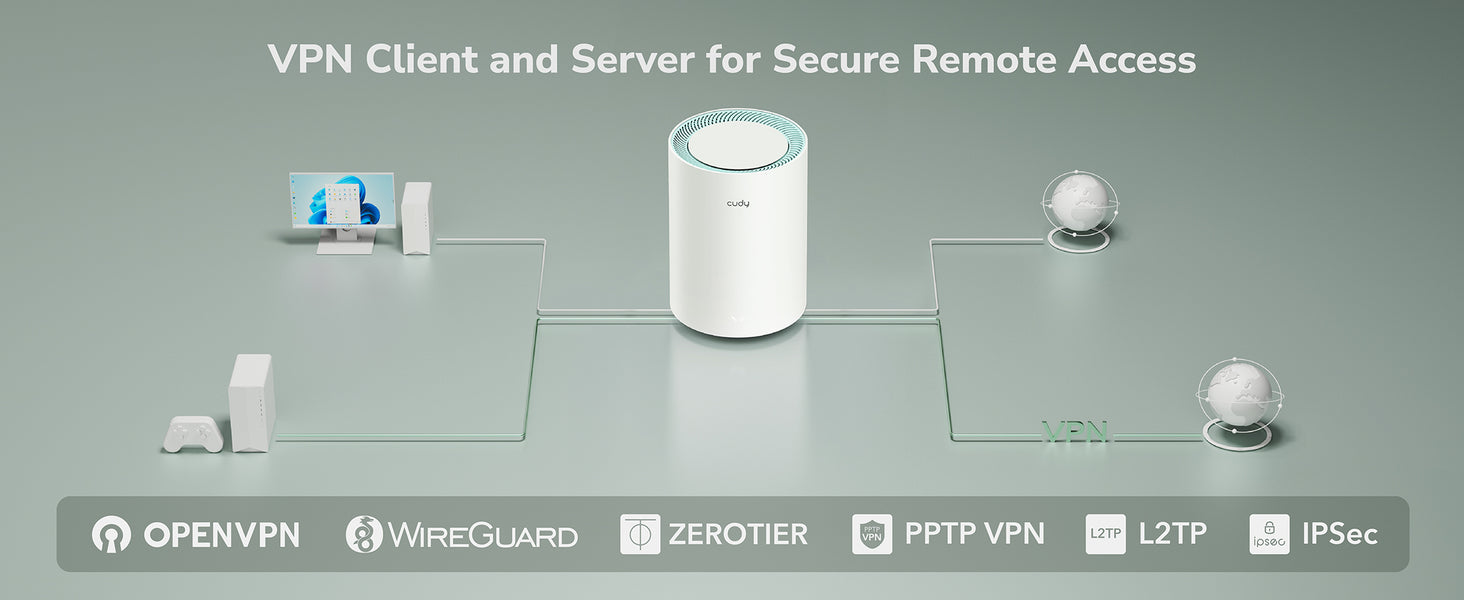

Utilities VPN Client
  • PPTP
  • L2TP
  • Wireguard
DNS Options
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
Wake on LAN True
Online Detection True
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Portuguese
  • Russian
  • Spanish
  • Ukrainian
  • French
  • Simplified Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. La velocità effettiva dei dati wireless varierà in base alle condizioni della rete, alle limitazioni del client e a fattori ambientali tra cui la disposizione dell'edificio, gli ostacoli e la posizione del client.
