PoE Switch
FS1010P

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.

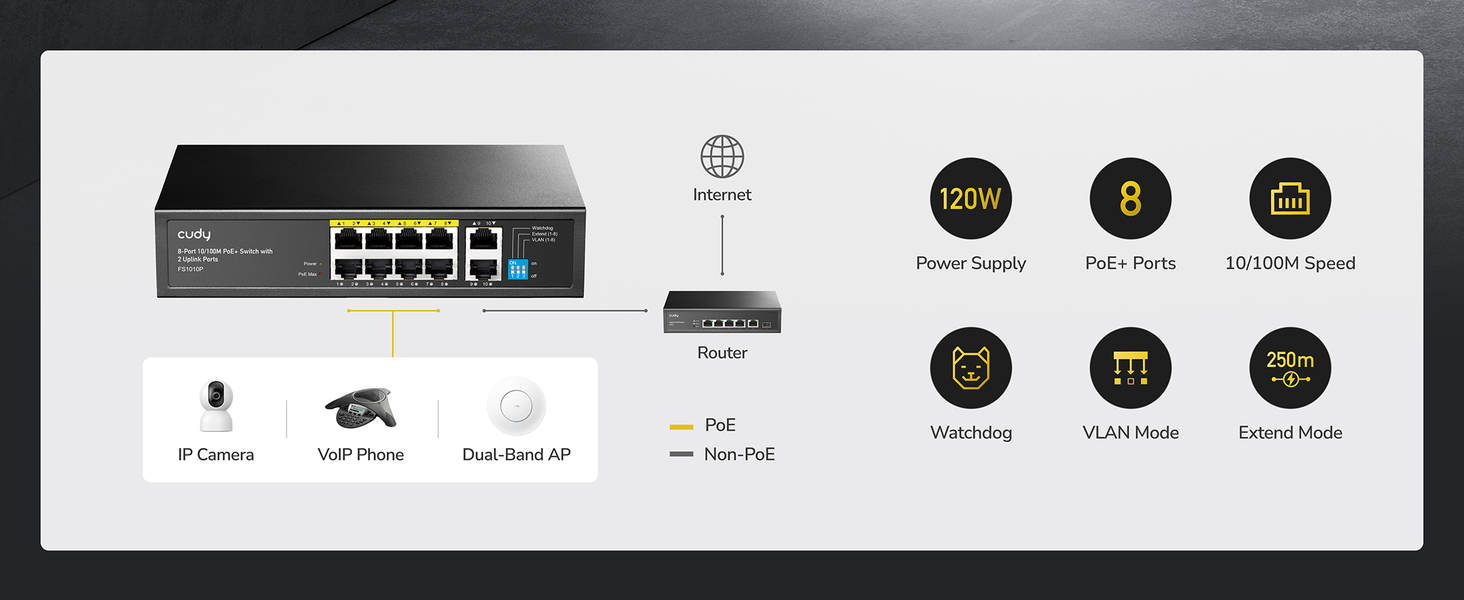

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

Simplify PoE Management

Extend PoE Reach. Enhance Client Security.

VLAN Isolates Downlink Ports for Improved Safety

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

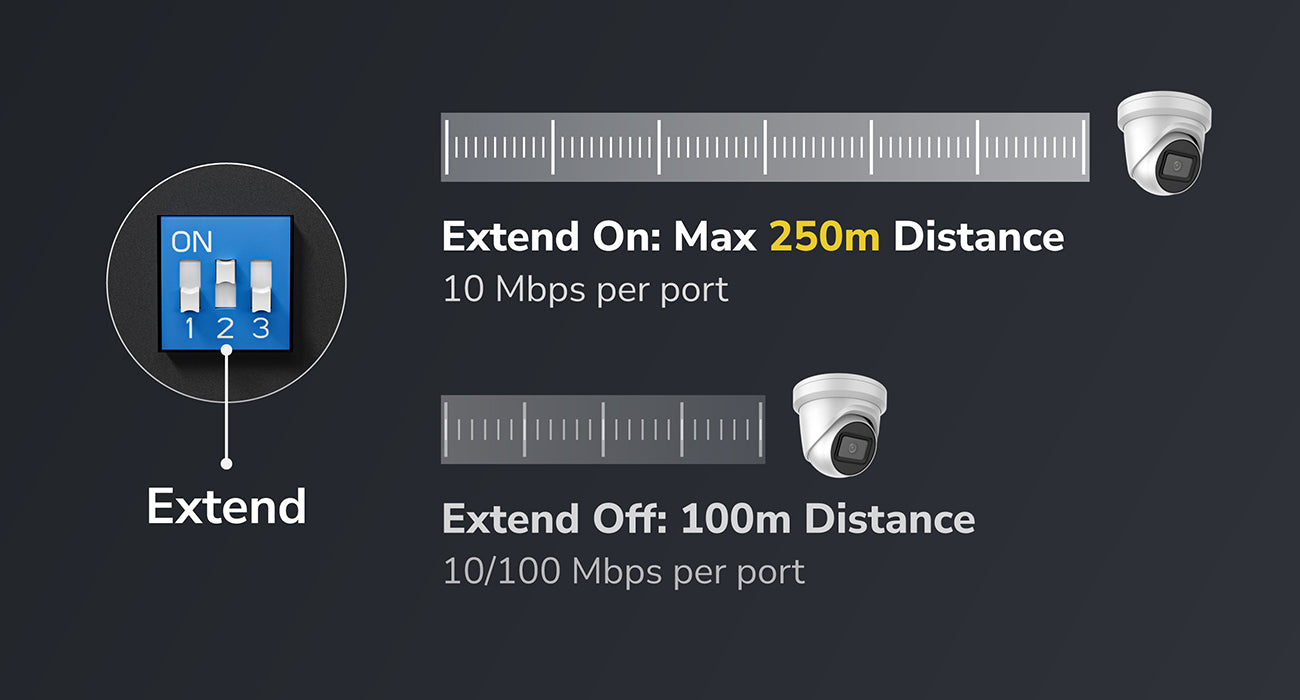

Extend for 250 m Transmission

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Shielded Ports. Solid Metal Casing.

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

Versatile Scenarios

Surveillance

Office Networking

Campuses Wi-Fi

Accesses and Signages

Built-In AC Adapter. Standard 1U Height.

Built-In AC Adapter. Standard 1U Height.

1 2

Switch PoE+ 10/100M a 8 porte con 2 Uplink FE

Switch PoE+ 10/100M a 8 porte con 2 Uplink FE, FS1010P 3.0

FS1010P 3.0

Uno switch PoE 10-FE con un alimentatore da 80 W e un sistema di raffreddamento silenzioso, dotato di interruttore di controllo indipendente per funzionalità Extend, VLAN e Watchdog.

  • 8× FE con 802.at/af modalità A PoE
  • 2× Collegamento FE
  • Alimentatore da 120 W
  • Extend On/Off, VLAN On/Off
  • Controllo attivato/disattivato
  • PoE Max Status LED
  • 200×118×44 mm (7,87×4,65×1,73'')
Visualizza dettagli completi
Versione del modello
Versione del modello FS1010P 3.0
Interfaces
Interfaces 10/100 Mbps RJ45 Ports 10
10/100 Mbps RJ45 PoE Ports #1~#8
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port True
Extend Mode Ports #1~#8
VLAN Mode Ports #1~#8
LED
  • Power
  • Link/ACT of Each Ethernet Port
Power Input AC Inlet
Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table 2048
Max Switching Capacity 2 Gbps
Max Forwarding Rate 1.488 Mpps
Jumbo Frame 2 KB
Packet Buffer 768 Kbit
Power
Power Power Methods AC
AC 100-240V~, 50/60Hz
Power Supply 120W
Max Power Excluding PoE 2W
Network
Network 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-T
  • 802.3af PoE
  • 802.3at PoE
  • 802.3x Flow Control
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
PoE Management Intelligent Power Management
Reliability
Reliability Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical
Mechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches
Product Weight EU: 642.0 g (22.65 oz.),ZH: 643.7 g (22.71 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets (Brackets not included in the box)
Package Content
Package Content
  • FS1010P
  • Power Cord
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 249×207×60 mm
9.8×8.15×2.36 inches
Retail Package Weight
  • EU: 1022.5 g (36.07 oz.)
  • ZH: 1014.7 g (35.79 oz.)
Units per Carton 16
Carton Net Weight
  • EU: 16.4 kg (36.16 lbs)
  • ZH: 16.2 kg (35.71 lbs)
Carton Gross Weight
  • EU: 17.3 kg (38.14 lbs)
  • ZH: 17.2 kg (37.92 lbs)
Carton Dimension 51.4×42.9×27.2 cm
20.24×16.89×10.71 inches
