POE400X 1.0
即將推出

Reliable PoE+. Blazing-Fast 10 Gbps.

IEEE 802.3at/af/bt. Max 90W Output.

The generous 90W power budget easily supports a wide range of devices, including high-power clients like PTZ cameras with heaters, multi-screen kiosks, and advanced access control terminals.

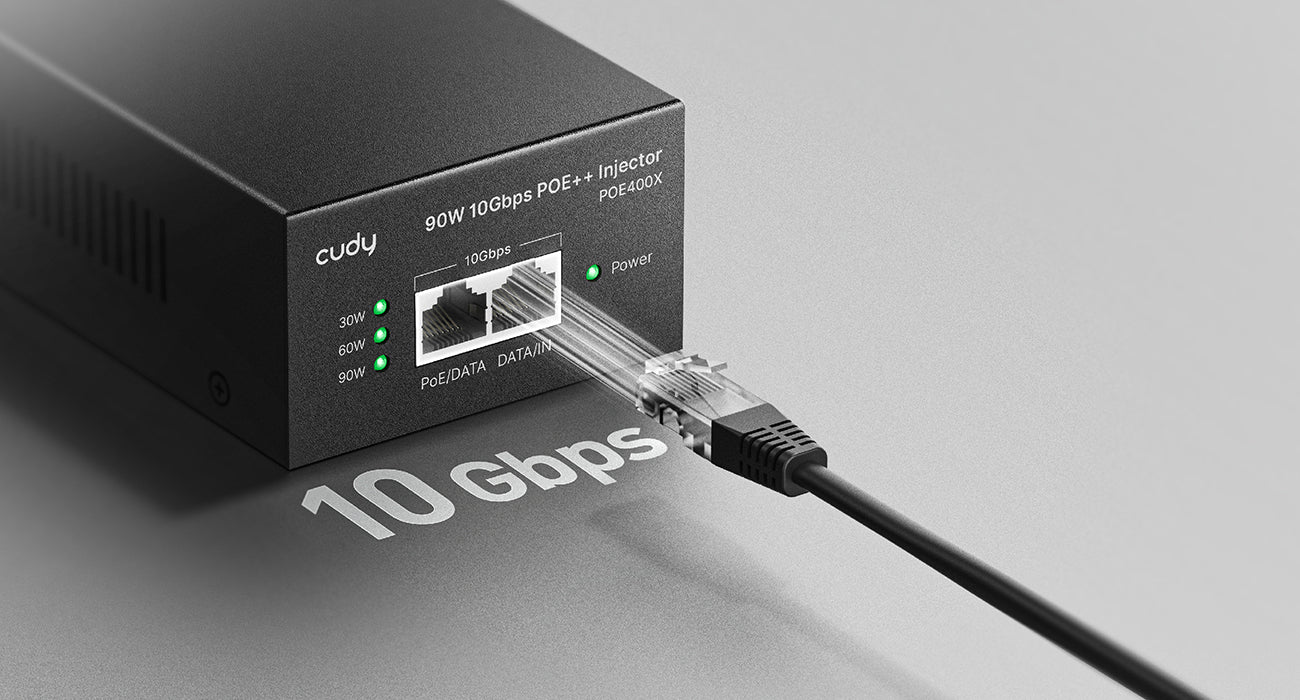

10M/100M/1G/2.5G/5G/10G Speeds

Deliver blazing-fast 10G data rates to bandwidth-intensive devices such as Wi-Fi 6/7 access points, ensuring smooth, high-throughput performance with zero bottlenecks.

Exceptional Built-Quality for Stable Operation

Protect Clients with Outstanding EMC

Robust EMC design protects itself and clients from power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV

Built to Last Longer with High-Quality Capacitors

Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.

Auto Negotiating the Power Needed

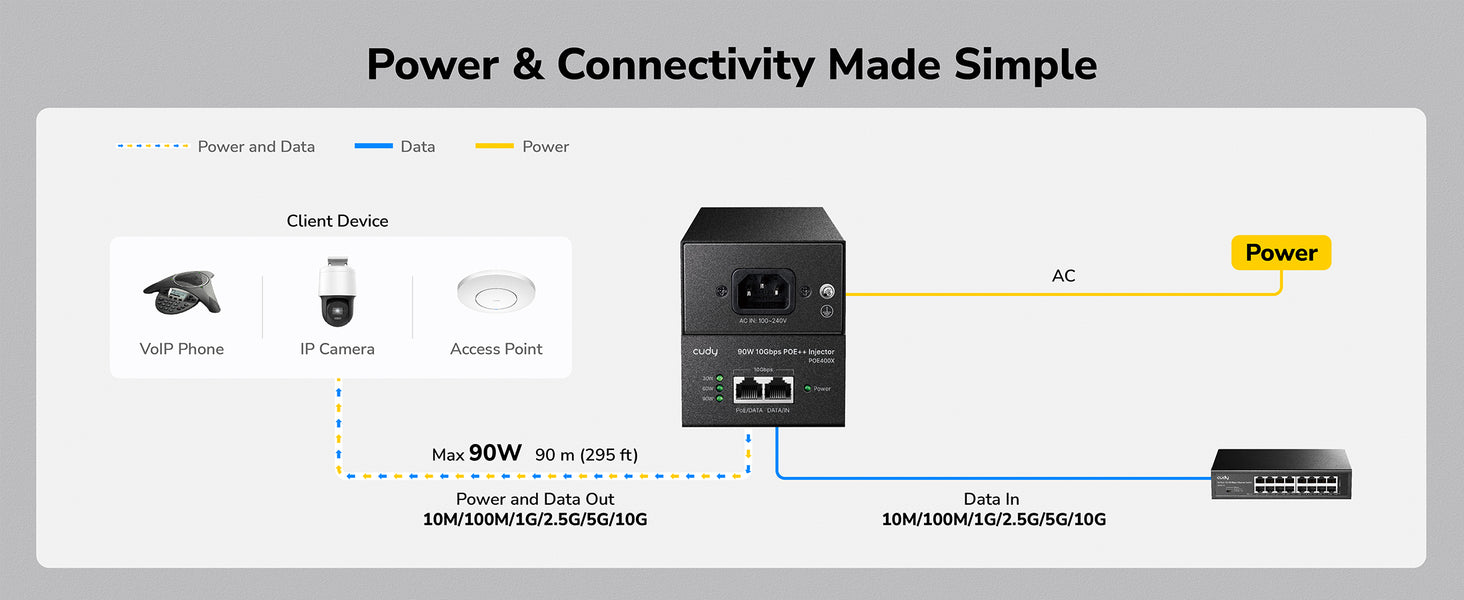

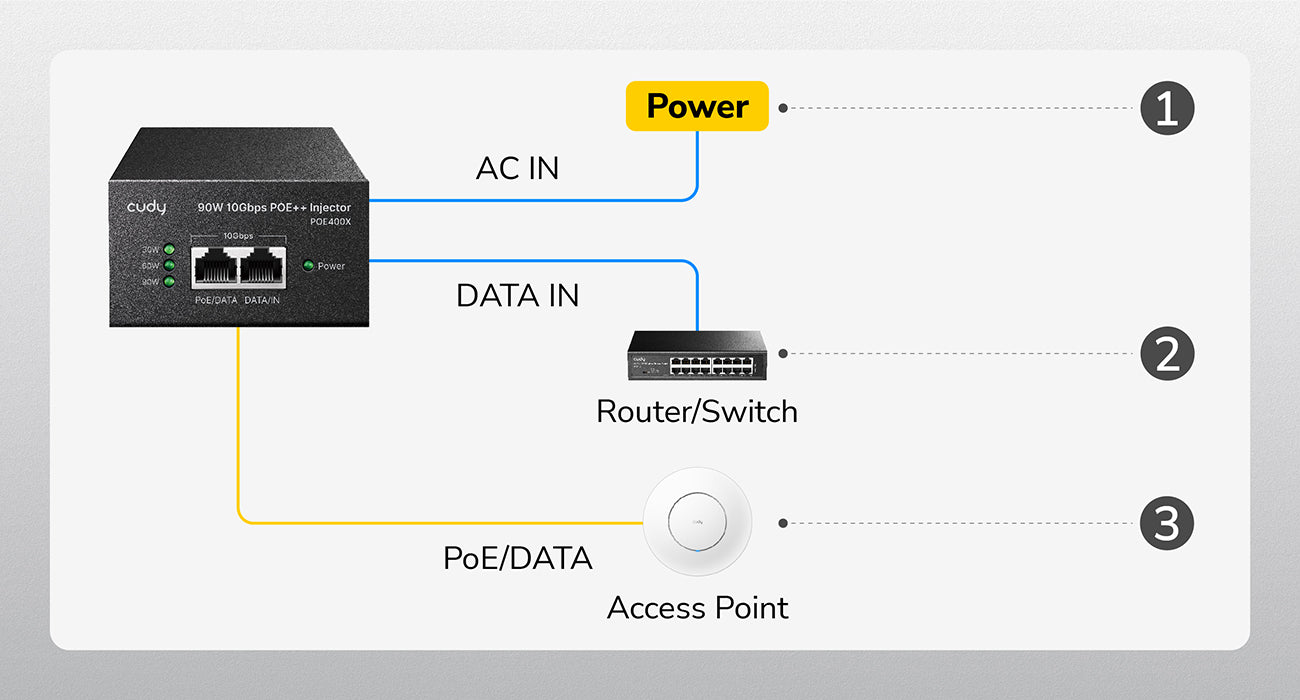

Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.

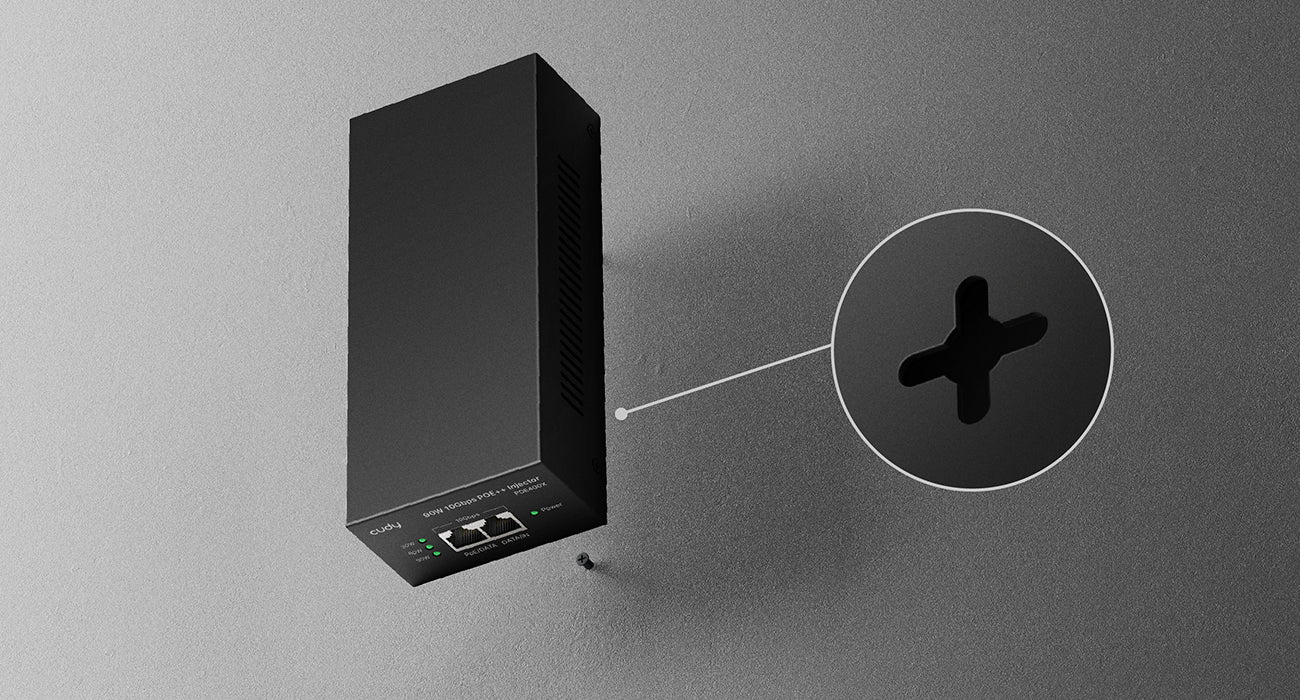

Wallmount Ready

Featuring two mounting holes on the back to allow you mount it on the walls.

1 3

90W 10 Gbps PoE++ 供電器，POE400X 1.0

90W 10 Gbps PoE++ 供電器，POE400X 1.0

POE400X 1.0

壁掛式金屬外殼 10 Gbps PoE 轉接器向乙太網路電纜注入高達 90W 的功率，為 PoE 設備供電。

  • 10GbE 輸入，10GbE 輸出
  • 90公尺傳輸距離
  • 802.3bt/at/af，最大 90W
  • 電源、PoE 模式 LED
  • 突波保護
查看完整資訊
型號版本
型號版本 POE400X 1.0
Protocols
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3bz 2.5/5 Gbps over Twisted Pair
  • 802.3an 10 Gbps over Twisted Pair
  • 802.3af PoE
  • 802.3at PoE
  • 802.3bt PoE
PoE
PoE Uplink Stream 1× 10GbE
Downlink Stream 1× 10GbE, 802.3at/af/bt
Downlink Pin Assignment Four-Pair
Transimission Distance
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 100 meters at 2.5 Gbps
  • Cat. 6 or higher STP cable: 90 meters at 10 Gbps
  • Cat. 6A or higher cable: 90 meters at 10 Gbps
  • Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces
Interfaces LED
  • Power
  • PoE Wattage
Power Input AC Inlet
Power
Power AC 100-240V, 50/60Hz, 2.2A
Max Power Output 90W, 54V⎓1.67A
Reliability
Reliability Power Protection
  • Surge Protection
  • ESD Protection
  • Overvoltage Protection
  • Short-Circuit Protection
EMC EN55032 Class A
EN55035 Class A
EMI FCC 47 CFR Part 15B Class A
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
Grounding Methods
  • Grounding Point
  • Three-Prong Plug
Environment Ambient Operating Temperature: -10~40 ℃ (14~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 178×80×46 mm
7.01×3.15×1.81 inches
Casing Material Metal

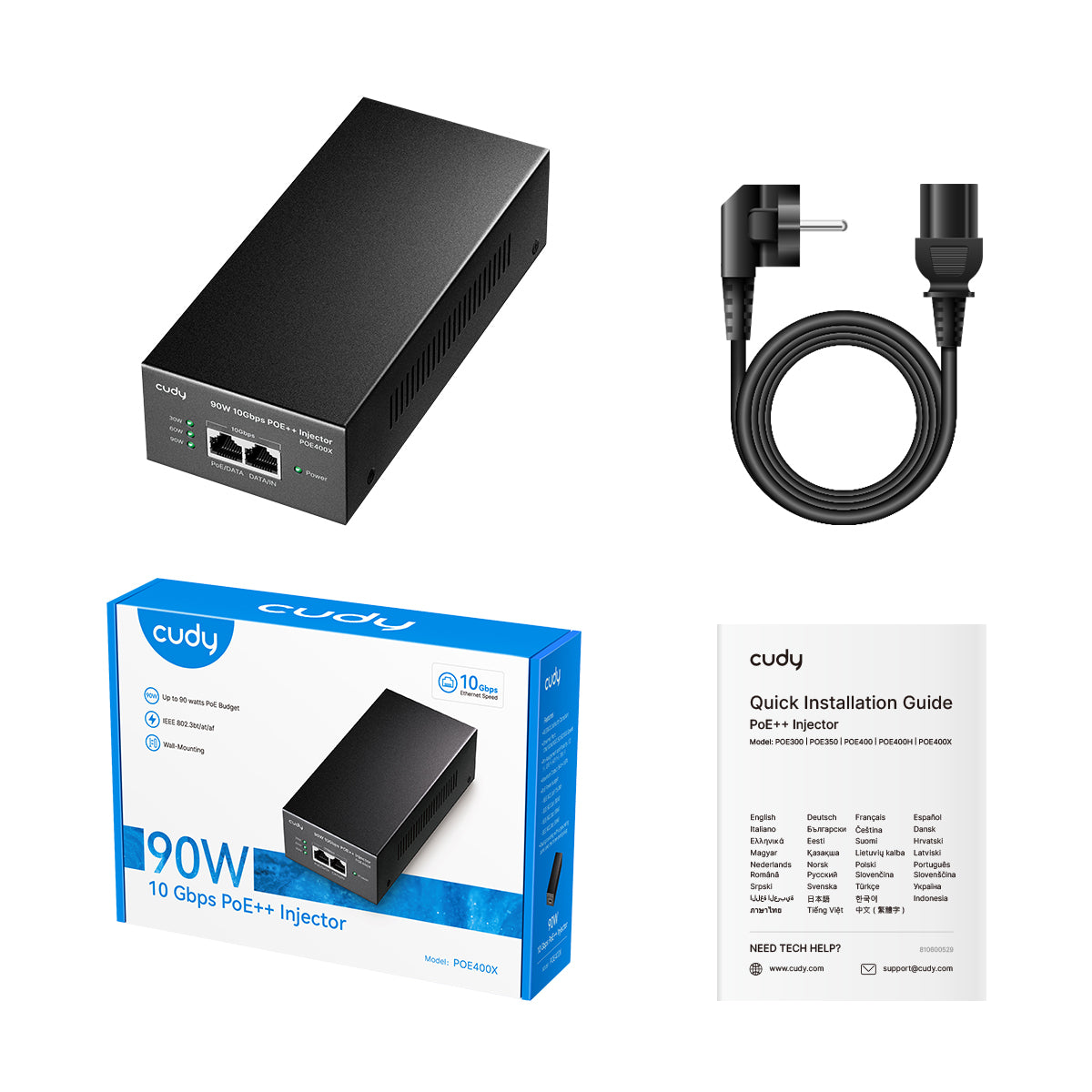

Package Content
Package Content
  • POE400X
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 183×121×55 mm
7.2×4.76×2.17 inches
Units per Carton 20
Carton Dimension 41×29.9×29.7 cm
16.14×11.77×11.69 inches
