Boosting or Creating a Wi-Fi is Up to You

Access Point Mode

Create a new Wi-Fi hotspot using a wired connection for stable and high-speed internet.

Range Extender Mode

Extend your existing Wi-Fi signal for wider coverage.

Not Just Wi-Fi, Enjoy Stable Wired Connections Too

In addition to extending Wi-Fi coverage, the high-speed Ethernet port provides a stable and reliable connection for your wired devices like smart TVs, PCs, and game consoles.

Not Just Wi-Fi, Enjoy Stable Wired Connections Too

In addition to extending Wi-Fi coverage, the high-speed Ethernet port provides a stable and reliable connection for your wired devices like smart TVs, PCs, and game consoles.

Fast Roaming with Cudy Mesh

RE1500 supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices, allowing you to move freely between rooms without the need for manual network switching.

Fast Roaming with Cudy Mesh

RE1500 supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices, allowing you to move freely between rooms without the need for manual network switching.

Work with Any Router

Universally compatible with all routers, ensuring hassle-free expansion of your network.

High Gain Antennas

Equipped with powerful antennas to enhance signal strength and stability for smoother streaming and gaming.

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

NaN -Infinity

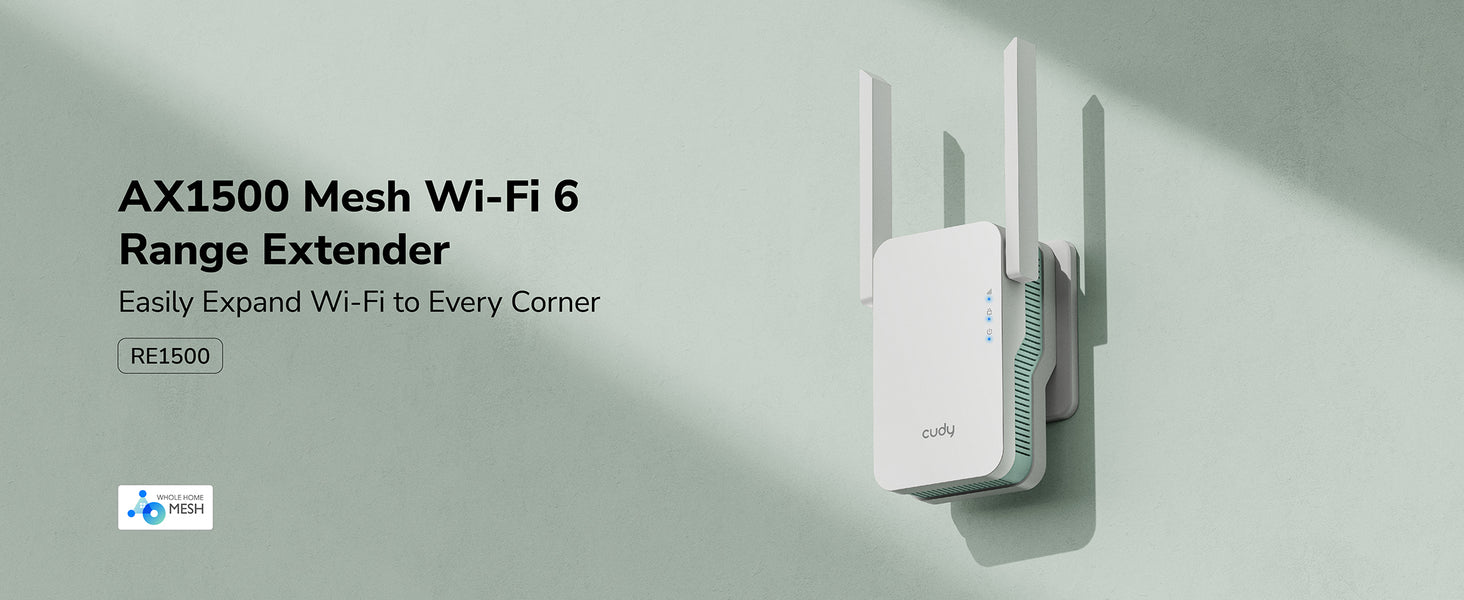

AX1500 Mesh Wi-Fi 6 Range Extender

Name: AX1500 Mesh Wi-Fi 6 Range Extender, RE1500 1.0
Brand: Cudy

AX1500 Mesh Wi-Fi 6 Range Extender, RE1500 1.0

RE1500 1.0

Product variants

A range extender featuring AX1500 WiFi 6 and a 10/100 Mbps RJ45 port. Press WPS buttons to expand existing Wi-Fi instantly.

Works with Any Wi-Fi Router
Dual-Band Wi-Fi 6
40 Connected Devices ¹
10/100 Mbps Ethernet Port
Cudy Mesh Satellite
Multi-Band Simultaneous Backhaul
Ethernet Backhaul

View full details

Hardware Specs

Software Specs

Model Version
Model Version	RE1500 1.0
CPU
CPU	CPU Details	1 GHz Single-Core CPU
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR3
Wireless
Wireless	5 GHz Wi-Fi Speed	1201 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Fixed
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Range Performance	Max: 150 m (492 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces	10/100 Mbps RJ45 Ports	1
	LED	Signal Strength WPS Power
	Physical Buttons	WPS Button Reset Button
	Power Input	AC Plug
	Power Input Note	EU, US, UK Plug are Available
Power
Power	Power Methods	AC
	AC	100V ~ 240V
	Max Power Consumption (W)	10W
Reliability
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
	Installation	Plug-In-Socket
	Dimension	129.6×80×48.6 mm 5.1×3.15×1.91 inches
	Product Weight	US: 200.8 g (7.08 oz.) EU: 203.6 g (7.18 oz.)
Package Content
Package Content	RE1500 Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	US: 361.7 g (12.76 oz.) EU: 367.0 g (12.95 oz.)
	Retail Package Dimension	161×120×96 mm 6.34×4.72×3.78 inches
	Units per Carton	30
	Carton Net Weight	US: 11.0 kg (24.25 lbs) EU: 11.0 kg (24.25 lbs)
	Carton Gross Weight	US: 11.9 kg (26.23 lbs) EU: 11.9 kg (26.23 lbs)
	Carton Dimension	50.4×37.7×34.1 cm 19.84×14.84×13.43 inches

Model Version
Model Version	RE1500 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Wi-Fi Efficiency	Beamforming
	Max Capacity	128
	Recommended Client Upper Limit	30
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	WPS	True
General
General	Operation Modes	Access Point Range Extender
	Mesh	Cudy Mesh Satellite
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
System
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	App Control
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
Dashboard
Dashboard	Panel	Connected Devices Host Network Status Wi-Fi Status LAN Status System Version
System
System	Diagnostic Tools	Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Dashboard	Charts	Mesh Topology

Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Additionally, using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
