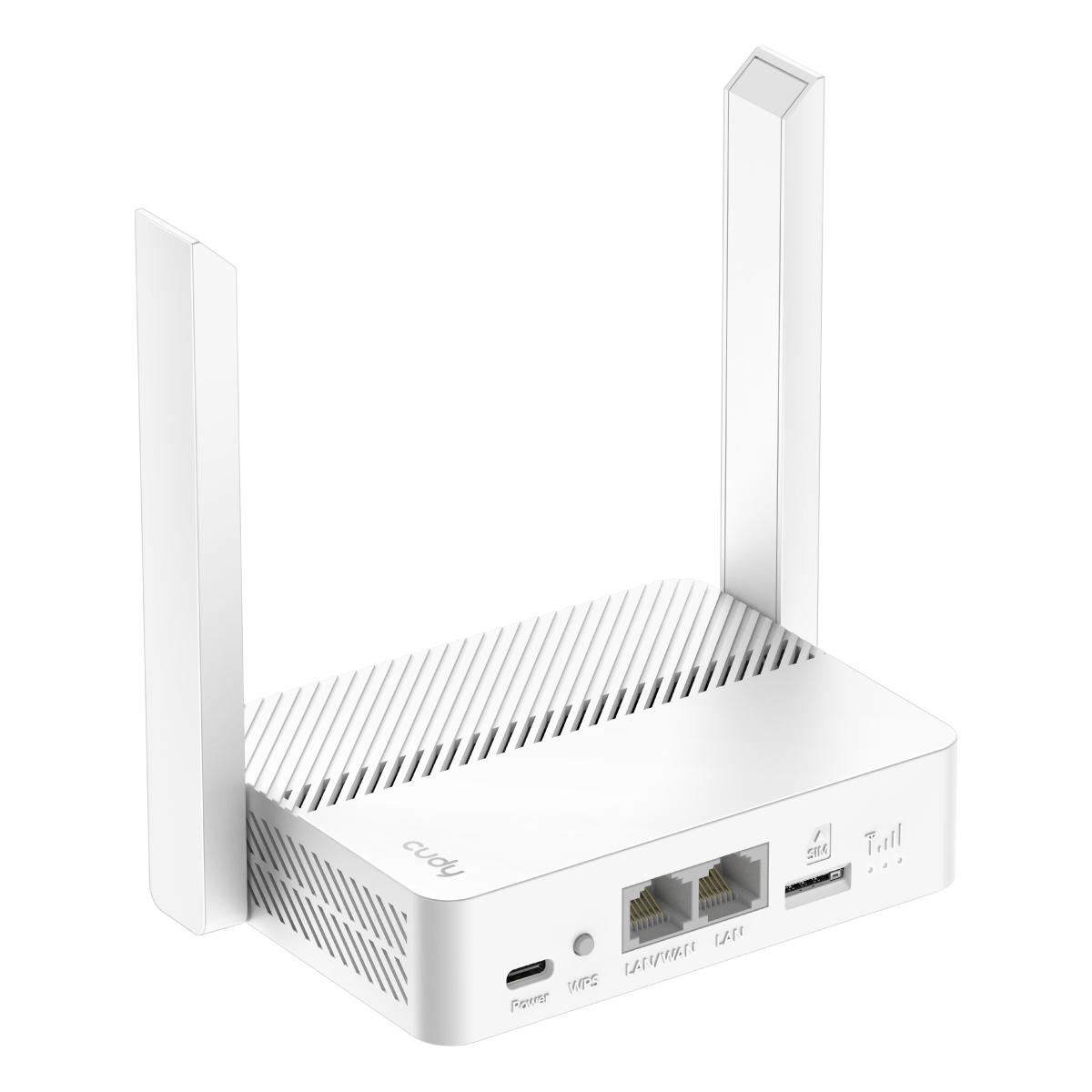

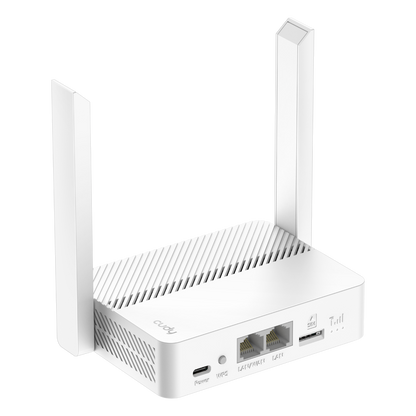

4G N300 Wi-Fi Router with USB-C Power Input

4G N300 Wi-Fi Router with USB-C Power Input, LT300 3.0

LT300 3.0

Insert a SIM card and get online instantly. The new LT300 features an USB-C power port to supports standard USB power supply, unlocking more flexible usage. With built-in 300 Mbps Wi-Fi and cellular/WAN port failover, it's perfect for home, retail stores, small offices, business trips, travel, security monitoring.

  • Powering via USB-C
  • 4G Cat. 4 with Max 150 Mbps DL
  • 300 Mbps Wi-Fi 1
  • 1× Nano SIM Slot
  • VPN Server and Client
  • Cudy App, Cloud Control
View full details
Hardware Specs
Software Specs
Model Version
Model Version LT300 3.0
CPU
CPU CPU Details 580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Cellular
Cellular Cellular Standards 4G Cat. 4
Cellular Antennas 2× Fixed
SIM Options 1× Nano SIM Slot
Available Versions EU, CN, LA
EU Version Cellular
EU Version Cellular Suitable Region Europe, Middle East, Africa
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
CN Version Cellular
CN Version Cellular Suitable Region China, India
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
CN Cellular Bands LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41
WCDMA: B1/5/8
LA Version Cellular
LA Version Cellular Suitable Region Latin America
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
CN Cellular Bands LTE FDD:B1/2/3/4/5/7/8/28/66
LTE TDD:B40
WCDMA:B1/2/4/5/8
GSM:850/900/1800/1900
Wireless
Wireless 2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Internal
2.4 GHz Antenna Gain Max 2.83 dBi
FEM or PA/LNA 2.4 GHz: 2× Internal
Range Performance Max: 100 m (328 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')

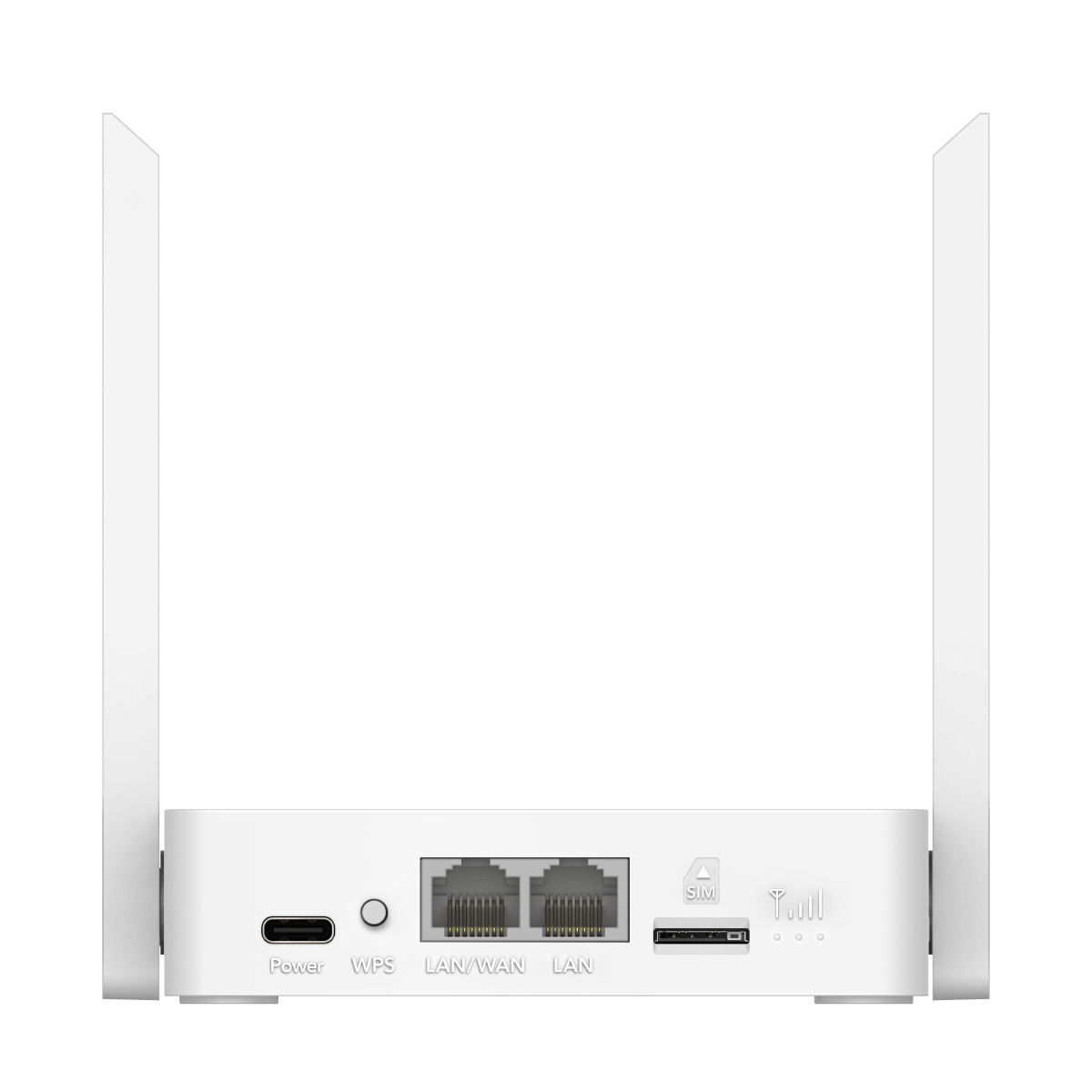

Interfaces
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
10/100 Mbps RJ45 Ports 2
Ethernet Notes 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LED
  • System
  • Cellular Signal Strength
Power Input USB-C Port
Power
Power Power Methods DC / PD
DC 5V 2A
Max Power Consumption (W) 8W
Idle Power Consumption (W) 3W
Reliability
Reliability EMS ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Dimension 118×80×27.5 mm
4.65×3.15×1.08 inches
Installation Desktop
Package Content
Package Content
  • LT300
  • USB-C to USB-C Cable
  • Installation Guide
Model Version
Model Version LT300 3.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 4
Max Wi-Fi Modulation 64-QAM
Max Capacity 64
Recommended Client Upper Limit 30
Max Wi-Fi Channel Width 40 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz
WPS True
General
General Operation Modes
  • Cellular Router
  • Wi-Fi Router
  • WISP
Cellular APN
  • Band Select (Band Lock)
  • Cellular Mode Select
  • Data Roaming
  • APN Profile
  • Manual APN Profile
  • MTU Value
Cellular Mode
  • 4G Only
  • 3G Only
  • Auto
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • L2TP
  • PPTP
Internet Failover Sequence
  • WAN
  • WISP
  • Cellular
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • PPTP
  • L2TP
DNS Options
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
Online Detection True
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • App Control
  • Config Page via HTTP
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Reliability
  • Timed Reboot
  • Backup and Restore
Dashboard
Dashboard Panel
  • Internet Status
  • Devices Management
  • Cellular Status
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Cellular Speed
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
