交換器
HS108ES1

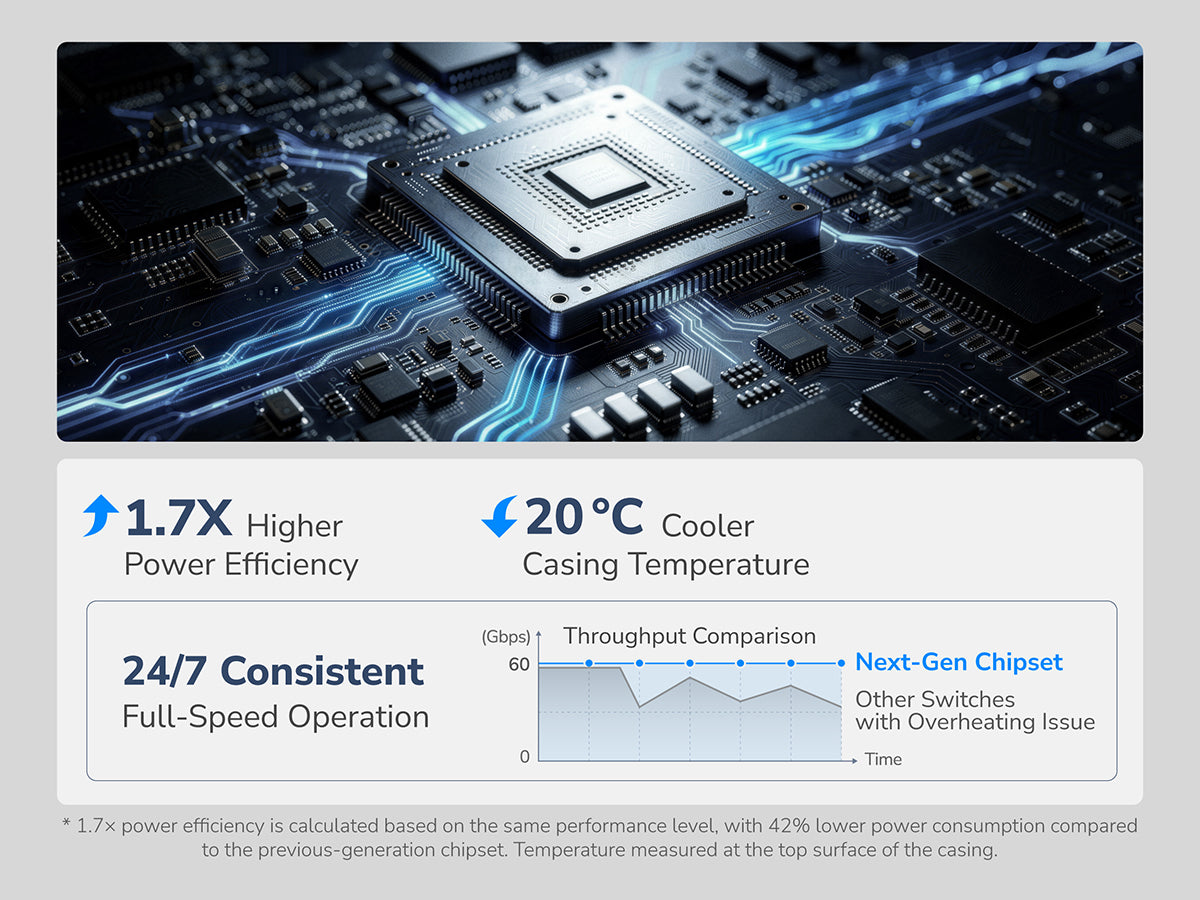

Next-Gen Chipset

Stable Multi-Gig Performance

The next-gen chipset delivers full throughput at all ports with 1.7× greater power efficiency, generating less heat while sustaining peak performance.

Next-Gen Chipset

Stable Multi-Gig Performance

The next-gen chipset delivers full throughput at all ports with 1.7× greater power efficiency, generating less heat while sustaining peak performance.

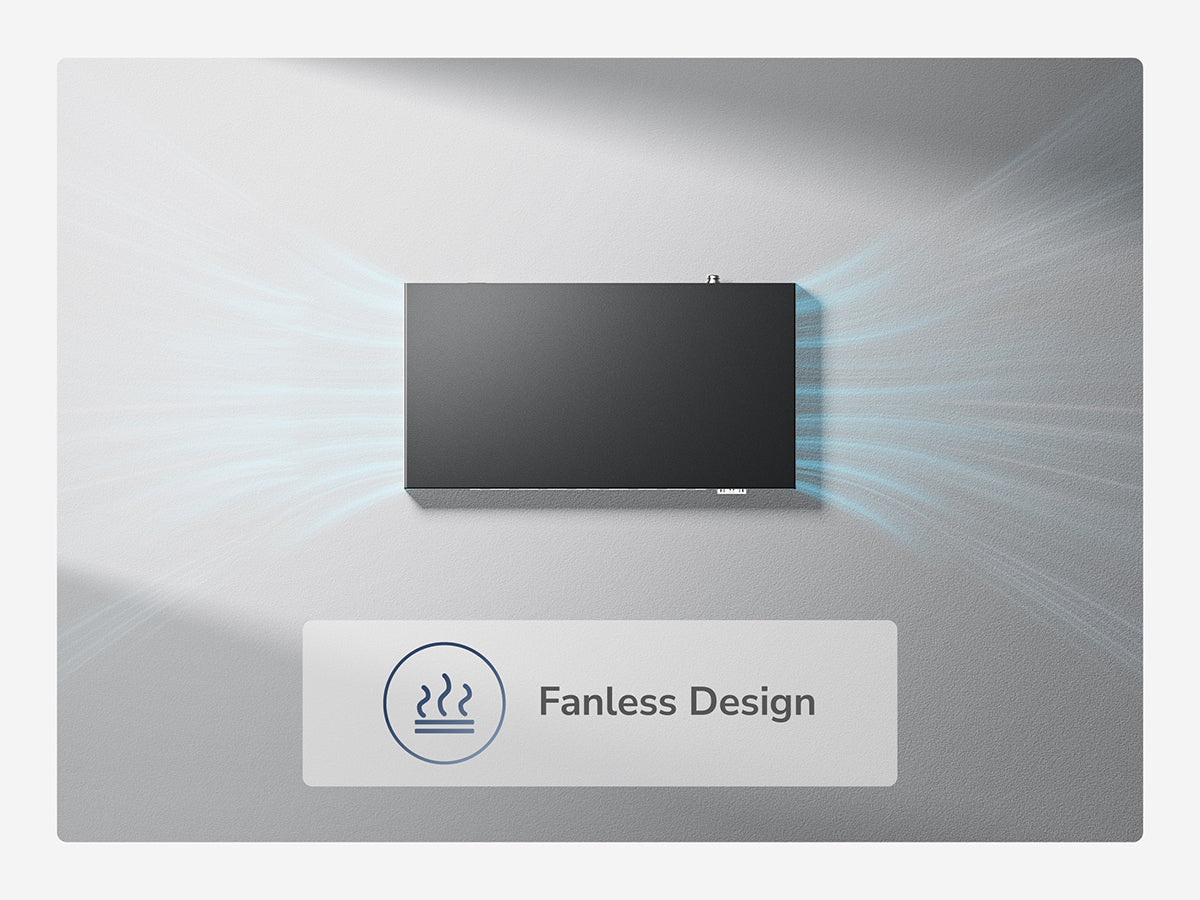

Fanless Cooling

Quiet Operation

Thanks to the high-efficiency chipset, enjoy a noise-free multi-gig networking experience.

Fanless Cooling

Quiet Operation

Thanks to the high-efficiency chipset, enjoy a noise-free multi-gig networking experience.

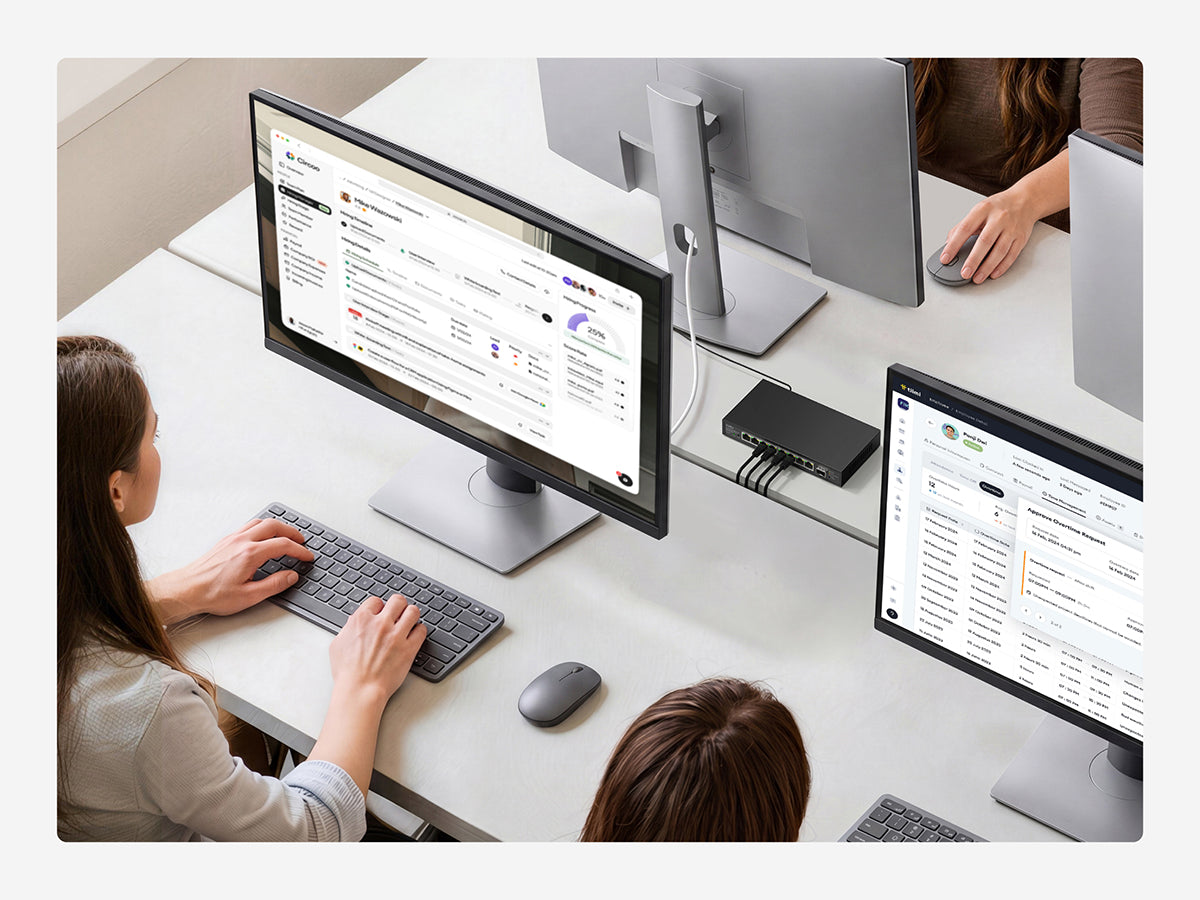

For Productivity Workflow

Connect 2.5G NAS and PC

Transfer, upload, and share files at multi-Gig speeds — so your whole team moves faster.

For Productivity Workflow

Connect 2.5G NAS and PC

Transfer, upload, and share files at multi-Gig speeds — so your whole team moves faster.

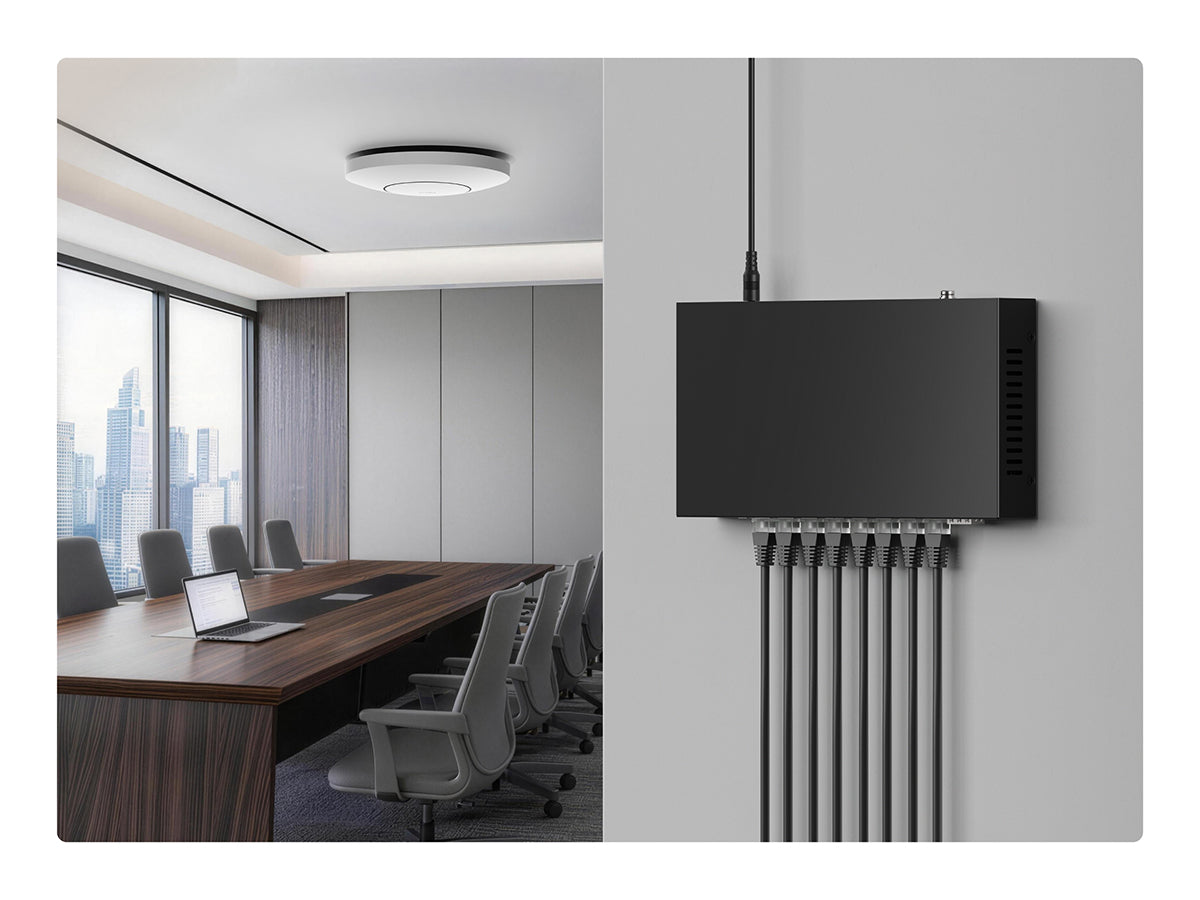

For High-Bandwidth Project

Connect 2.5G APs

Provides multi-Gig network for business Wi-Fi deployment and other bandwidth-demanding projects

For High-Bandwidth Project

Connect 2.5G APs

Provides multi-Gig network for business Wi-Fi deployment and other bandwidth-demanding projects

Guide to Choosing Accessories

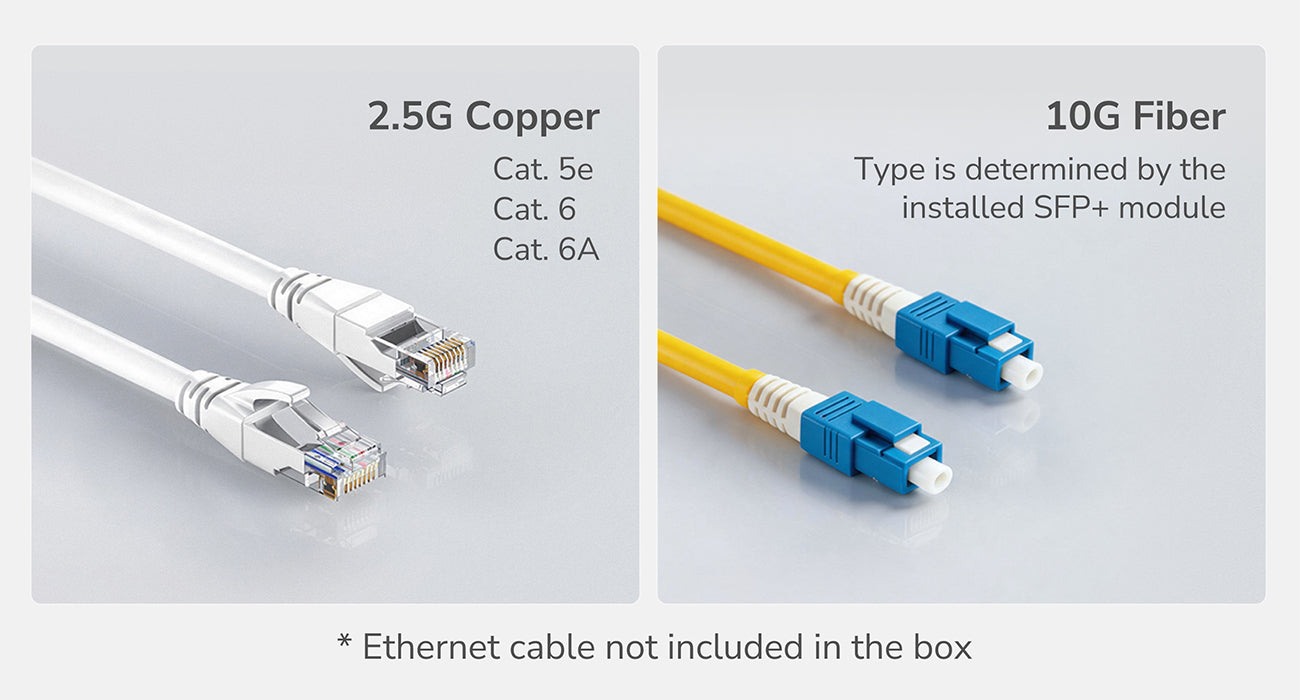

Cable Requirements

Use Cat. 5e or higher standard twisted-pair cable to support 2.5G speed. Fiber cable type is determined by the SFP+ module.

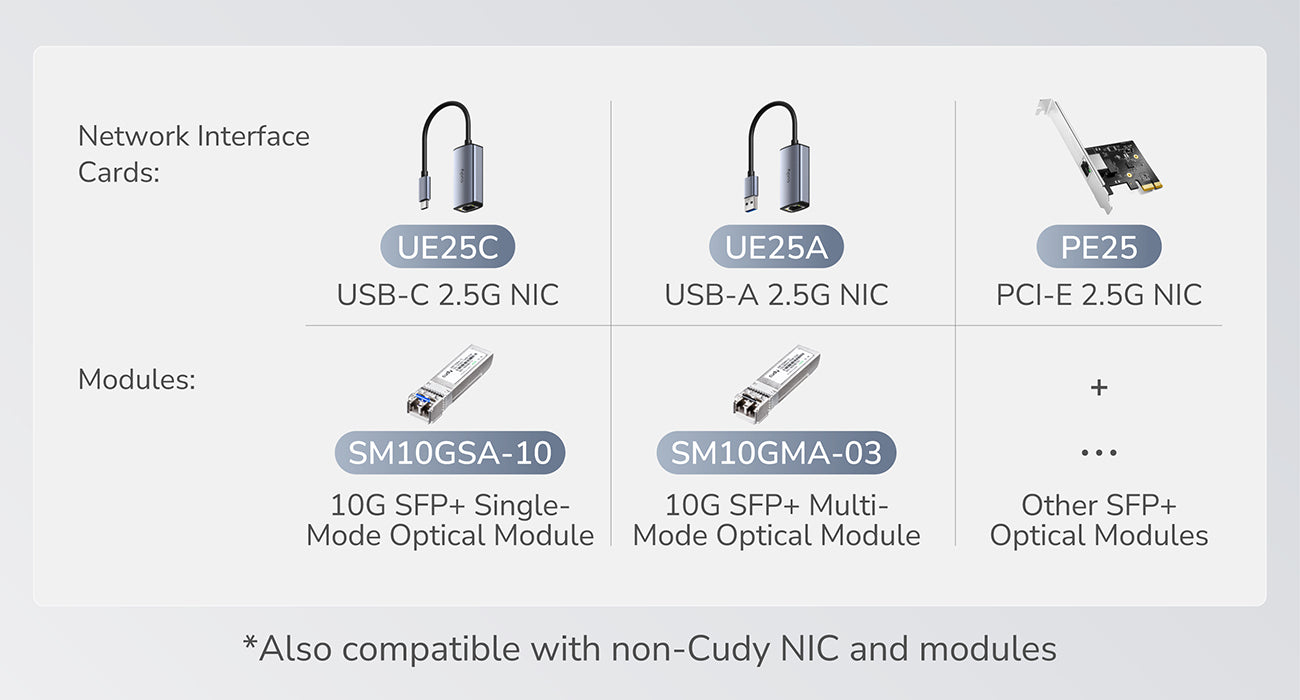

Recommended NIC and Fiber Modules

Looking for 2.5G NIC and SFP modules? Find Cudy for high-quality options. Also compatible with other brand products.

Essential Management Features

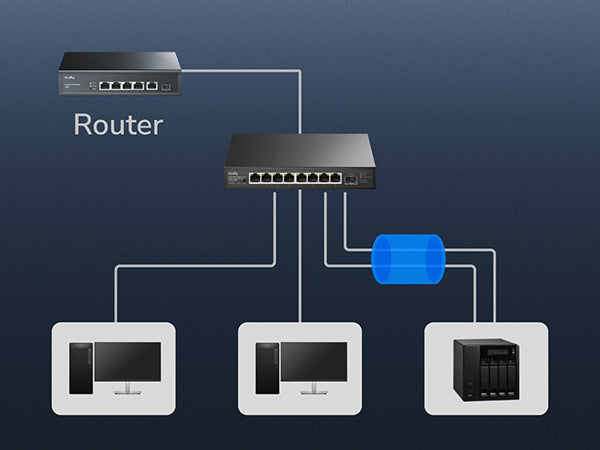

Static Link Aggregation

Create Link Aggregation Groups to increase throughput to uplink switches, NAS devices, and more.

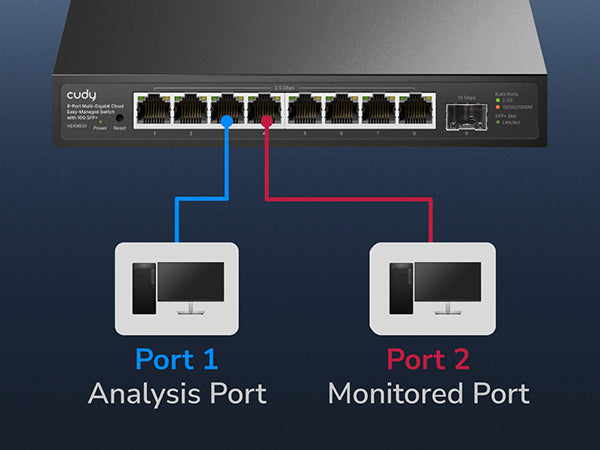

Port Mirroring

Mirror traffic from selected ports to a monitoring port for traffic analysis and troubleshooting.

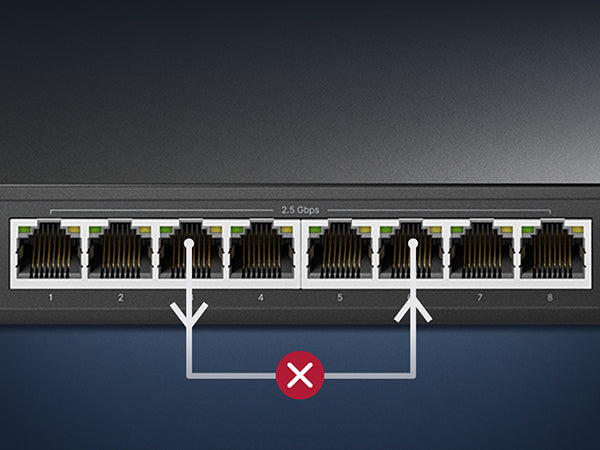

Loop Detection/Prevention

Automatically detects and blocks network loops, with blinking LEDs to identify the affected port.

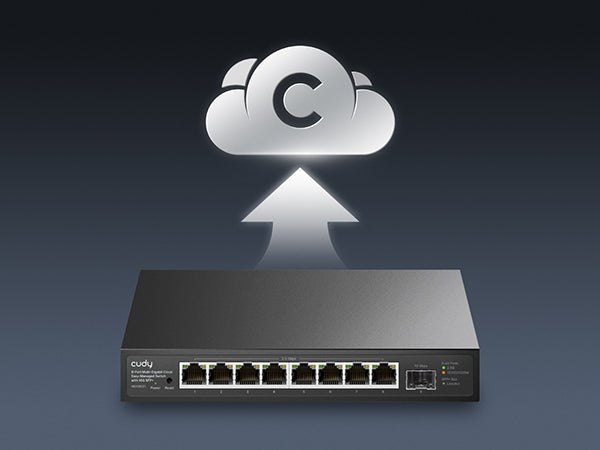

Remote Management

Control the switch via Cudy Cloud on your phone. *Requires firmware upgrade in Sept 2026.

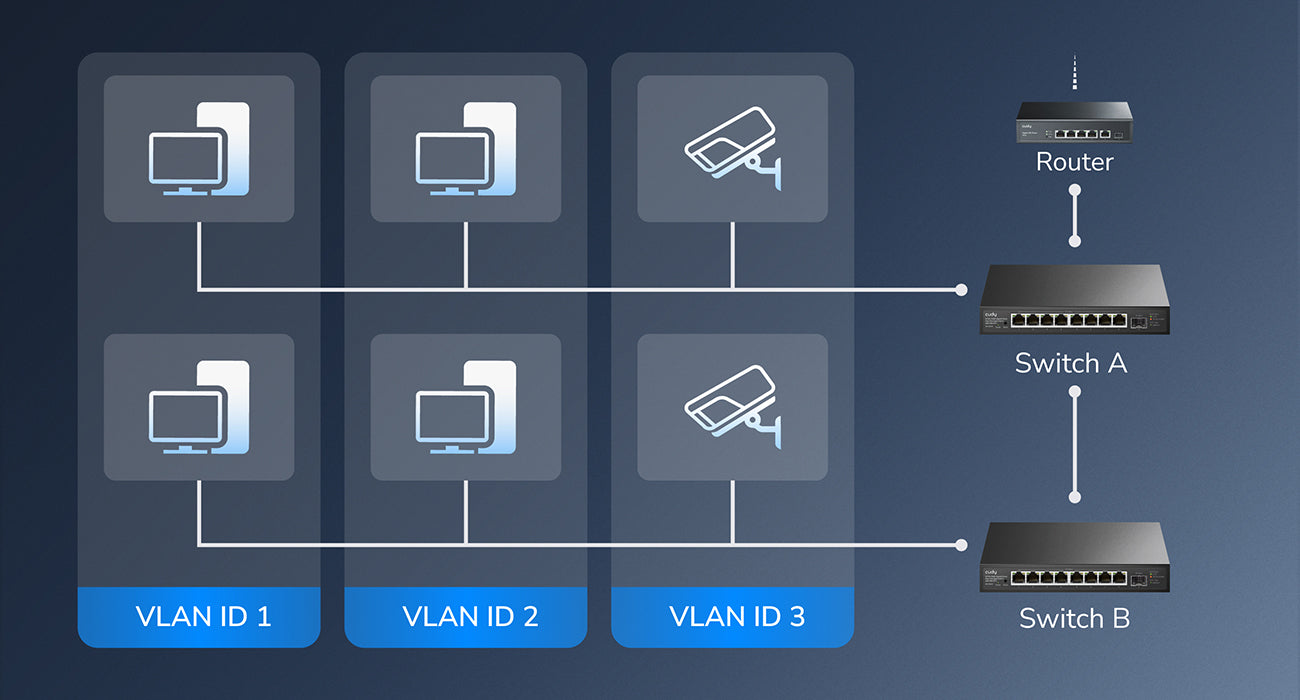

802.1Q/MTU/Port-Based VLAN

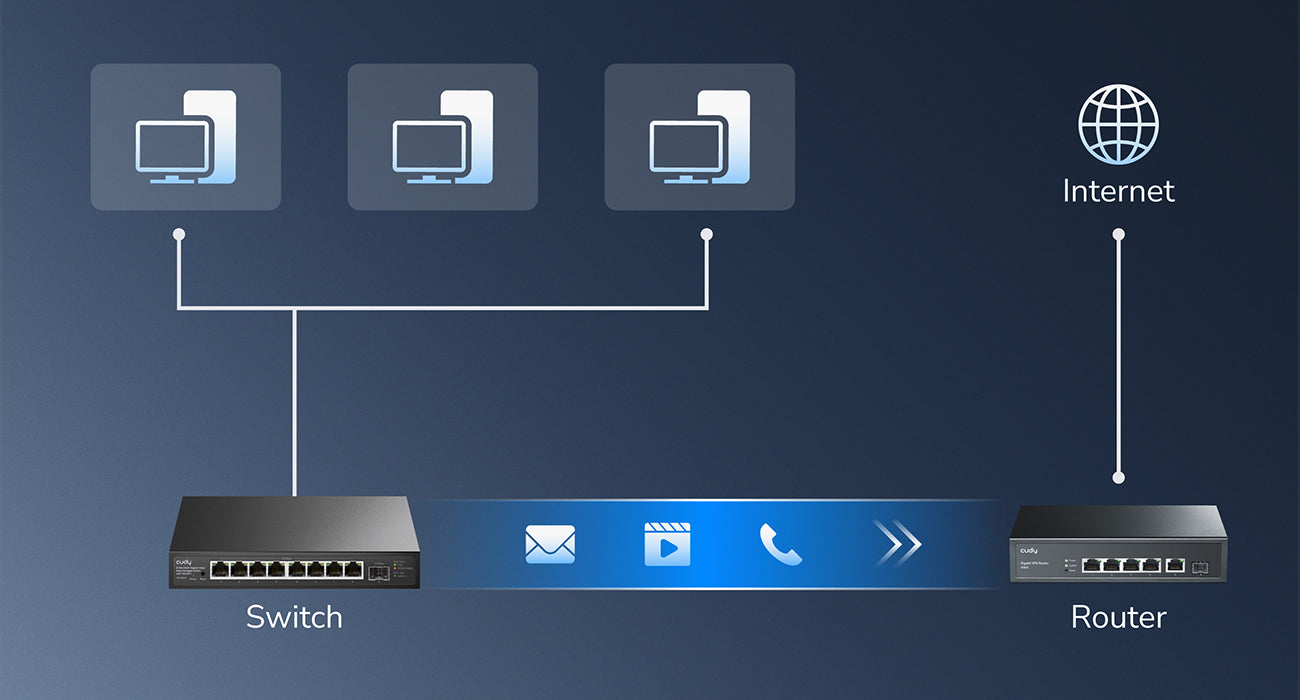

DSCP/802.1p QoS detects and prioritizes latency-sensitive traffic during transmission — ideal for video calls and gaming. You can also assign ports the highest priority so their traffic is always forwarded first.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data. Or assign a port with highest priority so all data will be forwarded in the first rank.

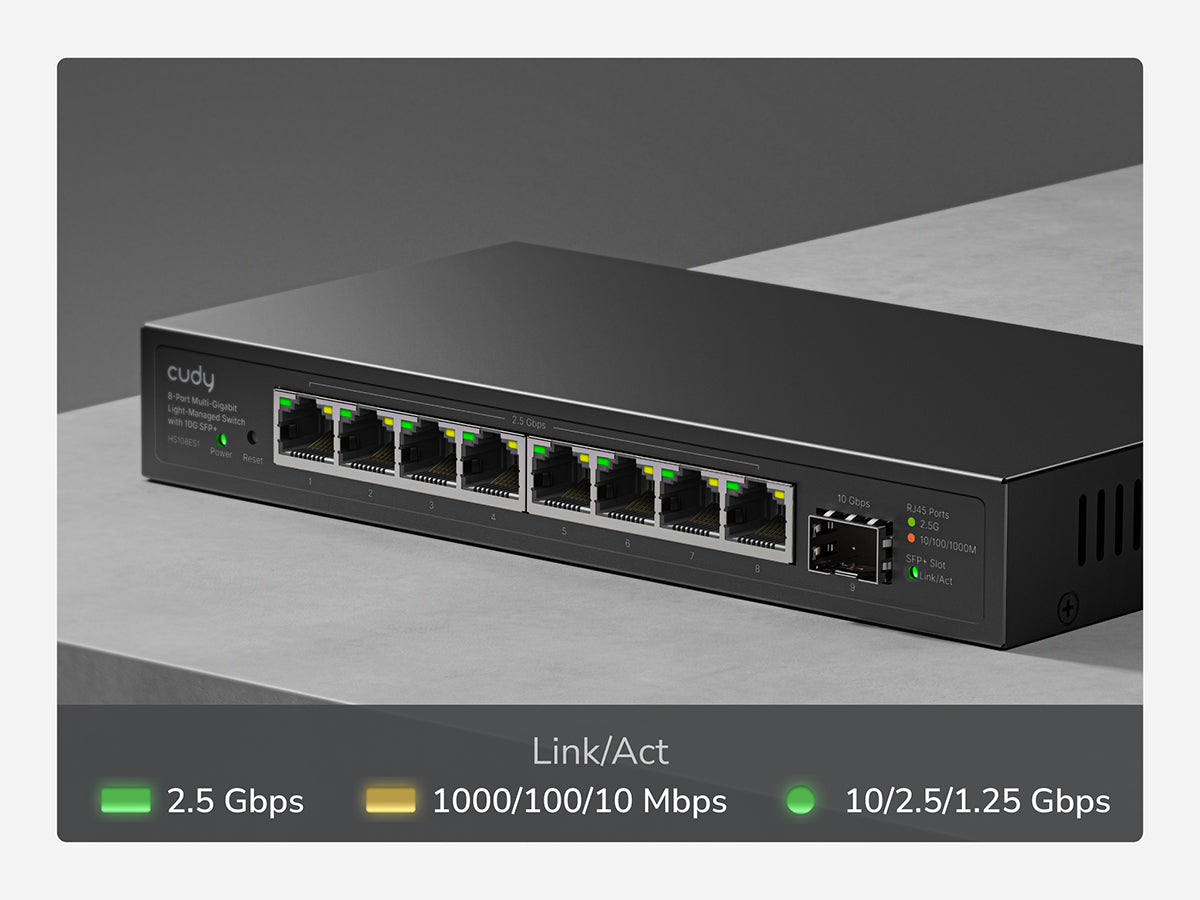

Speed LED

Clear Status Indicator

Easily check the speed, link, and activity status of each port at a glance from the port-side LEDs.

Speed LED

Clear Status Indicator

Easily check the speed, link, and activity status of each port at a glance from the port-side LEDs.

1 2

8 埠超千兆光管理交換機，10G SFP+上联

8 埠超千兆光管理交換機，10G SFP+上联, HS108ES1 1.0

HS108ES1 1.0

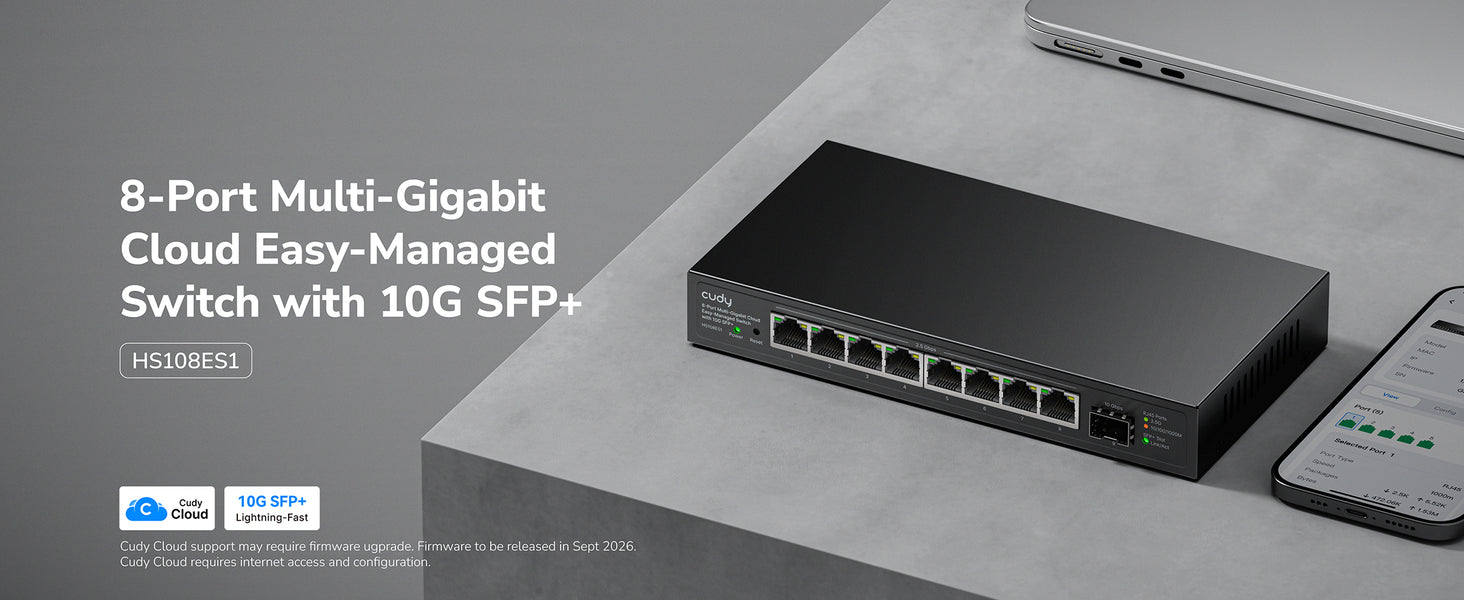

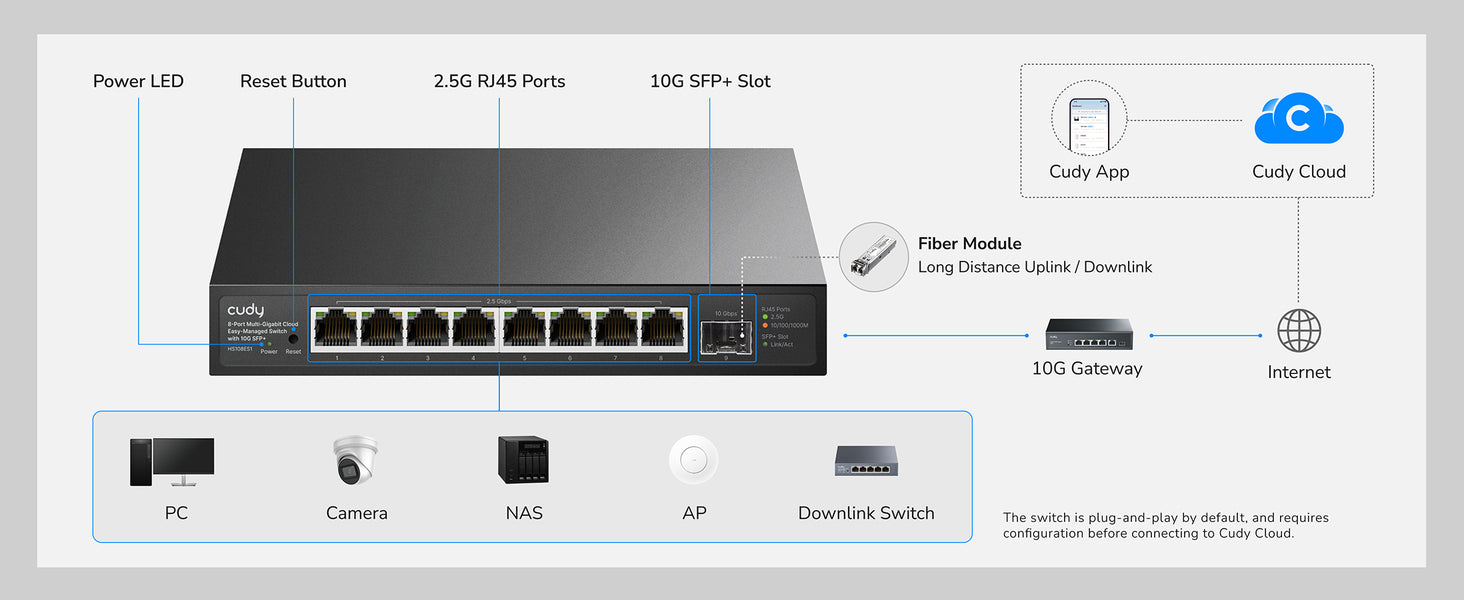

A multi-Gigabit network switch featuring eight 2.5GbE, one 10 Gbps SFP+, and essential management features. It is ideal for connecting high-speed AP, NAS, and PC.

  • 8× 2.5GbE, 1× 10G SFP+
  • Web Management
  • VLAN, QoS, 埠中繼等
  • Loop Detection and Prevention
  • EEE（802.3az 節能）

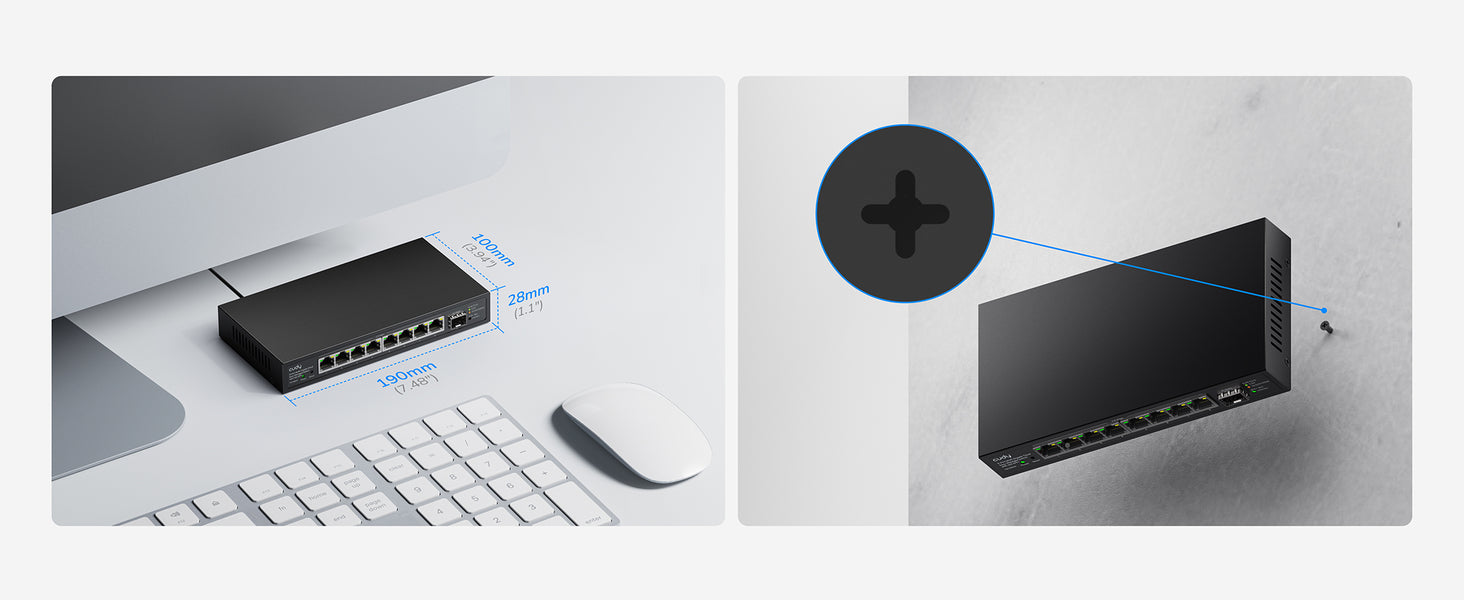

  • 桌面安裝/壁掛安裝
  • 190×100×28 mm (7.48×3.94×1.1")
查看完整資訊
型號版本
型號版本 HS108ES1 1.0
接口
接口 万兆 SFP+ 插槽（个） 1
2.5G RJ45 网口（个） 8
网口备注 SFP+ supports 10G/2.5G/1G speeds.
延长模式网口 在软件中配置生效网口
VLAN模式网口 在软件中配置生效网口
电源口 DC 电源口
按钮和指示灯
按钮和指示灯 LED 指示灯
  • 电源
  • 网口速度/连接/活动状态 (When negotiation speed is 2.5 Gbps)
  • Speed/Link of Each Ethernet Port (When negotiation speed is 10/100/1000 Mbps)
按钮 重置按钮
性能
性能 网线传输距离和速率
  • Cat. 3 或更高级别网线: 100米传输距离，速率 10Mbps
  • Cat. 5 或更高级别网线: 100米传输距离，速率 100Mbps
  • Cat. 5e 或更高级别网线: 100米传输距离，速率 2.5 Gbps
  • Cat. 5e 或更高级别网线: 250米传输距离，速率 10Mbps
网线传输距离和速率注释 在管理界面将端口速率设置为10Mbps后，对应端口支持250米远距离传输。
MAC 地址表 4096
最大交换容量 60Gbps
最大包转发率 44.64Mpps
巨型帧 9KB
数据包缓冲区 4Mbit
电源
电源 节能模式
受电方式 直流
电源输入 12V⎓1A
最大功耗 10W (with SFP-RJ45 Module)
9W (with SFP-SC Module)
待机功耗 3.7W
交换性能
交换性能 802.3 协议
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3bz 2.5GBASE-T
  • 802.3z 1000BASE-X
  • 2.5GBASE-X
  • 802.3ae 10GBASE-R
802.1 协议
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
端口管理
  • 端口开关
  • 端口协商速率
  • 端口聚合（静态）
  • 端口镜像
  • 速率限制
  • 巨型帧设置
  • 风暴控制
  • 流量监控
  • MAC地址管理
  • 节能以太网 (802.3az)
端口聚合组数量 2
单聚合组内端口（个） 4
L2层管理功能
  • 环路预防
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • 基于端口的 QoS
可靠性
可靠性 接地方式 接地螺丝
EMS 电磁抗扰性能 IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 6kV
运行环境 运行环境温度: 0 ℃ ~ 40 ℃
储存温度: -40 ℃ ~ 70 ℃
运行湿度: 10% ~ 90% 非凝结
储存湿度: 5% ~ 90% 非凝结
系统
系统 管理方式 Web 网页管理
固件升级 本地升级
配置备份 备份与恢复
诊断工具 Ping
尺寸与重量
尺寸与重量 尺寸 190×100×28 mm
材质与安装
材质与安装 机身材质 合金
安装方式
  • 桌面摆放
  • 挂壁安装
包装清单
包装清单
  • HS108ES1
  • 电源适配器
  • 安装手册
订购信息
订购信息 零售包装尺寸 209×132×81.5mm
外箱尺寸 43.8×42.8×15.1 cm
