PoE交換機
GS1016EPS2

7x24小時穩定供電，網路恒久在線

IEEE 802.3at/af，單口最高 30W 電力

單個埠最高提供30W強勁電力，輕鬆帶動無線AP、監控攝像頭、數位廣告機及絕大多數PoE設備。

AI 看門狗，守護 PoE 終端設備

智慧識別不回應的終端設備。當終端設備卡死且超過5分鐘無任何資料包、心跳包通訊，交換機將自動重啟對應埠，以恢復 PoE 終端設備，無需人工干預。可通過前面板藍色開關獨立控制，看門狗開啟時，建議關閉終端設備的自動固件升級功能。

PoE Management

Configure power settings per port and take full control of PoE management, including Power On/Off, delay time scheduling, watchdog auto-recovery, PoE priority, and per-port power limits.

PoE Management

Configure power settings per port and take full control of PoE management, including Power On/Off, delay time scheduling, watchdog auto-recovery, PoE priority, and per-port power limits.

Web Configuration

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Web Configuration

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Secure and High-Performance Switching

802.1Q/MTU/Port-Based/Voice VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Essential Management Features

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention

Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.

卓越品質，耐用可靠

額外防雷擊與電磁干擾設計

內置專業級防護，有效抵禦電源浪湧和靜電衝擊，減少因電湧導致的設備重啟與損壞，讓您的監控系統全年無休。

  • 雷擊防護等級：網口防雷4kV；電源口防雷 差模2kV 共模 4kV
  • 靜電防護等級：接觸放電6kV，空氣放電8kV

全金屬堅固機身，埠全遮罩

SPCC優質金屬外殼，散熱好、壽命長。網口帶遮罩、機身後部具備接地點，配合遮罩網線可搭建高抗擾、全遮罩傳輸系統，保證資料高品質傳輸。

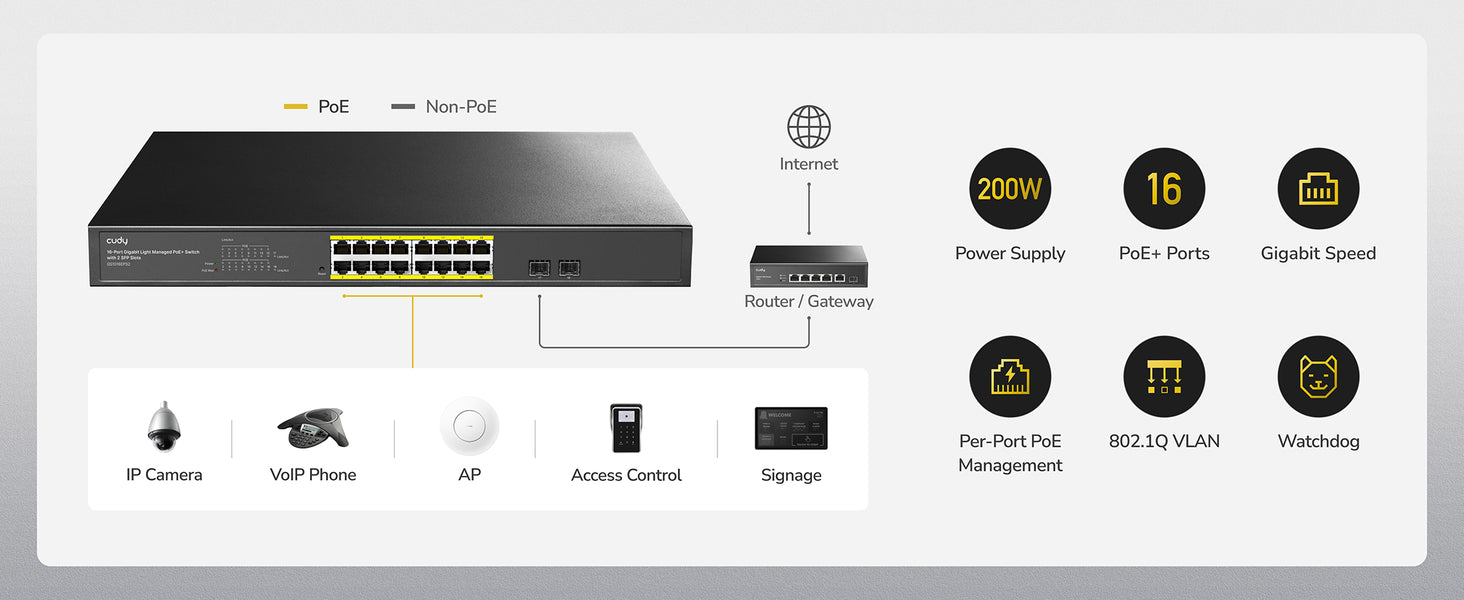

值得網路工程項目信賴的交換機

監控網路

辦公通訊

無線AP覆蓋

物聯網應用

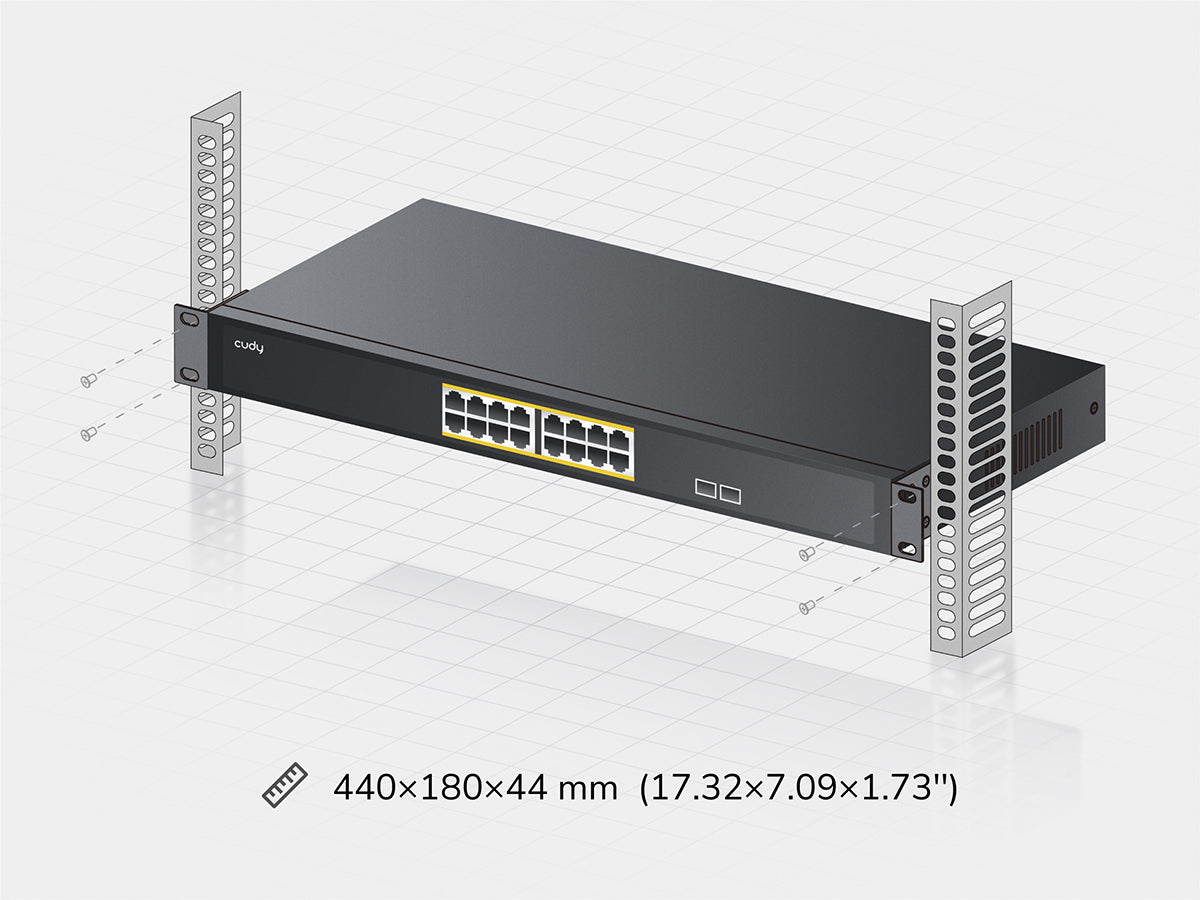

Mounting Bracket Included

Standard 19 inches width for rack installation.

Mounting Bracket Included

Standard 19 inches width for rack installation.

1 2

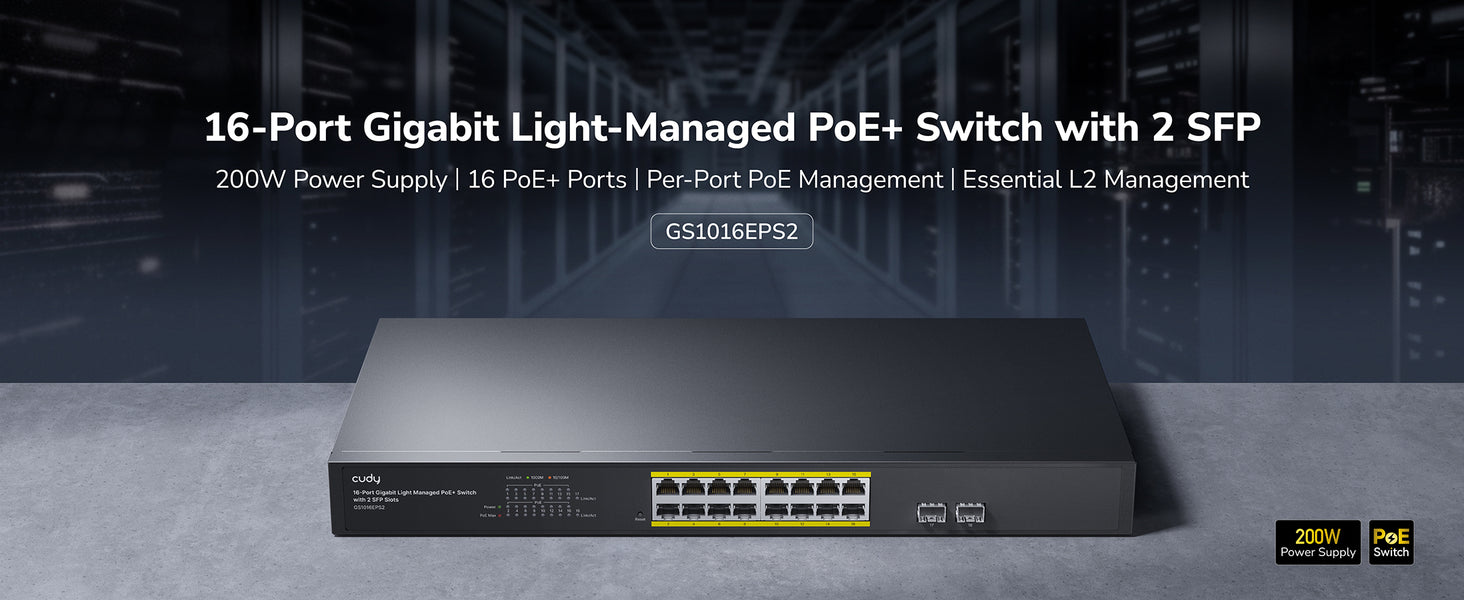

16 埠千兆 PoE+ 光管理交換機，附 2 個千兆 SFP

16 埠千兆 PoE+ 光管理交換機，附 2 個千兆 SFP, GS1016EPS2 1.0

GS1016EPS2 1.0

機架式 16-GbE、2-SFP PoE 交換機，配備 200W 電源供應器和管理功能。

  • 16× 千兆口，支援 802.3at/af 模式 A PoE
  • 2×SFP
  • 200W 電源總功率
  • PoE 功率告警指示燈
  • Per-Port PoE Management
  • 網頁管理, SNMP
  • VLAN（802.1Q/MTU/語音/基於埠）
  • QoS（802.1p/DSCP/基於埠）
  • 埠鏡像, 靜態聚合等
  • STP/RSTP 和環路預防
  • DHCP 偵聽, IGMP 偵聽
  • 440×220×44 mm (17.32×8.66×1.73")
查看完整資訊
型號版本
型號版本 GS1016EPS2 1.0
Interfaces
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 16
Gigabit RJ45 PoE Ports #1~#16
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Configurable. If no priority is configured, smaller-numbered ports have higher priority.
Shielded RJ45 Port True
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
LED
  • Power
  • PoE Status of Each PoE Port
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
Power Interfaces AC Inlet
Physical Buttons Reset Button
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Customize the wait time in the web management to prevent damaging clients with online auto-upgrade feature.
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 8192
Max Switching Capacity 36 Gbps
Max Forwarding Rate 26.78 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power
Power Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 200W
Max Power Excluding PoE 14W
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3az Power Saving
  • 802.3af PoE
  • 802.3at PoE
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
  • 802.1ab: LLDP/LLDP-MED
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
PoE Management
  • PoE Priority
  • PoE Watchdog On/Off
  • PoE Watchdog Period/Packet Threshhold
  • PoE Consumed Power
  • PoE Standard
  • Delayed PoE Delivery
  • Total PoE Power Limit
  • PoE Power Limit
Port Mirror Sessions 4
Port Trunk Groups 4
Max Port Num per Port Trunk Group 8
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • DHCP Snooping
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
System
System Control Methods
  • Config Web Page
  • SNMP V1/V2
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
  • Cable Status/Length Diagnosis
  • Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension 440×220×44 mm
17.32×8.66×1.73 inches
Product Weight 2753.8 g (97.14 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets
Package Content
Package Content
  • GS1016EPS2
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 487×307×84 mm
19.17×12.09×3.31 inches
Retail Package Weight EU: 3500.0 g (123.46 oz.)
Units per Carton 5
Carton Net Weight EU: 17.5 kg (38.58 lbs)
Carton Gross Weight EU: 18.6 kg (41.01 lbs)
Carton Dimension 51×44.3×32.5 cm
20.08×17.44×12.8 inches
