Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af/bt. Max 60W Output.

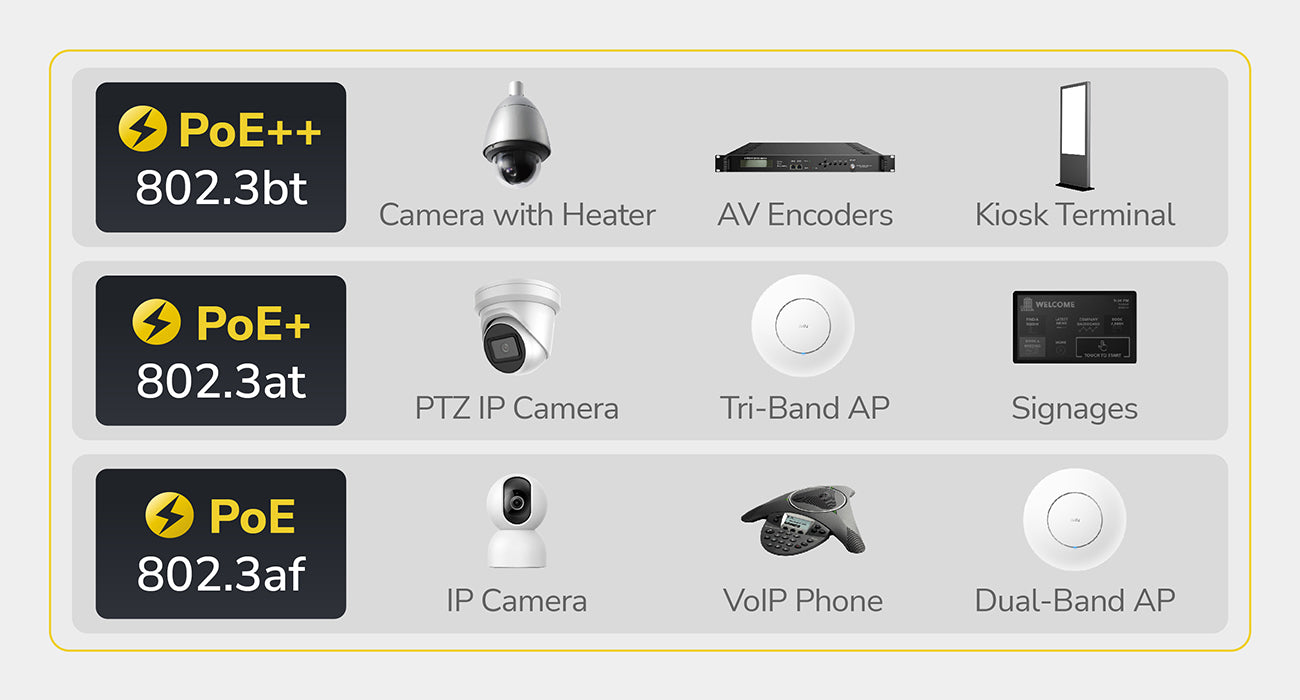

The ample 60W power budget can support most clients, including high-power devices such as heated surveillance cameras and kiosks with large touchscreens.

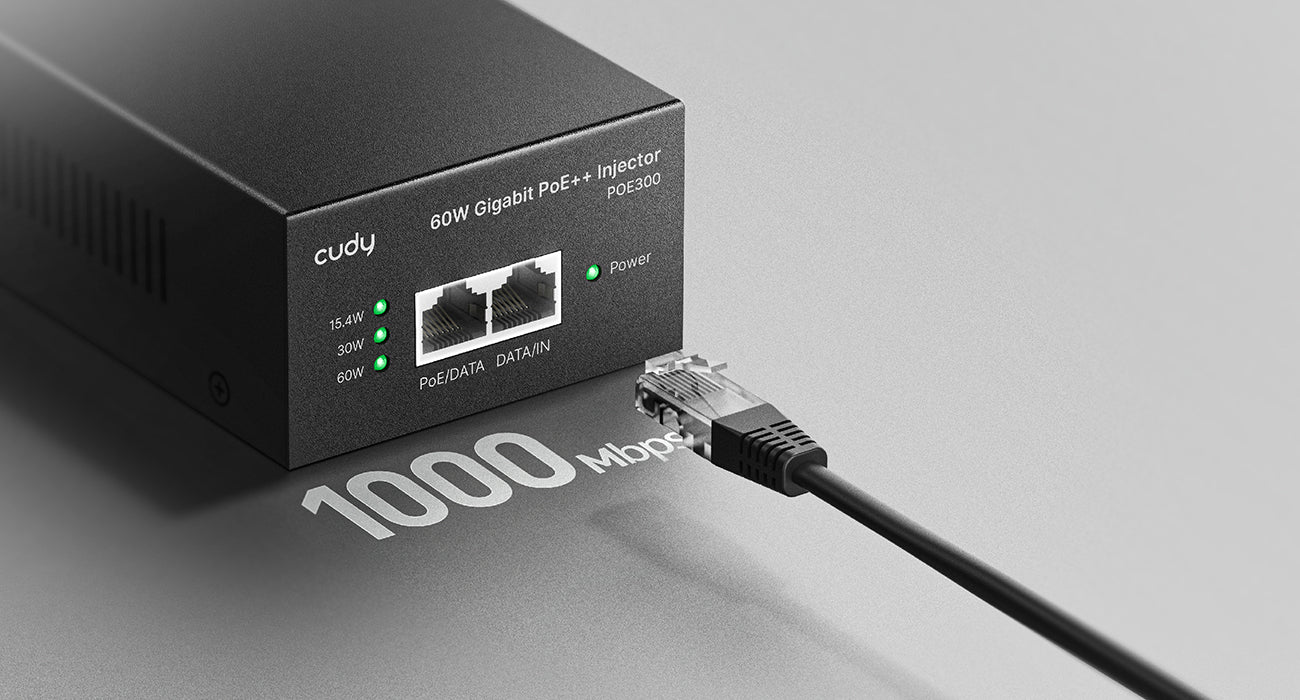

10/100/1000 Mbps Speeds

Stream data at full speed for bandwidth-intensive clients such as access points and AV encorders/decoders with no performance loss.

Exceptional Built-Quality for Stable Operation

Protect Clients with Outstanding EMC

Robust EMC design protects itself and clients from power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV

Built to Last Longer with High-Quality Capacitors

Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.

Easy to Use. Plug and Play.

Auto Negotiating the Power Needed

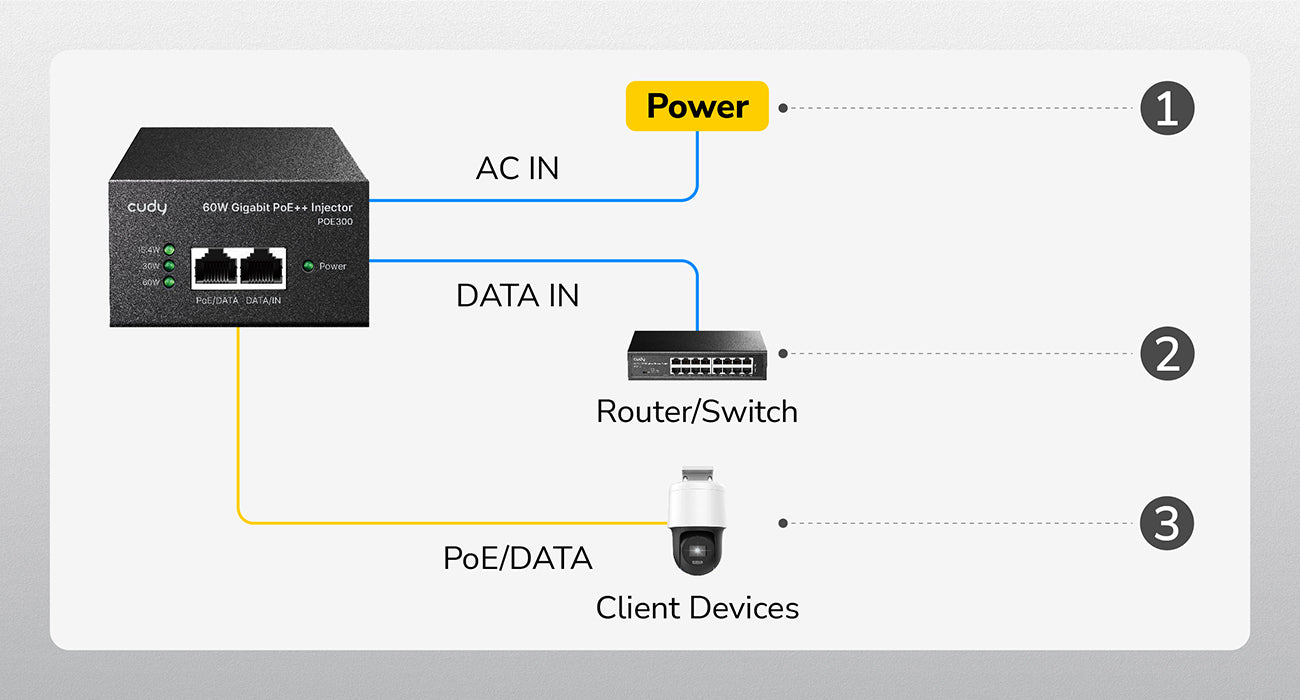

Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.

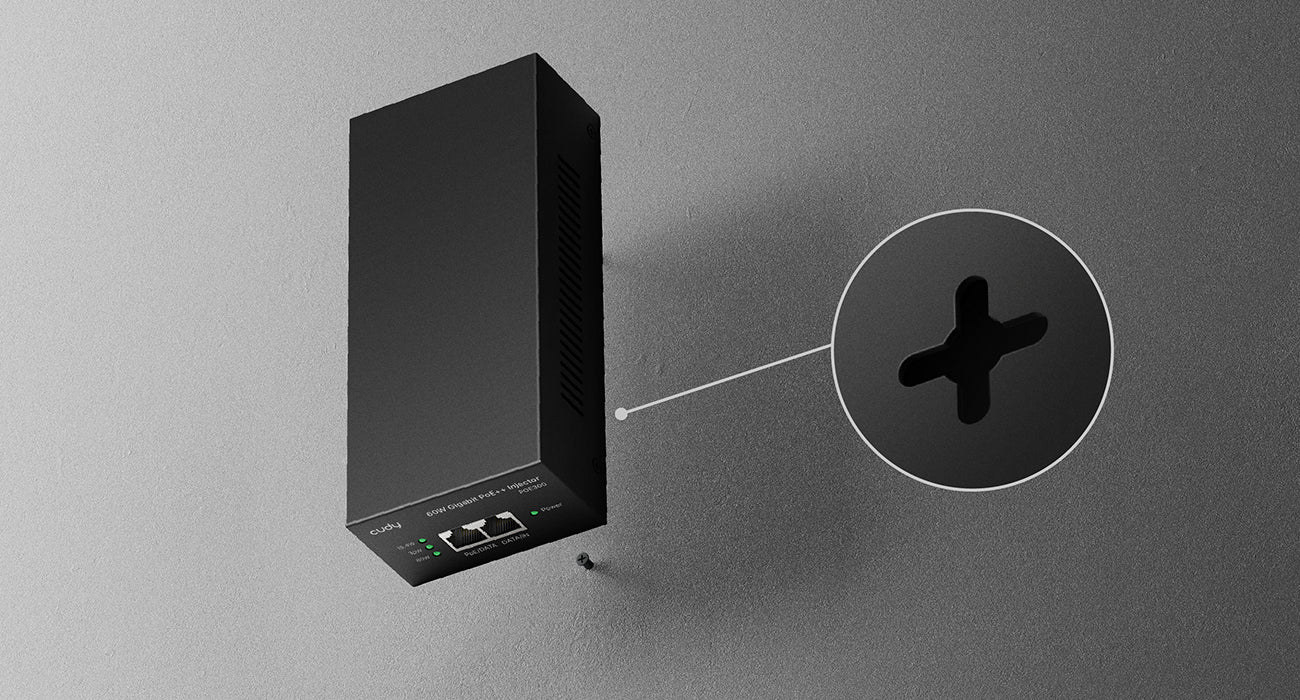

Wallmount Ready

Featuring two mounting holes on the back to allow you mount it on the walls.

ข้ามไปยังข้อมูลสินค้า
NaN จาก -Infinity

อินเจคเตอร์ Gigabit PoE++ 60W

อินเจคเตอร์ Gigabit PoE++ 60W, POE300 2.0

POE300 2.0

อะแดปเตอร์ PoE เคสโลหะติดผนังที่จ่ายไฟสูงสุด 60W ไปยังสายอีเธอร์เน็ตเพื่อจ่ายไฟให้กับอุปกรณ์ PoE


  • GbE เข้า GbE ออก
  • ระยะการส่งข้อมูล 100 ม
  • 802.3bt/at/af, สูงสุด 60W, 4 คู่
  • พลังงาน, ไฟ LED กำลังวัตต์ PoE
  • การป้องกันไฟกระชาก
ดูรายละเอียดทั้งหมด
รุ่นรุ่น
รุ่นรุ่น POE300 2.0
Protocols
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
  • 802.3af PoE
  • 802.3at PoE
  • 802.3bt PoE
PoE
PoE Uplink Stream 1× GbE
Downlink Stream 1× GbE, 802.3at/af/bt
Downlink Pin Assignment Four-Pair
Transimission Distance Cat. 5e or higher cable: 100 meters at Gigabit
Interfaces
Interfaces LED
  • Power
  • PoE Wattage
Power Input AC Inlet
Power
Power AC 100-240V 50/60Hz 1.5A
Max Power Output 60W, 54V⎓1.11A
Reliability
Reliability Client Protection Surge Protection
EMC EN55032 Class A
EN55035 Class A
EMI FCC 47 CFR Part 15B Class A
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 4kV
Grounding Methods
  • Grounding Point
  • Three-Prong Plug
Environment Ambient Operating Temperature: -10~40 ℃ (14~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 176×80×46 mm
6.93×3.15×1.81 inches
Casing Material Metal
Product Weight 628.0 g (22.15 oz.)
Package Content
Package Content
  • POE300
  • Power Cord
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 183×121×55 mm
7.2×4.76×2.17 inches
Retail Package Weight EU: 899.0 g (31.71 oz.)
Units per Carton 20
Carton Net Weight EU: 18.0 kg (39.68 lbs)
Carton Gross Weight EU: 18.8 kg (41.45 lbs)
Carton Dimension 41×29.9×29.7 cm
16.14×11.77×11.69 inches
