Wireless Adapter
WE650
1 2

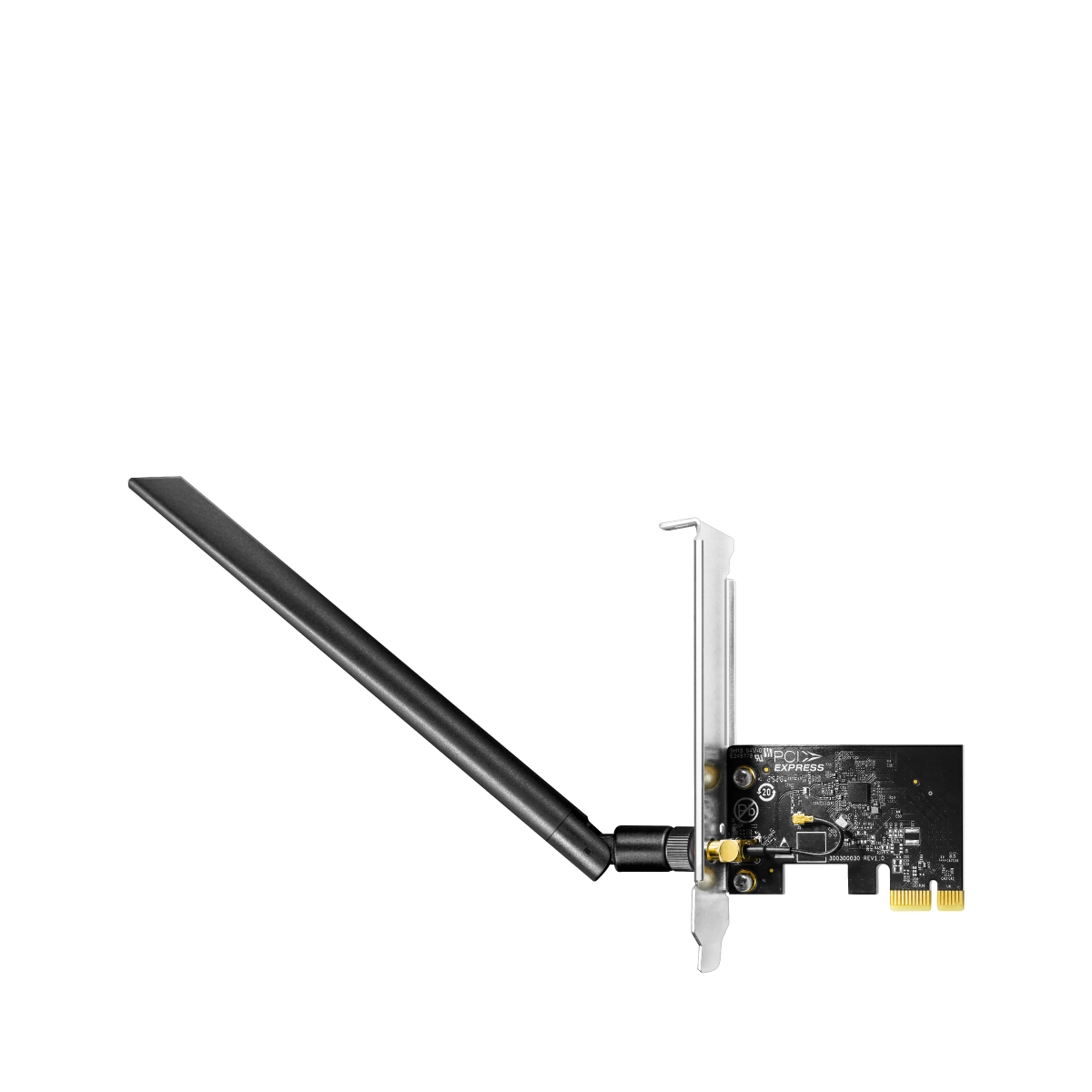

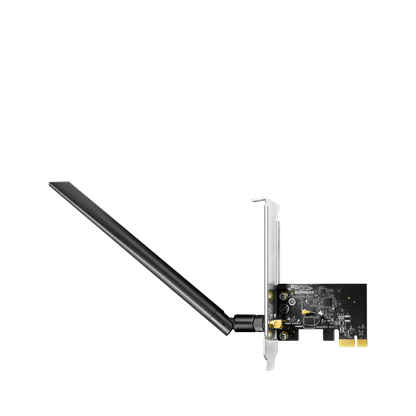

AC650 Wireless Dual-Band PCI-E Adapter

AC650 Wireless Dual-Band PCI-E Adapter, WE650 1.0

WE650 1.0

A Dual-Band wireless PCI-E adapter. Install it to equip your Windows 10/11 PC with advanced wireless connectivity.

  • Dual-Band Wi-Fi 5
  • 433 Mbps + 200 Mbps WiFi 1
  • Works on Windows 10/11
  • Standard/Low-Profile Bracket
View full details
Hardware Specs
Software Specs
Model Version
Model Version WE650 1.0
Wireless
Wireless 5 GHz Wi-Fi Speed 433 Mbps
2.4 GHz Wi-Fi Speed 200 Mbps
5 GHz Wi-Fi Streams 1T1R
2.4 GHz Wi-Fi Streams 1T1R
Wi-Fi Antennas 1× Detachable
Reliability
Reliability Environment
  • Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Requirements
Requirements Hardware Requirement Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the WiFi function
Compatible OS Windows 10/11 64-Bit
Driver Installation Auto driver installation on Windows 10/11.
Certifications
Certifications FCC, CE
Mechanical
Mechanical Dimension Main Part (without the bracket):
72.5×45×11.6 mm
2.85×1.77×0.46 inches
Antenna:
201.5 mm
7.93 inches

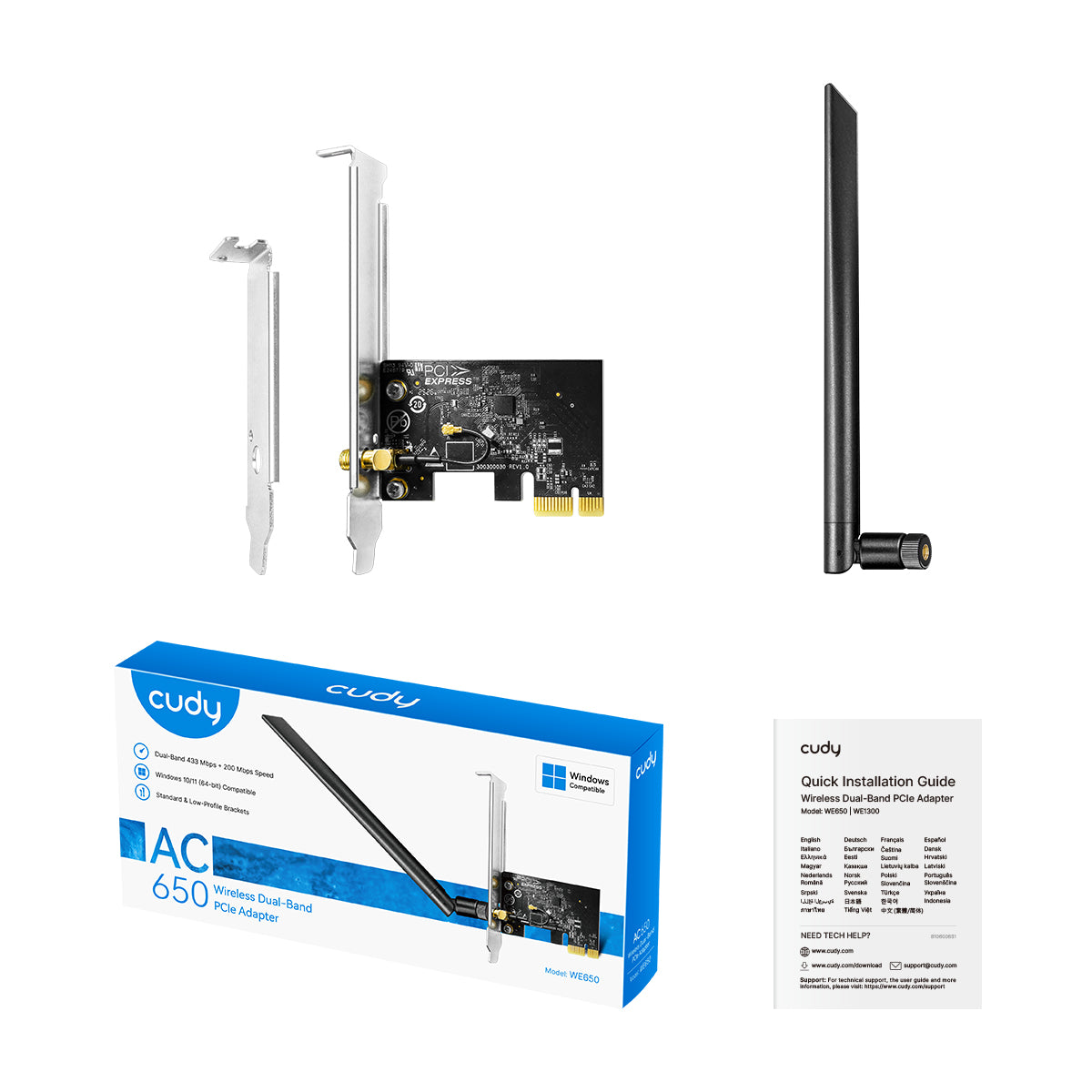

Package Content
Package Content
  • WE650
  • Detachable Antenna
  • Low-Profile Bracket
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 230×105×35 mm
9.06×4.13×1.38 inches
Units per Carton 50
Carton Dimension 55.7×39×25.2 cm
21.93×15.35×9.92 inches
Model Version
Model Version WE650 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
Drivers
Drivers Automatic Installation for Windows 10/11.
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
