Industrial Switch
IG1008EPS2
1 1

8-Port Gigabit Industrial Light-Managed PoE+ Switch with 2 SFP

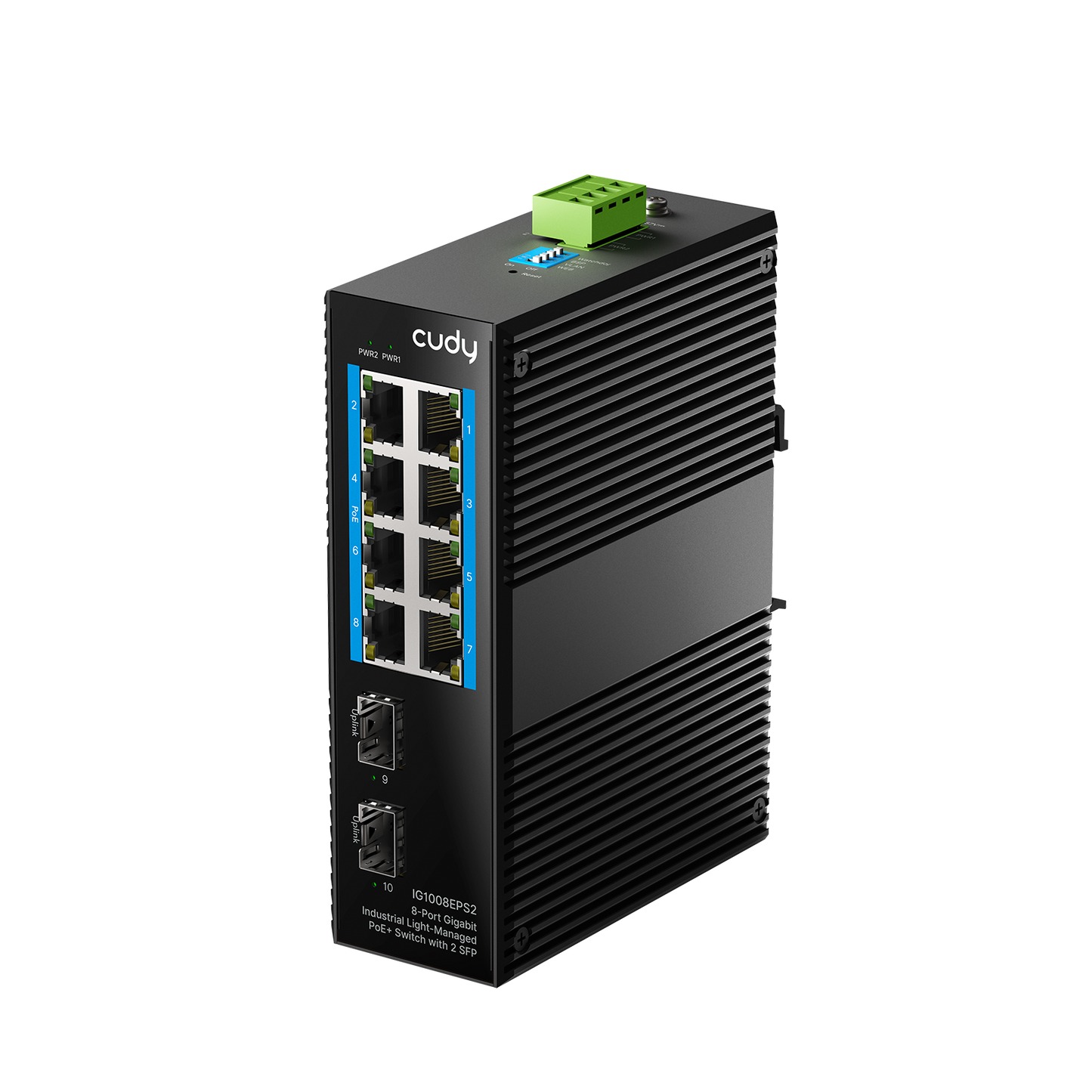

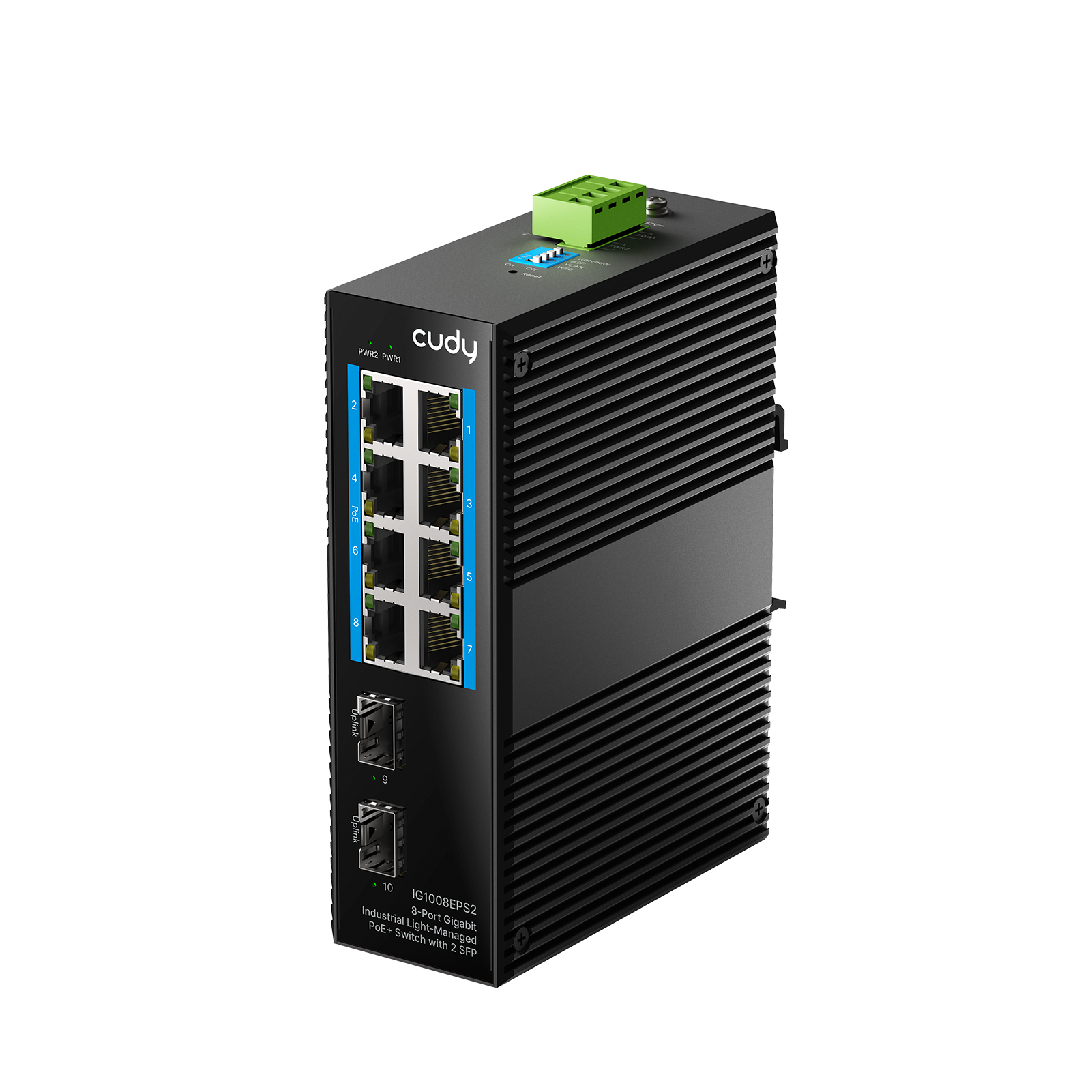

8-Port Gigabit Industrial Light-Managed PoE+ Switch with 2 SFP, IG1008EPS2 1.0

IG1008EPS2 1.0

A 8-GbE 2-SFP industrial PoE+ switch with management feature for networking in harsh conditions such as manufacturing, transportation, maritime, oil & gas, and mining.

  • 8× GbE, Shielded, ±6kV Surge Resistant
  • 8× 802.3at/af Mode A PoE
  • 2× 1.25G SFP
  • Dual DC Inputs, Requires 44~57V Power
  • IP40, -40~75°C (-40~167°F)
  • Polarity Reverse Protection
  • Short Circuit Protection
  • Broadcast Storm Prevention On/Off
  • VLAN/BSP/Watchdog On/Off
  • Integrated DIN-Rail Bracket
View full details
Model Version
Model Version IG1008EPS2 1.0
Interfaces
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 8
Gigabit RJ45 PoE Ports #1~#8
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
Shielded RJ45 Port True
VLAN Mode Ports #1~#8 by default, configurable when the Web mode is activated
LED
  • Power 1
  • Power 2
  • Link/ACT of Each Ethernet Port
  • PoE Status of Each PoE Port
Power Input 4-Pin Terminal Block
Physical Buttons
  • Reset Button
  • Web On/Off
  • VLAN On/Off
  • Broadcast Storm Prevention On/Off
  • PoE Watchdog On/Off
Physical Buttons Note When Web On/Off is enabled, the other On/Off toggles will be ignored by the system.
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 4096
Max Switching Capacity 21 Gbps
Max Forwarding Rate 14.88 Mpps
Jumbo Frame 16 KB
Packet Buffer 1.5 Mbit
Power
Power Power Methods DC
Power Redundancy Dual Inputs
DC 44-57V⎓
Max Power Consumption 240W
Max Power Excluding PoE TBD
Idle Power Consumption TBD
Polarity Reverse Protection True
Short Circuit Protection True
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3az Power Saving
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
  • 802.1ab: LLDP/LLDP-MED
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
PoE Management
  • PoE Priority
  • PoE Watchdog On/Off
  • PoE Watchdog Period/Packet Threshhold
  • PoE Consumed Power
  • PoE Standard
  • Delayed PoE Delivery
  • Total PoE Power Limit
  • PoE Power Limit
Port Mirror Sessions 4
Port Trunk Groups 4
Max Port per Port Trunk Groups 8
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • DHCP Snooping
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability Grounding Methods Grounding Point
Safety IEC/EN 62368
EMC EN55032 Class A
EN55035 Class A
EMI FCC 47 CFR Part 15B Class A
EMS IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5 PMF
IEC/EN 61000-4-10, Level 5 DOMF
EMS Note The levels listed in each EMS field are the highest level defined in the IEC/EN standard.
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
Free Fall IEC 60068-2-32
Environment Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
System
System Control Methods Config Web Page
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
  • Cable Status/Length Diagnosis
  • Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension Device:
47.5×103×144 mm
1.87×4.06×5.67 inches
Mounting Space:
47.5×147×165 mm
1.87×5.79×6.5 inches
Casing Material Aluminum
Ingress Protection IP40
Installation DIN-Rail
Package Content
Package Content
  • IG1008EPS2
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 207×154×75 mm
8.15×6.06×2.95 inches
Units per Carton 20
Carton Dimension 43.9×40.5×33.1 cm
17.28×15.94×13.03 inches
