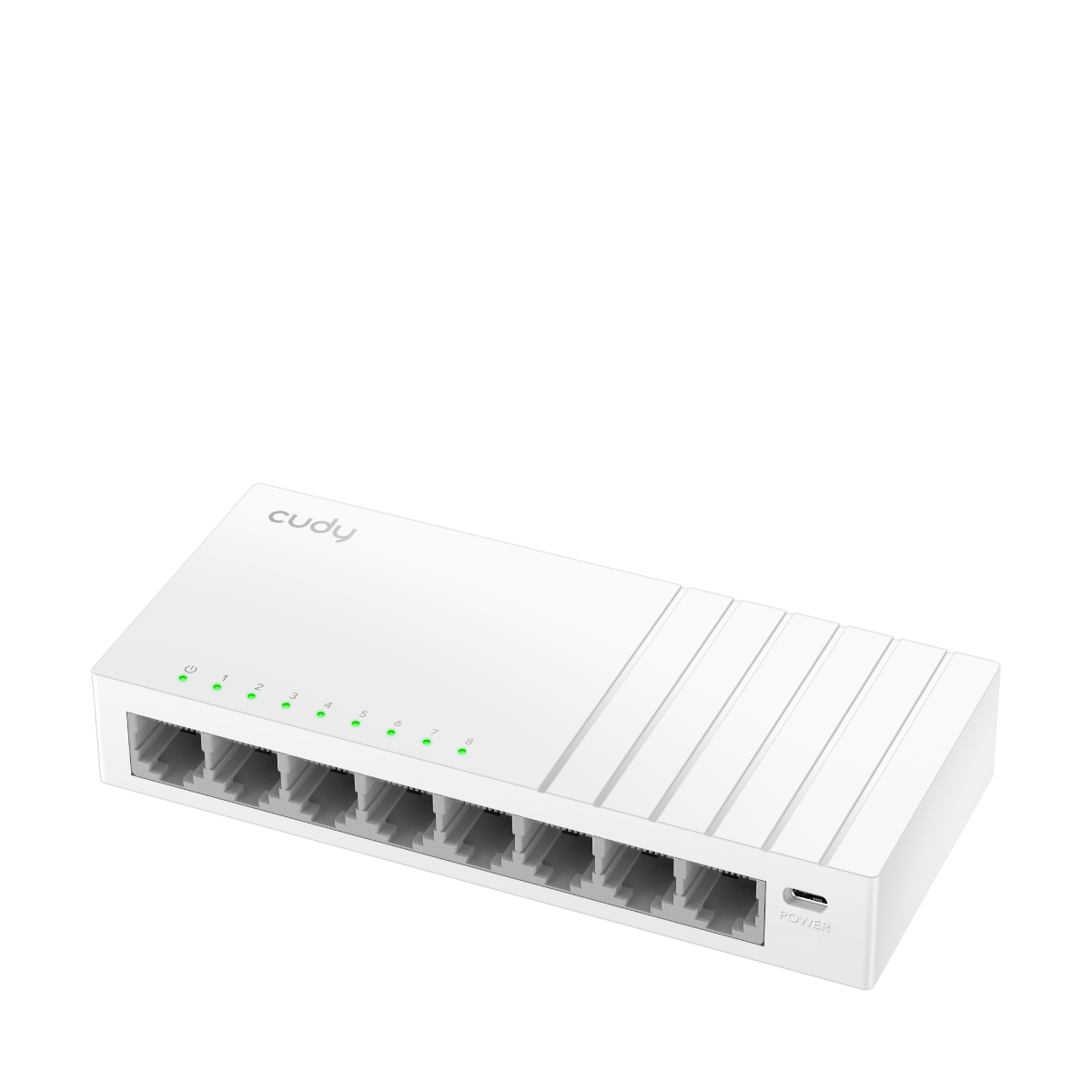

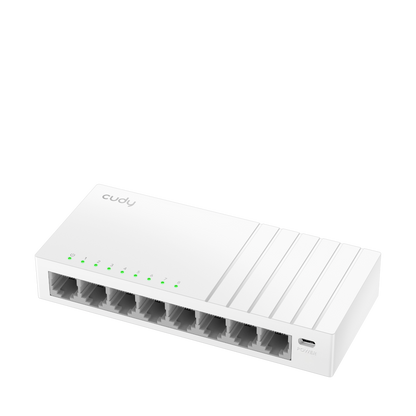

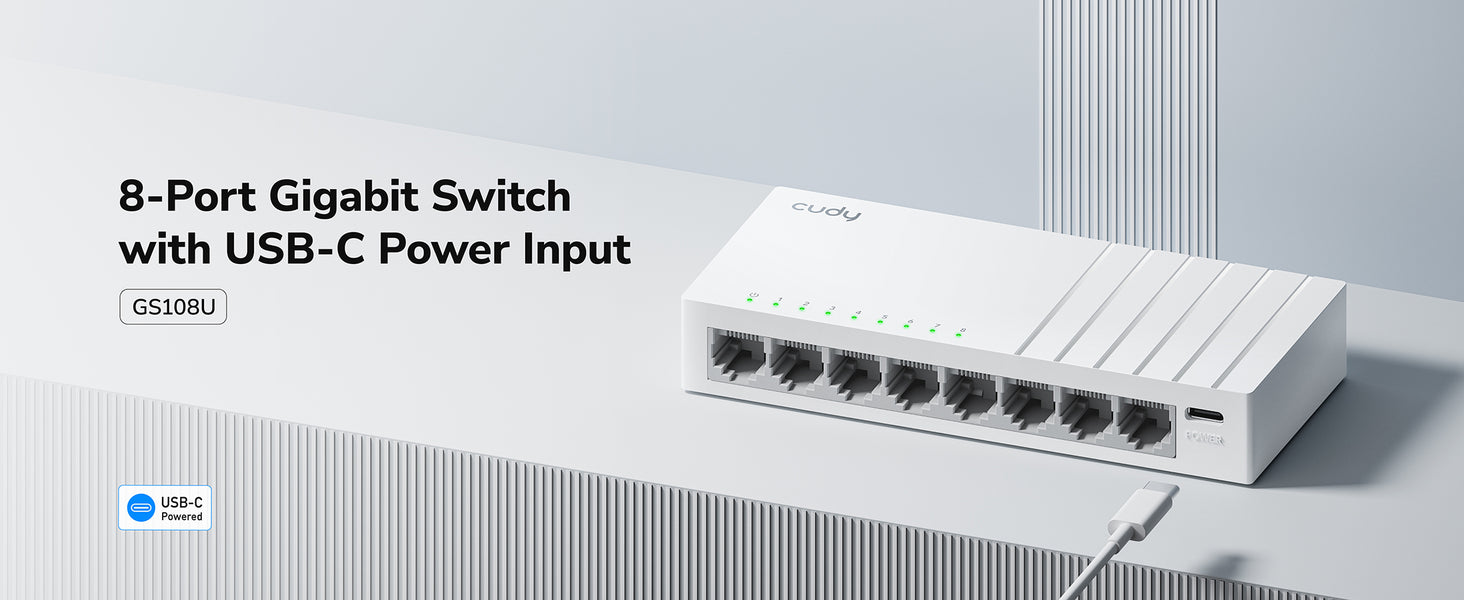

8-Port Gigabit Switch with USB-C Power Input

Name: 8-Port Gigabit Switch with USB-C Power Input, GS108U 2.0
Brand: Cudy

8-Port Gigabit Switch with USB-C Power Input, GS108U 2.0

Product variants

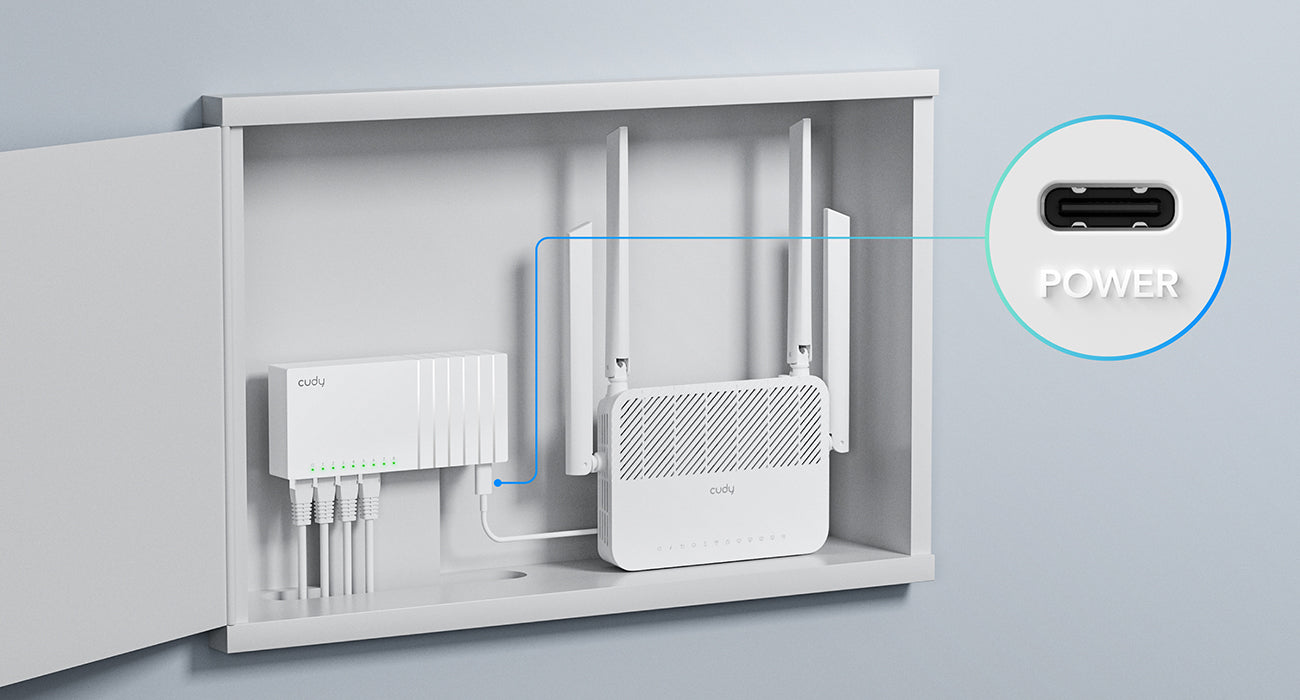

A mini Ethernet switch powered by USB-C, ideal for sharing a wired network on a desktop, wall, or in a distribution box.

Model Version
Model Version	GS108U 2.0
Interfaces

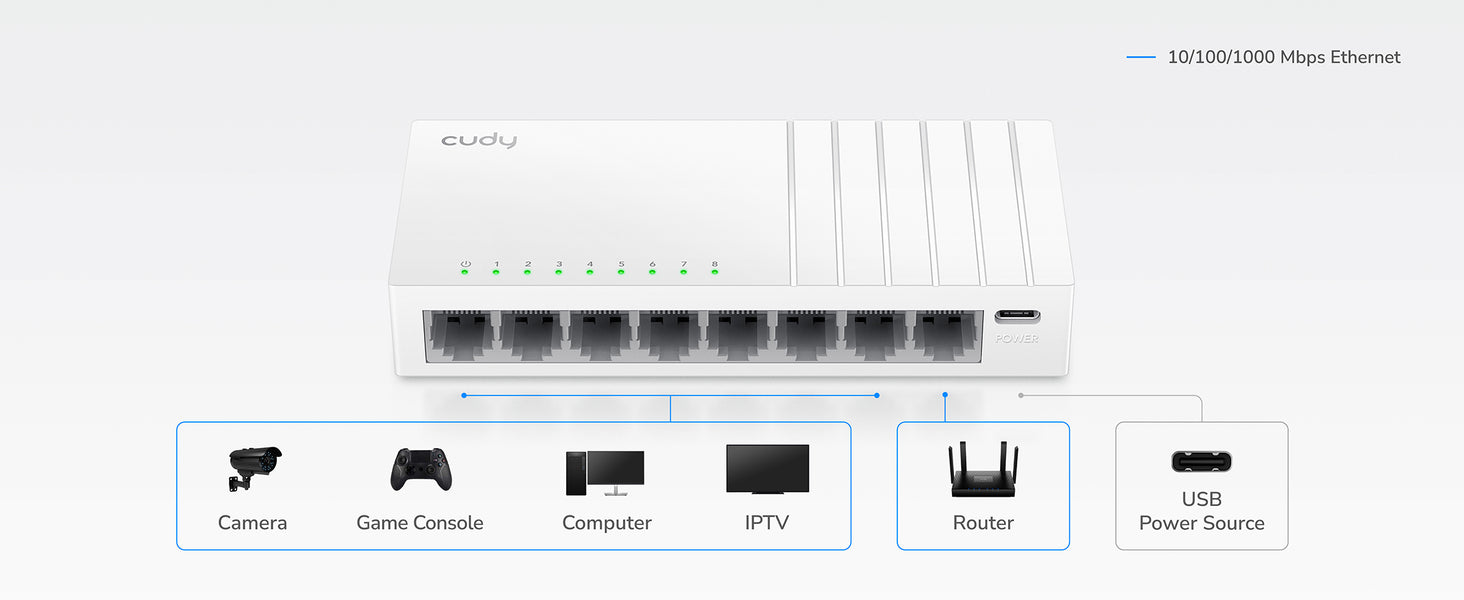

Interfaces	Gigabit RJ45 Ports	8

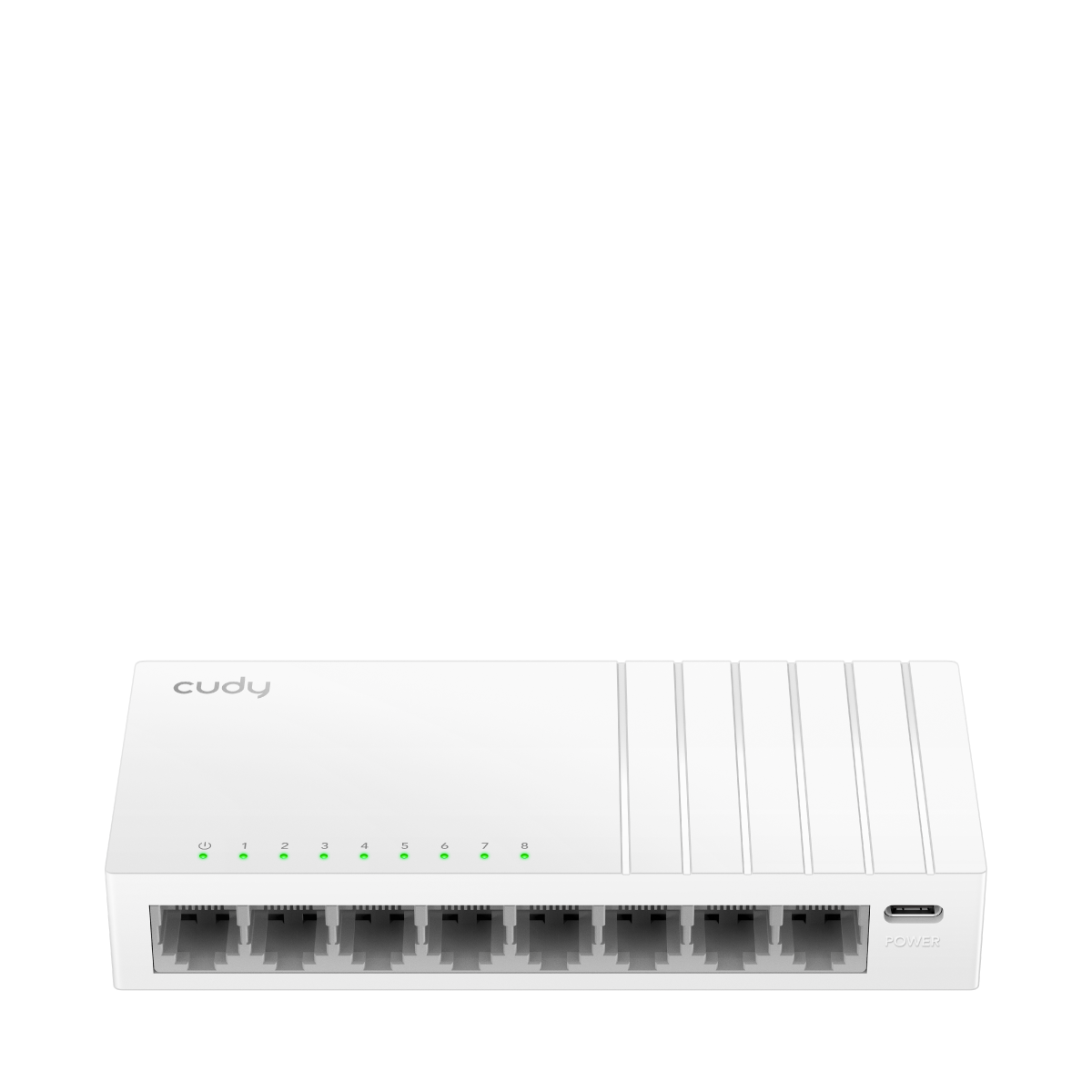

	LED	Power Speed/Link/ACT of Each Ethernet Port
	Power Input	USB-C Port
Performance

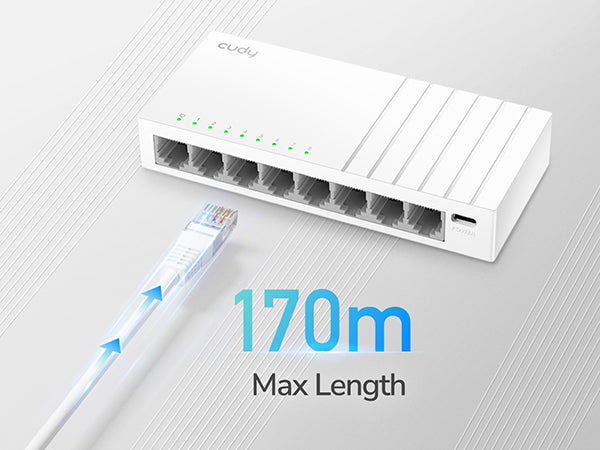

Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 170 meters at Gigabit
	MAC Address Table	4096
	Max Switching Capacity	16 Gbps
	Max Forwarding Rate	11.904 Mpps
	Jumbo Frame	9 KB
	Packet Buffer	1 Mbit
Power
Power	Basic Power Saving	True

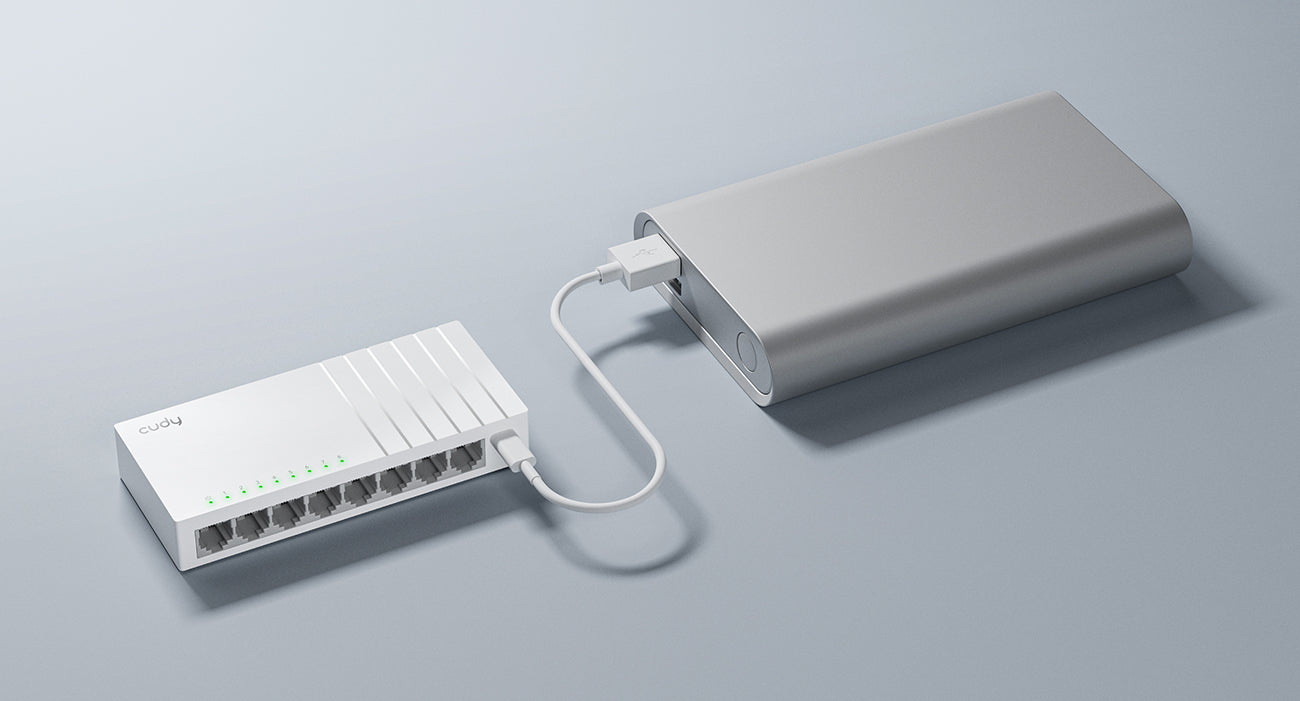

	Power Methods	DC via USB-C Jack
	DC	5V⎓0.8A
	Max Power Consumption	4W
	Idle Power Consumption	1.18W
Switching
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
Reliability
Reliability	EMS	IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV IEC/EN 61000-4-5, Level 3 Surge: 2kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Mechanical

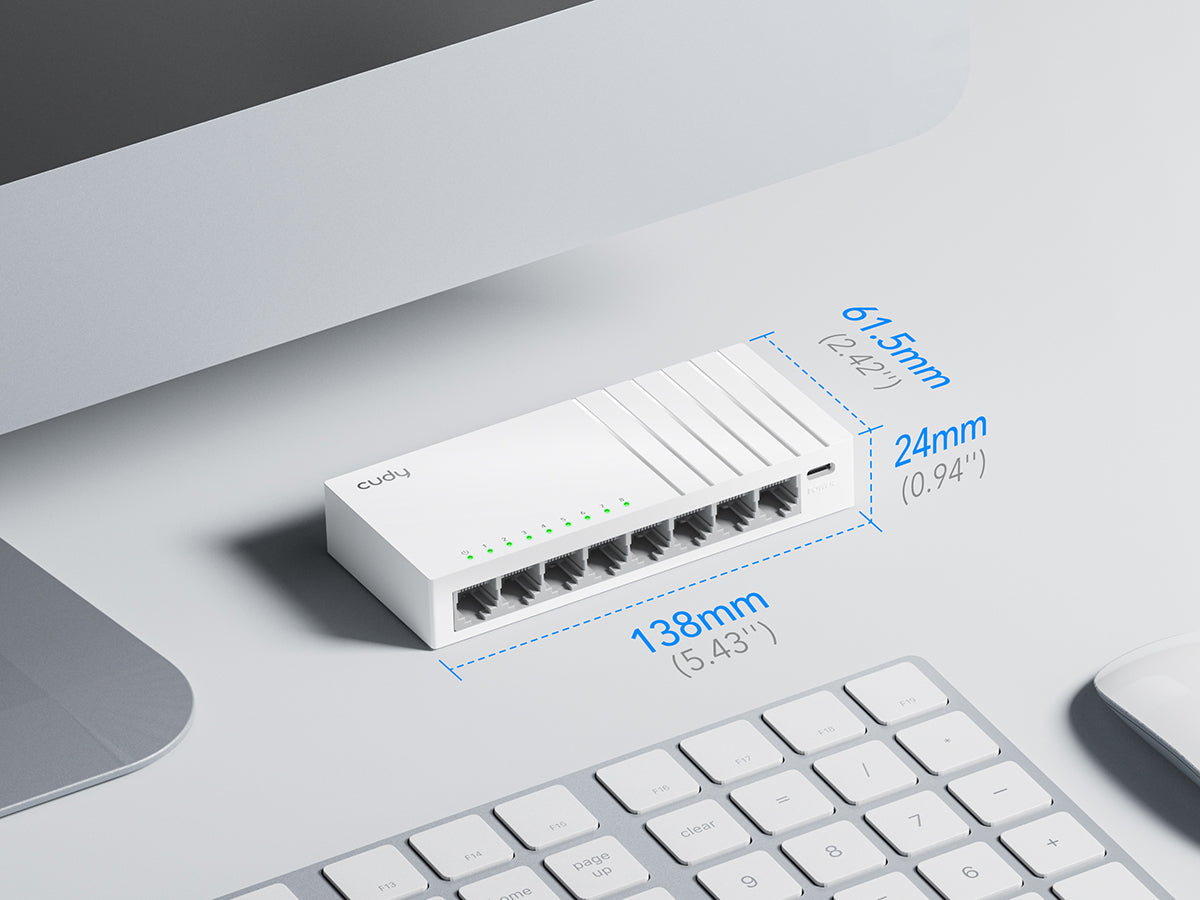

Mechanical	Dimension	138×61.5×24 mm 5.43×2.42×0.94 inches
	Casing Material	Plastic

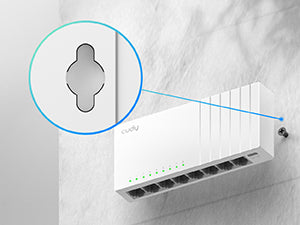

	Installation	Desktop Wall-mount

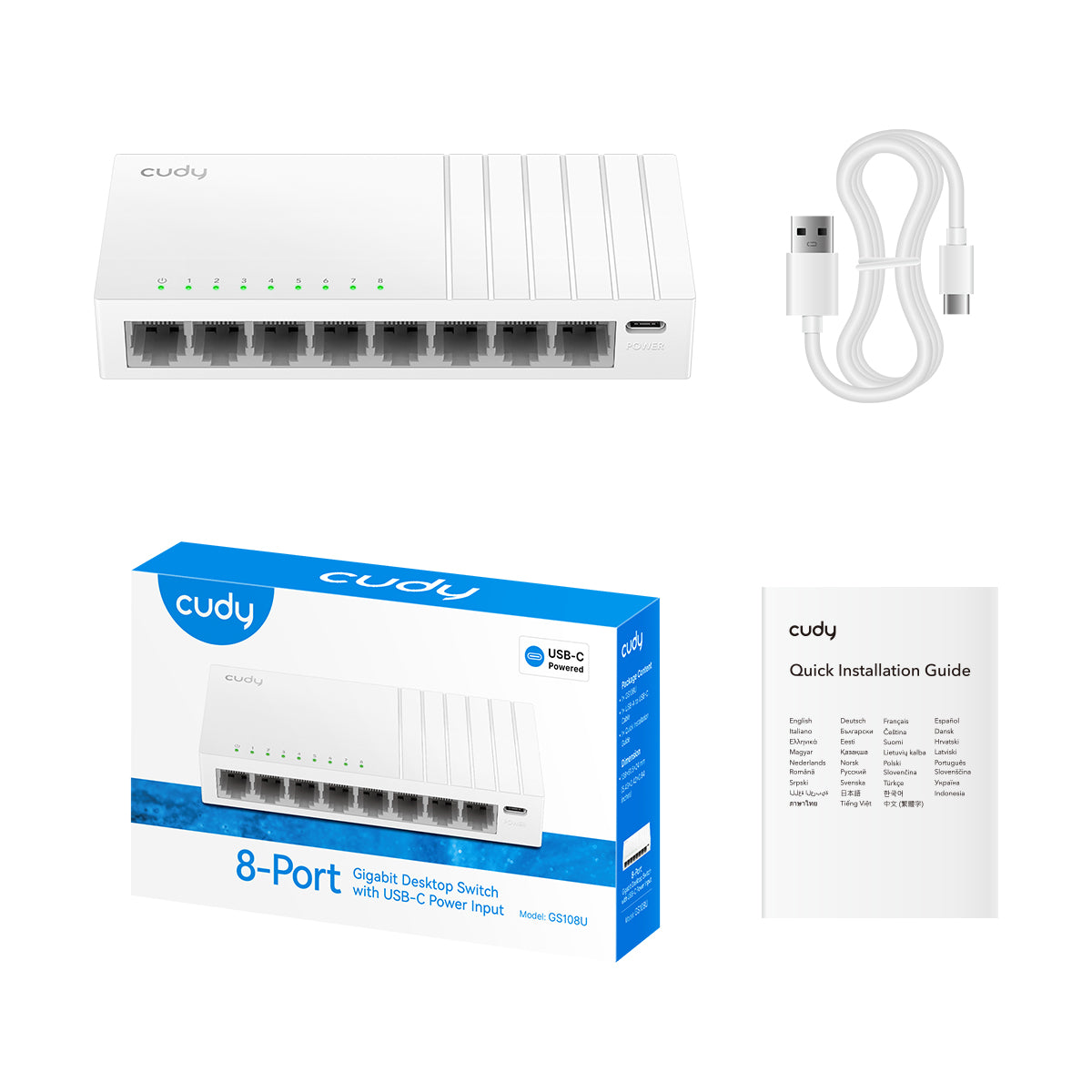

Package Content
Package Content	GS108U Installation Guide
