Speedy Dual-Band AC1200 Wi-Fi

With MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.

Boosted Wi-Fi Coverage with Beamforming

Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

Works in Rain, Thunder, Dust, Heat, Cold

The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 149 °F (-40 ℃ to 65 ℃).

Works in Rain, Thunder, Dust, Heat, Cold

The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 149 °F (-40 ℃ to 65 ℃).

Mesh Networks

Seamless Roaming for Smooth Wi-Fi Experience

Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.

Mesh Networks

Seamless Roaming for Smooth Wi-Fi Experience

Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.

Plug-and-Play Mesh Installation

Simply Plug and Unplug for Mesh Setup

Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately)

Leave the Rest to Adaptive Routing

Adaptive Routing improves the system's awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability.

Guide to Wiring and Physical Installation

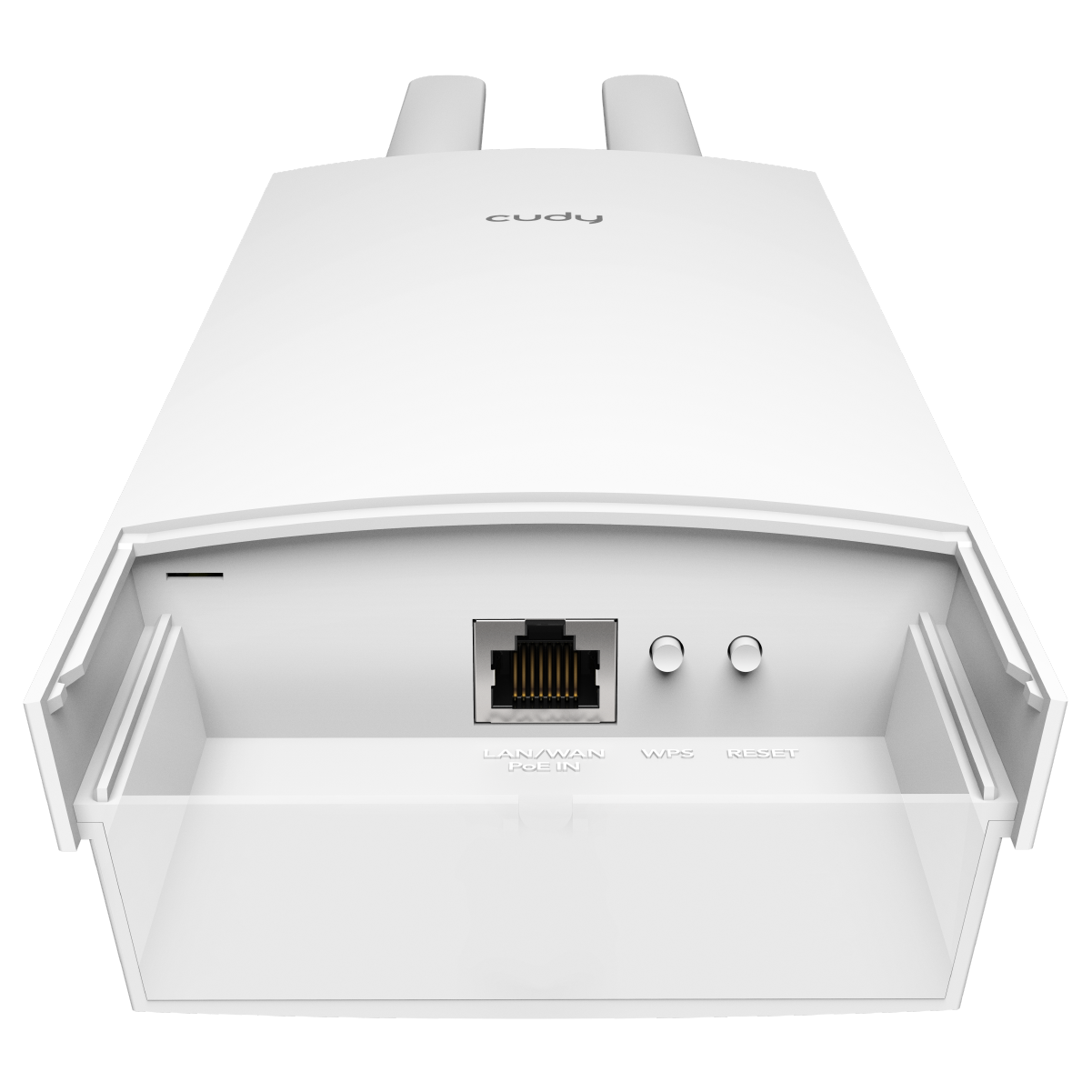

Gigabit Port with Two PoE Options

Supports two powering methods—

  • 802.3at PoE (Max power: 18 W, Idle: 5 W)
  • 48-57 V Passive PoE (Adapter included, not waterproof)

If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information.

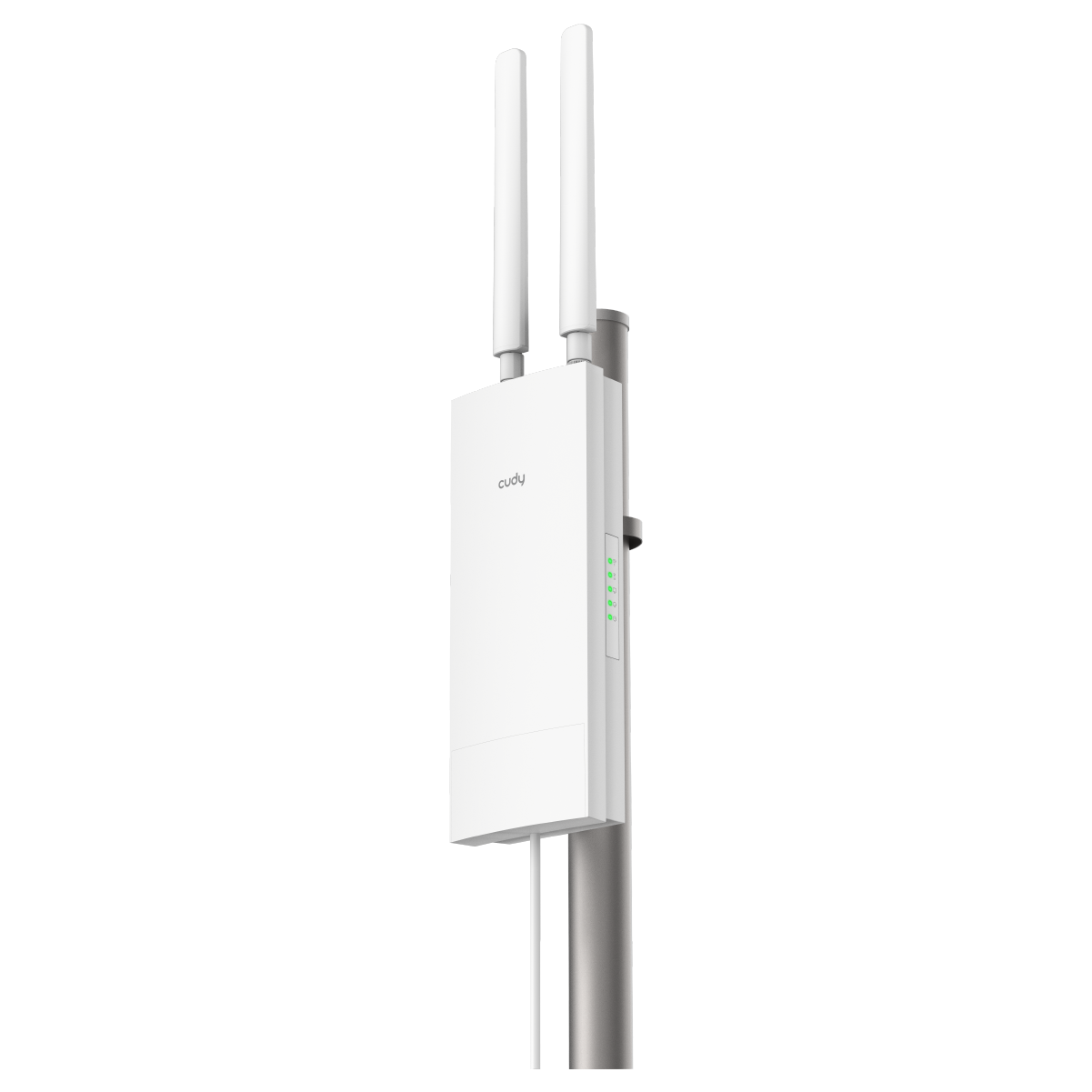

Mounting Kit Included

A mounting kit is included in the box, supporting—

  • Wall-Mounting
  • Pole-Mounting
Skip to product information
1 of 5

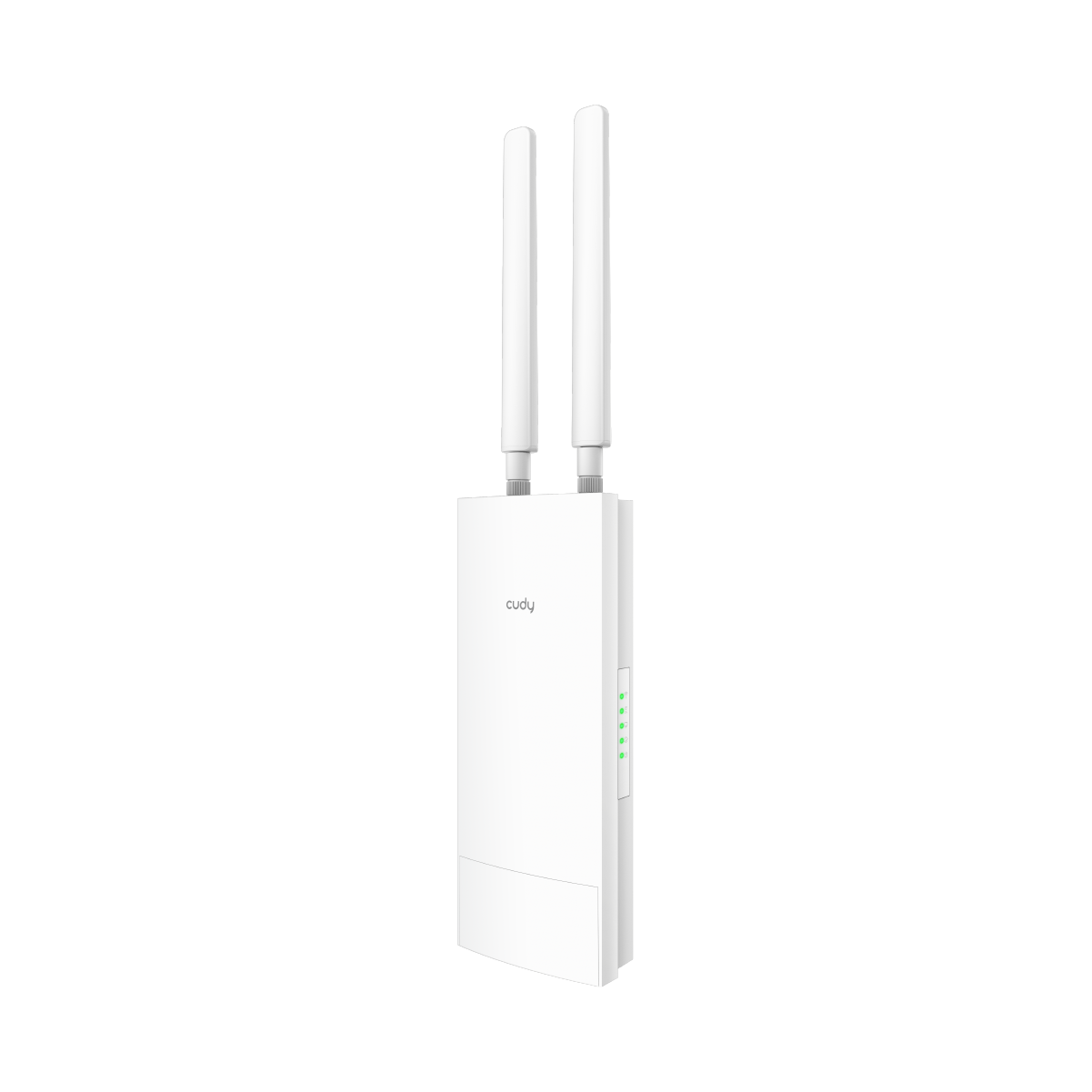

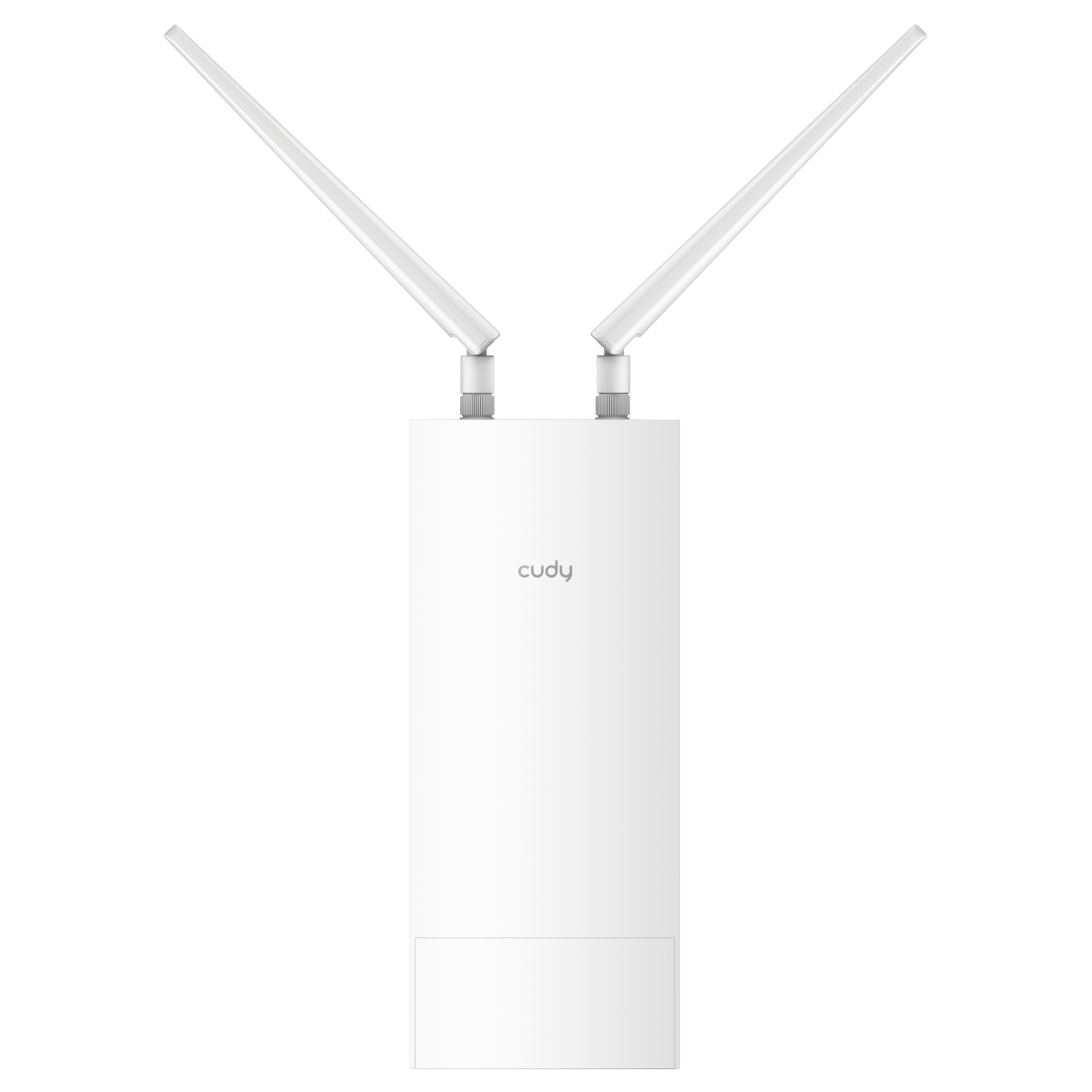

AP1300 Outdoor 1.0

A pole/wall-mounted WiFi AP with IP65 casing, PoE, and Cudy Mesh features, ideal for park, farm, and parking lot environments.


  • IP65, -40~65°C (-40~149°F), 4kV Surge
  • 4-Stream Dual-Band Wi-Fi 5
  • 867 Mbps + 300 Mbps Wi-Fi 1
  • 1× Shielded GbE PoE In
  • 802.3at/af, Passive PoE
  • Watchdog, Schedule Reboot
  • Max 170 m (550 ft) Range 2
  • 100 Connected Devices 3
View full details
Hardware Specs
Software Specs
Model Version
Model Version AP1300 Outdoor 1.0
CPU
CPU Chipset MT7621DAT
CPU Details 880 MHz Dual-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Detchable
5 GHz Antenna Gain Max 4.37 dBi
2.4 GHz Antenna Gain Max 4.46 dBi
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming True
Range Performance Max: 170 m (558 ft)
Park: 150 m (492 ft)
Street: 50 m (164 ft)
Woods: 30 m (98 ft)
Interfaces
Interfaces Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED
  • 5 GHz Wi-Fi
  • 2.4 GHz Wi-Fi
  • LAN
  • Internet
  • System
Physical Buttons Reset Button
Power Input PoE via Ethernet Port
Power
Power Power Methods
  • 802.3at/af PoE
  • Passive PoE
Passive PoE 24 ~ 57V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 11 W
Idle Power Consumption (W) 7.5 W
Reliability
Reliability Advanced Hardware Watchdog
Lightning/Surge Protection 4kV
ESD Contact Protection 4kV
ESD Air Protection 8kV
Environment Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Wall-mount
  • Pole-mount
Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches

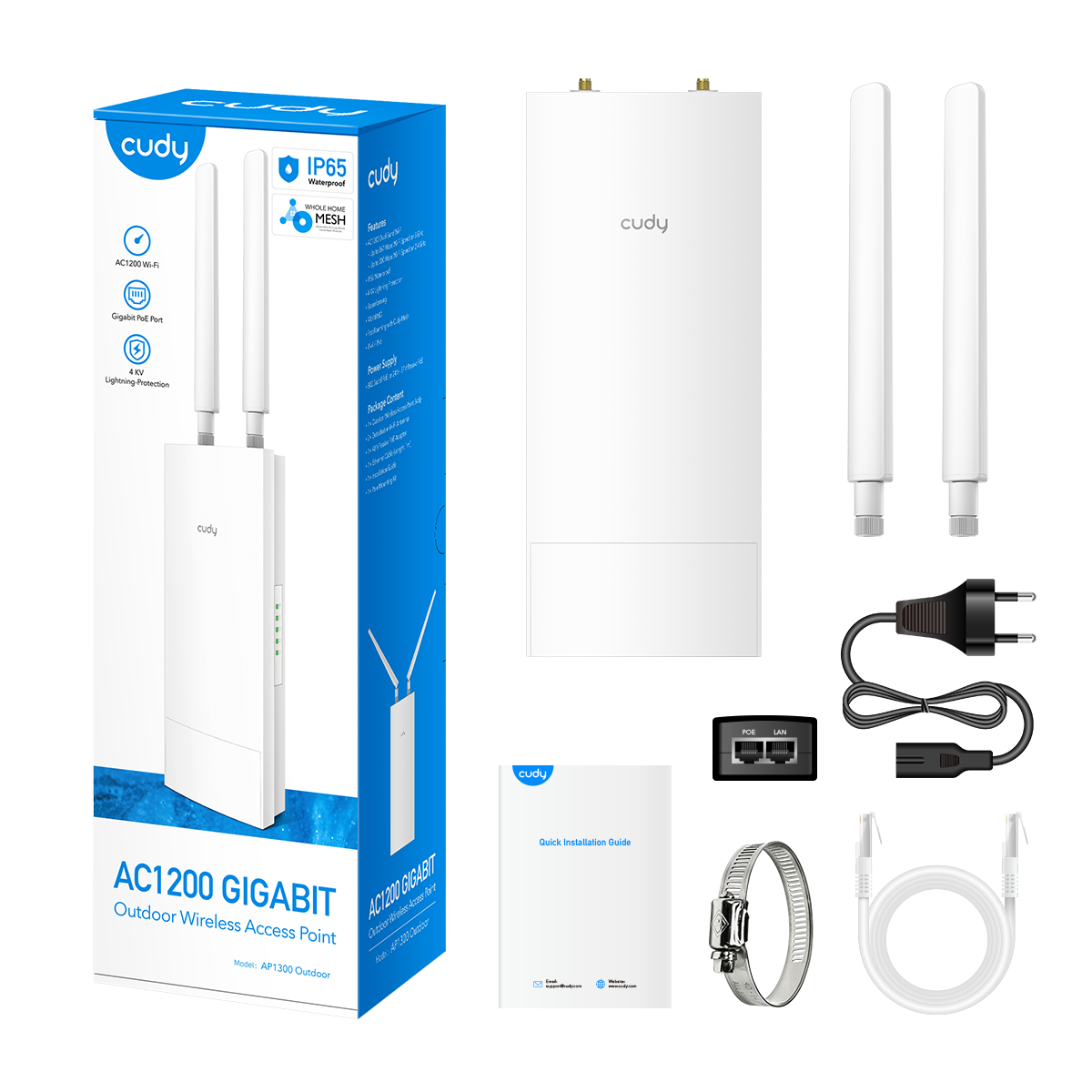

Package Content
Package Content
  • AP1300 Outdoor
  • Detachable Antennas
  • PoE Adapter
  • Power Cord
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight EU: 865 g (30.51 oz.)
Retail Package Dimension 324×107×86 mm
12.76×4.21×3.39 inches
Carton Net Weight EU: 17.3 kg (38.14 lbs)
Carton Gross Weight EU: 18.2 kg (40.12 lbs)
Units per Carton 20
Carton Dimension 46×33.7×45 cm
18.11×13.27×17.72 inches
Model Version
Model Version AP1300 Outdoor 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Capacity 128
Recommended Client Upper Limit 50
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul true
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Staic (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Captive Portal True
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Intenent On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control ture
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
General
General Internet Failover Sequence
  • WAN
  • WISP

  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. The maximum range test is conducted in an open field with minimal radio frequency interference. The other device used in the test was a laptop with built-in Wi-Fi specifications matching the tested device.
  3. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
