Outdoor 4G Cat 6 AC1200 Wi-Fi Router, Model: LT700 Outdoor

  •
    Turn Everywhere 4G into Speedy AC1200 Wi-Fi
    With 4G Cat.6 standards, LT700 Outdoor communicates with a 4G tower with speeds of up to 300 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 30 devices while minimizing the latency.

    Boosted Wi-Fi Coverage with Beamforming

    Tested Wi-Fi coverage performance in four different scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.



    Outdoor Full-Bar 4G Signal Brings High-Quality Wi-Fi

    Insert a SIM, Enjoy Wi-Fi
    Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.    		 Pull Network to 100 m Away
    Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.    		 Install an AP for Indoor Wi-Fi
    Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to bepurchased separately.    		 Install Extension Antennas
    The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.

    A Quick Guide to Network Installation

    A Reliable Network Solution

    Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):

    ● Switch: Cudy GS108 (Skip this if you don't require extra wired connections)
    ● AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)

    Budget Solution:

    ● AP: Cudy WR1200 (Choose AP mode during Setup)

    		 Mounting Kit Included
    A mounting kit is included in the box, supporting–
    ● Wall-Mounting
    ● Pole-Mounting

    4G Band Lock

    4G band lock makes it possible to lock the 4G working frequency to one or several bands to keep the stability of operation.

    VPN support

    With built-in PPTP, L2TP, WireGuard and OpenVPN Clients, this router can easily establish a connection to VPN Server to transport all your online data and traffic, securing it with its encryption at the same time.

    WAN Failover

    Configure LAN/WAN port as WAN and plug an ethernet cable with internet to the LAN/WAN port, then the LAN/WAN port would be the main source of the internet, while the 4G network would be worked as a backup. If the WAN/LAN Internet service fails, it will switch to 4G service automatically.

    Share Your 4G LTE Network to Wherever needs it

    Home

    With an integrated 4G LTE modem and a built-in AC1200 dual-band WiFi, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi at home has never been easier.

    Office

    Use as a primary or backup internet connection. Provides high-speed Internet for office. Can also be a backup automatically if your existing Internet service fails, making your office network always online.

    Remote Area

    Simply insert a SIM card and get all your Wi-Fi devices connected to the internet, very convenient for places where cable internet is unavailable, such as your holiday cabins, remote cameras, boat and RV.





    Specifications



    Model LT700 Outdoor
    LTE Module Model EU Version

    EG060W-EA

    LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
    LTE-TDD: B38/B40/B41
    WCDMA: B1/B5/B8
    LTE Module Model US Version

    EG060K-NA

    LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/ B26/B29/B30/B66/B71
    LTE-TDD: B41/B48
    Flash 128 Mbit (16 MB) SPI Flash
    DDR 1 Gbit (128 MB) DDR
    Interface 1× 10/100/1000Mbps WAN/LAN RJ45 Port (Support 802.3at/af PoE or 48V Passive PoE)
    1× Reset Button
    1× Nano SIM Slot
    LED System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength
    Antenna 2× Internal Wi-Fi Antennas
    2× External Detachable 4G Antennas
    Gain 5 dBi
    Wireless Features
    Wireless Standards IEEE 802.11ac/a/n/b/g
    Frequency 2.4 GHz, 5GHz
    Signal Rate 867Mbps (5 GHz), 300 Mbps (2.4 GHz)
    Compatible with 802.11 ac/a/b/g/n Wi-Fi standards
    Transmit Power CE: <20dBm
    FCC:<30dBm
    Wireless Modes Enable/Disable Wireless Radio, WMM
    Wireless Functions WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
    Mesh Compatibility Works with other Cudy Mesh products (as the main Mesh node)
    Software Features
    WAN Type 4G/Dynamic IP/Static IP/PPPoE
    DHCP Server, DHCP Client List, Address Reservation
    Dynamic DNS Compatible with 15 more DDNS providers
    NAT Port Forwarding, Port Triggering, UPnP, DMZ
    VPN Sever & Client PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
    CWMP Protocol TR069 / TR098 / TR111 / TR181
    ACS Server Compatibility GenieACS, OpenACS
    Management Access Control, Local Management, Remote Management, Wake on LAN
    TTL Extend/Spoof/Custom
    DNS Cloudflare/Google/Quad9/Custom
    Internet Protocols IPv4 / IPv6
    IPv6 Relay
    Dynamic(SLAAC/DHCPv6)
    Static (Fixed IP)
    Passthrough
    MAP-E (Dual-stack)
    DS-Lite (Dual-stack)
    SMS Send/Receive
    4G Band Lock Support
    Others

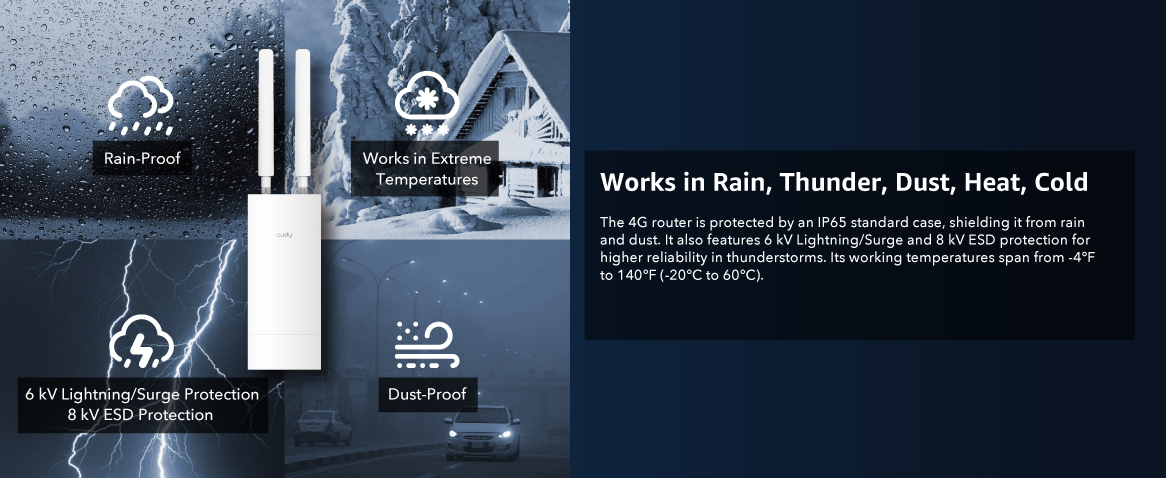

    Ingrees Protection Rating IP65 (Router only when installed vertically, the PoE Adapter is not waterpoof)
    Working Temperatures

    -20 ~ 60 °C (-4°F ~ 140°F)

    Extend -40 ~ 70°C (-40°F ~ 158°F) (Booted up in advance. Performance may drop slightly.)
    Dimensions

    Router Body: 240×100×53.7 mm (9.5×3.9×2.1 inches)
    Antennas: 197.5×21.6×15.5 mm (7.8×0.9×0.6 inches)

    Height of Router with Antennas installed: 438 mm (17.2 inches)
    Package Contents 2 × detachable 4G antennas
    Passive PoE adapter
    Pole Installation Accessory
    Ethernet Cable
    Quick Installation Guide
    System Requirements

    Windows, MAC OS, NetWare, UNIX, or Linux

    Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser

    If you are using 4G as your internet access, you will need a nano SIM card with an active data subscription,

    If you are using WAN as your internet access, you will need a fiber/cable/DSL modem or any other wired internet source.
● LTE FDD/TDD Cat 6
● AC1200 Wi-Fi
● 1x Gigabit WAN/LAN
● Nano SIM Card Slot
● 802.3at/af PoE or 24~57 V Passive PoE
● 2x Internal WiFi Antennas + 2 x Detachable 4G Antennas
● VPN & DDNS
● IP65 Water/Dustproof
● -20~60 °C (ext. -40~75 °C) working temperatures
