WiFi Router

WR3000

Best Seller

Overview
Features
Specs
Download

Upgraded Wi-Fi 6 Processing

Powerful CPU Transmits Data in No Time

The new Wi-Fi 6 chip with a 4-nm made process delivers amazing powers and an impressive efficiency bump, enabling immersive online gaming streams, multiple 4K live feed, and maintain responsive.

Upgraded Wi-Fi 6 Processing

Powerful CPU Transmits Data in No Time

The new Wi-Fi 6 chip with a 4-nm made process delivers amazing powers and an impressive efficiency bump, enabling immersive online gaming streams, multiple 4K live feed, and maintain responsive.

Faster Wi-Fi 6 Eliminates Throttling

Equipped with Wi-Fi 6, WR3000 boasts the highest 160 MHz bandwidth and 1024-QAM to reach up to 3 Gbps speeds, which is more than 2.5X faster than the last-gen AC 2x2 WiFi router.

Faster Wi-Fi 6 Eliminates Throttling

Equipped with Wi-Fi 6, WR3000 boasts the highest 160 MHz bandwidth and 1024-QAM to reach up to 3 Gbps speeds, which is more than 2.5X faster than the last-gen AC 2x2 WiFi router.

Boosted Coverage, Lower Latency

Direction Detected, Signal Boosted

Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Easier Combos in Games

The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use.

Connect More, Stay Fast

Designed to connect up to 256 devices, everyone can enjoy a more efficient network that loads faster without performance.

Connect More, Stay Fast

Designed to connect up to 256 devices, everyone can enjoy a more efficient network that loads faster without performance.

Versatile Functionalities

VPN Server and Client

Enables work from home and secure remote access with the support of popular VPN protocols. (Requires firmware newer than 1.16.1)

DNS Encryption

Protects your browsing record from leaking with DNS over TLS service with Cloudflare, Google, and Quad9.

Cudy Mesh Ready

Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.

IPTV

Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

Cudy App

Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

‏‏‎

Learn More

NaN -Infinity

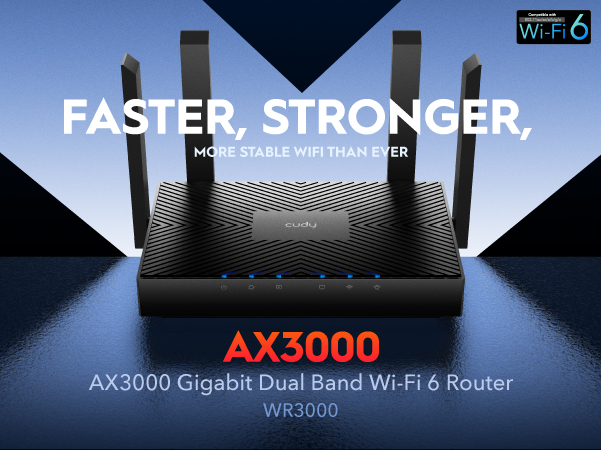

AX3000 Gigabit Mesh Wi-Fi 6 Router

Name: AX3000 Gigabit Mesh Wi-Fi 6 Router, WR3000 1.0
Brand: Cudy

AX3000 Gigabit Mesh Wi-Fi 6 Router, WR3000 1.0

WR3000 1.0

Product variants

A WiFi 6 router with four Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency.

1.3 GHz Dual-Core CPU
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi ¹
4× Gigabit Ethernet Ports
200 Connected Devices ²
Covers 130 m² (1,400 ft²) ³
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control

View full details

Hardware Specs

Software Specs

Model Version
Model Version	WR3000 1.0
CPU
CPU	CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	256 MB (2 Gbit) DDR3
Wireless
Wireless	5 GHz Wi-Fi Speed	2402 Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO) with an Extra Stream
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Fixed
	5 GHz Antenna Gain Max	4.8dBi
	2.4 GHz Antenna Gain Max	3.4dBi
	FEM or PA/LNA	5 GHz: 3× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 200 m (656 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces	Gigabit RJ45 Ports	4
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System Internet WAN LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi
	Physical Buttons	WPS Button Reset Button
	Power Input	DC Jack
Power
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
	Max Power Consumption (W)	11.5w
	Idle Power Consumption (W)	4.2w
Reliability
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Desktop Wall-mount
	Dimension	183.3×109×35 mm 7.22×4.29×1.38 inches
	Product Weight	BR: 295 g (10.41 oz.) ZH: 295.8 g (10.43 oz.)
Package Content
Package Content	WR3000 Power Adapter Ethernet Cable Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	BR: 589 g (20.78 oz.) EU: 614 g (21.66 oz.) UK: 626 g (22.08 oz.) US: 615 g (21.69 oz.) ZH: 589.2 g (20.78 oz.)
	Retail Package Dimension	240×230×60 mm 9.45×9.06×2.36 inches
	Units per Carton	20
	Carton Dimension	49.5×32.5×48 cm 19.49×12.8×18.9 inches
	Carton Gross Weight	BR: 12.9 kg (28.44 lbs) EU: 13.5 kg (29.76 lbs) UK: 13.6 kg (29.98 lbs) US: 13.1 kg (28.88 lbs) ZH: 12.8 kg (28.22 lbs)
	Carton Net Weight	BR: 11.8 kg (26.01 lbs) EU: 12.3 kg (27.12 lbs) UK: 12.5 kg (27.56 lbs) US: 12.3 kg (27.12 lbs) ZH: 11.8 kg (26.01 lbs)

Model Version
Model Version	WR3000 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	200
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	True
General
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
	Internet Failover Sequence	WAN WISP
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	VPN Server	WireGuard OpenVPN PPTP L2TP
	VPN Client	WireGuard OpenVPN PPTP L2TP
	VPN Performance	OpenVPN Client (UL/DL): 90 / 120 Mbps OpenVPN Server (UL/DL): 180 / 160 Mbps WireGuard Client (UL/DL): 224 / 230 Mbps WireGuard Server (UL/DL): 360 / 314 Mbps
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Captive Portal	True
	Wake on LAN	True
	Online Detection	True
Management
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
