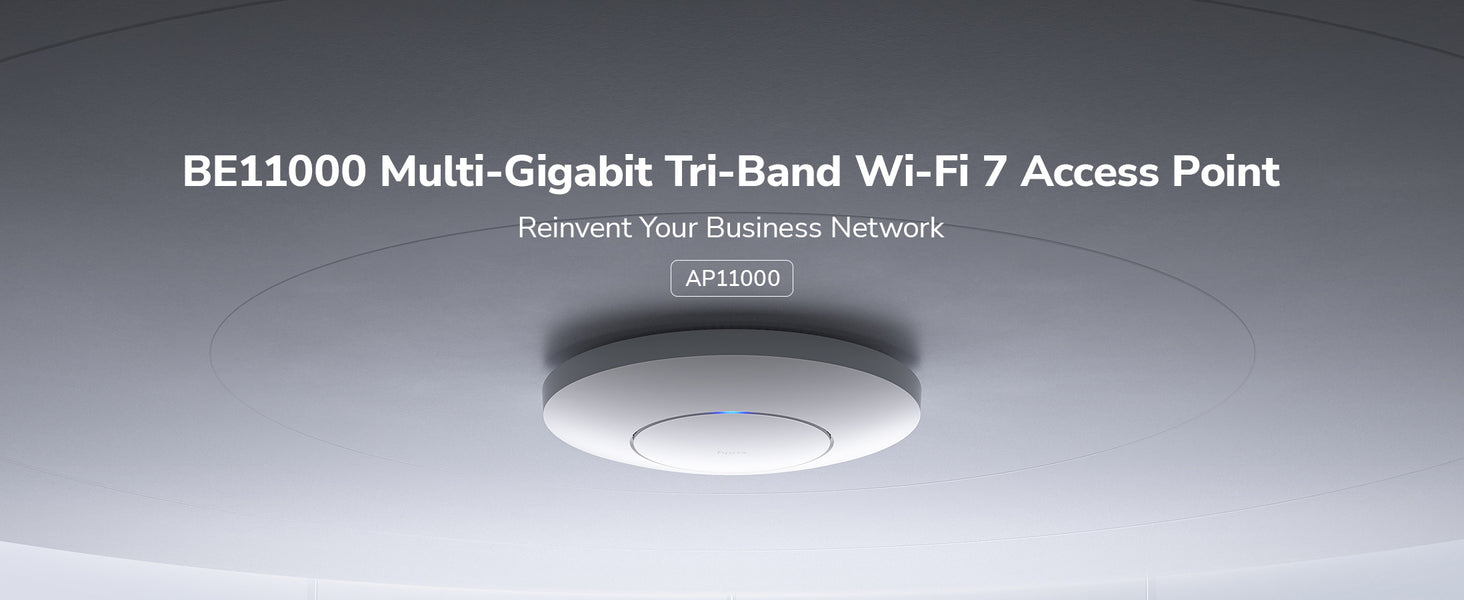

Punto di accesso Wi-Fi 7 multi-giga BE11000

Punto di accesso Wi-Fi 7 multi-giga BE11000, AP11000 1.0

AP11000 1.0

Adapter In the Box

Un AP WiFi 7 multi-giga con montaggio a parete/soffitto progettato per complessi commerciali e uffici, stazioni trafficate, stadi e campus.


  • CPU quad-core Qualcomm da 1,5 GHz
  • Wi-Fi Tri-Band a 6 flussi 7
  • 5,7 Gbps + 4,3 Gbps + 688 Mbps 1
  • 1×SFP+ da 10G
  • 1 ingresso PoE schermato da 2,5 GbE
  • 802.3at, PoE passivo, DC
  • Watchdog, pianificazione riavvio
  • Copre 140 m² (1.500 piedi²) 2
  • 300 dispositivi connessi 3
Visualizza dettagli completi

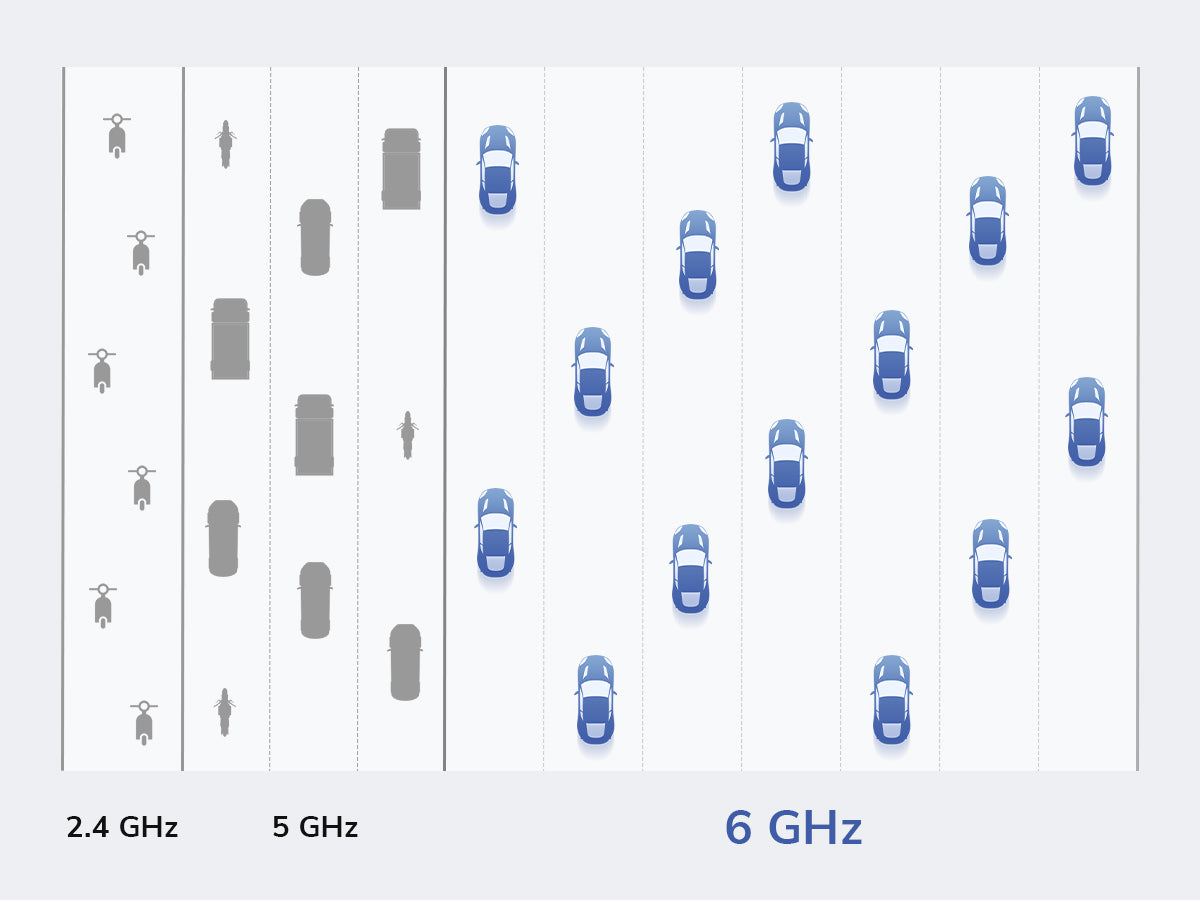

Pristine 6 GHz for Business-Grade Connectivity

The expanded 6 GHz band offers up to 2.4× more channels than 5 GHz, allowing the AP11000 to deliver unprecedented speeds and handle more client devices in interference-free environments. Perfect for high-density business environments.

Pristine 6 GHz for Business-Grade Connectivity

The expanded 6 GHz band offers up to 2.4× more channels than 5 GHz, allowing the AP11000 to deliver unprecedented speeds and handle more client devices in interference-free environments. Perfect for high-density business environments.

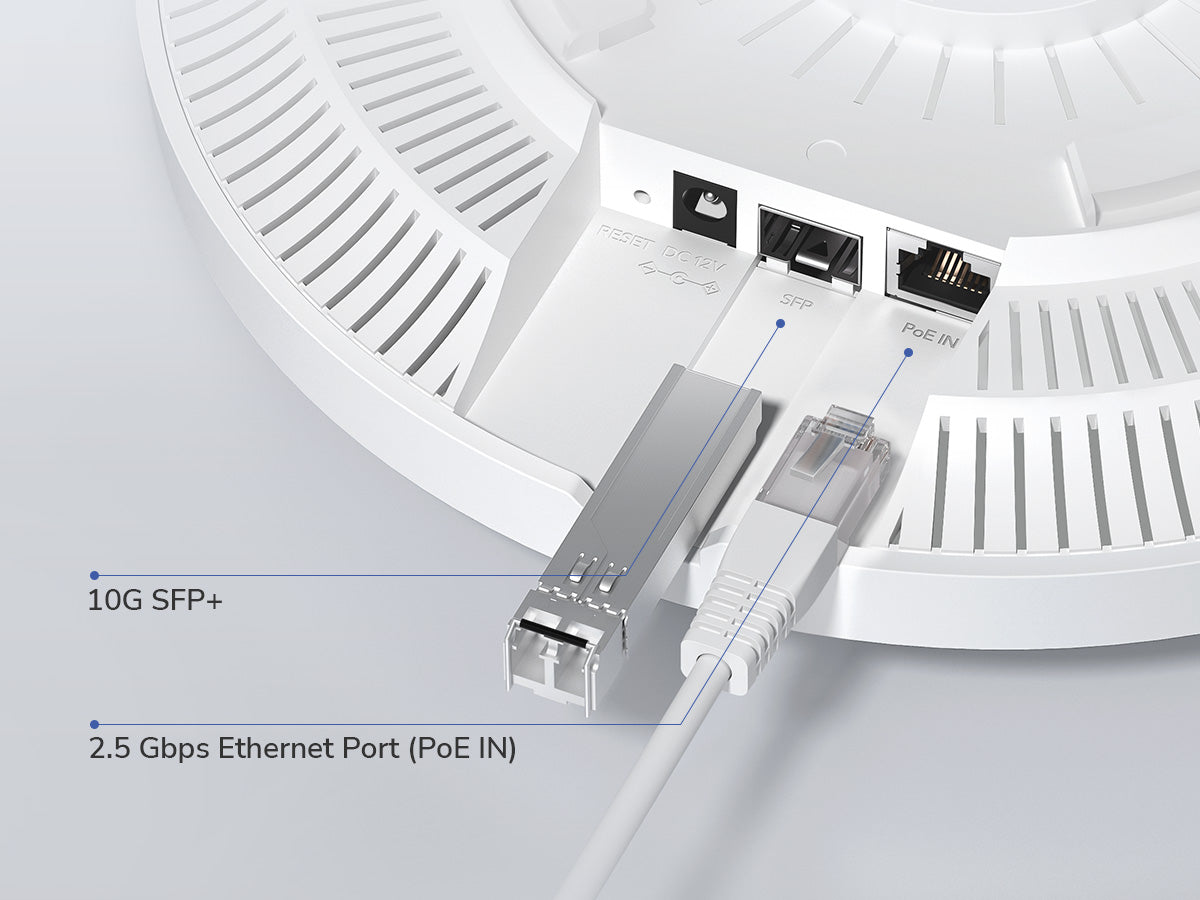

Ultra-Performance 10G SFP+ Fiber Uplink

With 10G SFP+ uplink support, AP11000 goes beyond the limits of standard Gigabit connections, ensuring high-throughput, low-latency fiber connectivity and offering a reliable, future-proof solution for enterprise and commercial networks.

Ultra-Performance 10G SFP+ Fiber Uplink

With 10G SFP+ uplink support, AP11000 goes beyond the limits of standard Gigabit connections, ensuring high-throughput, low-latency fiber connectivity and offering a reliable, future-proof solution for enterprise and commercial networks.

Seamless Wi-Fi for Everywhere

Campus

Hospitality

Conference Center

Shopping Mall

Advanced Business Features

Captive Portal

Improve your brand awareness by displaying a customized login page for new clients.

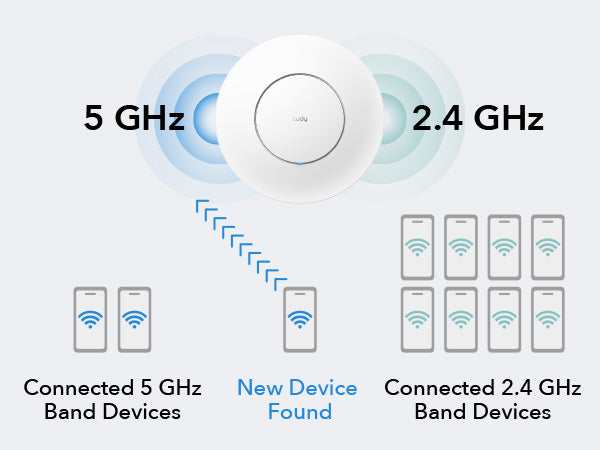

Band Steering

Assign devices to less congested bands.

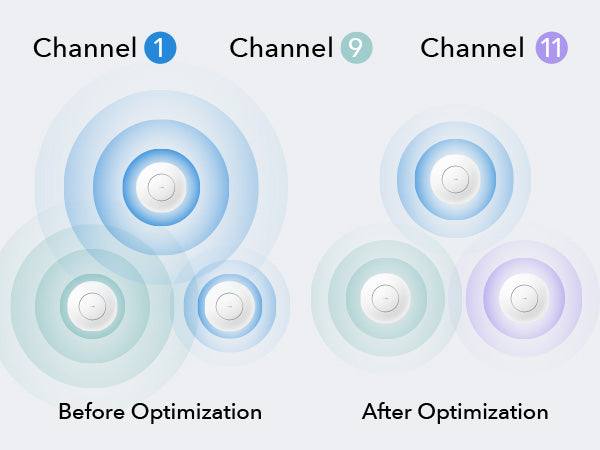

Auto Channel Selection

Avoid signal interruptions with nearby access points.

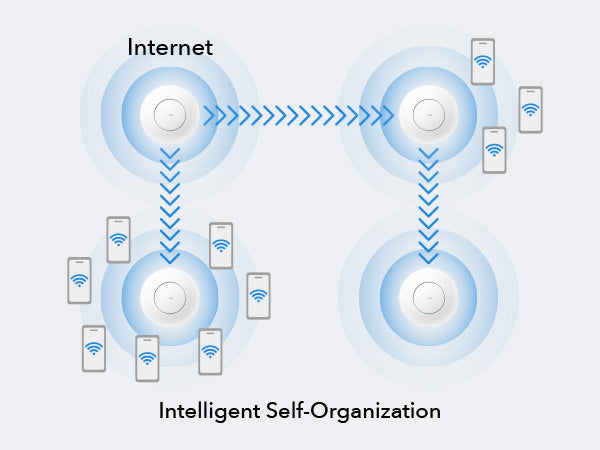

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

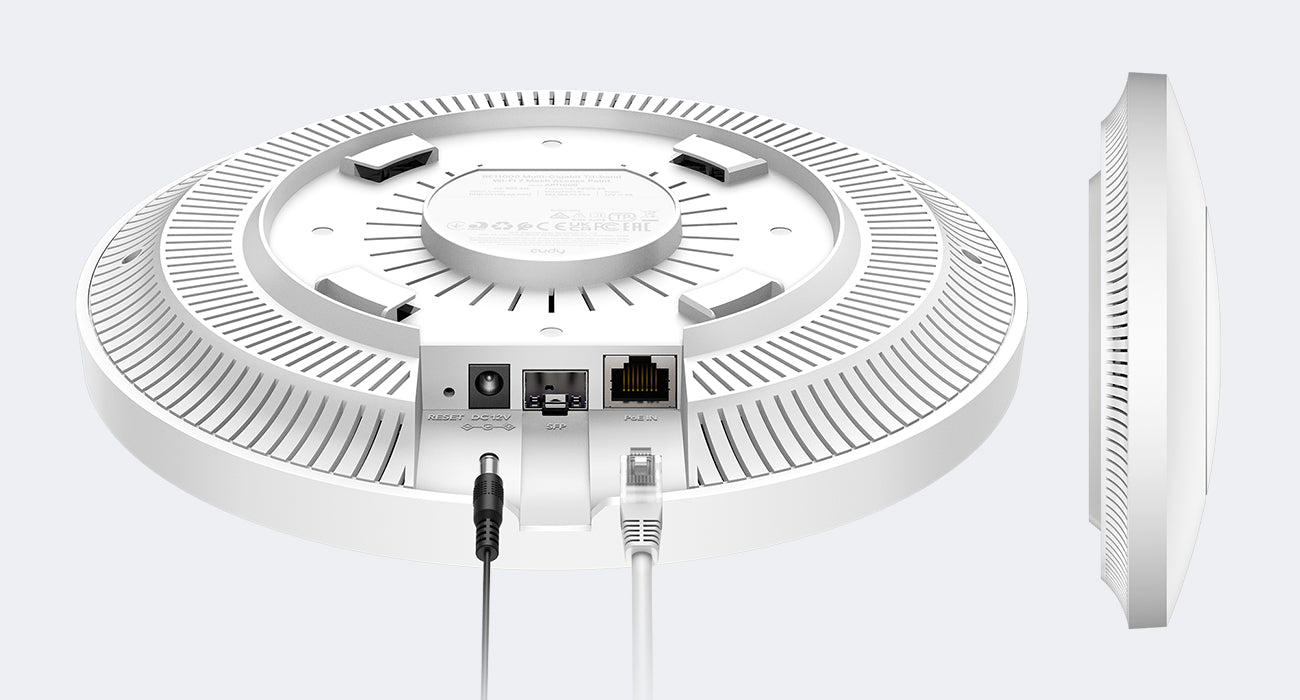

Versatile Powering and Installation

PoE or DC Power Supply

  • 12V/2A DC
  • 802.3at
  • 48-57V Passive PoE

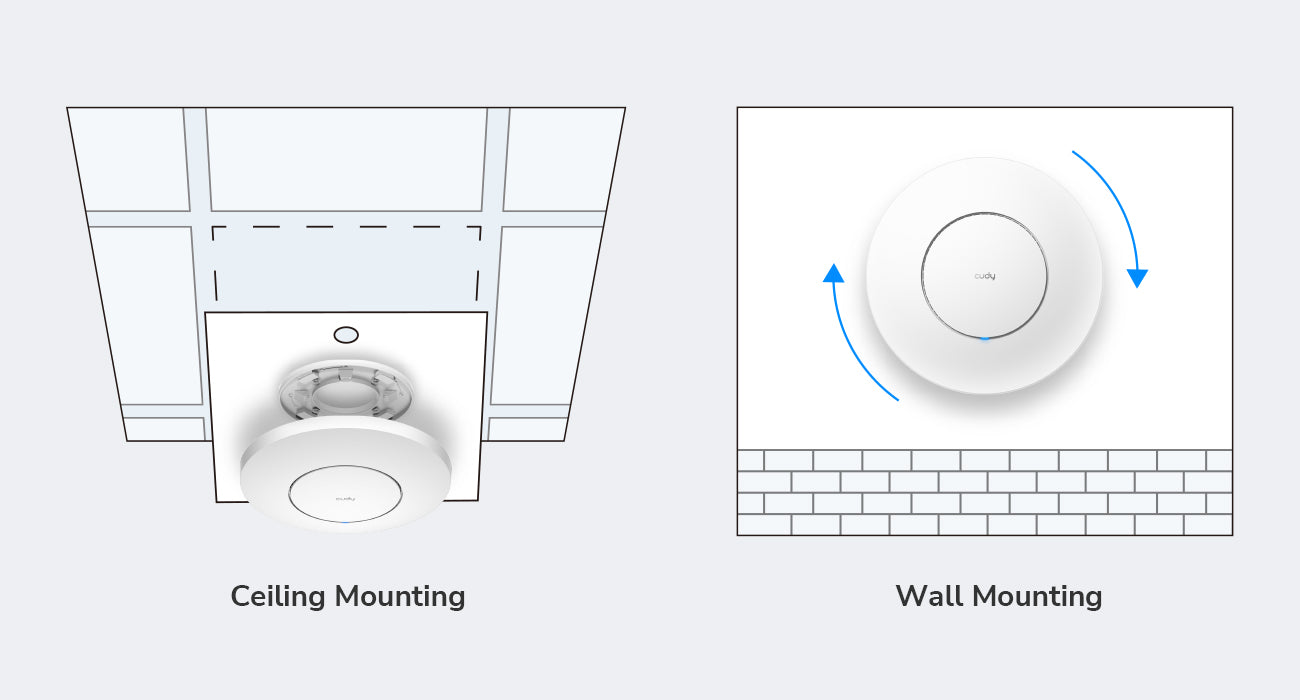

Versatile Mounting

  • Ceiling Mounting
  • Wall Mounting

Mounting kits are included in the box.

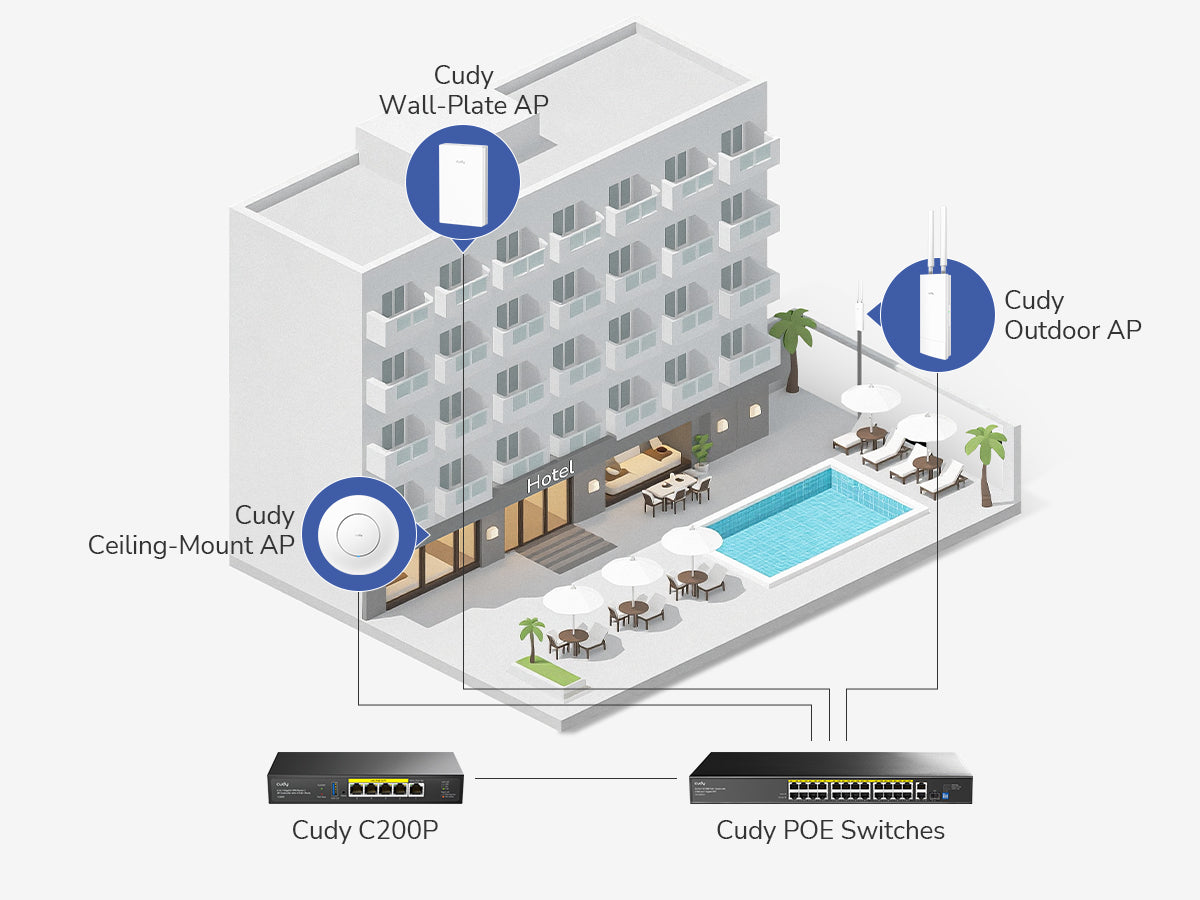

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller(Model:C200P), enabling efficient batch configuration and firmware updates through a unified interface.

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller(Model:C200P), enabling efficient batch configuration and firmware updates through a unified interface.

Specifiche hardware
Specifiche del software
Versione del modello
Versione del modello AP11000 1.0
CPU
CPU CPU Details 1.5 GHz Quad-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Wireless

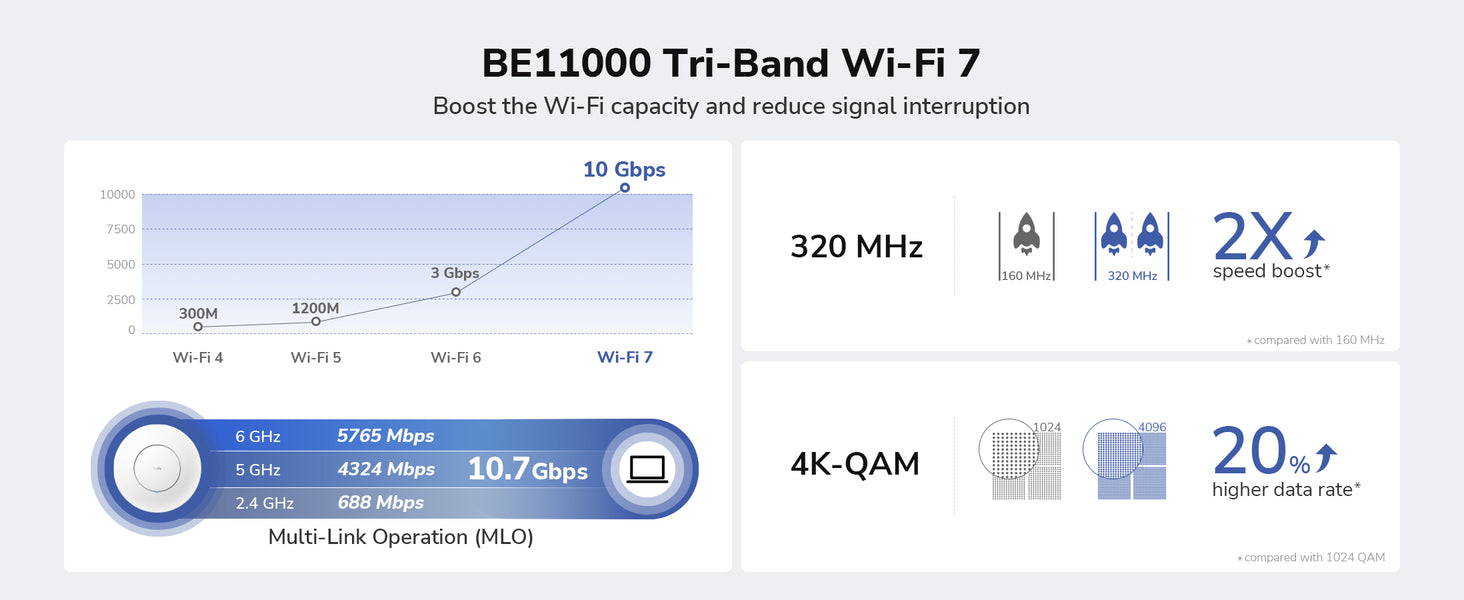

Wireless 6 GHz Wi-Fi Speed 5765 Mbps
5 GHz Wi-Fi Speed 4324 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
6 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 6× Internal
6 GHz Antenna Gain Max 5.5 dBi
5 GHz Antenna Gain Max 4.9 dBi
2.4 GHz Antenna Gain Max 5.8 dBi
FEM or PA/LNA
  • 6 GHz: 2× High-Power
  • 5 GHz: 2× High-Power
  • 2.4 GHz: 2× Standard
Beamforming True
Range Performance Max: 260 m (853 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces 10G SFP+ Slots 1
2.5G RJ45 Ports 1
Ethernet Notes The RJ45 port accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input
  • DC Jack
  • PoE via Ethernet Port
Power
Power Power Methods
  • DC
  • Passive PoE
  • 802.3at PoE
DC 12V 2A
Passive PoE 48 ~ 57V
Power Adapter AP11000 | DC Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 2A DC
AP11000_P | PoE Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 20 W
Idle Power Consumption (W) 12 W
Reliability
Reliability Advanced Hardware Watchdog
Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension 231.9×231.9×57.1 mm
9.13×9.13×2.25 inches
Product Weight 578.2 g (20.4 oz.)
Package Content
Package Content
  • AP11000
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight EU: 1038.0 g (36.61 oz.)
Retail Package Dimension 310×238×73 mm
12.2×9.37×2.87 inches
Units per Carton 10
Carton Net Weight EU: 10.4 kg (22.93 lbs)
Carton Gross Weight EU: 11.2 kg (24.69 lbs)
Carton Dimension 49.5×38.7×33.2 cm
19.49×15.24×13.07 inches
Versione del modello
Versione del modello AP11000 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 7
Max Wi-Fi Modulation 4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 384
Recommended Client Upper Limit 300
Max Wi-Fi Channel Width 320 MHz
Wi-Fi Security WPA/WPA2/WPA3
Multi-SSID (Max Number) TBD
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
Mesh Cudy Mesh
Mesh Backhaul Wired Backhaul
Multi-Band Backhaul True
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities Captive Portal True
VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • Wi-Fi Speed
General
General Internet Failover Sequence WAN

  1. La velocità effettiva dei dati wireless varierà in base alle condizioni della rete, alle limitazioni del client e a fattori ambientali tra cui la disposizione dell'edificio, gli ostacoli e la posizione del client.
  2. La dichiarazione di copertura wireless serve solo come riferimento. Le prestazioni di copertura varieranno a causa di fattori ambientali tra cui la disposizione dell'edificio, gli ostacoli, il volume e la densità del traffico e la posizione del dispositivo. Per una copertura ottimale, posizionare il dispositivo in una posizione centrale all'interno dell'area che richiede Wi-Fi.
  3. Le prestazioni effettive per più dispositivi potrebbero essere influenzate dai tipi di applicazioni utilizzate, dalla larghezza di banda totale disponibile e dalle funzionalità dei dispositivi. Il collegamento di dispositivi Wi-Fi meno recenti (standard legacy) può ridurre l'efficienza complessiva. L'utilizzo delle funzionalità di efficienza richiede dispositivi client compatibili che supportino anche tali funzionalità. Puoi trovare ulteriori informazioni sulle funzionalità di efficienza supportate nella sezione software del foglio di calcolo delle specifiche.
