| Version du modèle | ||
|---|---|---|

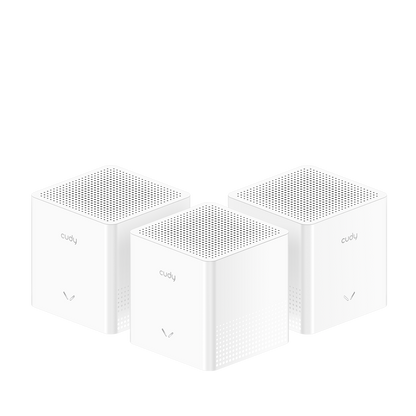

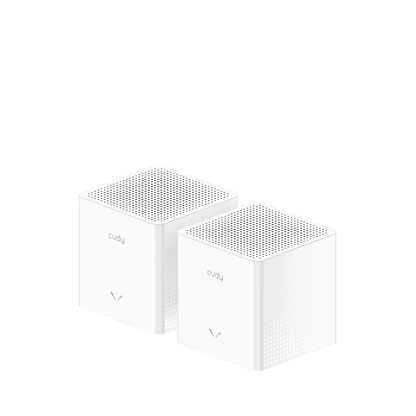

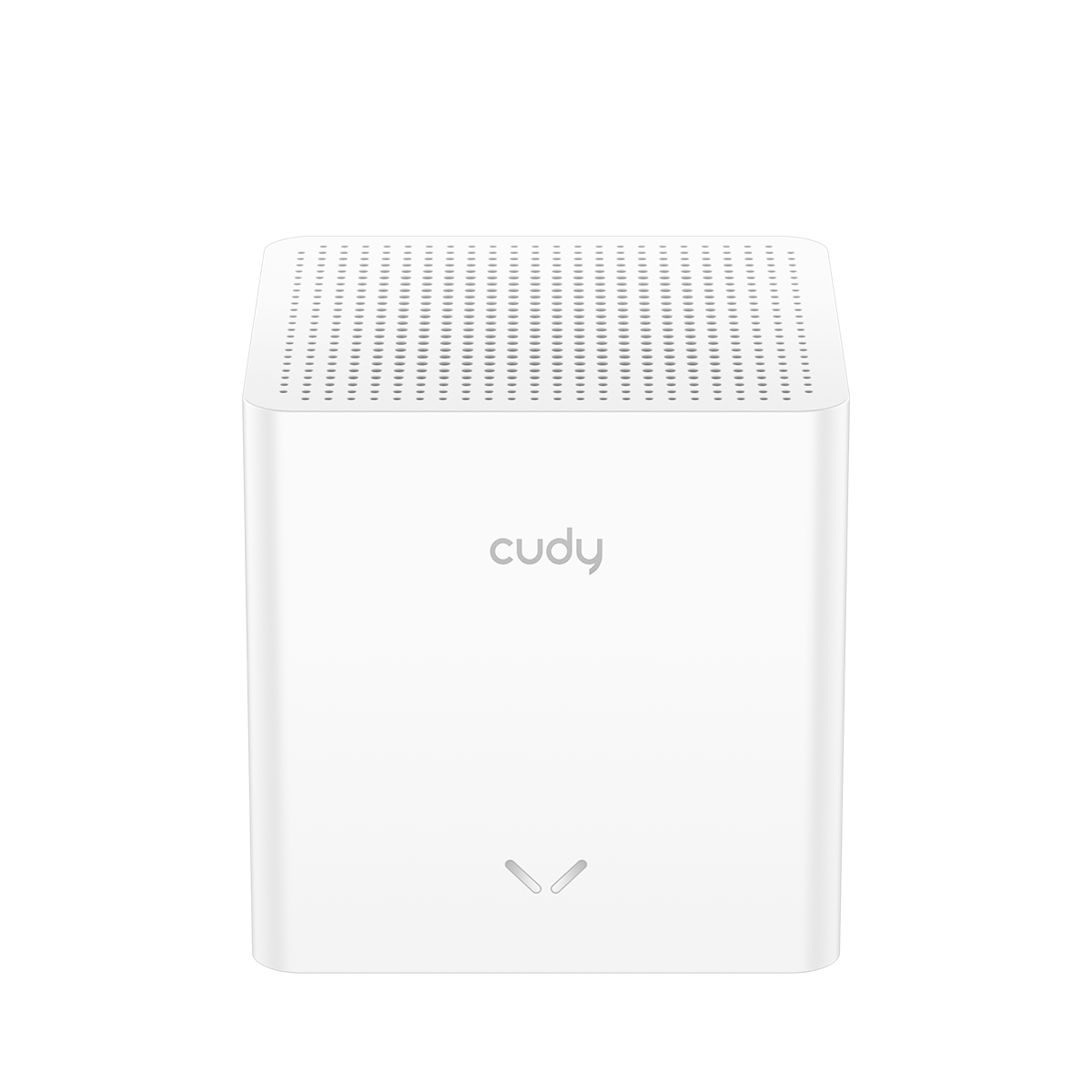

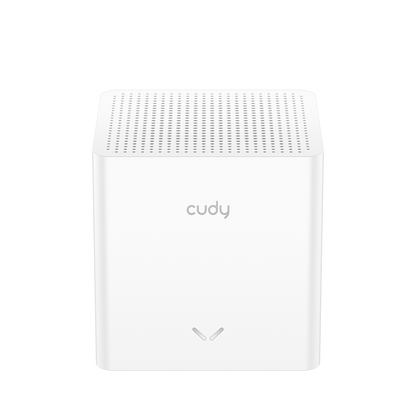

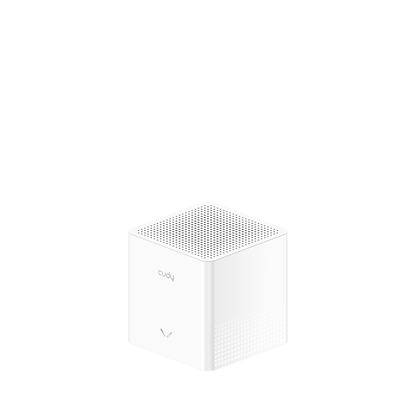

| Version du modèle | M1300S 1.0 | |
| CPU | ||
| CPU | CPU Details | 1.2 GHz Dual-Core |
| Memory/Storage | ||
| Memory/Storage | Flash/ROM | 32 MB (256 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 | |
| Wireless | ||
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| Wi-Fi Antennas | 2× Internal | |
| FEM or PA/LNA |
|
|
| Interfaces | ||
| Interfaces | Physical Buttons |
|

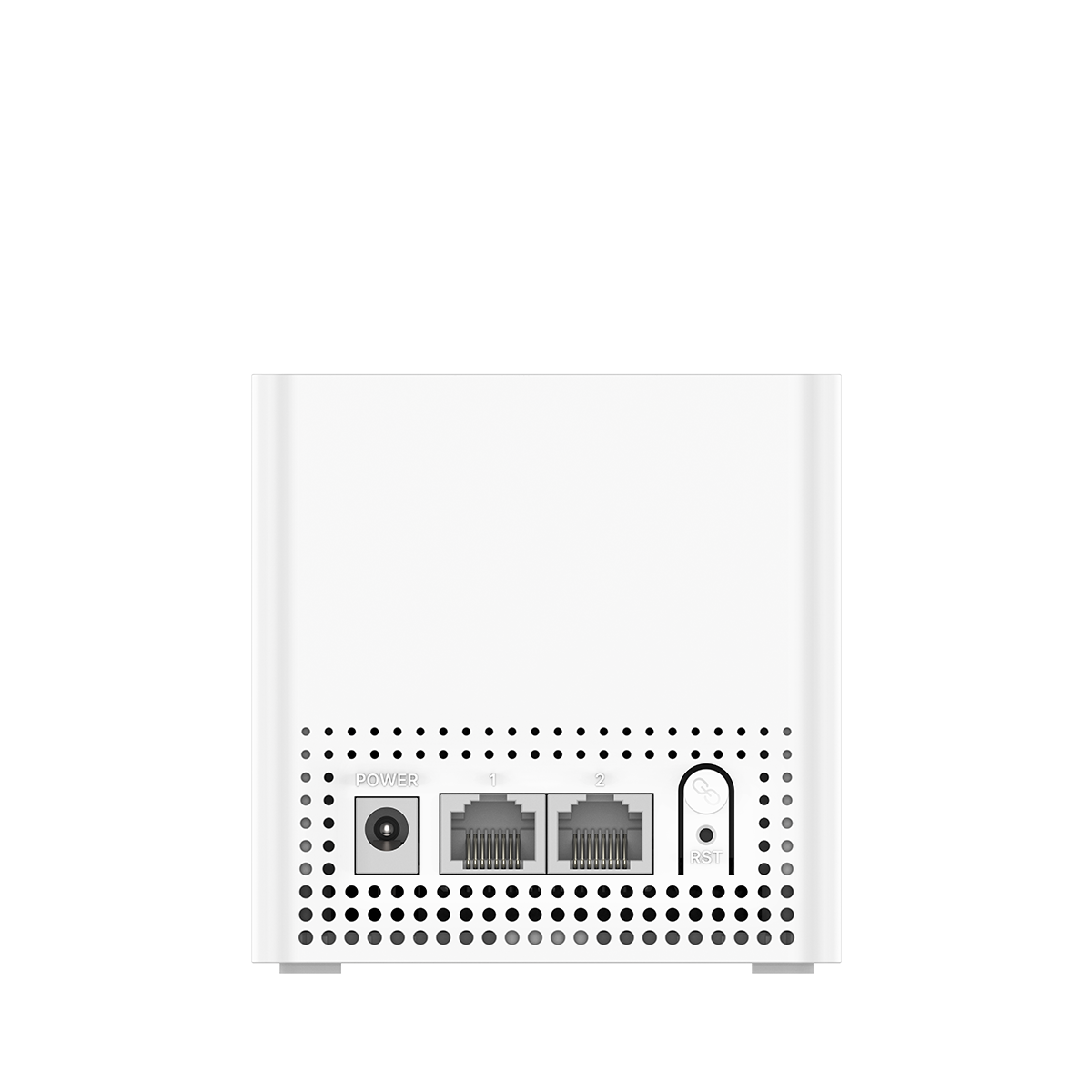

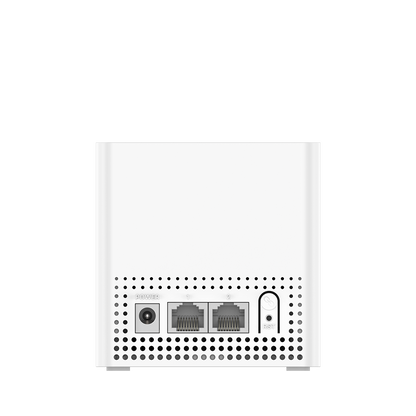

| Gigabit RJ45 Ports | 2 | |
| Ethernet Notes | Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode | |
| Power | ||
| Power | Power Input Type | DC Jack |
| Interfaces | ||
| Interfaces | LED | System |
| Power | ||
| Power | Power Methods | DC |
| Power Input | 12V⎓1A | |
| Reliability | ||
| Reliability | Environment |
|
| Mechanical | ||
| Mechanical | Dimension |
85×85×86.5 mm 3.35×3.35×3.41 inches |
| Installation | Desktop | |
| Package Content | ||

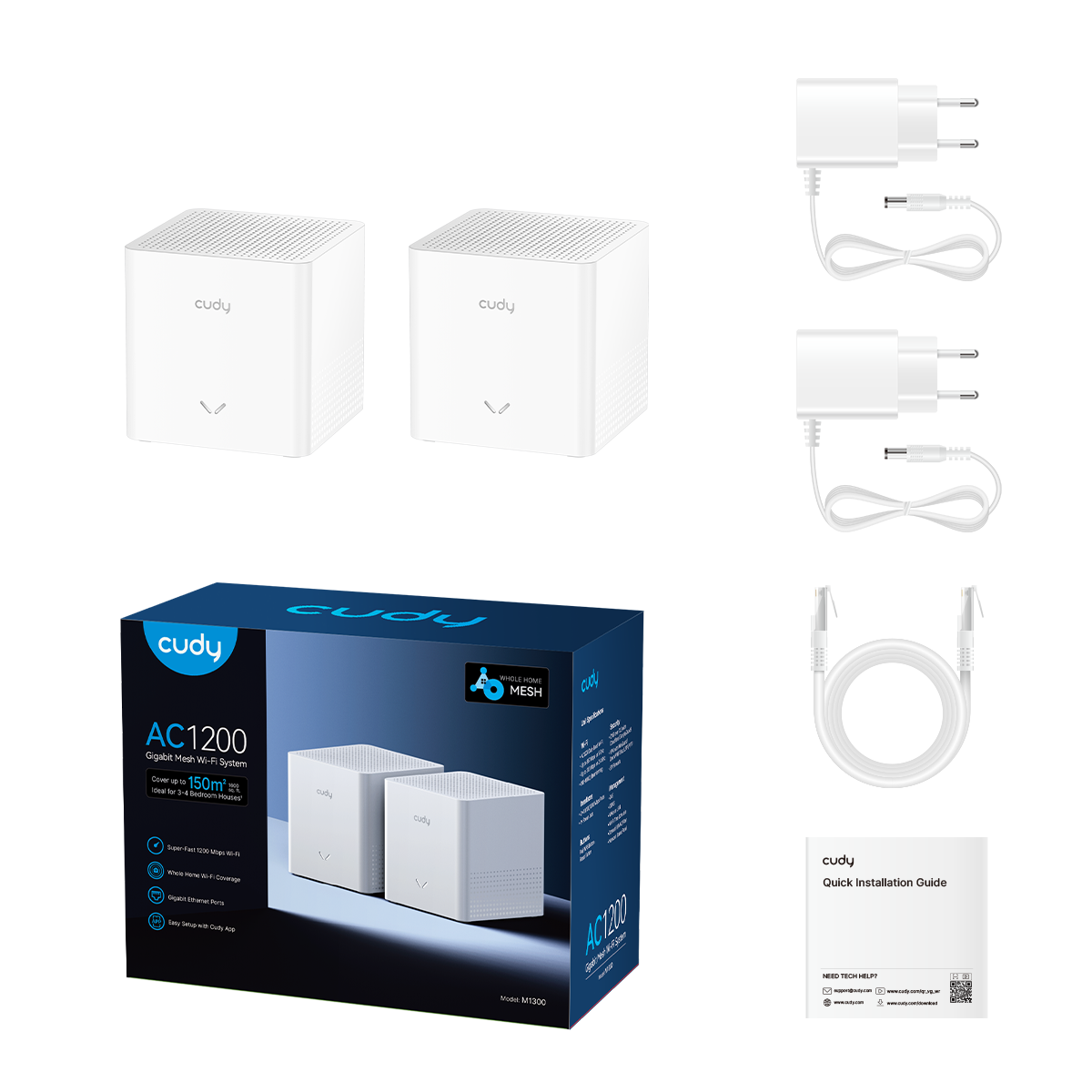

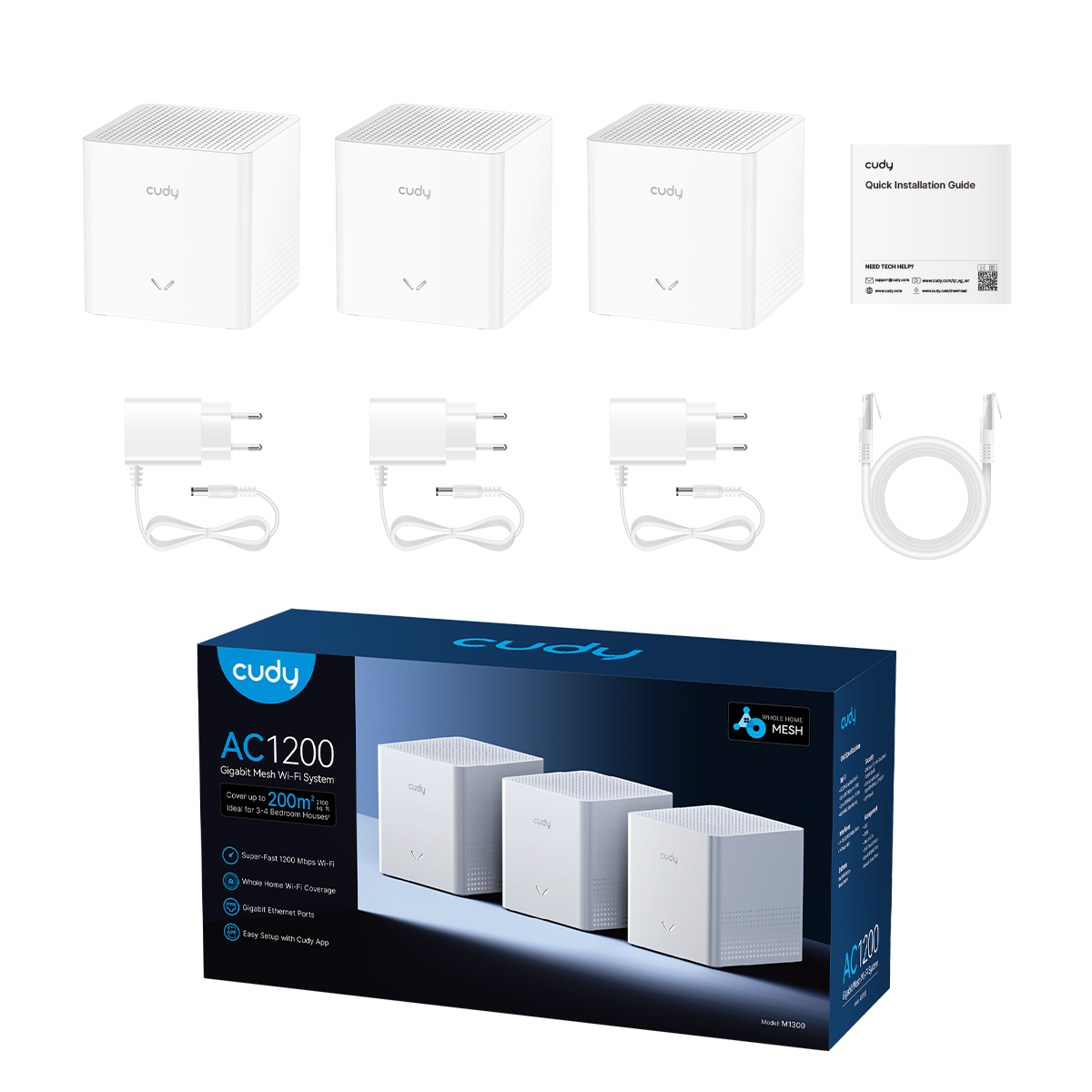

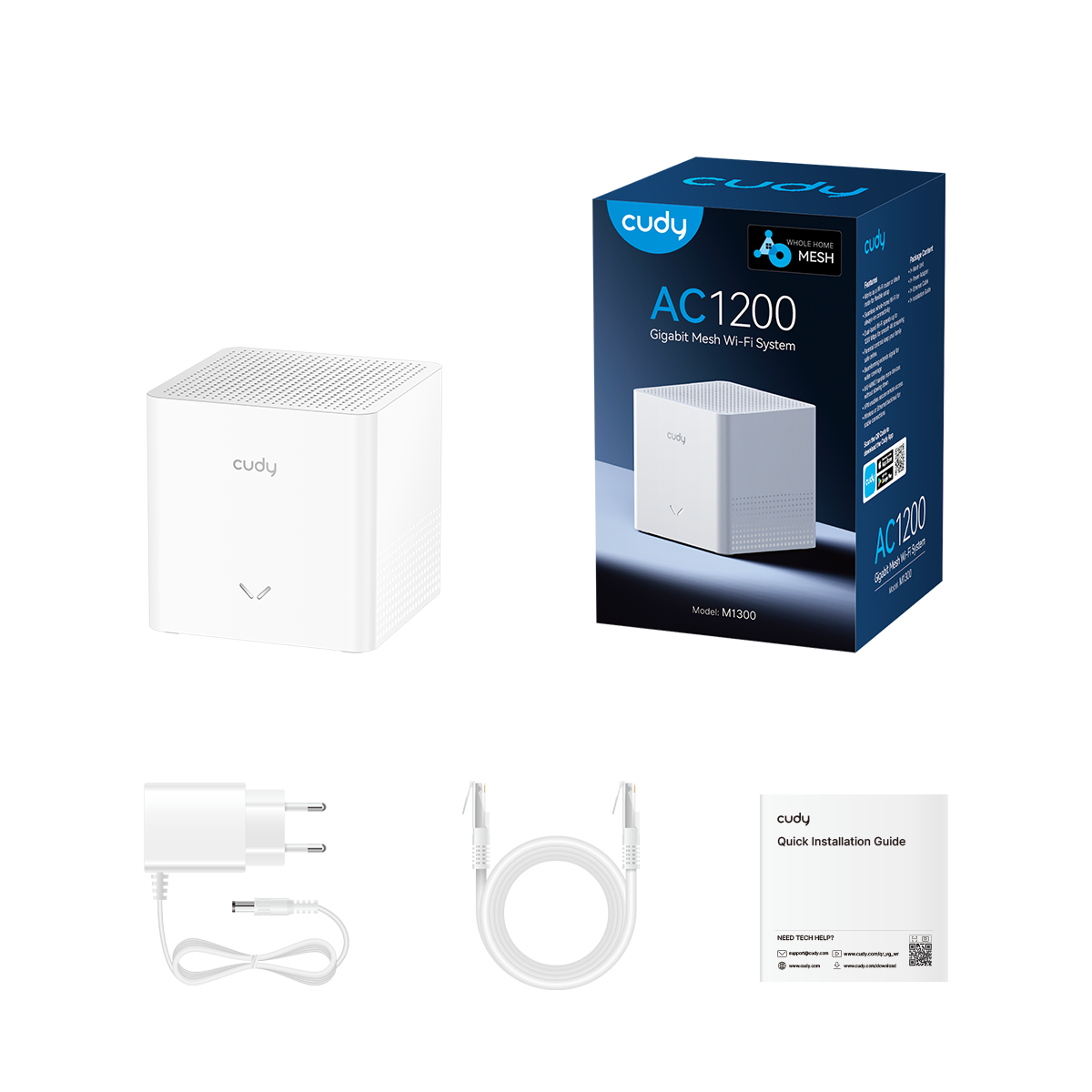

| Package Content |
|
|
| Ordering Information | ||
| Ordering Information | Retail Package Dimension |
1-Pack: 94×90×147 mm 3.7×3.54×5.79 inches,3-Pack: 274×143×90 mm 10.79×5.63×3.54 inches,2-Pack: 184×143×90 mm 7.24×5.63×3.54 inches |
| Wireless | ||
| Wireless | 5 GHz Wi-Fi Streams | 2 Spatial Streams |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams | |
| Power | ||
| Power | Power Adapter In the Box |
Input: 100-240V~, 50/60Hz Output: 12V⎓1A |
| Wireless | ||
| Wireless | Range Performance |
Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| Wall Performance |
Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
|
| Ordering Information | ||
| Ordering Information | Units per Carton |
|
| Carton Dimension |
|
|
| Wireless | ||
| Wireless | Indoor Coverage Reference |
2 Pack: 150 m² (1600 sq ft) 3 Pack: 200 m² (2100 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room. |
| Beamforming | ||
| Certifications | ||
| Certifications | FCC, CE | |
| Version du modèle | ||
|---|---|---|
| Version du modèle | M1300S 1.0 | |
| Wireless | ||
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 50 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | ||
| General | ||
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
|
|
| Multi-Band Backhaul | ||
| WAN Mode |
|
|
| Network | ||
| Network | QoS | Per-User Rate Limiting |
| DHCP |
|
|
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
|
|
| Multicast | ||
| IPTV/VLAN |
|
|
| TTL Customization |
|
|
| IGMP |
|
|
| Forwarding |
|
|
| Firewall |
|
|
| Application Layer Gateway |
|
|
| Utilities | ||
| Utilities | VPN Server |
|
| VPN Client |
|
|
| DNS Options |
|
|
| DNS over TLS Providers |
|
|
| Wake on LAN | ||
| Online Detection | ||
| Management | ||
| Management | Parental Controls |
|
| All Devices Management |
|
|
| Per-Devices Management |
|
|
| Content Management |
|
|
| System | ||
| System | LED Control | |
| Local Control Method |
|
|
| Remote Control Method |
|
|
| Firmware Upgrade |
|
|
| Reliability |
|
|
| Diagnostic Tools |
|
|
| Languages |
|
|
| Dashboard | ||
| Dashboard | Panel |
|
| Charts |
|
|
- Le débit réel des données sans fil varie en fonction des conditions du réseau, des limitations du client et des facteurs environnementaux, notamment la disposition du bâtiment, les obstacles et l'emplacement du client.
- L'utilisation de MU-MIMO nécessite que les appareils clients prennent également en charge MU-MIMO.
