Mesh System
M1200

Fast and Reliable AC1200

Get speeds up to 300Mbps (2.4GHz) and 867 Mbps (5GHz) with MU-MIMO and beamforming enhance performance, delivering smooth streaming and gaming for multiple devices at once.

Fast and Reliable AC1200

Get speeds up to 300Mbps (2.4GHz) and 867 Mbps (5GHz) with MU-MIMO and beamforming enhance performance, delivering smooth streaming and gaming for multiple devices at once.

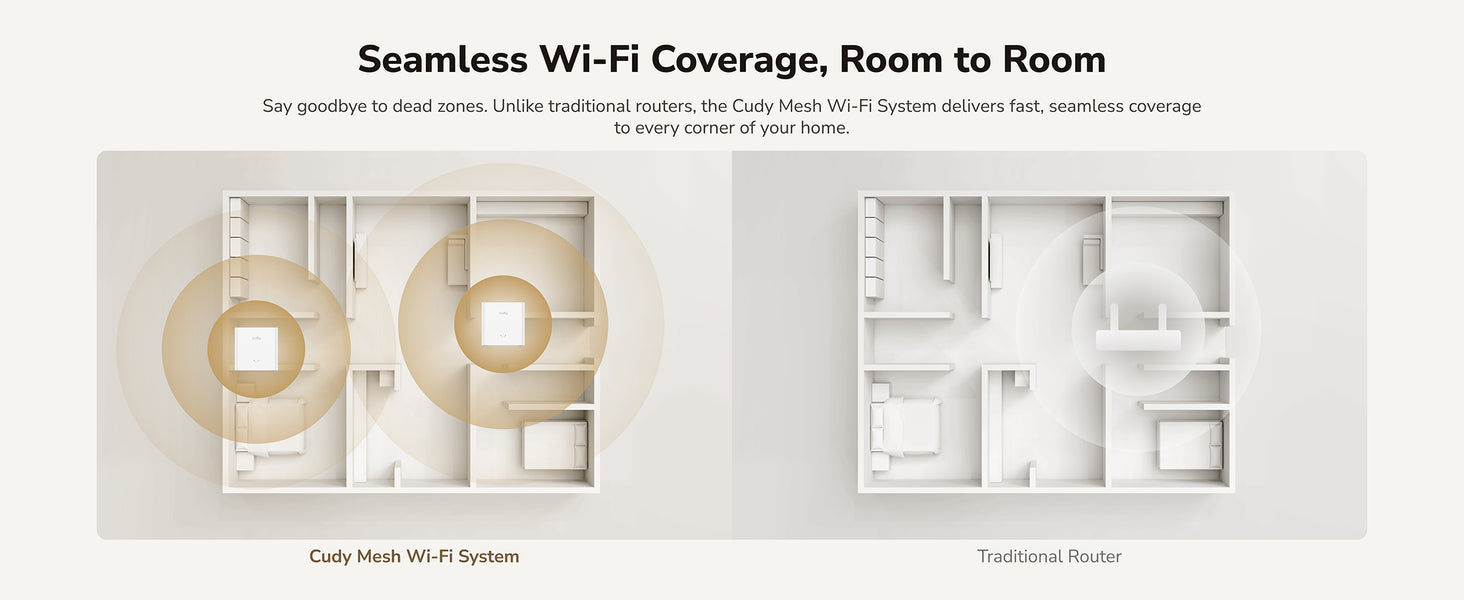

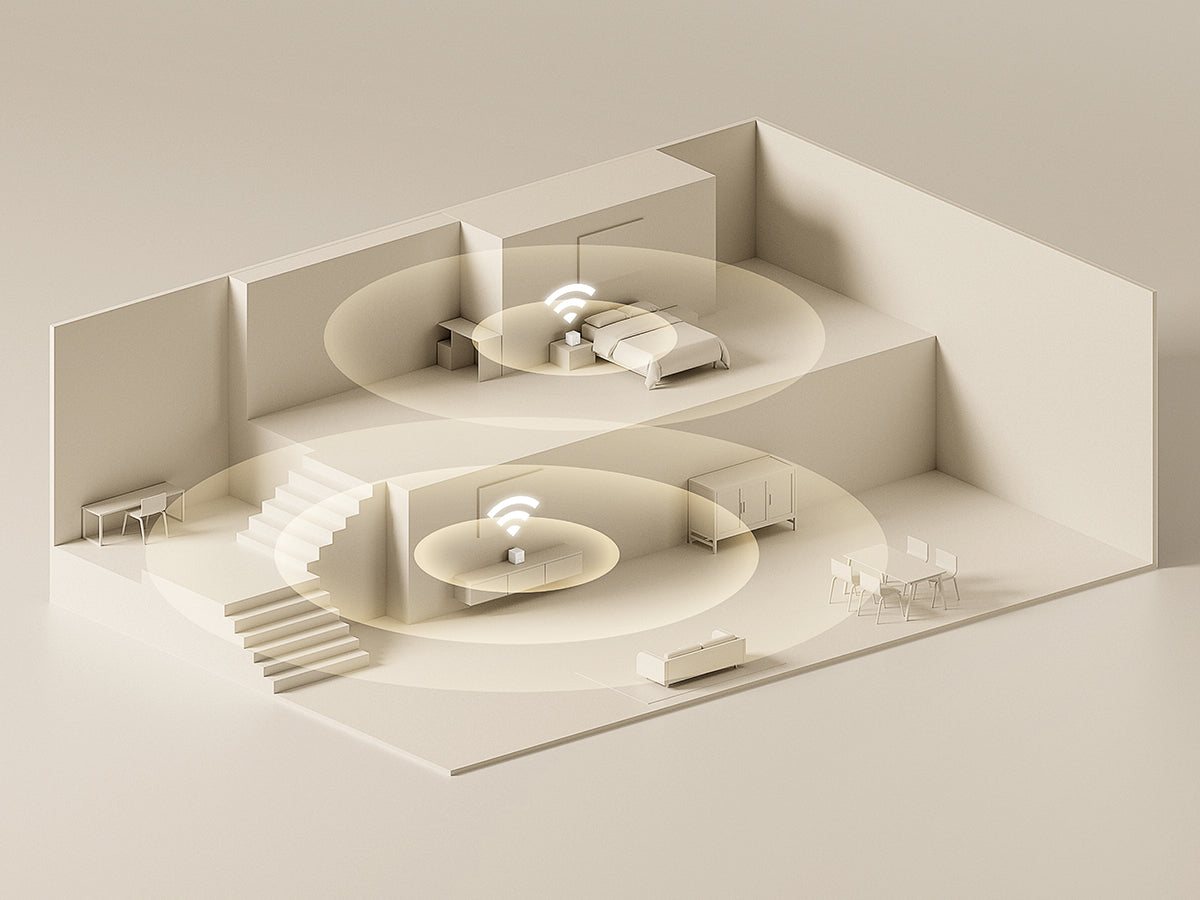

Small Size. Big Coverage.

Compact and elegant design fits naturally into any room while delivering seamless whole-home coverage.

Small Size. Big Coverage.

Compact and elegant design fits naturally into any room while delivering seamless whole-home coverage.

Always Connected to the Best Signal

Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.

Always Connected to the Best Signal

Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.

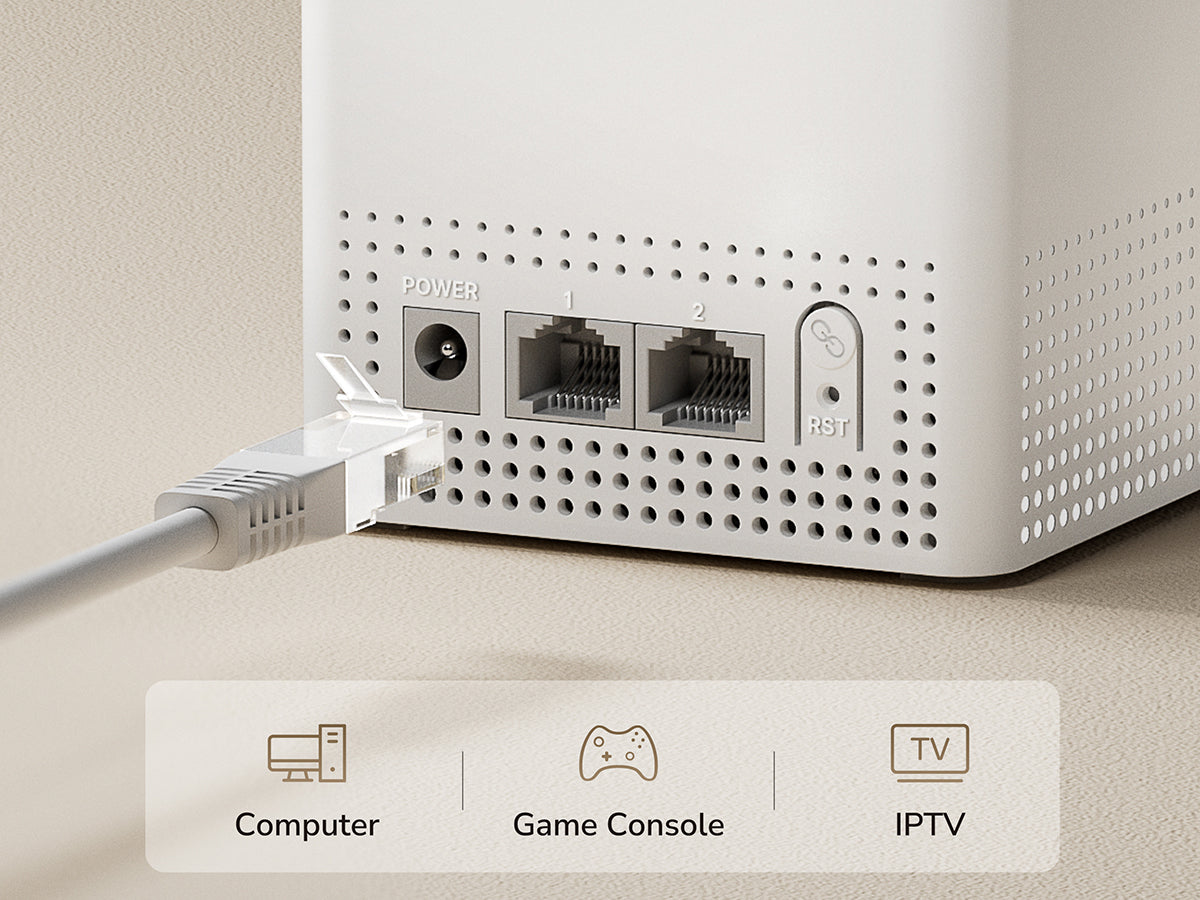

Wired Power Meets Whole-Home Performance

Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 100 Mbps per port, M1200 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Wired Power Meets Whole-Home Performance

Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 100 Mbps per port, M1200 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Privacy Protected, Access Secured

Whole-Home VPN Protection

Compatible with mainstream VPN services for secure browsing and remote access across your network. Set up VPN directly on the router and automatically secure every connected device in your home.

Privacy Protected, Access Secured

Whole-Home VPN Protection

Compatible with mainstream VPN services for secure browsing and remote access across your network. Set up VPN directly on the router and automatically secure every connected device in your home.

Parental Controls

Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

Parental Controls

Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

1 10

AC1200 Mesh Wi-Fi System

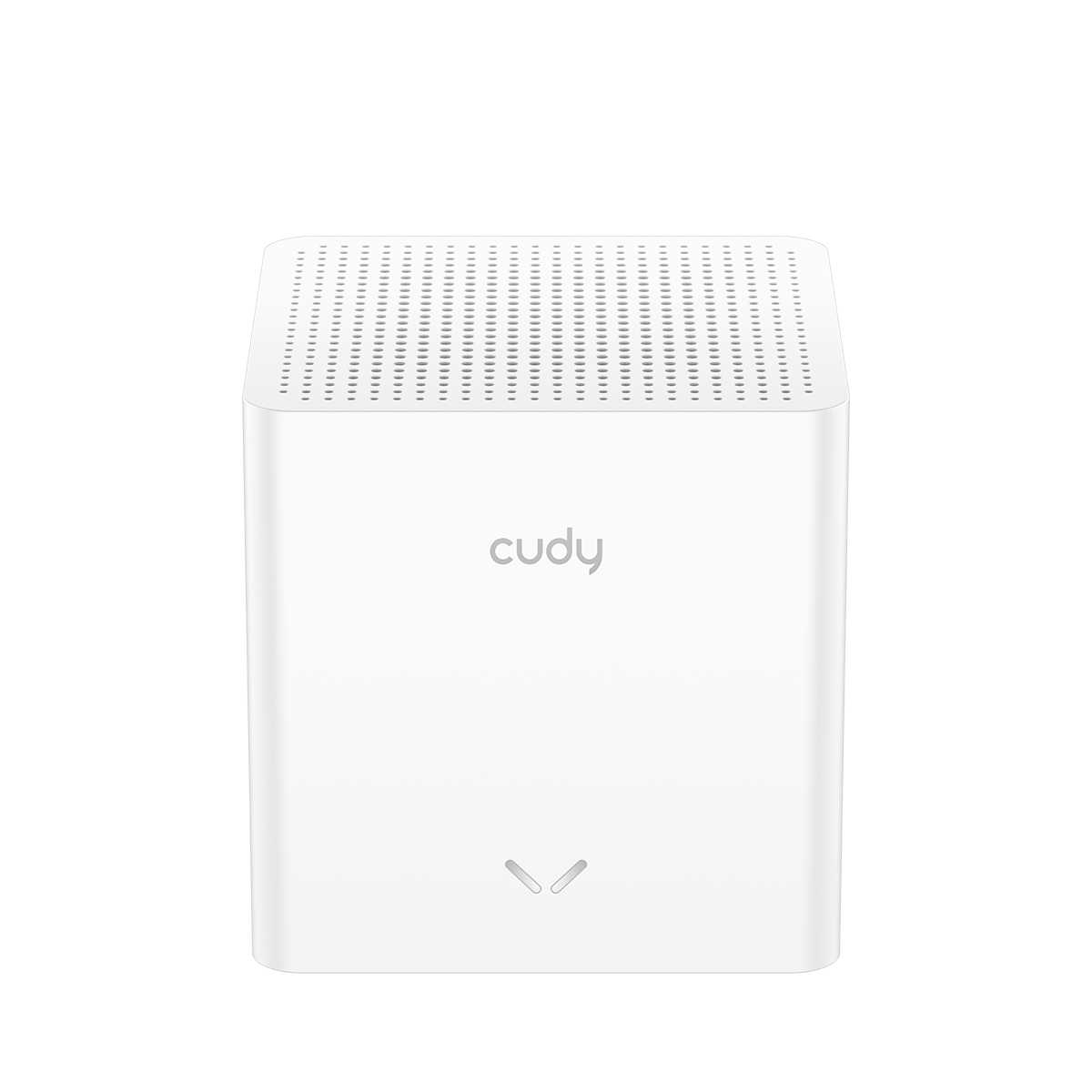

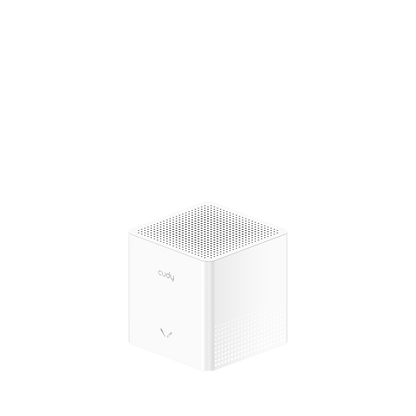

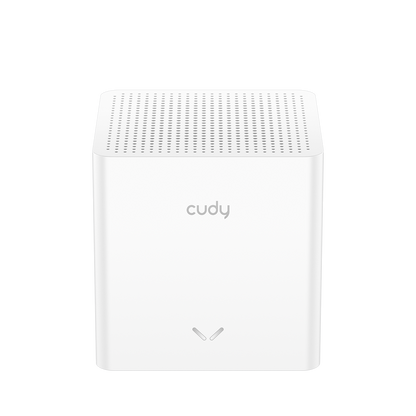

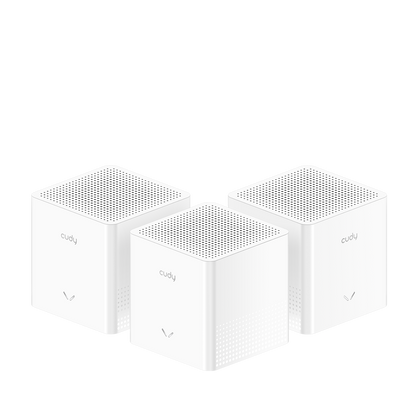

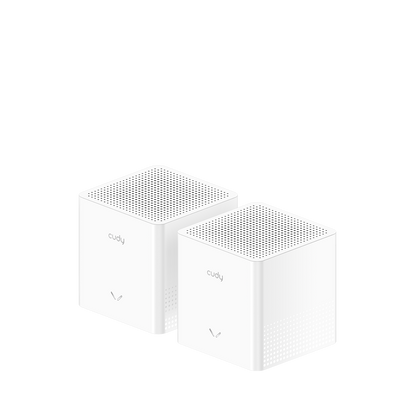

AC1200 Mesh Wi-Fi System, M1200 2.0

M1200 2.0

Pack

A mesh Wi-Fi system built to provide a reliable network for large homes, Installation is easy—set up one unit and auto-sync the rest. Suitable for 100 Mbps internet access.

  • Wi-Fi 5 double bande à 4 flux
  • Wi-Fi 867 Mbps + 300 Mbps 1
  • 2 ports Ethernet rapides
  • Itinérance rapide
  • MU-MIMO, formation de faisceaux 2
  • Cudy Mesh, serveur et client VPN
  • Liaison simultanée multibande
  • Application Cudy, contrôle du cloud
Afficher tous les détails
Spécifications matérielles
Spécifications du logiciel
Version du modèle
Version du modèle M1200 2.0
CPU
CPU CPU Details 580 MHz Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
Wi-Fi Antennas 2× Internal
5 GHz Antenna Gain Max 5.9 dBi
2.4 GHz Antenna Gain Max 3.5 dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal

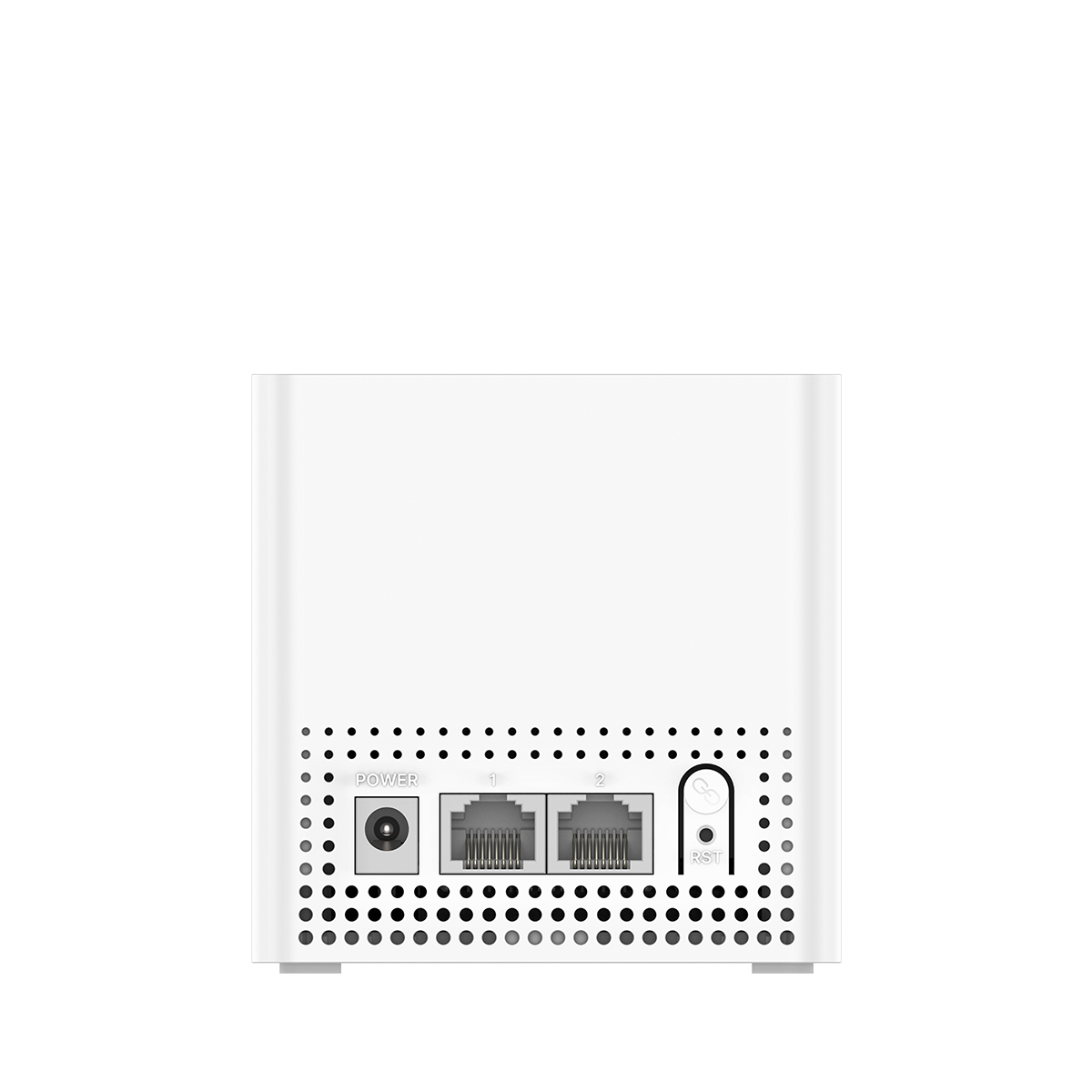

Interfaces
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
10/100 Mbps RJ45 Ports 2
Ethernet Notes Auto WAN/LAN Port
Power
Power Power Input Type DC Jack
Interfaces
Interfaces LED System
Power
Power Power Methods DC
Power Input 12V⎓1A
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Mechanical

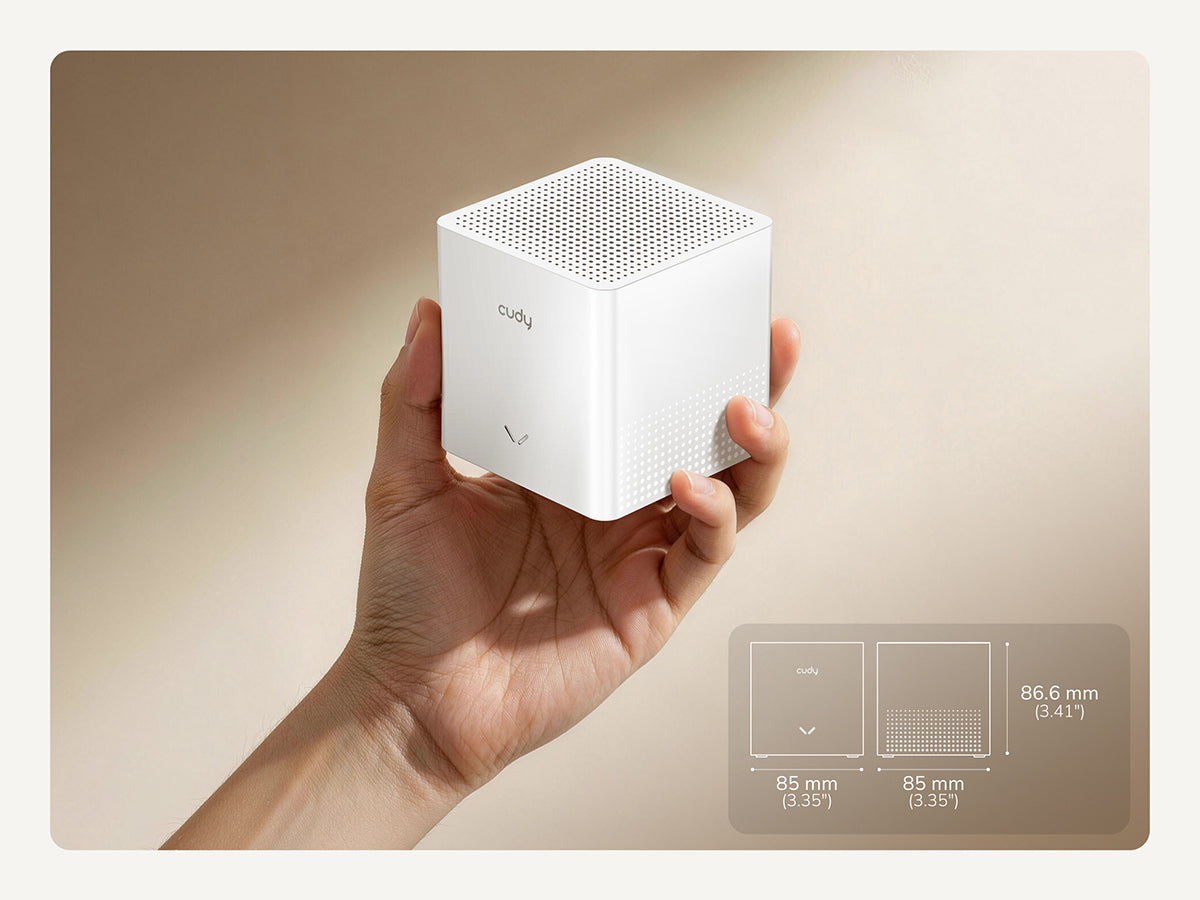

Mechanical Dimension 85×85×86.5 mm
3.35×3.35×3.41 inches
Installation Desktop

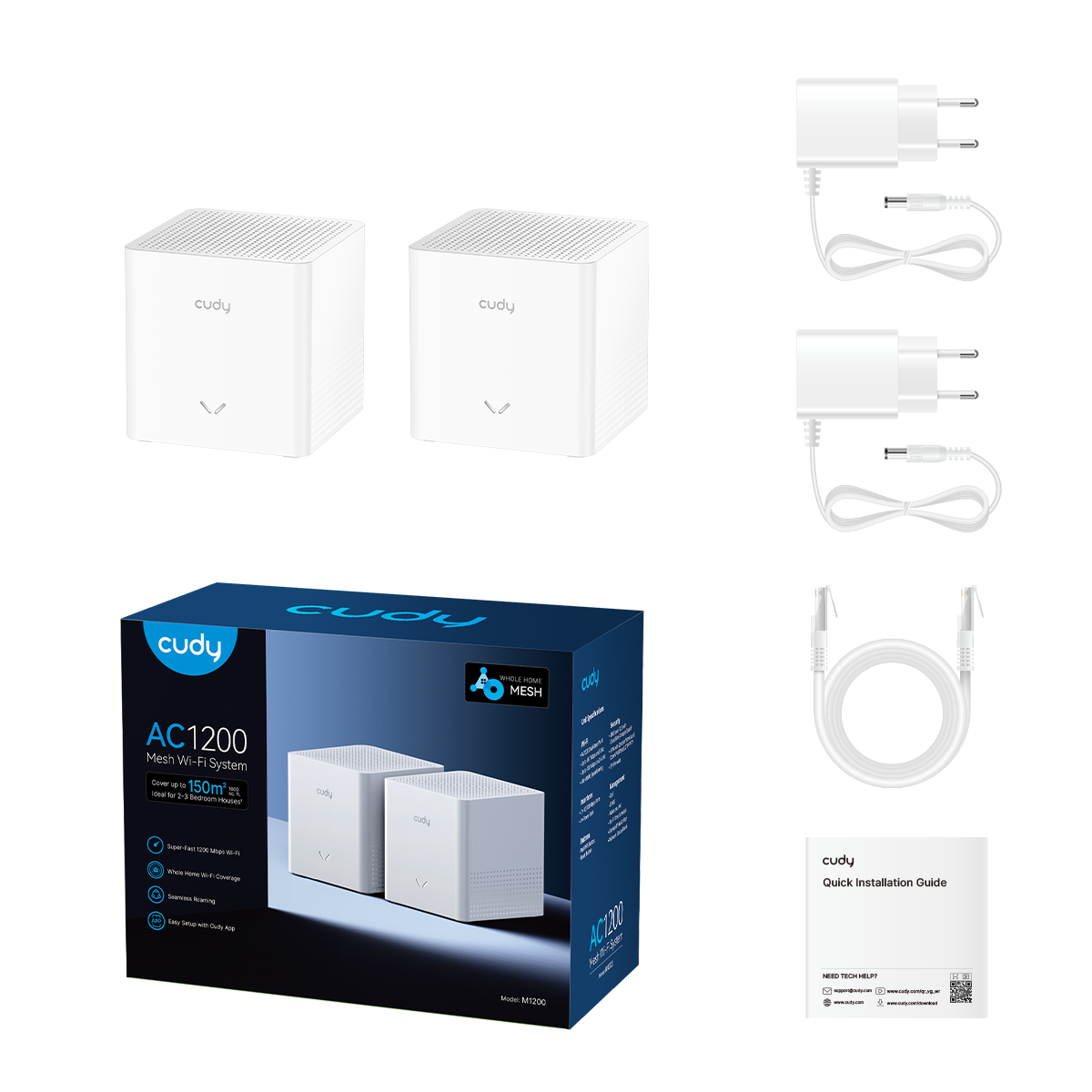

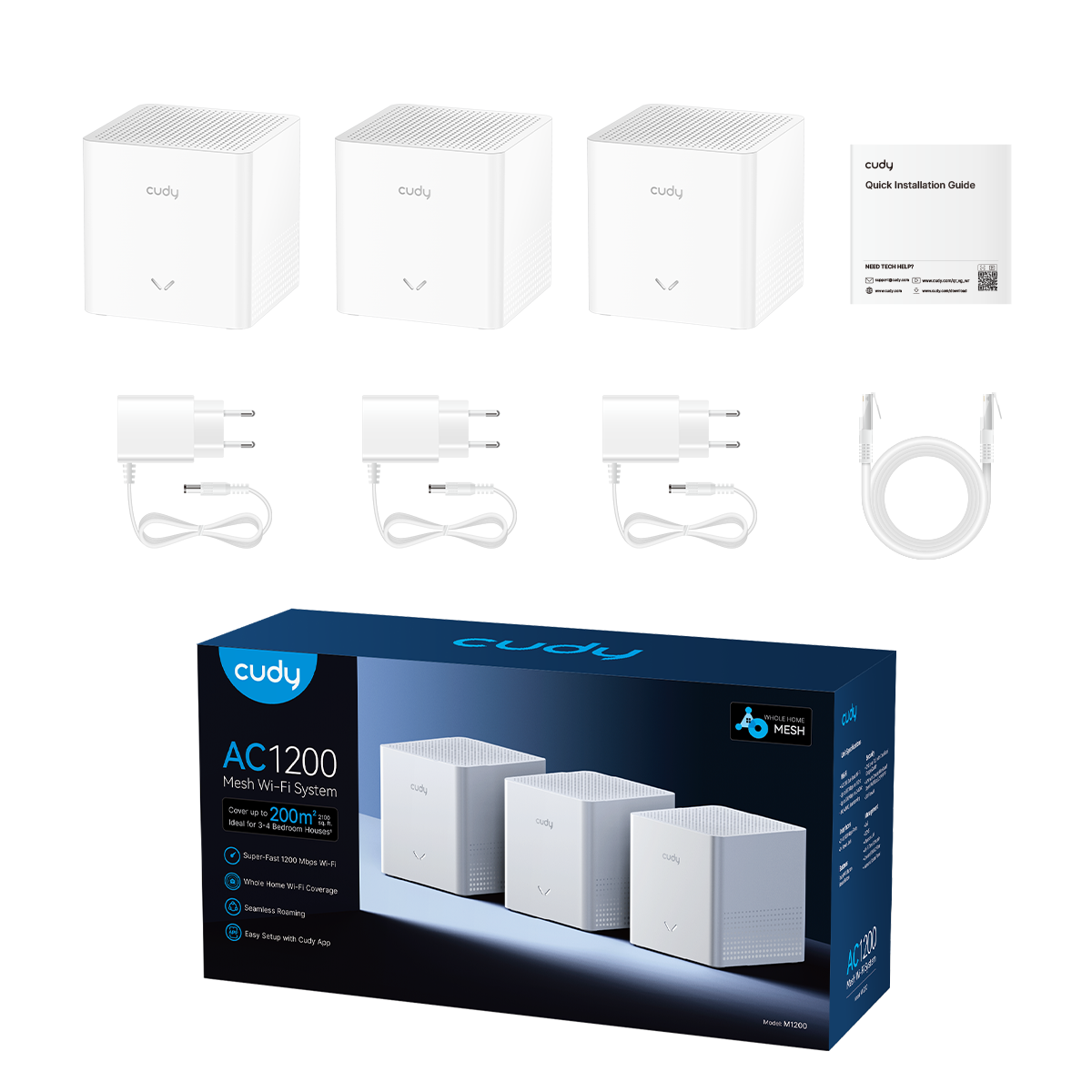

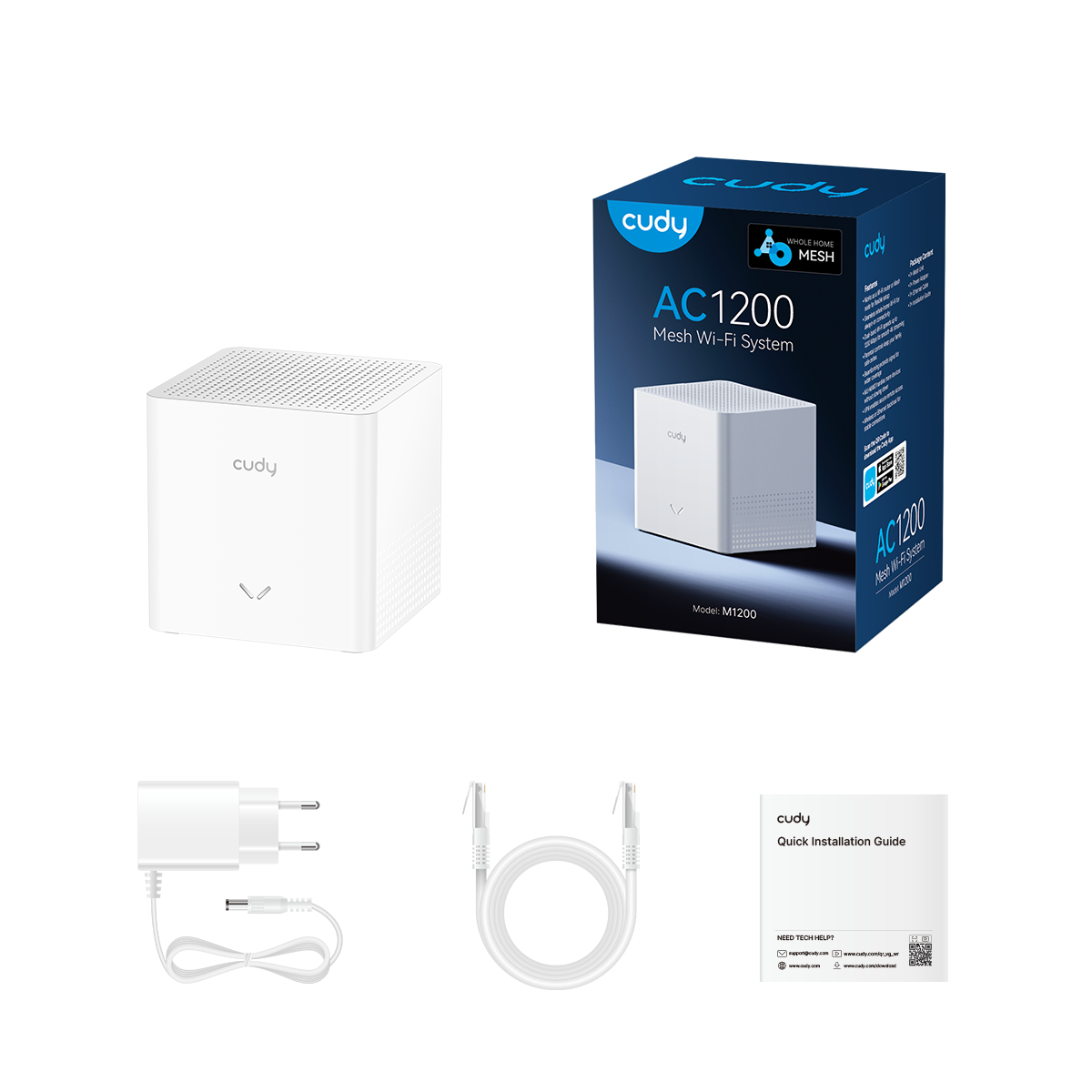

Package Content
Package Content
  • M1200
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 1-Pack:
94×90×147 mm
3.7×3.54×5.79 inches,3-Pack:
274×143×90 mm
10.79×5.63×3.54 inches,2-Pack:
184×143×90 mm
7.24×5.63×3.54 inches
Wireless
Wireless 5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Power
Power Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Wireless
Wireless Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Ordering Information
Ordering Information Units per Carton
  • 1-Pack: 40
  • 3-Pack: 10
  • 2-Pack: 20
Carton Dimension
  • 1-Pack: 50×38.9×32.1 cm
    19.69×15.31×12.64 inches
  • 3-Pack: 47.8×29.7×31 cm
    18.82×11.69×12.2 inches
  • 2-Pack: 47.8×39.1×31 cm
    18.82×15.39×12.2 inches
Wireless

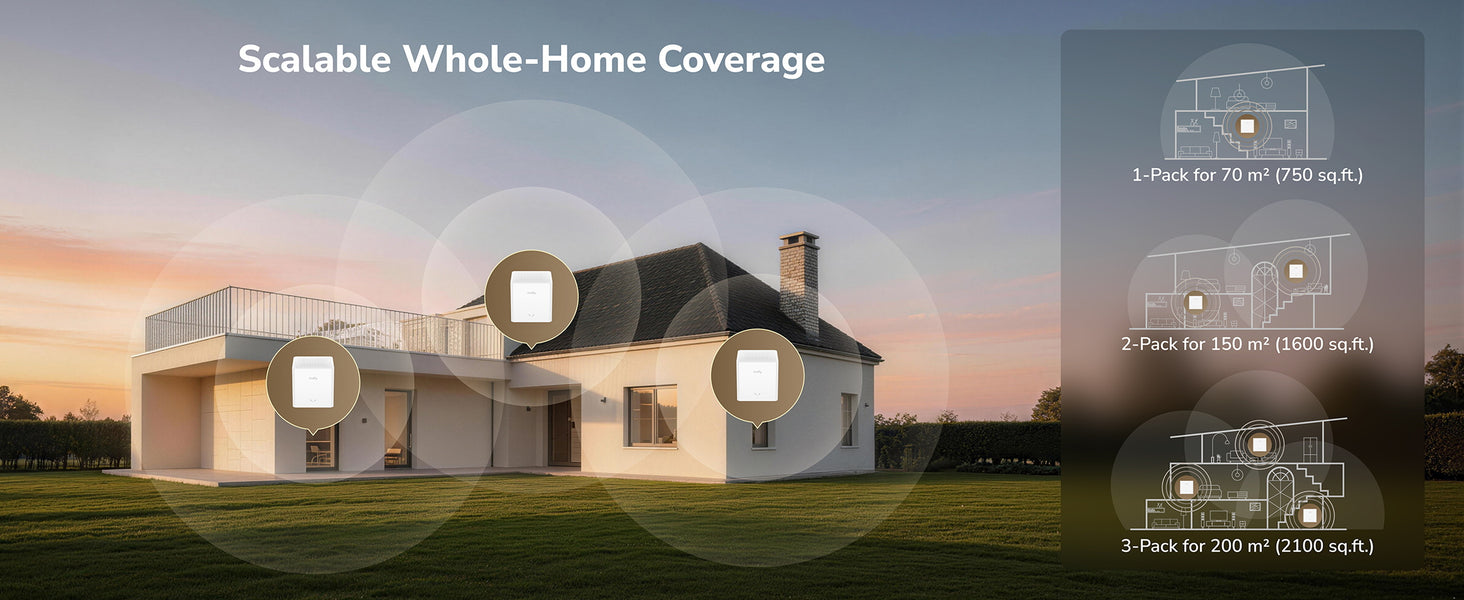

Wireless Indoor Coverage Reference 2 Pack: 150 m² (1600 sq ft)
3 Pack: 200 m² (2100 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
Beamforming
Certifications
Certifications FCC, CE
Version du modèle
Version du modèle M1200 2.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Capacity 128
Recommended Client Upper Limit 50
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
Multicast
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN
Online Detection
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. Le débit réel des données sans fil varie en fonction des conditions du réseau, des limitations du client et des facteurs environnementaux, notamment la disposition du bâtiment, les obstacles et l'emplacement du client.
  2. L'utilisation de MU-MIMO nécessite que les appareils clients prennent également en charge MU-MIMO.
