Commutateur PoE
HS1008EPS1 1.0
À venir
1 2

8-Port Multi-Gigabit Easy-Managed PoE+ Switch with 10G SFP+

8-Port Multi-Gigabit Easy-Managed PoE+ Switch with 10G SFP+, HS1008EPS1 1.0

HS1008EPS1 1.0

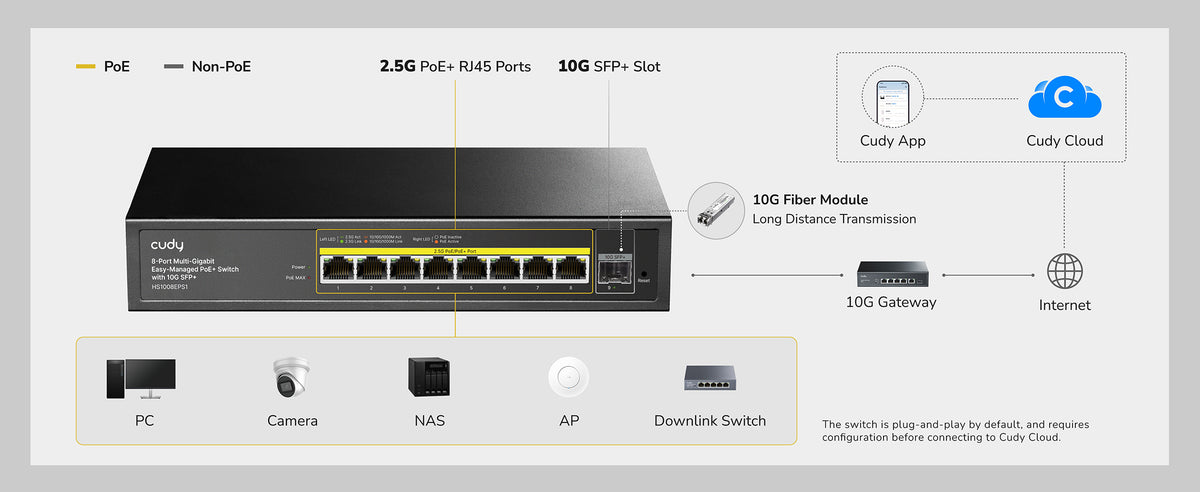

A multi-Gigabit PoE+ switch featuring eight 2.5GbE 802.3af/at RJ45 ports, one 10Gbps SFP+ port, and essential management features—ideal for connecting 2.5G access points, NAS devices, and bandwidth-demanding computers.

  • 8× 2.5GbE with 802.3at/af Mode A PoE
  • 1× 10G SFP+
  • Alimentation 120 W
  • Voyant d'état PoE Max
  • Web Management
  • Gestion PoE par port
  • VLAN, QoS, Port Trunk, etc
  • Loop Detection and Prevention
  • Desktop, Rack-Mount, Wall-Mount
  • 256×170×44 mm (10.08×6.69×1.73")
Afficher tous les détails

PoE fiable pour un fonctionnement constant 24h/24 et 7j/7

IEEE 802.3at/af. Jusqu'à 30 W par port.

Chaque port PoE fournit jusqu'à30 Wde puissance, ce qui le rend adapté aux points d'accès, aux caméras IP, à la signalisation numérique et à la plupart des autres appareils PoE.

Récupération automatique PoE

Activez la fonction Watchdog pour surveiller l'activité des ports. Si un appareil connecté se bloque et cesse de transmettre des données pendant 5 minutes, Watchdog redémarre automatiquement le port PoE correspondant.

2.5GbE and 10G SFP+

Connect 2.5G APs

Enable multiple 2.5G APs to reach their full speed with a high-speed 10G SFP+ uplink, delivering a premium business Wi-Fi experience.

2.5GbE and 10G SFP+

Connect 2.5G APs

Enable multiple 2.5G APs to reach their full speed with a high-speed 10G SFP+ uplink, delivering a premium business Wi-Fi experience.

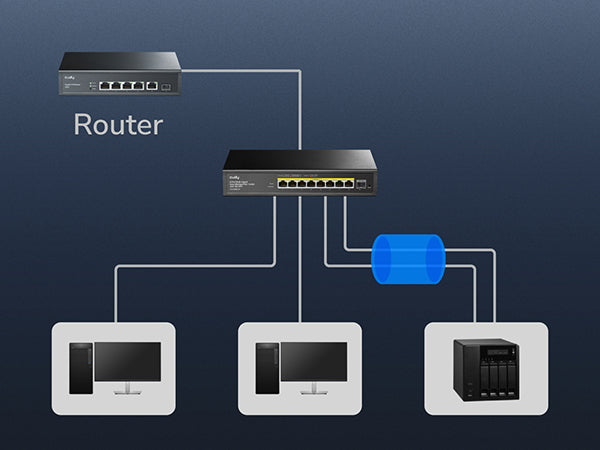

2.5G, 5G, 7.5G, even 10G

Connect Multi-Gig NAS

Boost productivity for bandwidth-intensive users with Static Link Aggregation, part of essential L2 management features. Note: The static aggregated bandwidth benefits multiple NAS users streaming simultaneously. A single NAS user or connection typically remains limited to 2.5 Gbps.

2.5G, 5G, 7.5G, even 10G

Connect Multi-Gig NAS

Boost productivity for bandwidth-intensive users with Static Link Aggregation, part of essential L2 management features. Note: The static aggregated bandwidth benefits multiple NAS users streaming simultaneously. A single NAS user or connection typically remains limited to 2.5 Gbps.

PoE Management

Configure power settings per port and take full control of PoE management, including Power On/Off, delay time scheduling, watchdog auto-recovery, PoE priority, and per-port power limits.

PoE Management

Configure power settings per port and take full control of PoE management, including Power On/Off, delay time scheduling, watchdog auto-recovery, PoE priority, and per-port power limits.

Web Configuration

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Web Configuration

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Essential L2 Features

Static Link Aggregation

Create Link Aggregation Groups to increase throughput to uplink switches, NAS devices, and more.

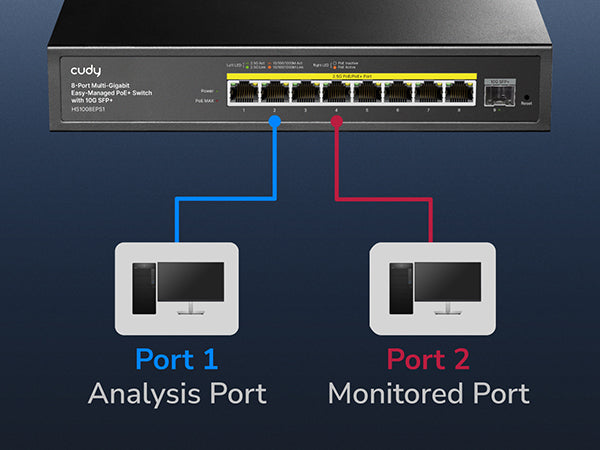

Port Mirroring

Mirror traffic from selected ports to a monitoring port for traffic analysis and troubleshooting.

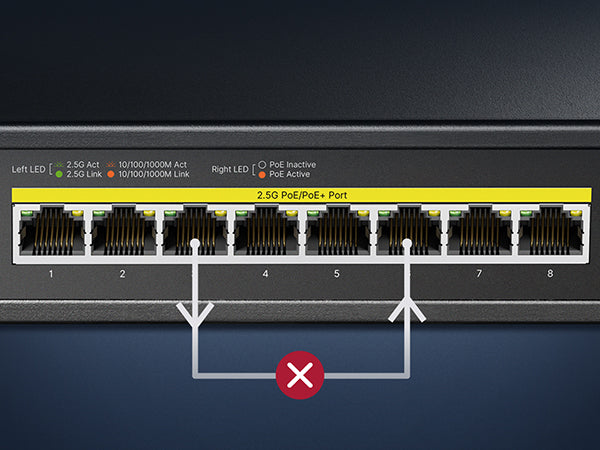

Loop Detection/Prevention

Automatically detects and blocks network loops, with blinking LEDs to identify the affected port.

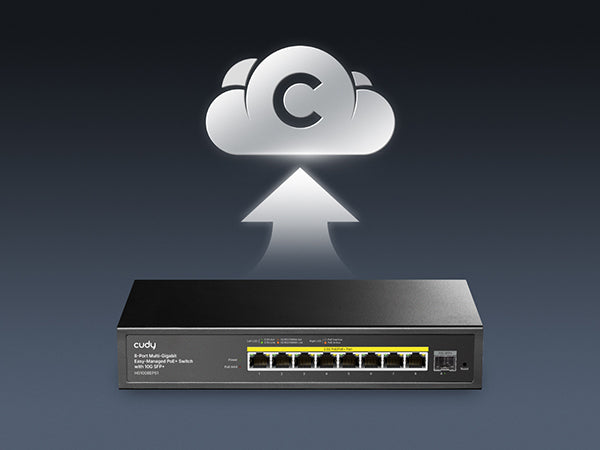

Remote Management

Control the switch remotely with Cudy App via Cudy Cloud on your phone.

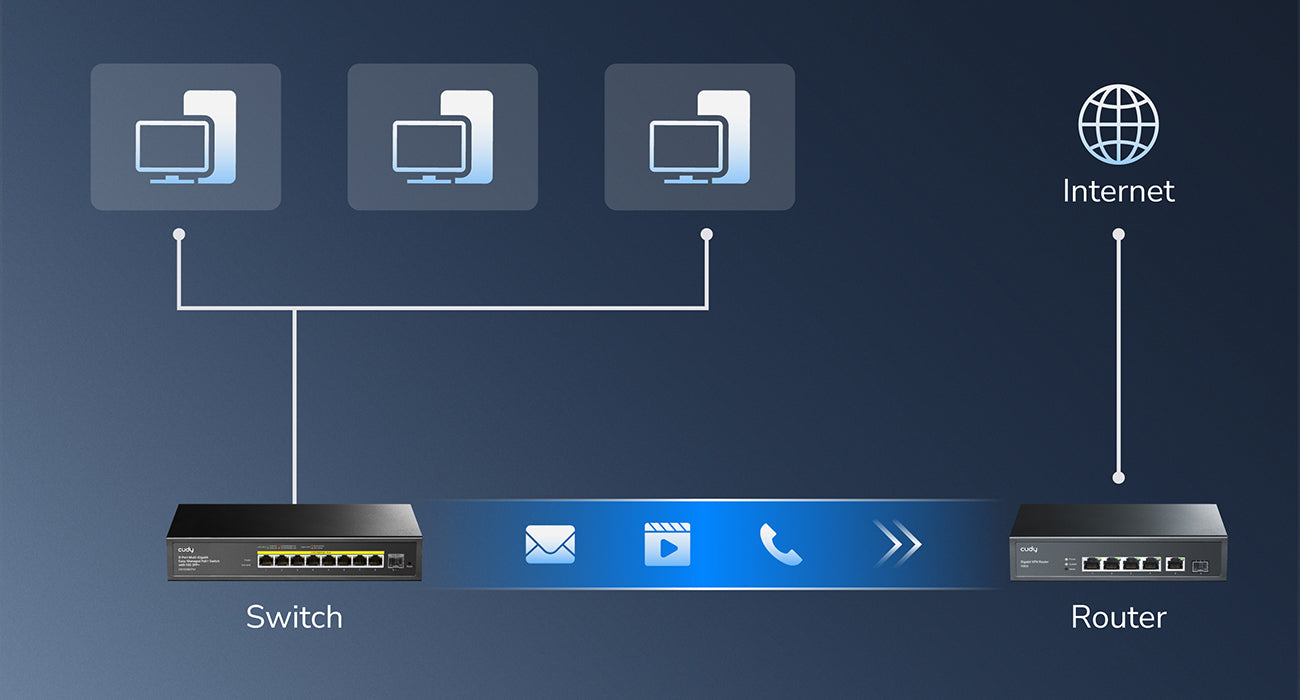

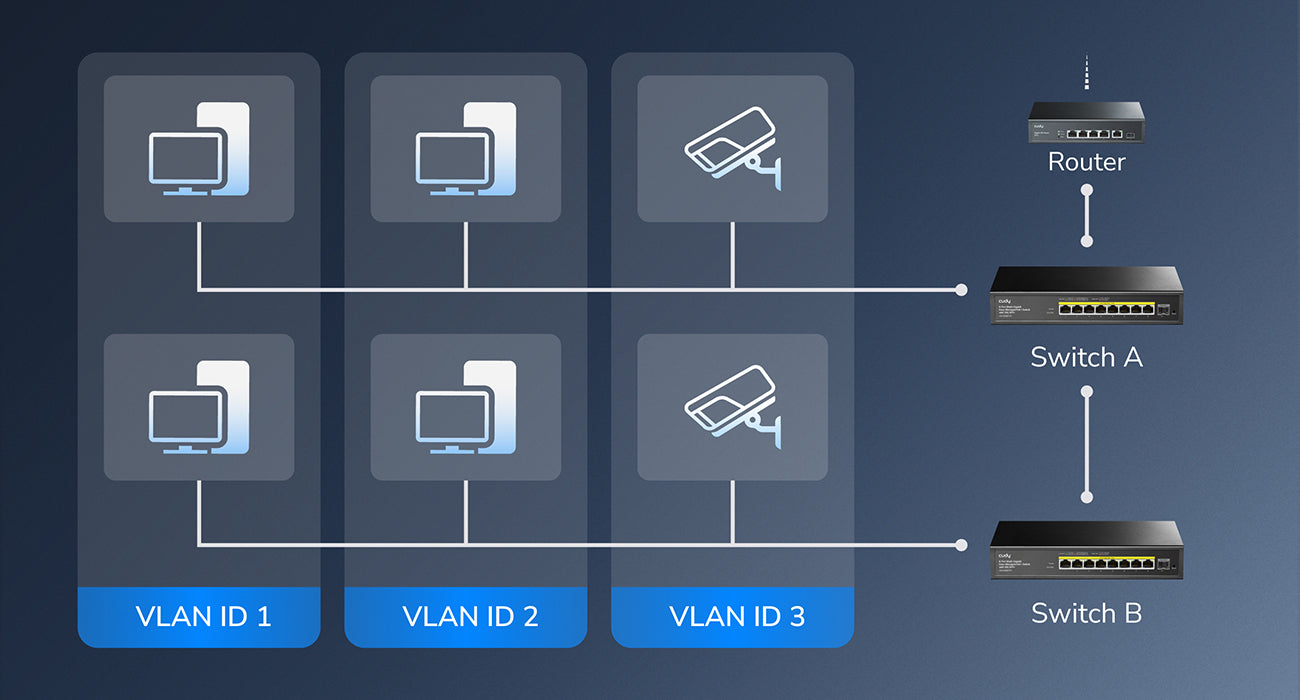

802.1Q/MTU/Port-Based VLAN

DSCP/802.1p QoS detects and prioritizes latency-sensitive traffic during transmission — ideal for video calls and gaming. You can also assign ports the highest priority so their traffic is always forwarded first.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data. Or assign a port with highest priority so all data will be forwarded in the first rank.

Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 4kV, CM 4kV; RJ45 CM 6kV

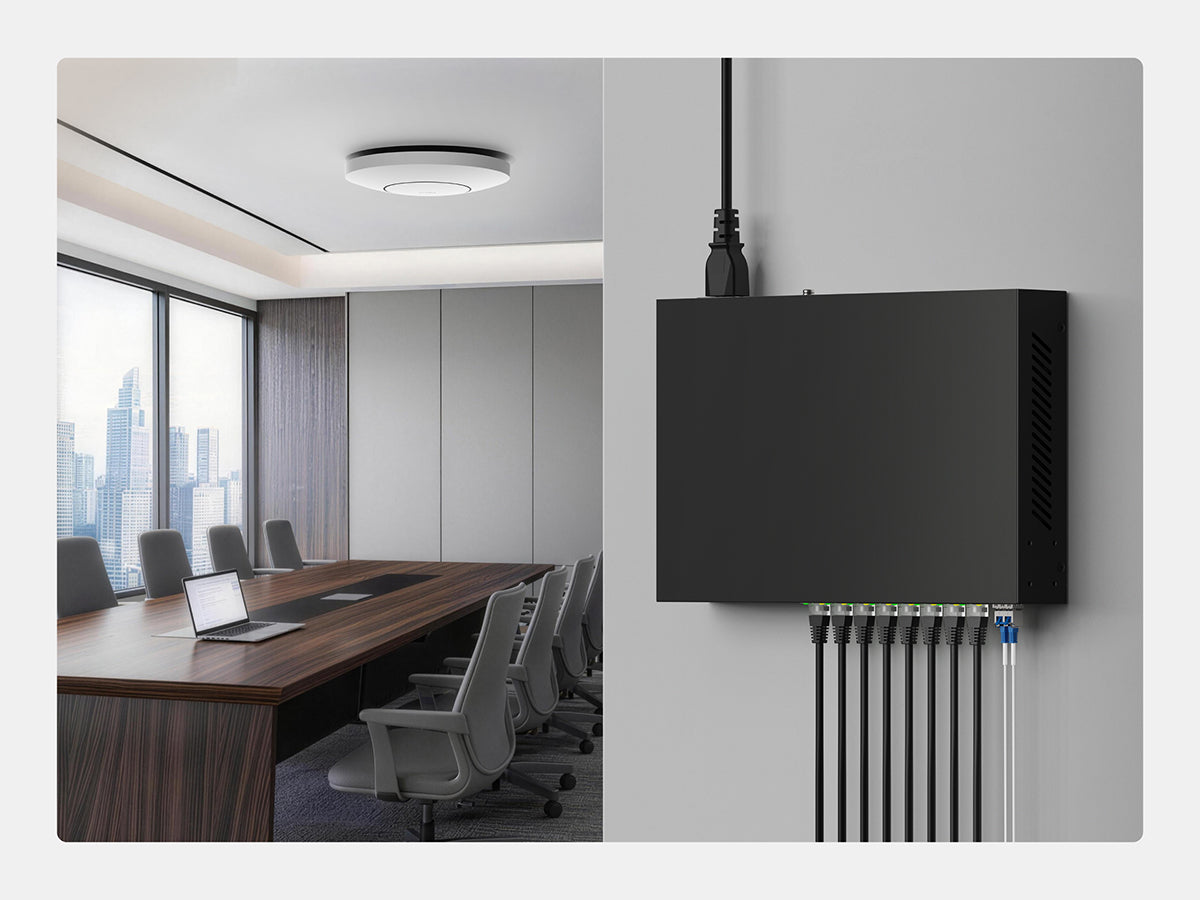

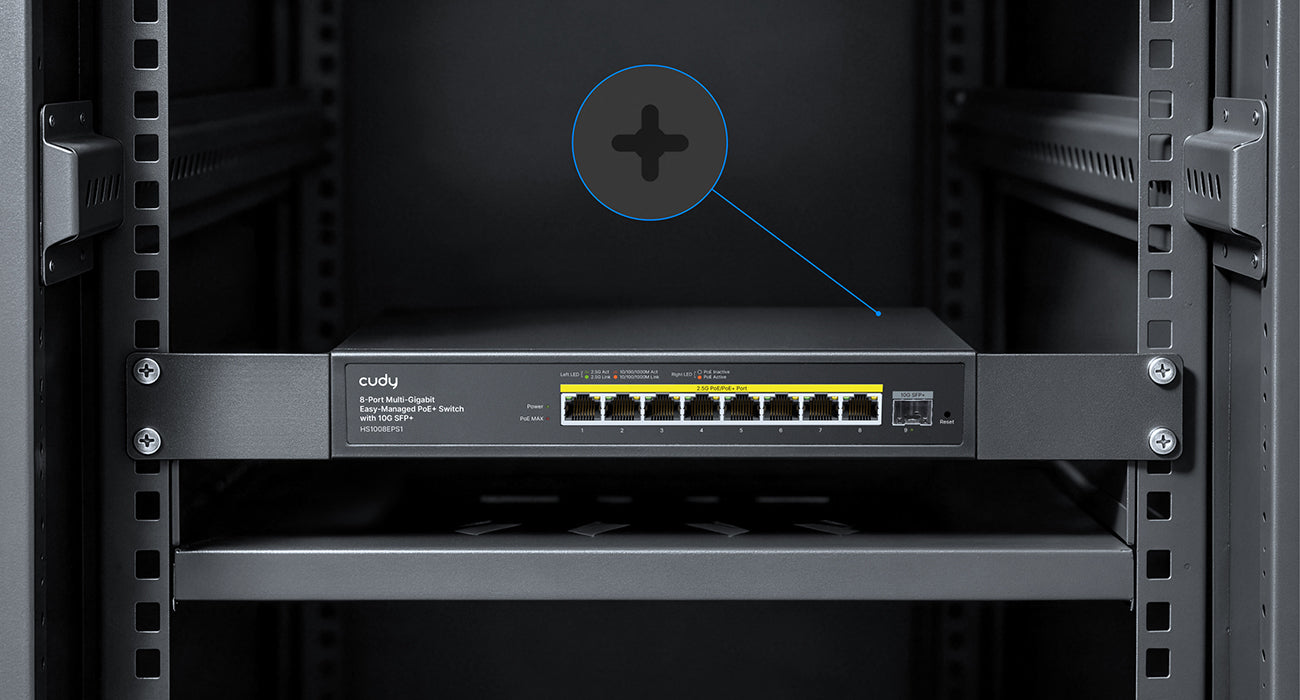

Wallmount or Rackmount

Features mounting holes on the back for wallmounting and extension brackets in the box for standard 19" rackmounting.

Version du modèle
Version du modèle HS1008EPS1 1.0
Interfaces
Interfaces 10G SFP+ Slots 1
2.5G RJ45 Ports 8
2.5G RJ45 PoE Ports #1~#8
Ethernet Notes SFP+ supports 10G/2.5G/1G speeds.
SFP DDM Monitoring False
Max Power on a Single PoE Port 30W
PoE Port Notes PoE ports support 802.3at/af standards.
PoE Priority Configurable. If no priority is configured, smaller-numbered ports have higher priority.
Shielded RJ45 Port
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
LED
  • Power
  • Speed/Link/Act of Each Ethernet Port (2.5 Gbps)
  • Link/Act of Each Ethernet Port (10/100/1000 Mbps)
  • PoE Max Status
  • PoE Status of Each PoE Port
Physical Buttons Reset Button
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Customize the wait time in the web management to prevent damaging clients with online auto-upgrade feature.
Performance
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at 2.5 Gbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 4096
VLANs 4096
Max Switching Capacity 60 Gbps
Max Forwarding Rate 44.64 Mpps
Jumbo Frame 9 KB
Packet Buffer 4 Mbit
Power
Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 120W
Max Power Excluding PoE TBD
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3bz 2.5GBASE-T
  • 802.3z 1000BASE-X
  • 2.5GBASE-X
  • 802.3ae 10GBASE-R
  • 802.3az Power Saving
  • 802.3af PoE
  • 802.3at PoE
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
PoE Management
  • PoE Priority
  • PoE Watchdog On/Off
  • PoE Watchdog Period/Packet Threshhold
  • PoE Consumed Power
  • PoE Standard
  • Delayed PoE Delivery
  • Total PoE Power Limit
  • PoE Power Limit
Port Mirror Sessions 1
Port Trunk Groups 2
Max Port Num per Port Trunk Group 4
L2 Features
  • Loop Prevention
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: Power: DM 4kV, CM 4kV; RJ45: CM 6kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 5~90% non-condensing
System
System Control Methods Config Web Page
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension 256×170×44 mm
10.08×6.69×1.73 inches
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets
  • Wall-mount
Package Content
Package Content
  • HS1008EPS1
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 304×245×84 mm
11.97×9.65×3.31 inches
Units per Carton 10
Carton Dimension 50.2×44.4×33 cm
19.76×17.48×12.99 inches
