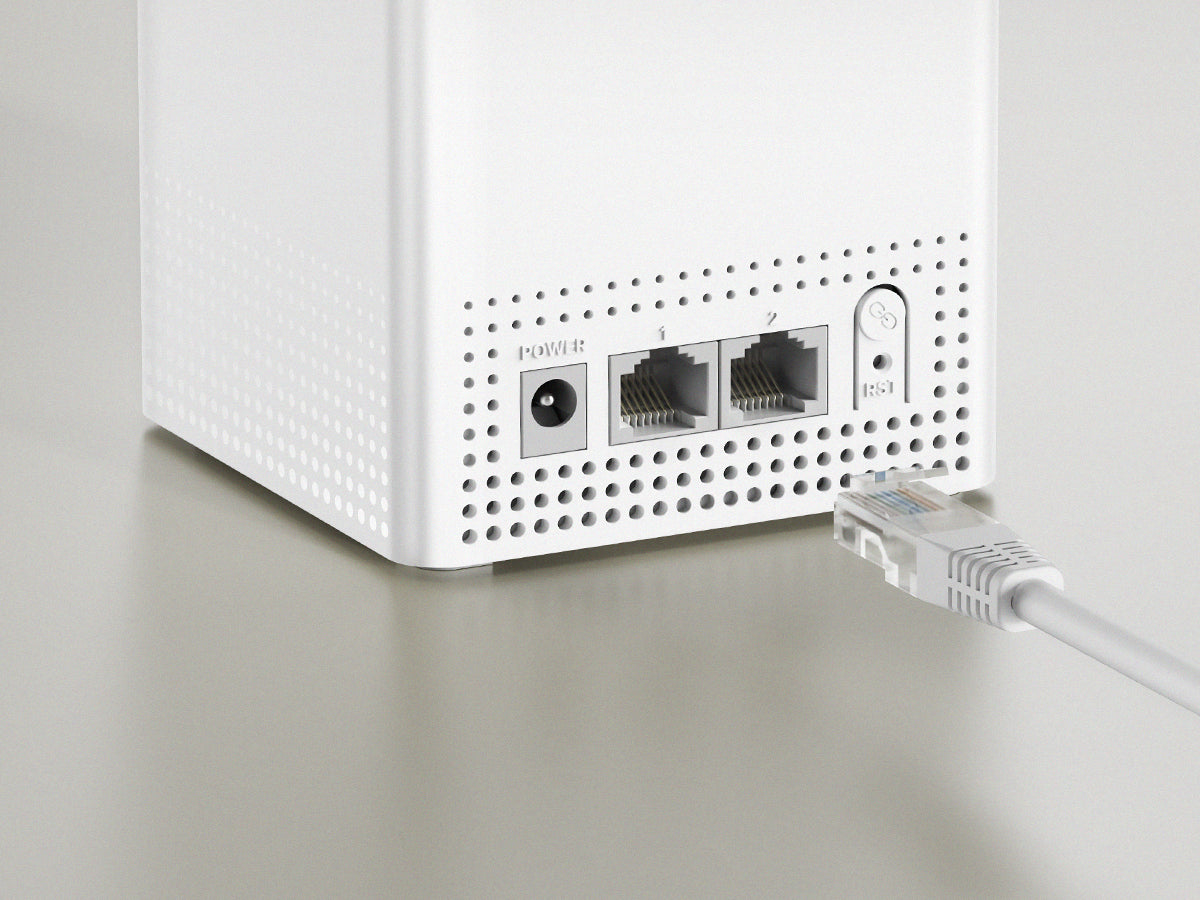

Wired Power Meets Whole-Home Performance

Experience low-latency game play, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M3000S delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Wired Power Meets Whole-Home Performance

Experience low-latency game play, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M3000S delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Protect Your Loved Ones

Parental Controls

Easily set screen time limits, block inappropriate content, and create personalized profiles for every family member. Keep kids safe online and give parents total peace of mind.

Protect Your Loved Ones

Parental Controls

Easily set screen time limits, block inappropriate content, and create personalized profiles for every family member. Keep kids safe online and give parents total peace of mind.

Your Whole Home, Protected. All at Once.

Activate VPN once on the router — every device in your home browses privately, instantly. No per-device setup, no extra subscriptions.

Your Whole Home, Protected. All at Once.

Activate VPN once on the router — every device in your home browses privately, instantly. No per-device setup, no extra subscriptions.

Easy Setup

Plug In. Power Up. Done.

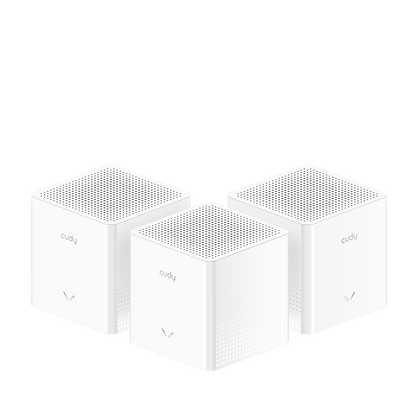

Factory pre-paired 2-pack / 3-pack
Unbox. Plug in. Whole-home Wi-Fi is ready to go instantly.
Set up whole-home Wi-Fi effortlessly with Cudy App in minutes. Simple, fast, and hassle-free.

Easy Setup

Plug In. Power Up. Done.

Factory pre-paired 2-pack / 3-pack
Unbox. Plug in. Whole-home Wi-Fi is ready to go instantly.
Set up whole-home Wi-Fi effortlessly with Cudy App in minutes. Simple, fast, and hassle-free.

1 10

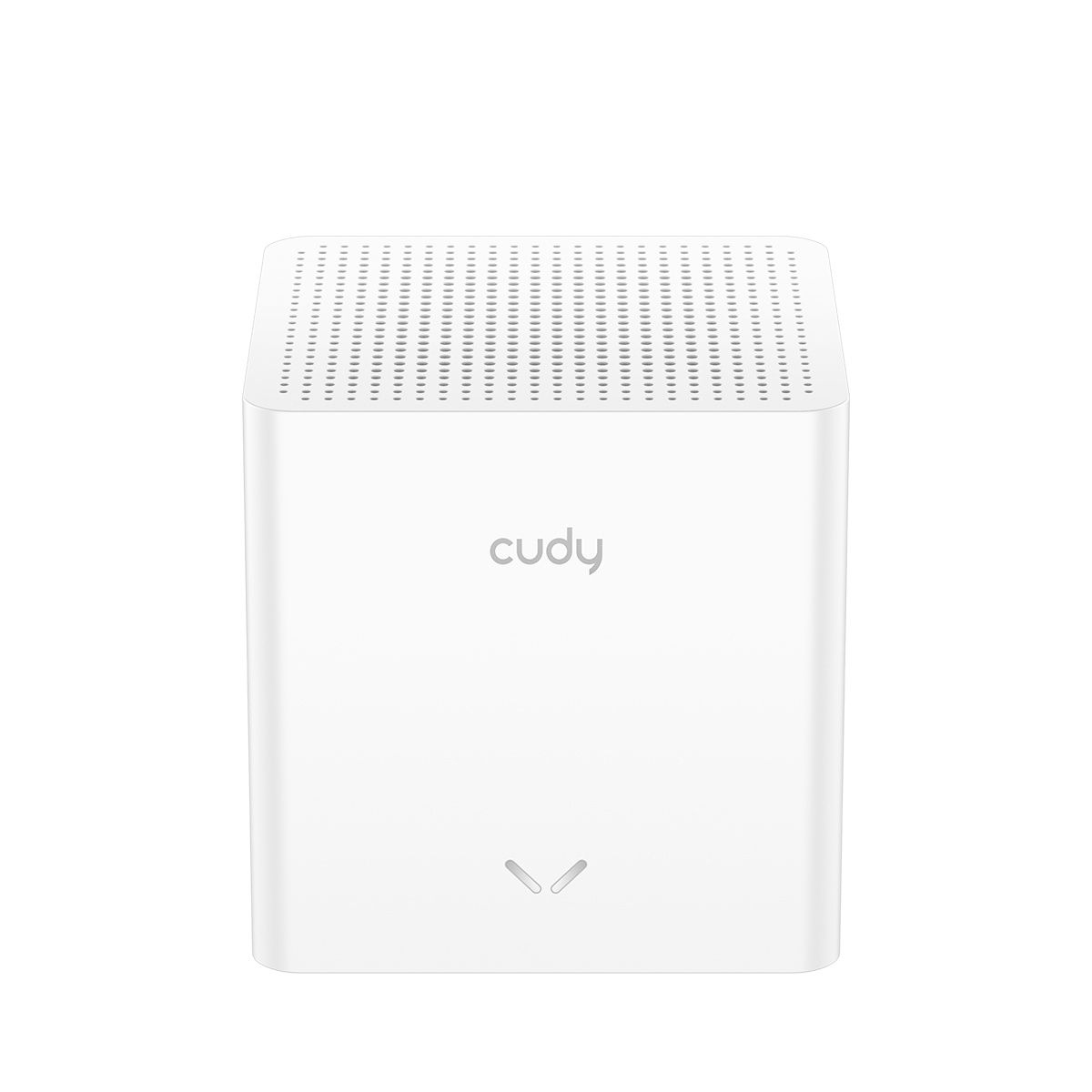

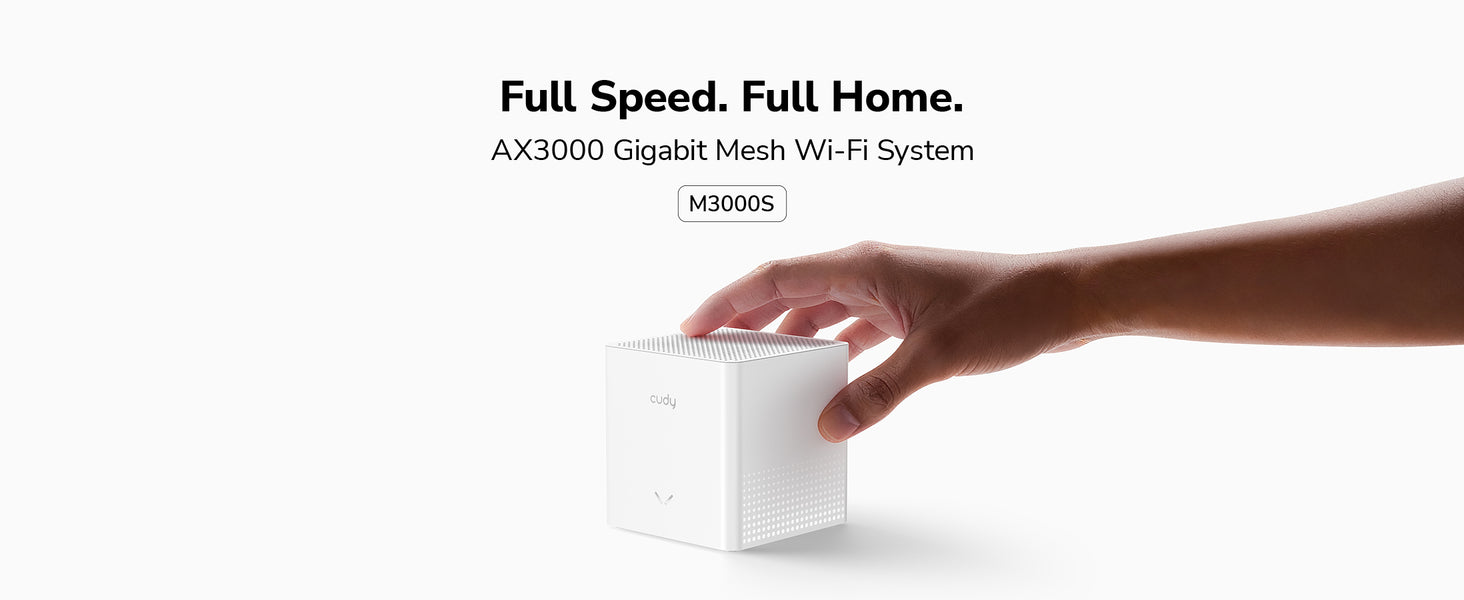

AX3000 Gigabit Mesh Wi-Fi 6 System

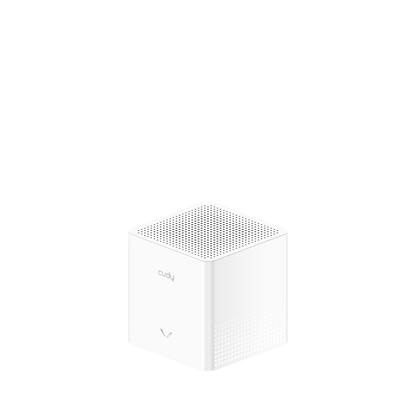

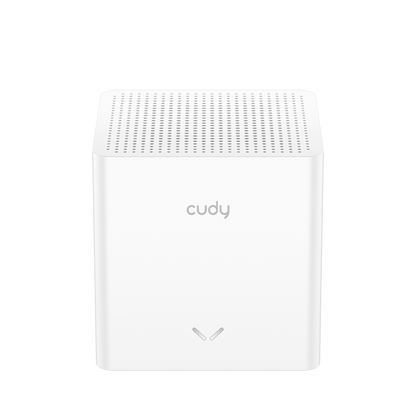

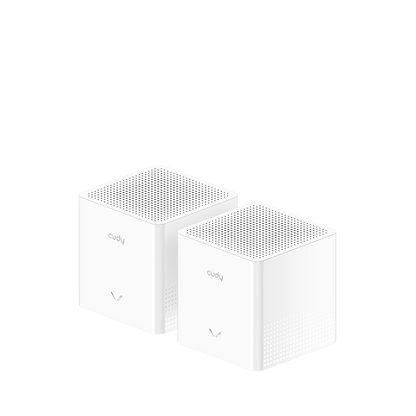

AX3000 Gigabit Mesh Wi-Fi 6 System, M3000S 1.0

M3000S 1.0

Pack 1-Pack 2-Pack 3-Pack

Variantes de produits

A mesh Wi-Fi 6 system with four antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 1000 Mbps.

1.2 GHz Dual-Core CPU
Wi-Fi 6 double bande à 4 flux

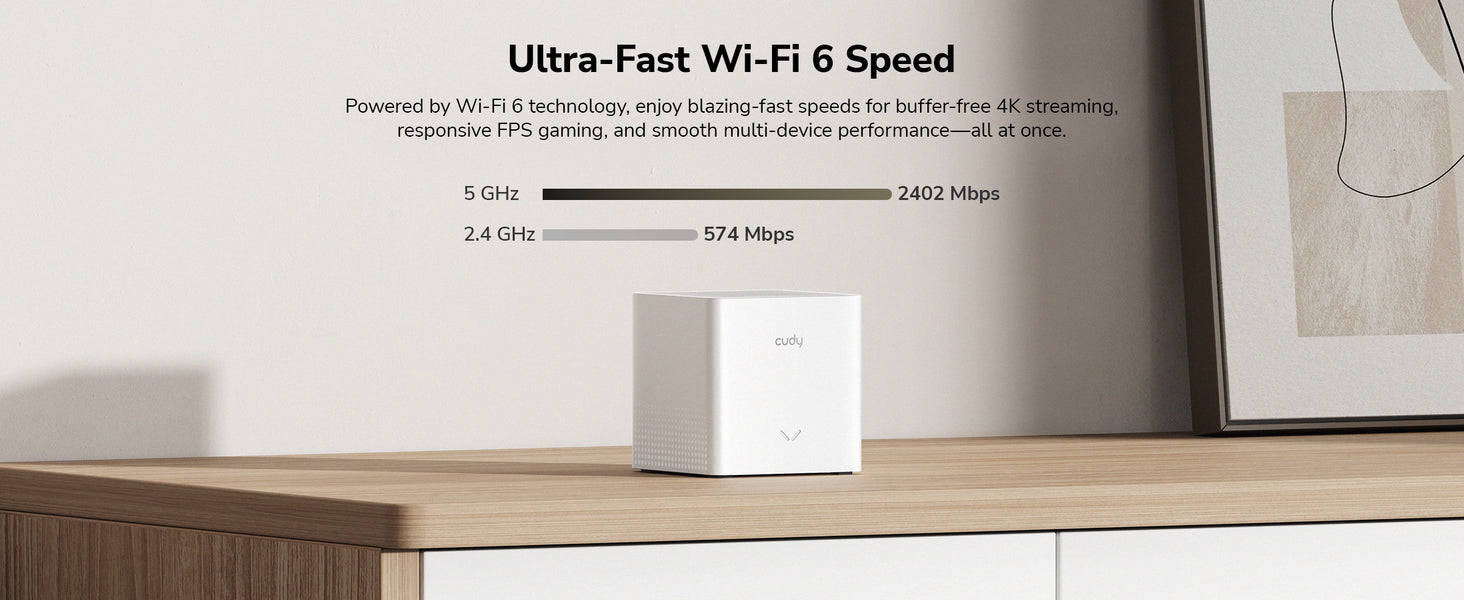

Wi-Fi 2402 Mbps + 574 Mbps ¹
2 ports Gigabit Ethernet
Cudy Mesh, serveur et client VPN
Liaison simultanée multibande
Application Cudy, contrôle du cloud

Afficher tous les détails

Spécifications matérielles

Spécifications du logiciel

Version du modèle
Version du modèle	M3000S 1.0
CPU
CPU	CPU Details	1.2 GHz Dual-Core
Memory/Storage
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	128 MB (1 Gbit) DDR3
Wireless
Wireless	5 GHz Wi-Fi Speed	2402 Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	Wi-Fi Antennas	2× Internal
	5 GHz Antenna Gain Max	5.1 dBi
	2.4 GHz Antenna Gain Max	4.2 dBi
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
Interfaces

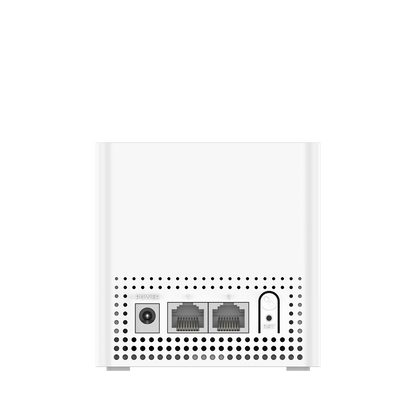

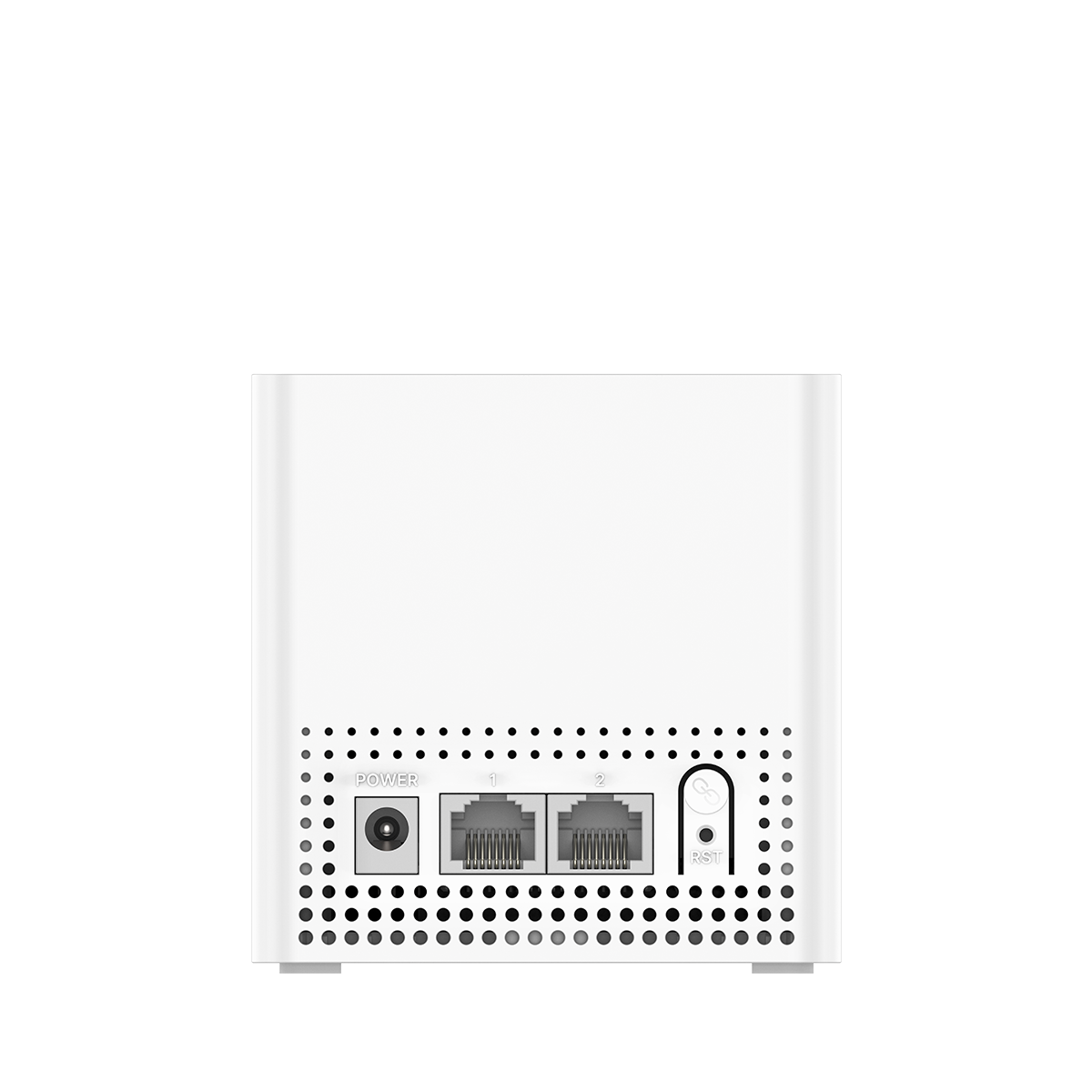

Interfaces	Physical Buttons	WPS Button Reset Button
	Gigabit RJ45 Ports	2
	Ethernet Notes	Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode
Power
Power	Power Input Type	DC Jack
Interfaces
Interfaces	LED	System
Power
Power	Power Methods	DC
	Power Input	12V⎓1A
	Max Power Consumption (W)	7.1W
	Idle Power Consumption (W)	3.2W
Reliability
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Mechanical
Mechanical	Dimension	85×85×86.5 mm 3.35×3.35×3.41 inches
	Installation	Desktop
Package Content

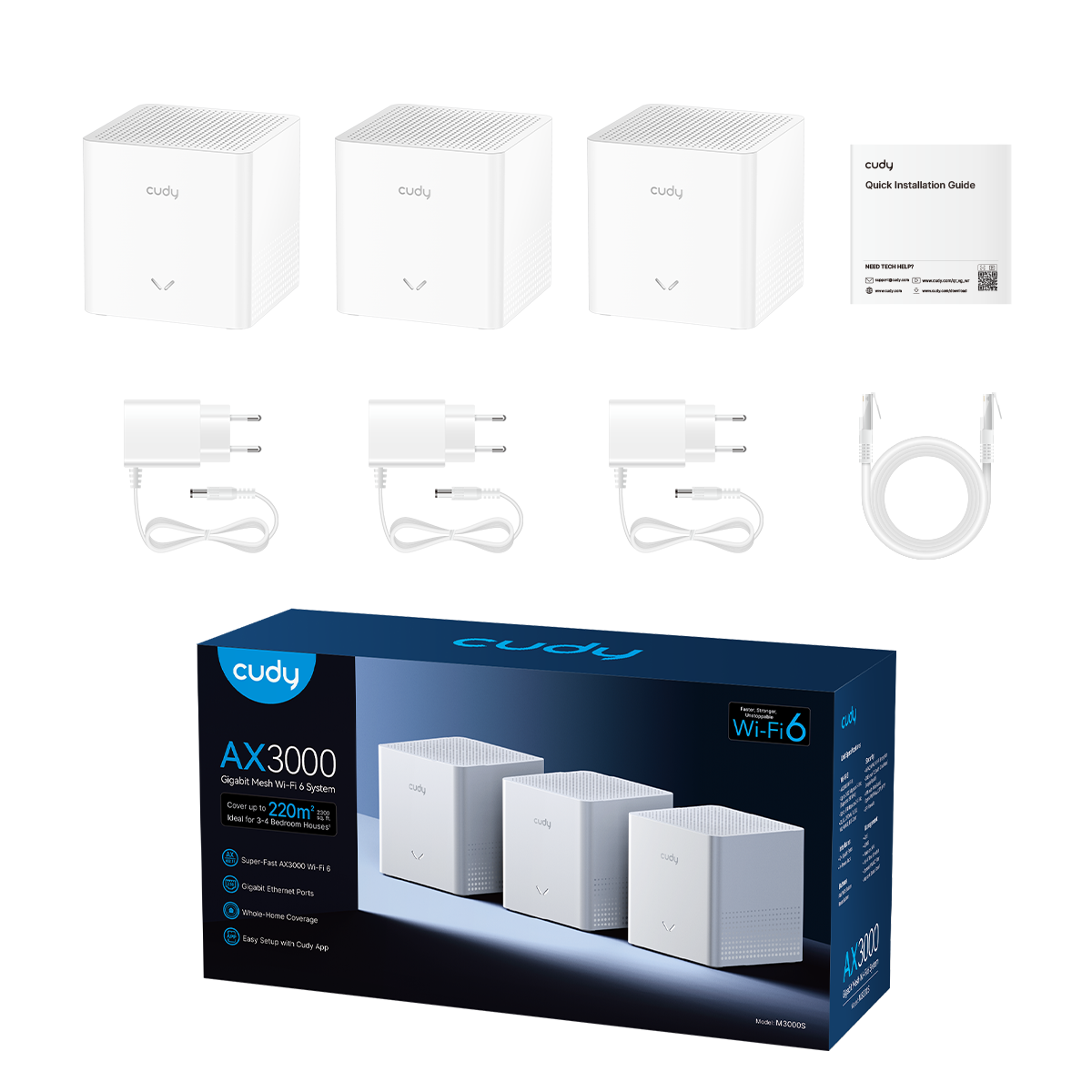

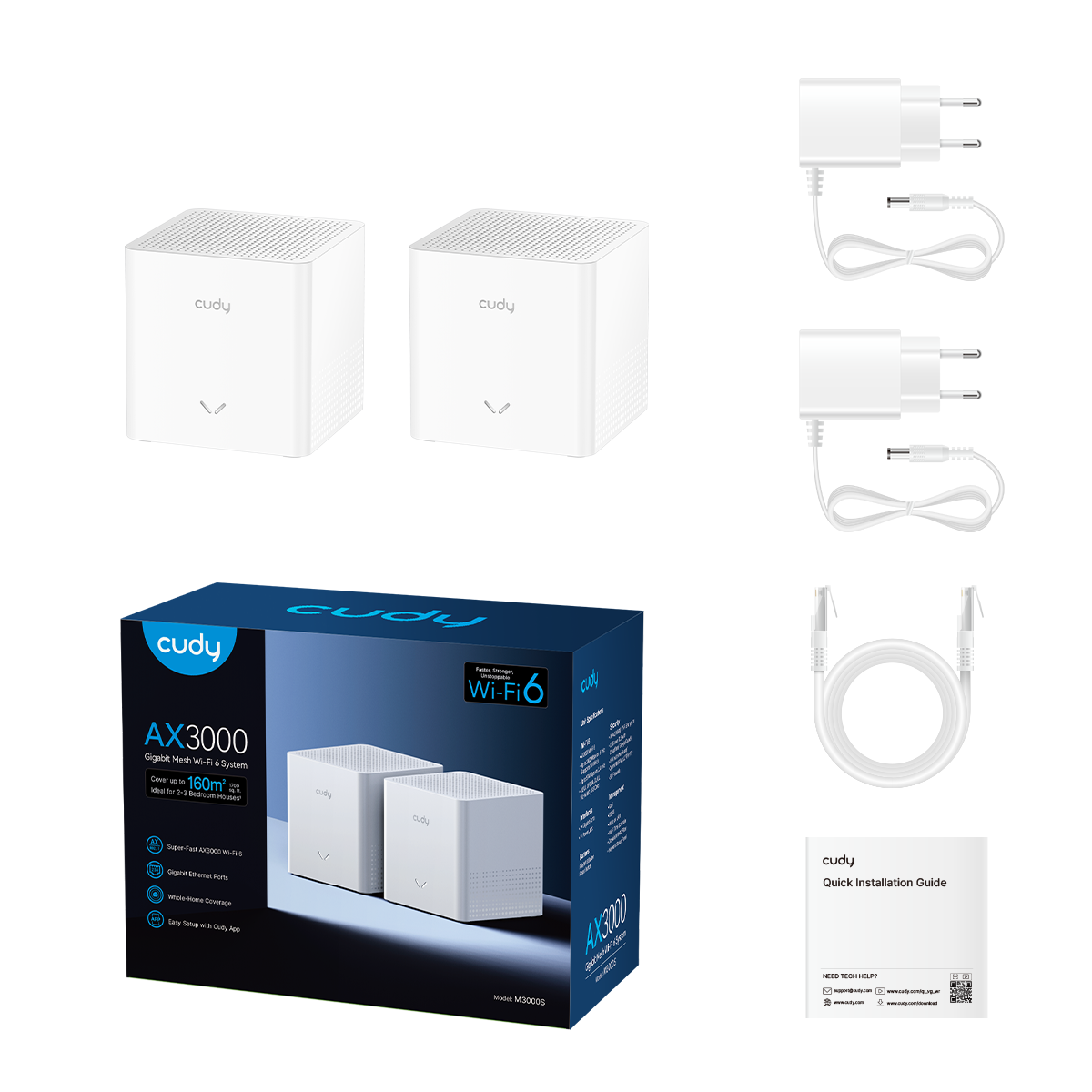

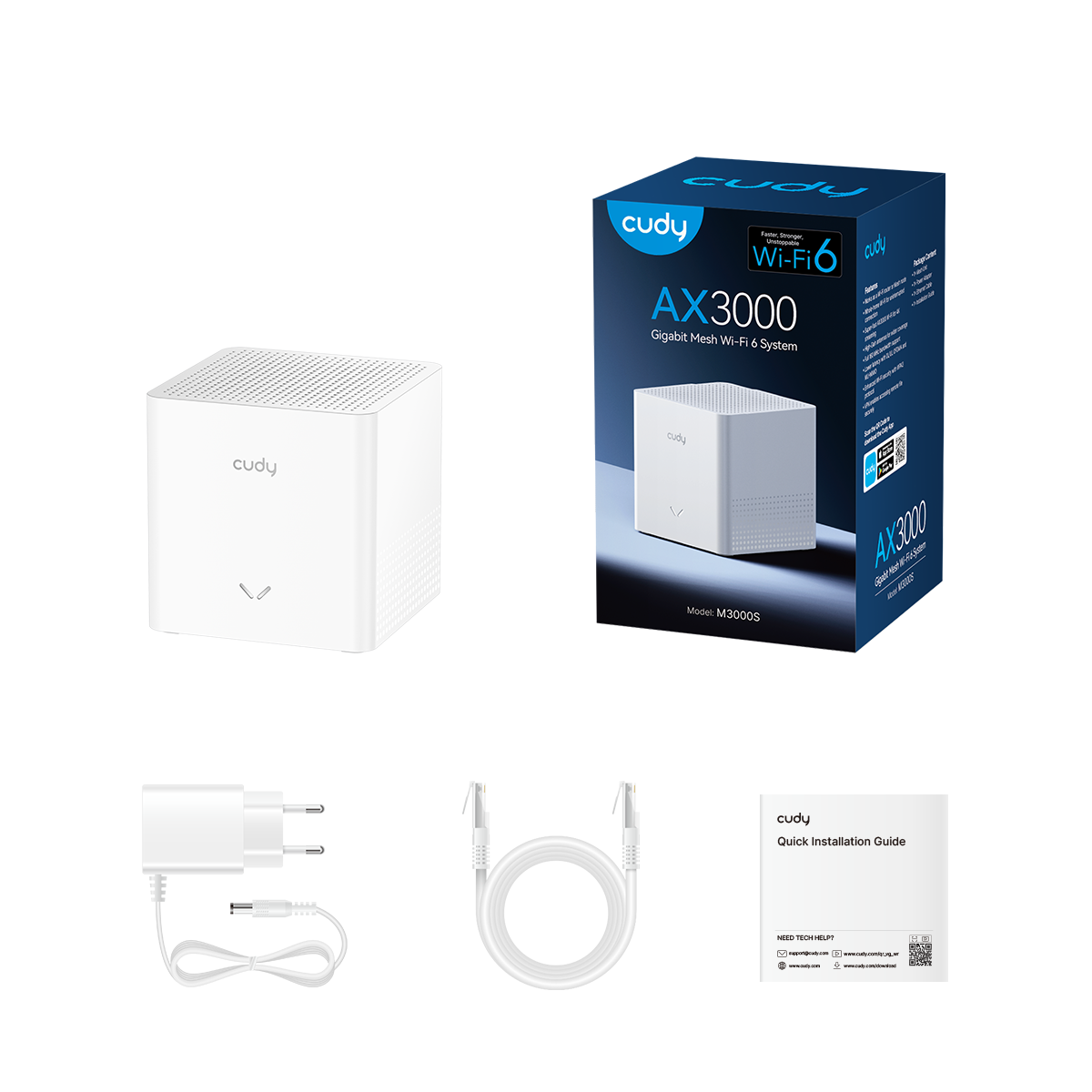

Package Content	M3000S Power Adapter Ethernet Cable Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	1-Pack: 94×90×147 mm 3.7×3.54×5.79 inches,3-Pack: 274×143×90 mm 10.79×5.63×3.54 inches,2-Pack: 184×143×90 mm 7.24×5.63×3.54 inches
Wireless
Wireless	5 GHz Wi-Fi Streams	2 Spatial Streams
	2.4 GHz Wi-Fi Streams	2 Spatial Streams
Power
Power	Power Adapter In the Box	Input: 100-240V~, 50/60Hz Output: 12V⎓1A
Wireless
Wireless	Range Performance	Max: 200 m (656 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Ordering Information
Ordering Information	Units per Carton	1-Pack: 40 3-Pack: 10 2-Pack: 20
	Carton Dimension	1-Pack: 50×38.9×32.1 cm 19.69×15.31×12.64 inches 3-Pack: 47.8×29.7×31 cm 18.82×11.69×12.2 inches 2-Pack: 47.8×39.1×31 cm 18.82×15.39×12.2 inches
Wireless

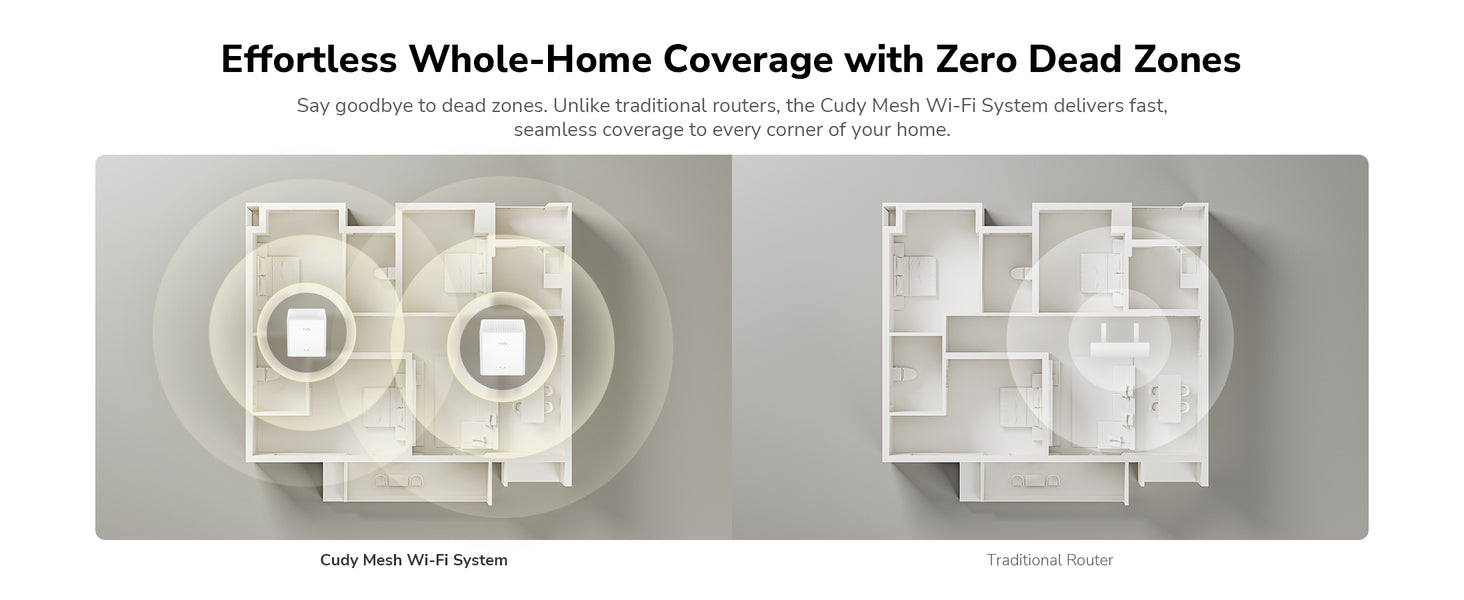

Wireless	Indoor Coverage Reference	2 Pack: 160 m² (1700 sq ft) 3 Pack: 220 m² (2300 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
	Beamforming
Certifications
Certifications	FCC, CE

Version du modèle
Version du modèle	M3000S 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
	Max Capacity	128
	Recommended Client Upper Limit	50
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS
General
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	Multicast
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	VPN Server	WireGuard OpenVPN PPTP L2TP IPsec
	VPN Client	WireGuard OpenVPN PPTP L2TP IPsec
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN
	Online Detection
Management
Management	Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	LED Control
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Le débit réel des données sans fil varie en fonction des conditions du réseau, des limitations du client et des facteurs environnementaux, notamment la disposition du bâtiment, les obstacles et l'emplacement du client.
