Changer
FS108D

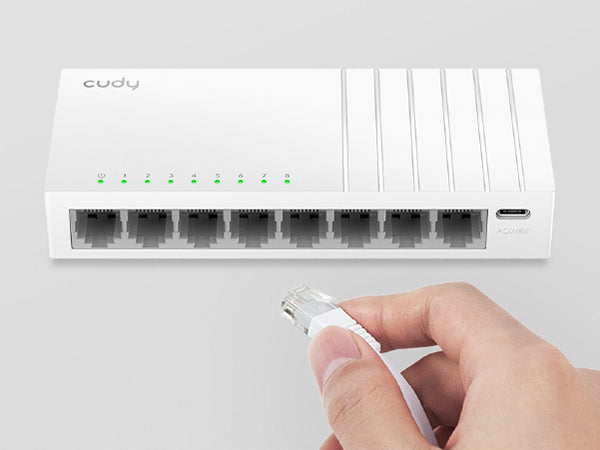

10/100 Mbps Speed

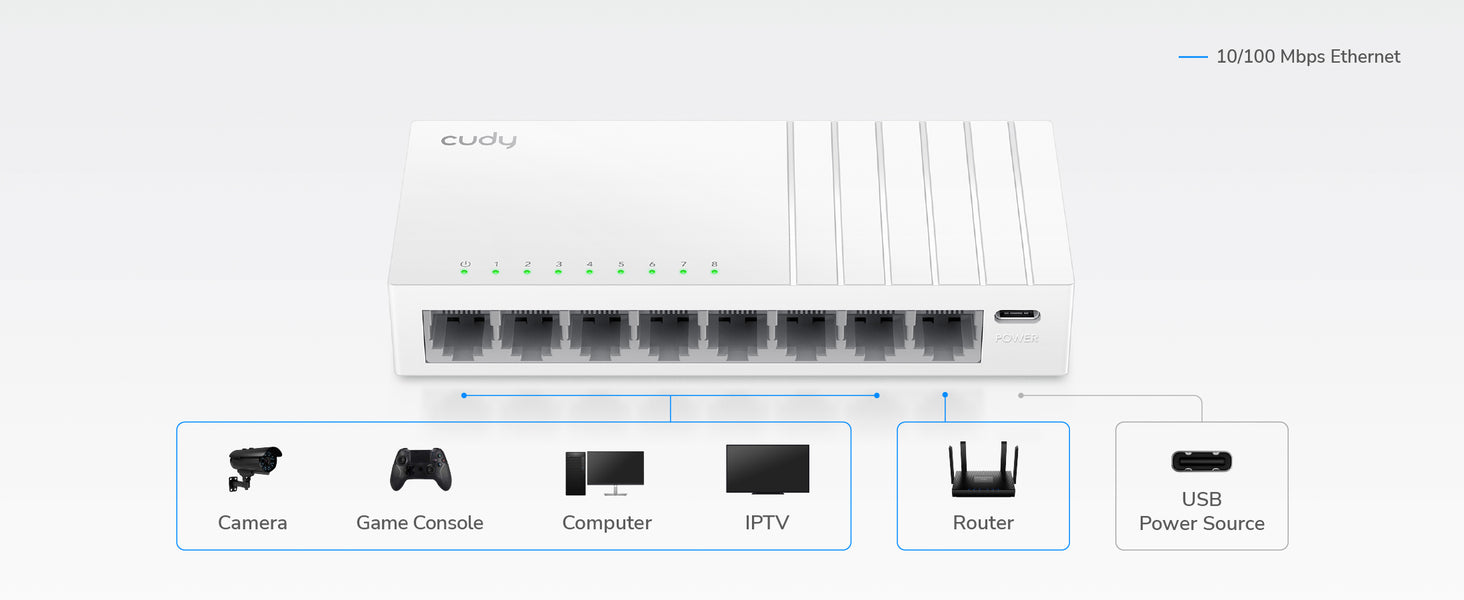

Connect PC, cameras, AP, and TV for stable wired connectivity

Compact and Modern Design

Place it in a distribution box or cable box without assigning extra space.

Power-Efficient Chipset

Super power-efficient with 0.75W maximum and 0.4W standby power consumptions.

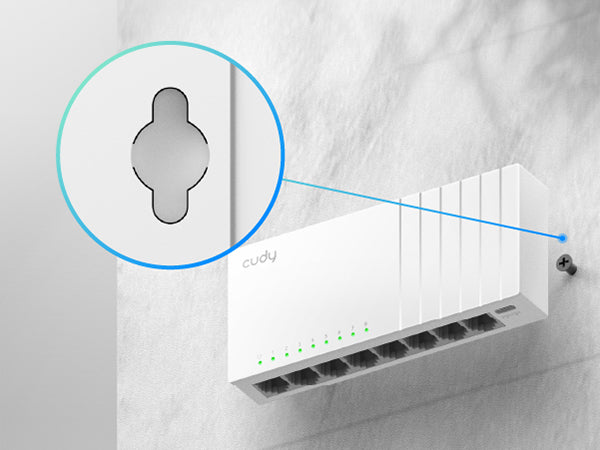

Wall Mounting

Save spaces by mount the switch on the wall.

Flexible USB-C Powering

No Sockets Nearby? No Worries

No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.

A Moving Network Hub

Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day witha 10,000 mAh power bank.

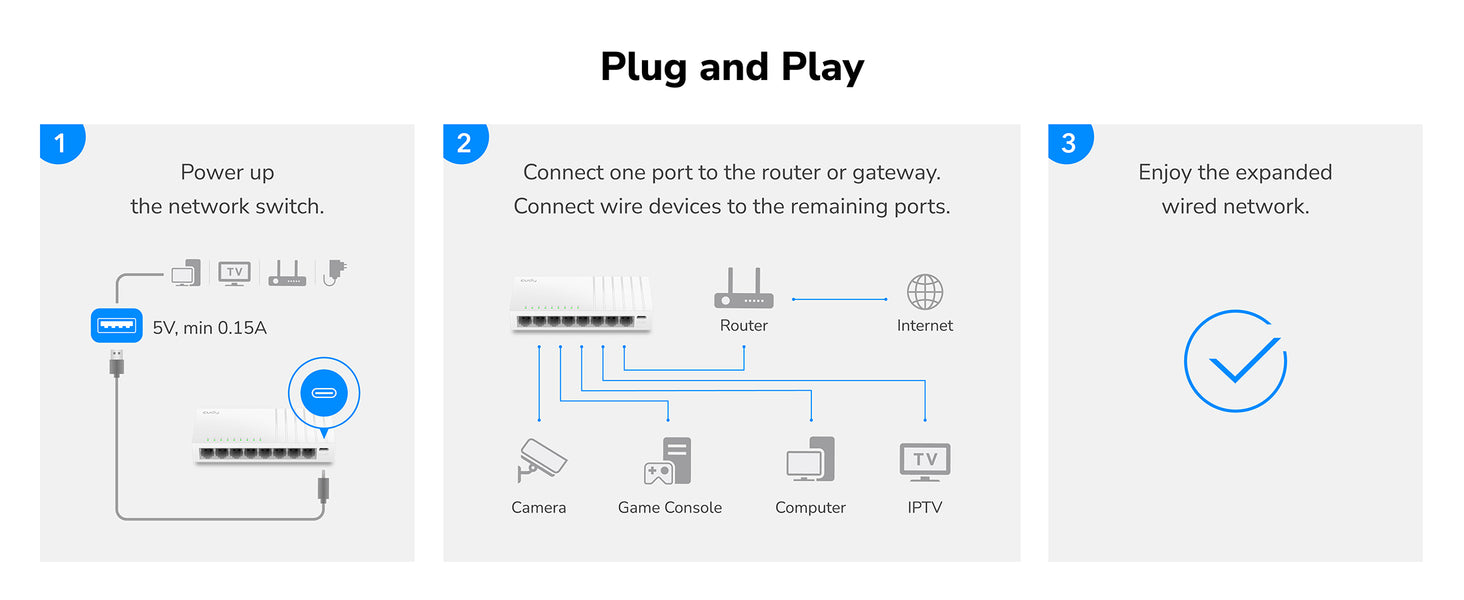

Un hub réseau Plug and Play

Connecter les ordinateurs de bureau au réseau filaire

Optimisez vos appareils domestiques avec un Ethernet stable

1 3

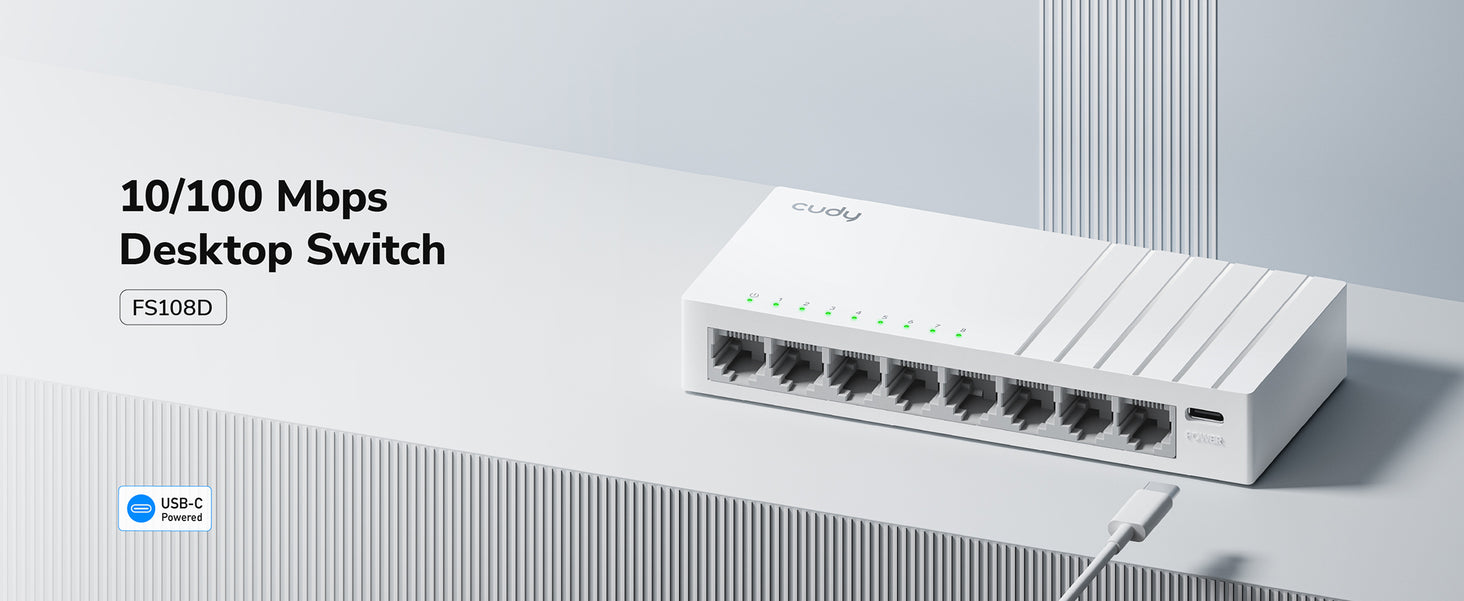

8-Port 10/100 Mbps Desktop Switch

8-Port 10/100 Mbps Desktop Switch, FS108D 5.0

FS108D 5.0

A 8-FE switch with USB-C power input designed for wired network expansion in home and office environments.

  • 8 ports Ethernet rapides
  • Alimentation via USB-C
  • 86,5×53×23 mm (3,41×2,09×0,91″)
  • Bureau, montage mural
  • 77 g (2.71 oz.)
Afficher tous les détails
Version du modèle
Version du modèle FS108D 5.0
Interfaces
Interfaces 10/100 Mbps RJ45 Ports 8
LED
  • Power
  • Link/ACT of Each Ethernet Port
Performance
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
MAC Address Table 2048
Max Switching Capacity 1.6 Gbps
Max Forwarding Rate 1.1904 Mpps
Packet Buffer 570 Kbit
Power
Power Power Input Type USB-C Port
Basic Power Saving
Power Methods USB-C
Power Input 5V⎓
Max Power Consumption 0.75W
Idle Power Consumption 0.4W
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
Reliability
Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical

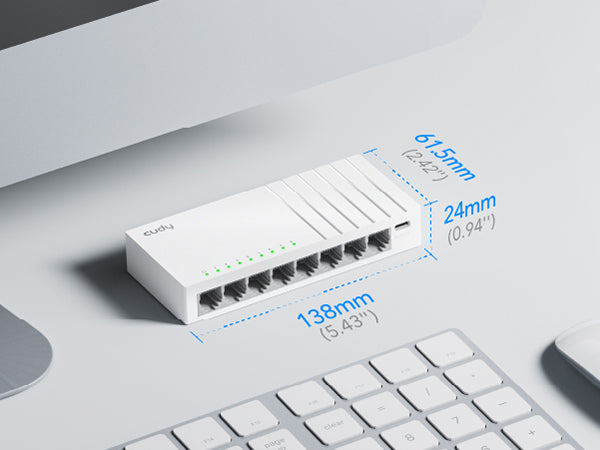

Mechanical Dimension 138×61.5×24 mm
5.43×2.42×0.94 inches
Product Weight 76.9 g (2.71 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • FS108D
  • USB-A to USB-C Power Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 143×89×32 mm
5.63×3.5×1.26 inches
Retail Package Weight 138.4 g (4.88 oz.)
Units per Carton 60
Carton Net Weight 8.3 kg (18.3 lbs)
Carton Gross Weight 8.9 kg (19.62 lbs)
Carton Dimension 35.3×28.7×30.8 cm
13.9×11.3×12.13 inches
