Changer
FS105D

10/100Mbps Speed

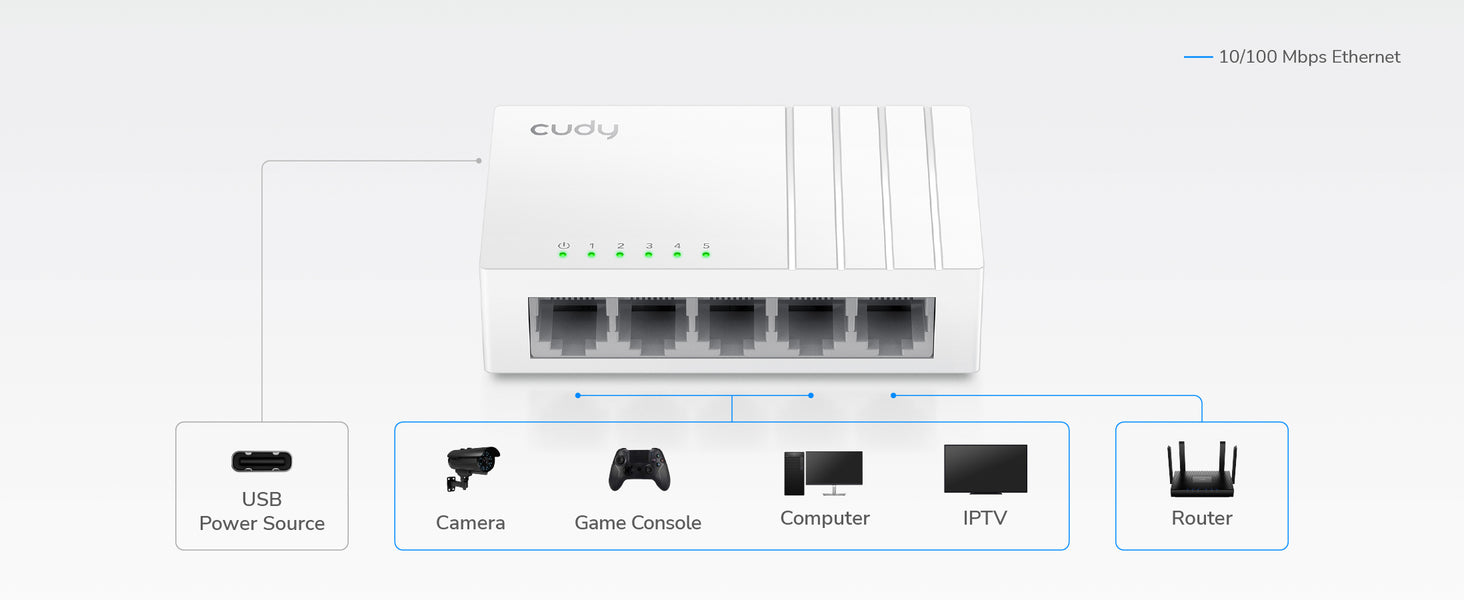

Connect PC, cameras, AP, and TV for stable wired connectivity

Compact Design

Place it in a distribution box or cable box without assigning extra space.

Power-Efficient Chipset

Super power-efficient with 0.5 maximum and 0.32W standby power consumptions.

Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting scenario.

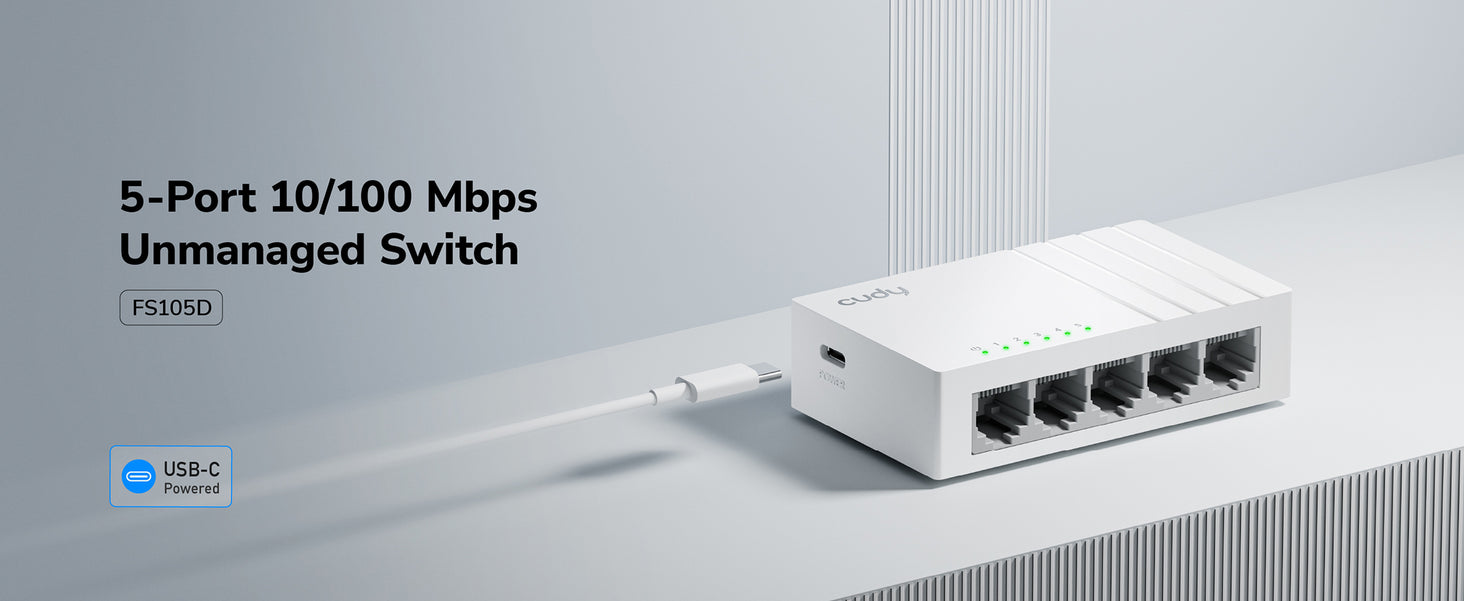

Flexible USB-C Powering

No Sockets Nearby? No Worries

No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.

A Moving Network Hub

Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.

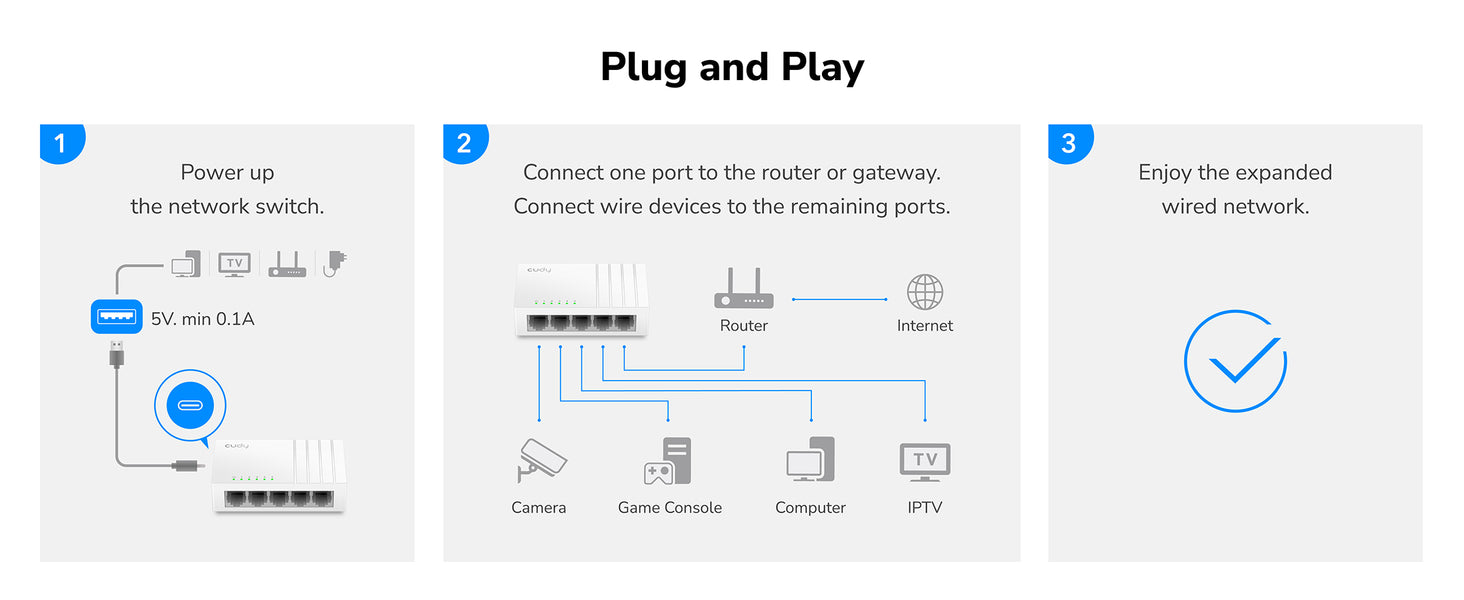

Un hub réseau Plug and Play

Connecter les ordinateurs de bureau au réseau filaire

Optimisez vos appareils domestiques avec un Ethernet stable

1 4

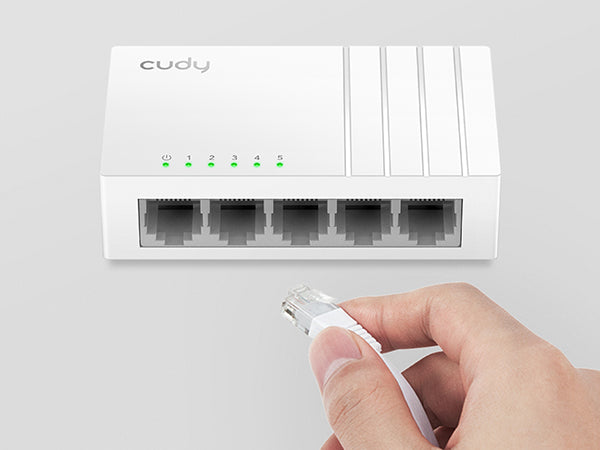

5-Port 10/100 Mbps Desktop Switch

5-Port 10/100 Mbps Desktop Switch, FS105D 5.0

FS105D 5.0

A 5-FE switch with USB-C power input designed for wired network expansion in home and office environments.

  • 5 ports Ethernet rapides
  • Alimentation via USB-C
  • Bureau, montage mural
  • 88×52,5×24 mm (3,46×2,07×0,94″)
  • 47 g (1.64 oz.)
Afficher tous les détails
Version du modèle
Version du modèle FS105D 5.0
Interfaces
Interfaces 10/100 Mbps RJ45 Ports 5
LED
  • Power
  • Link/ACT of Each Ethernet Port
Performance
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
MAC Address Table 2048
Max Switching Capacity 1 Gbps
Max Forwarding Rate 0.744 Mpps
Packet Buffer 570 Kbit
Power
Power Power Input Type USB-C Port
Basic Power Saving
Power Methods USB-C
Power Input 5V⎓
Max Power Consumption 0.5W
Idle Power Consumption 0.32W
Switching
Switching 802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
Reliability
Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical
Mechanical Dimension 88×52.5×24 mm
3.46×2.07×0.94 inches
Product Weight 46.6 g (1.64 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • FS105D
  • USB-A to USB-C Power Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 105×80×32 mm
4.13×3.15×1.26 inches
Retail Package Weight 100.2 g (3.53 oz.)
Units per Carton 150
Carton Net Weight 15.0 kg (33.07 lbs)
Carton Gross Weight 15.8 kg (34.83 lbs)
Carton Dimension 43.2×35.3×33.8 cm
17.01×13.9×13.31 inches
