Convierta el 4G en Internet para todos

Conecta hasta 64 dispositivos de forma inalámbrica

Enjoy high-speed WiFi with ample capacity when your friends come over. The 2×2 MIMO enables devices to use both antennas, improving the streaming experience.

Comparte con dispositivos cableados sin problemas

Cuatro puertos Ethernet rápidos le permiten conectar varios dispositivos a través de un cable Ethernet estable sin necesidad de otro conmutador de red.

Fácil configuración y gestión versátil

Fácil de usar y mover

Insert your Nano SIM card and power up to get network instantly. No rigid subscription, nor complex wiring.

Redundancia de red

Configure la copia de seguridad para asegurarse de que su vigilancia y el resto permanezcan conectados incluso cuando la WAN/WISP no funciona.

Gestión de clientes

Set a bedtime and a domain blacklist to regulate your children's online behaviour.

Cliente y servidor VPN

Connect to VPN with WireGuard/OpenVPN/Zerotier/PPTP/L2TP protocols or host your own server at home/office.

Conecte una tarjeta SIM para disfrutar de la red

Hogar

Plug and play easy-to-install WiFi for every home—no rigid broadband subscription is required.

Automóvil

Provide decent networks for all devices on your road journey.

Vigilancia

Make sure the network is always on with the WAN + WISP + 4G backup function.

Puesto

Utilized the flexible pay-as-you-go plan to equip your temporary booth with a fast network. (SIM card is not included)

Aplicación Cudy

Manage your network from your phone. This model supports local control via the Cudy App.

Learn More

Aplicación Cudy

Manage your network from your phone. This model supports local control via the Cudy App.

Learn More

NaN -Infinity

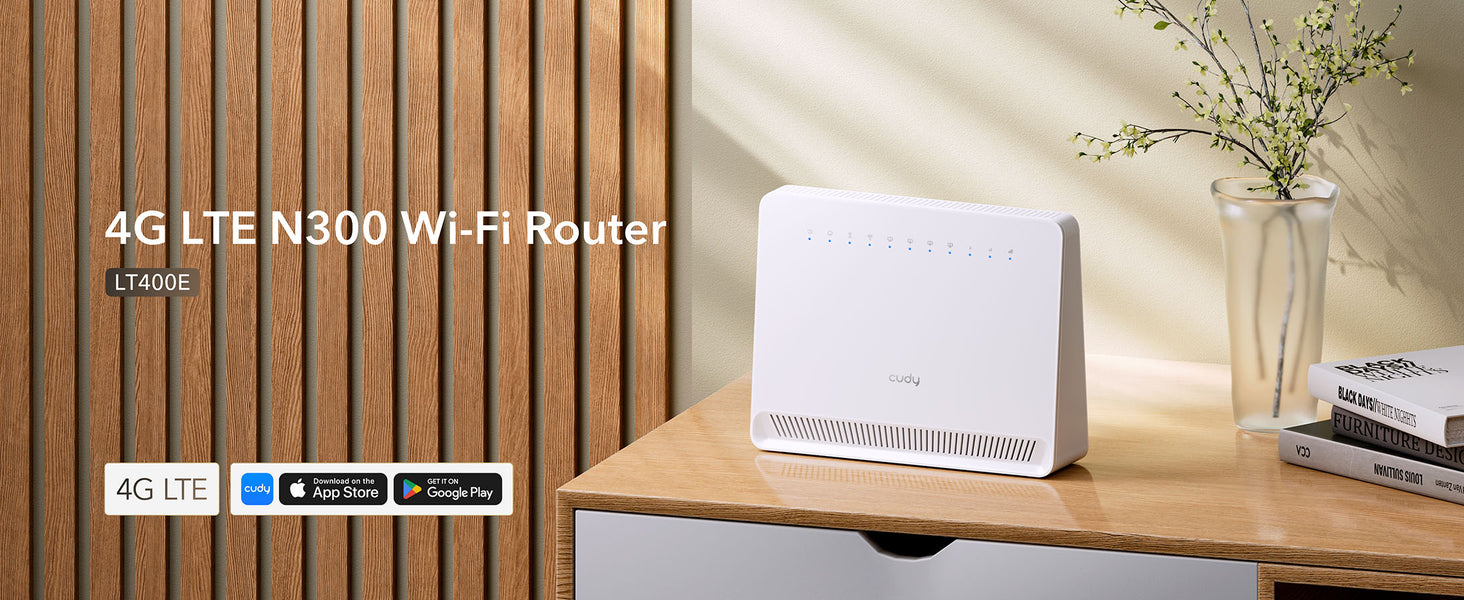

Router Wi-Fi 4G N300

Name: Router Wi-Fi 4G N300, LT400E 1.0
Brand: Cudy

Router Wi-Fi 4G N300, LT400E 1.0

LT400E 1.0

Variantes de producto

A 4G WiFi router with a nano-SIM slot, internal antennas, and four Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

Gato 4G. 4 con DL máx. de 150 Mbps ¹
Wi-Fi de 300 Mbps ²
4 puertos Fast Ethernet
1 ranura para nano SIM
Servidor y cliente VPN
Aplicación Cudy

Ver todos los detalles

Especificaciones del hardware

Especificaciones del software

Versión del modelo
Versión del modelo	LT400E 1.0
CPU
CPU	CPU Details	580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage	Flash/ROM	8 MB (64 Mbit ) NOR
	DDR/RAM	64 MB (512 Mbit) DDR2
Cellular
Cellular	Cellular Standards	4G Cat. 4
	Cellular Antennas	2× Internal
	SIM Options	1× Nano SIM Slot
	Available Versions	EU, US, AU
EU Version Cellular
EU Version Cellular	Suitable Region	Europe, Middle East, Africa
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8
US Version Cellular
US Version Cellular	Suitable Region	United States, Canada
	Max DL Speed	150 Mbps
	Max UL Speed	50 Mbps
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B2/4/5/12/13/14/66/71 WCDMA: B2/4/5
AU Version Cellular
AU Version Cellular	Suitable Region	Latin America, Australia, New Zealand
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/2/3/4/5/7/8/28/66 LTE-TDD: B40 WCDMA: B1/2/4/5/8 GSM: B2/3/5/8
Wireless
Wireless	2.4 GHz Wi-Fi Speed	300 Mbps
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Internal
	Beamforming	True
	FEM or PA/LNA	2.4 GHz: 2× Internal
	Range Performance	Max: 130 m (427 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 10 cm (4'')
Interfaces
Interfaces	Physical Buttons	Power On/Off Button WPS Button Reset Button
	10/100 Mbps RJ45 Ports	4
	Ethernet Notes	1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
	LED	System Internet Wi-Fi LAN WAN/LAN Cellular Signal Strength
	Power Input	DC Jack
Power
Power	Power Methods	DC
	DC Input	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
	Max Power Consumption (W)	8W
	Idle Power Consumption (W)	4W
Reliability
Reliability	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Dimension	190×50×148.8 mm 7.48×1.97×5.86 inches
	Product Weight	300 g (10.58 oz.)
	Installation	Desktop
Package Content
Package Content	LT400E Power Adapter Ethernet Cable Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	EU: 600 g (21.16 oz.)
	Retail Package Dimension	270×58×168 mm 10.63×2.28×6.61 inches
	Units per Carton	20
	Carton Net Weight	EU: 12 kg (26.46 lbs)
	Carton Gross Weight	EU: 12.5 kg (27.56 lbs)
	Carton Dimension	55.8×31.7×36.3 cm 21.97×12.48×14.29 inches

Versión del modelo
Versión del modelo	LT400E 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 4
	Max Wi-Fi Modulation	64-QAM
	Max Capacity	64
	Recommended Client Upper Limit	30
	Max Wi-Fi Channel Width	40 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz
	WPS	True
General
General	Operation Modes	Cellular Router Wi-Fi Router WISP
	Cellular APN	Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MBN MTU Value
	Cellular Mode	4G Only Auto
	WAN Mode	DHCP Static IP PPPOE
	Internet Failover Sequence	WAN WISP Cellular
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	VPN Server	WireGuard OpenVPN Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN Zerotier PPTP L2TP
	DNS Options	Manual DNS Rebind Protection Override Clients' DNS
	Online Detection	True
Management
Management	Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTP
	Firmware Upgrade	Local Update
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English German Spanish French Hebrew Italian Portuguese Korean
	Reliability	Timed Reboot Backup and Restore
Dashboard
Dashboard	Panel	Internet Status Devices Management Cellular Status WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Cellular Speed Internet Speed WISP Speed Wi-Fi Speed

Las velocidades celulares reales variarán dependiendo de las condiciones del operador y de factores ambientales como la ubicación/distancia de la estación base celular, la densidad de clientes cercanos, la distribución del edificio y los obstáculos físicos.
El rendimiento real de los datos inalámbricos variará como resultado de las condiciones de la red, las limitaciones del cliente y factores ambientales, incluida la distribución del edificio, los obstáculos y la ubicación del cliente.
