Built with a industrial-grade design and components, the device achieves Level 4 EMC to withstand surge and ESD from power and Ethernet ports. The industrial-grade ICs, together with extra heatsink design, allow stable operation in extreme temperatures and ensures long-term durability.
Survives Heat, Cold, Surge, and ESD
Built with a industrial-grade design and components, the device achieves Level 4 EMC to withstand surge and ESD from power and Ethernet ports. The industrial-grade ICs, together with extra heatsink design, allow stable operation in extreme temperatures and ensures long-term durability.
Electrical & Physical Robustness

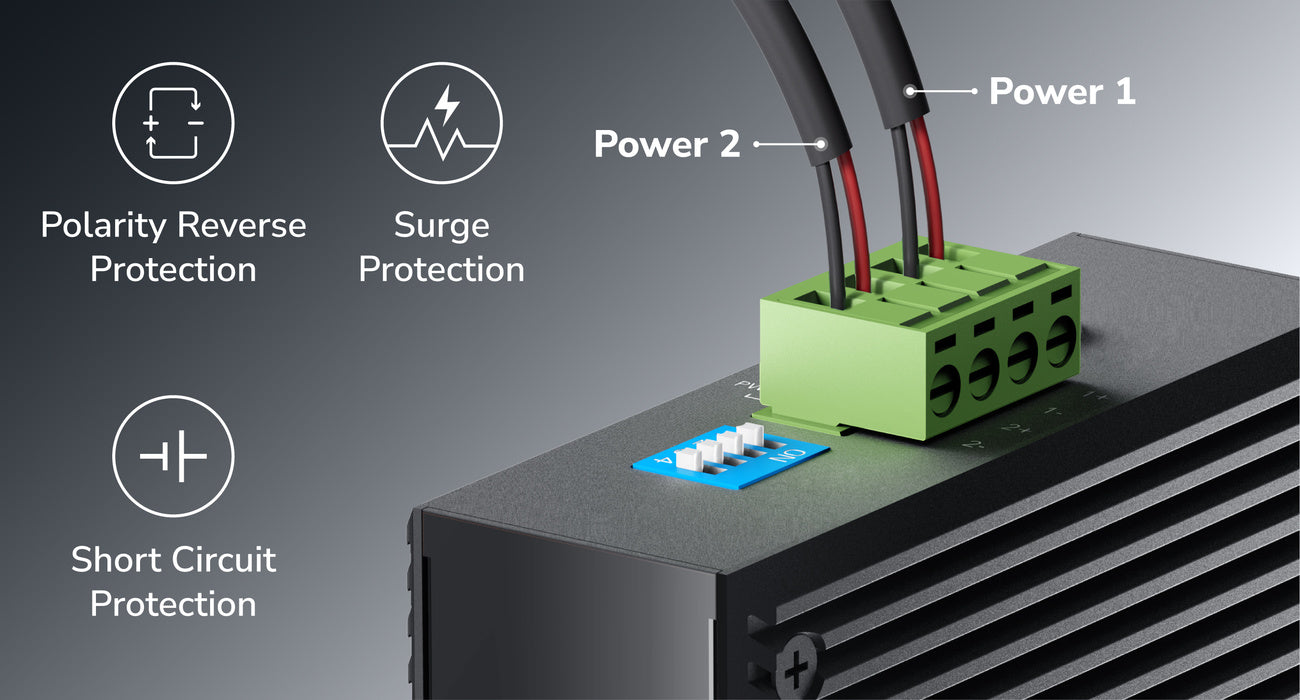

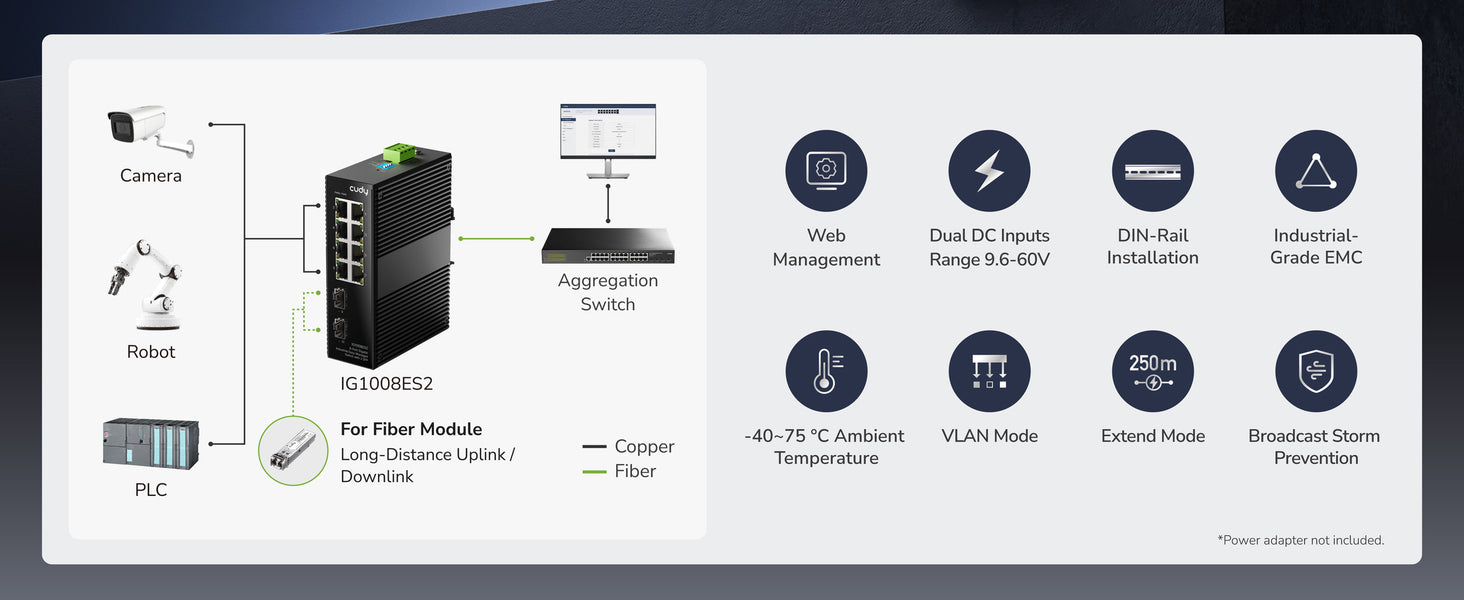

Dual DC Inputs. 9.6-60V Voltage Range.
The switch supports dual DC inputs (9.6–60V) for extra redundant protection. It also includes reverse-polarity and short-circuit protection to ensure stable operation in complex power environments.

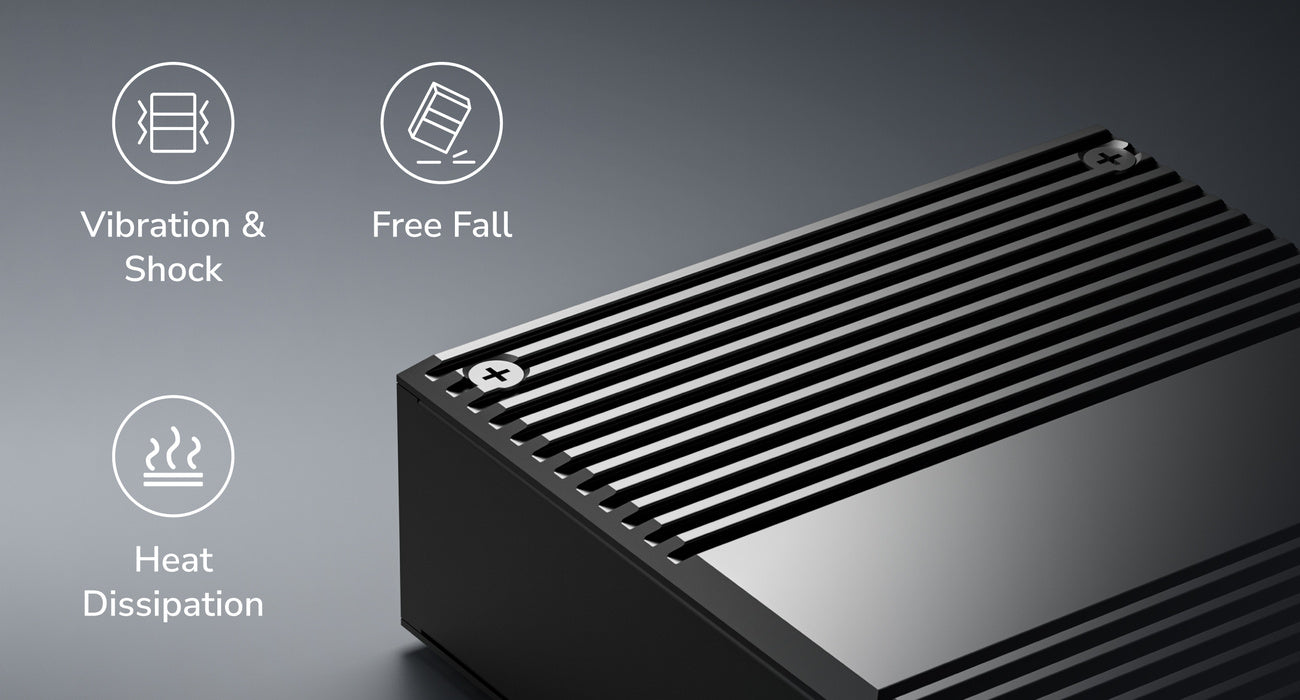

Rugged Casing. Reinforced Construction.
The wave-like heatsink not only improves heat dissipation but also enhances structural rigidity. Internally, the PCB and components are reinforced with extra mounting points for anti-vibration supports.
DIP Switches for Flexible Deployment
Web Management for Complete Control
Manage everything through the web panel. When web management is enabled, the switch ignores the other three DIP switches, while all related features remain configurable in the web.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

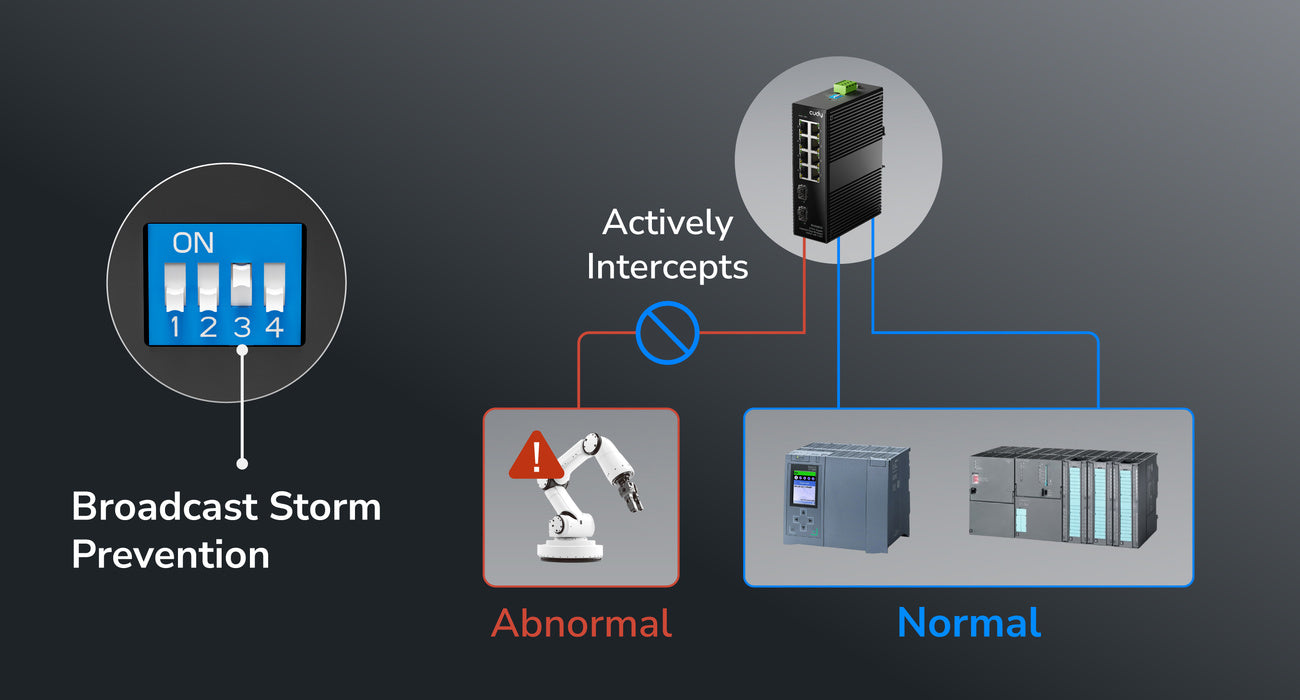

Broadcast Strom Prevention
Keeps the network stable and responsive, reducing downtime caused by misconfigured devices or abnormal traffic.

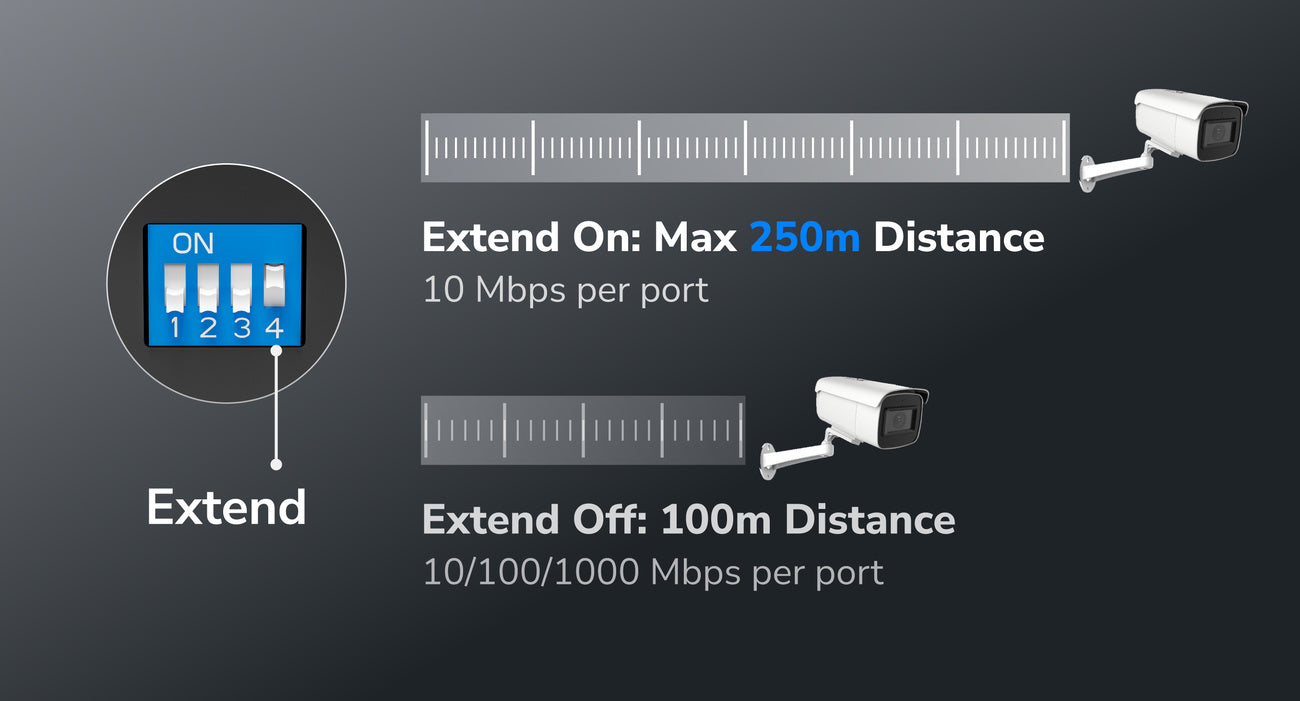

Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients
up to 250 meters away by limiting the port speed to 10 Mbps.
L2 Management Features

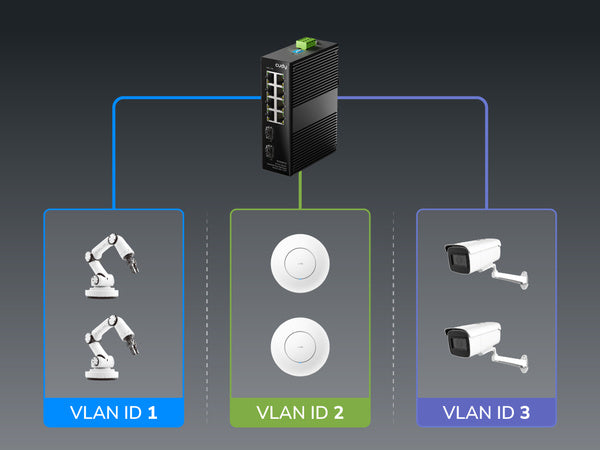

802.1Q/Port/MTU VLAN
Separate devices into dedicated business VLANs to improve security and network efficiency.

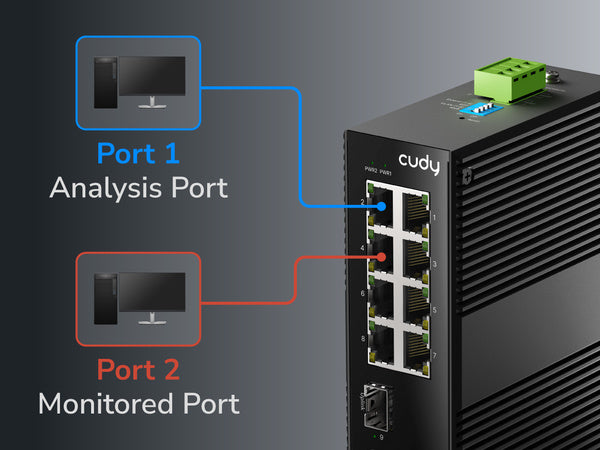

Port Mirroring
Mirror traffic from selected ports to a monitoring port for traffic analysis and troubleshooting.

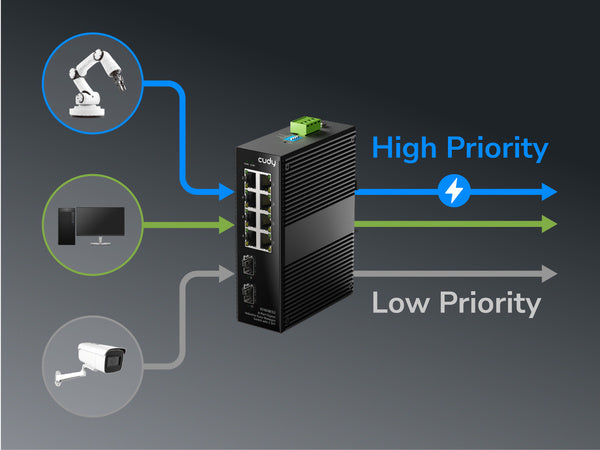

802.1p/DSCP/Port QoS
Allows you to create rules that prioritize the most latency-sensitive traffic, such as production control commands.

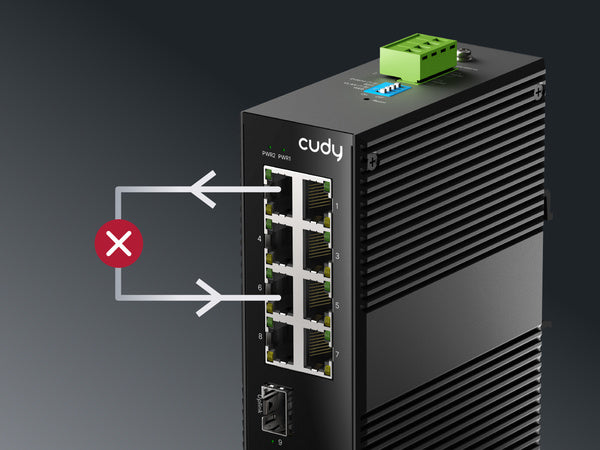

Loop Detection/Prevention
Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.

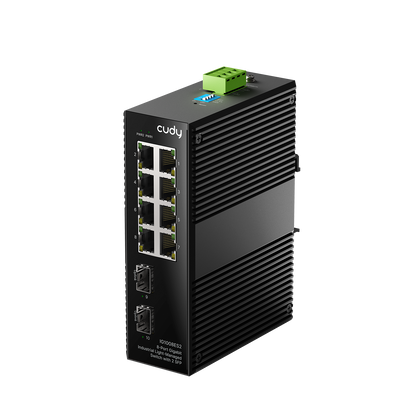

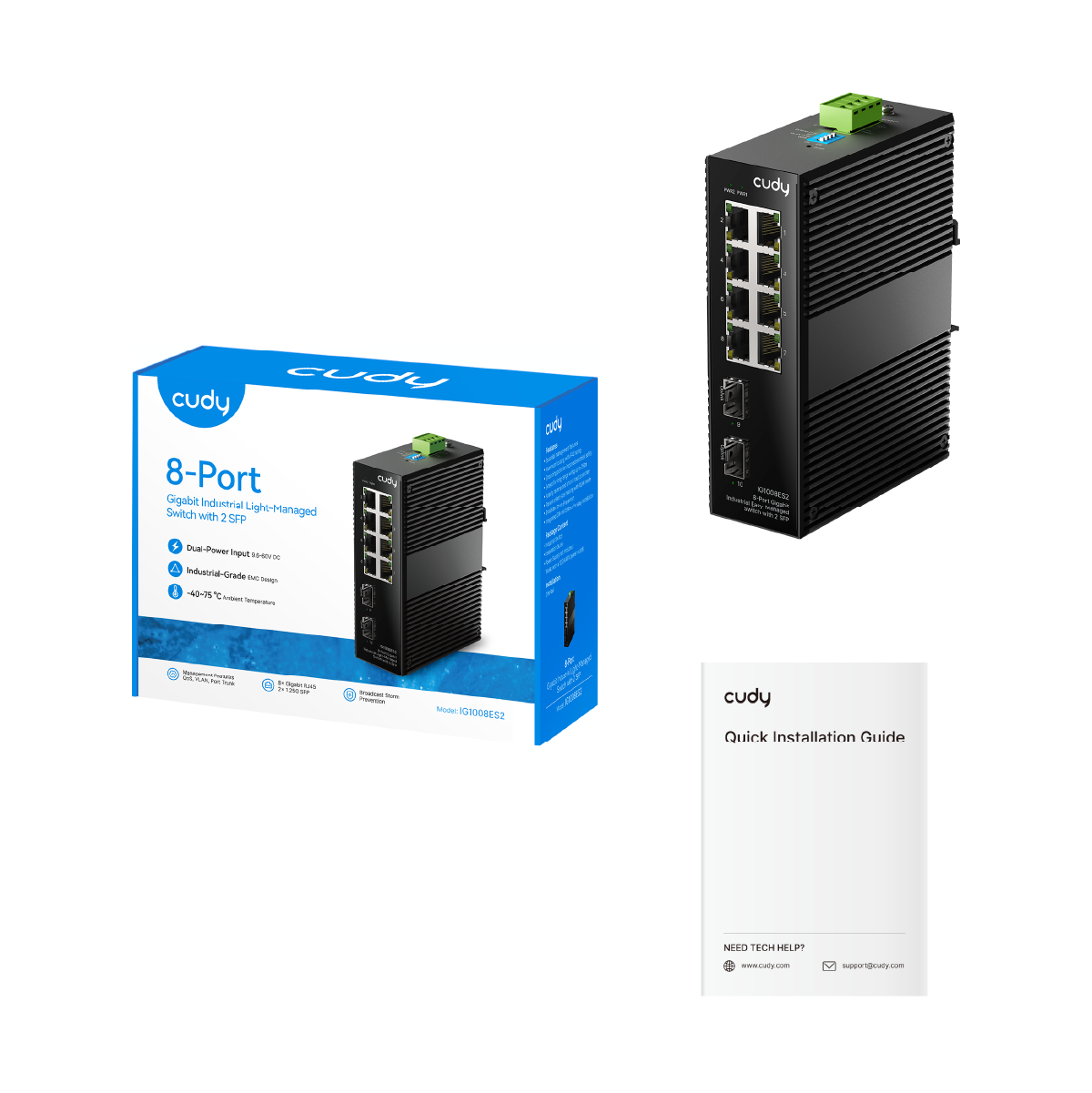

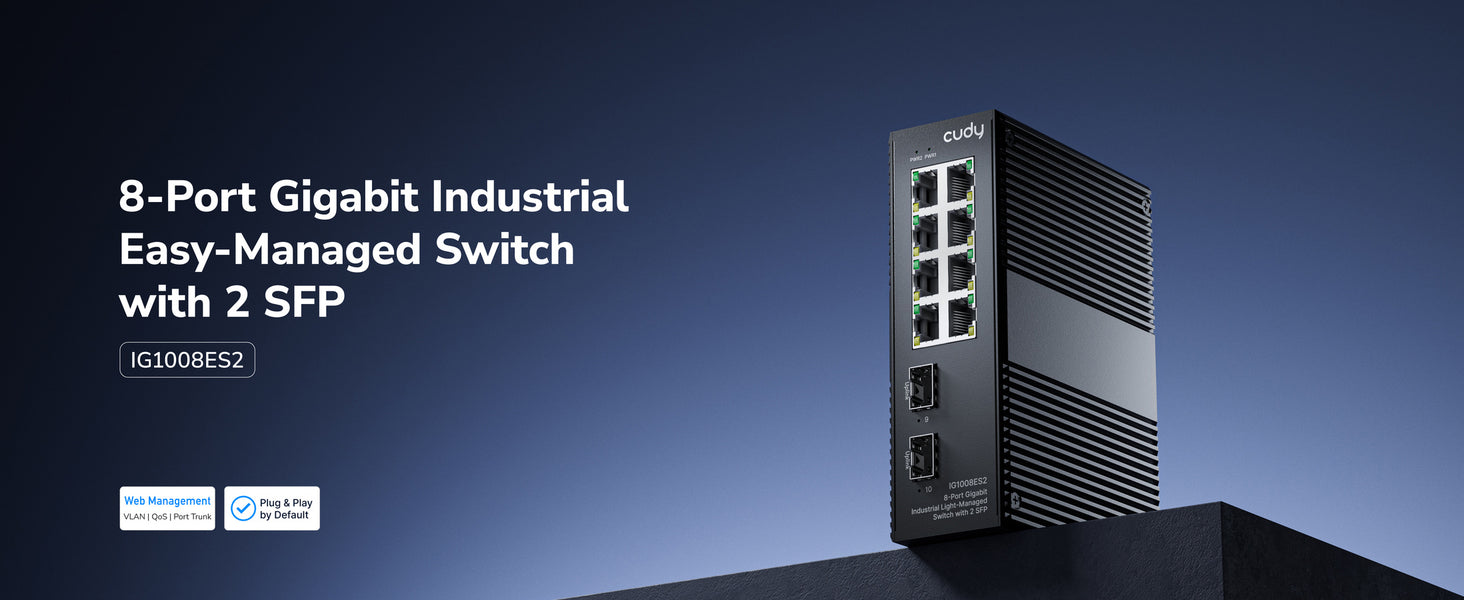

Un commutateur industriel 8 GbE 2 SFP pour la mise en réseau dans des conditions difficiles telles que la fabrication, le transport, le transport maritime, le pétrole et le gaz et l'exploitation minière.
8× GbE, Shielded, ±6kV Surge Resistant
2× 1,25G SFP
IP40, -40~75°C (-40~167°F)
Dual DC Inputs, Requires 9.6~60V Power
Polarity Reverse Protection
Protection contre les courts-circuits
Broadcast Storm Prevention On/Off
VLAN On/Off
Support de rail DIN intégré
