Commutateur PoE
GS1016EPS2

PoE fiable pour un fonctionnement constant 24h/24 et 7j/7

IEEE 802.3at/af. Jusqu'à 30 W par port.

Chaque port PoE fournit jusqu'à30 Wde puissance, ce qui le rend adapté aux points d'accès, aux caméras IP, à la signalisation numérique et à la plupart des autres appareils PoE.

Récupération automatique PoE

Activez la fonction Watchdog pour surveiller l'activité des ports. Si un appareil connecté se bloque et cesse de transmettre des données pendant 5 minutes, Watchdog redémarre automatiquement le port PoE correspondant.

PoE Management

Configure power settings per port and take full control of PoE management, including Power On/Off, delay time scheduling, watchdog auto-recovery, PoE priority, and per-port power limits.

PoE Management

Configure power settings per port and take full control of PoE management, including Power On/Off, delay time scheduling, watchdog auto-recovery, PoE priority, and per-port power limits.

Web Configuration

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Web Configuration

Management Made Easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.

Secure and High-Performance Switching

802.1Q/MTU/Port-Based/Voice VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Essential Management Features

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention

Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.

Exceptional Built-Quality for Stable Operation

Construisez des systèmes robustes avec une CEM exceptionnelle

Améliore la fiabilité du service et réduit les temps d'arrêt causés par les surtensions et les décharges électrostatiques.

  • DES : Contact 6 kV ; Air 8 kV
  • Surtension : Puissance DM 2 kV, CM 4 kV ; RJ45 CM 4 kV

Ports blindés. Boîtier métallique solide.

Assure un fonctionnement stable avec les ports Ethernetblindé avec alliage de cuivre nickeléet robusteBoîtier métallique SPCC.

Scénarios polyvalents

Surveillance

Réseau de bureau

Wi-Fi sur les campus

Accès et signalisation

Mounting Bracket Included

Standard 19 inches width for rack installation.

Mounting Bracket Included

Standard 19 inches width for rack installation.

1 2

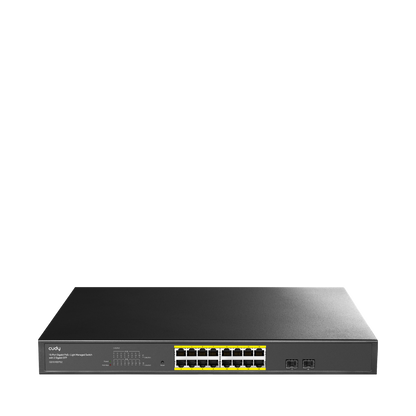

Commutateur PoE+ léger 16 ports Gigabit géré avec 2 SFP

Commutateur PoE+ léger 16 ports Gigabit géré avec 2 SFP, GS1016EPS2 1.0

GS1016EPS2 1.0

Un commutateur PoE 16 GbE, 2 SFP monté en rack avec une alimentation de 200 W et des fonctionnalités de gestion.

  • 16 × GbE avec PoE 802.3at/af mode A
  • 2× 1,25G SFP
  • Alimentation 200 W
  • Voyant d'état PoE Max
  • Gestion PoE par port
  • Gestion Web, SNMP
  • VLAN (802.1Q/MTU/Voice/Port-Based)
  • QoS (802.1p/DSCP/basé sur le port)
  • Port Mirror, Static Aggregation, etc
  • STP/RSTP et prévention des boucles
  • Surveillance DHCP, surveillance IGMP
  • 440×220×44 mm (17,32×8,66×1,73")
Afficher tous les détails
Version du modèle
Version du modèle GS1016EPS2 1.0
Interfaces
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 16
Gigabit RJ45 PoE Ports #1~#16
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Configurable. If no priority is configured, smaller-numbered ports have higher priority.
Shielded RJ45 Port True
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
LED
  • Power
  • PoE Status of Each PoE Port
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
Power Interfaces AC Inlet
Physical Buttons Reset Button
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Customize the wait time in the web management to prevent damaging clients with online auto-upgrade feature.
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 8192
Max Switching Capacity 36 Gbps
Max Forwarding Rate 26.78 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power
Power Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 200W
Max Power Excluding PoE 14W
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3az Power Saving
  • 802.3af PoE
  • 802.3at PoE
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
  • 802.1ab: LLDP/LLDP-MED
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
PoE Management
  • PoE Priority
  • PoE Watchdog On/Off
  • PoE Watchdog Period/Packet Threshhold
  • PoE Consumed Power
  • PoE Standard
  • Delayed PoE Delivery
  • Total PoE Power Limit
  • PoE Power Limit
Port Mirror Sessions 4
Port Trunk Groups 4
Max Port Num per Port Trunk Group 8
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • DHCP Snooping
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability Grounding Methods
  • Three-Prong Plug
  • Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
System
System Control Methods
  • Config Web Page
  • SNMP V1/V2
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
  • Cable Status/Length Diagnosis
  • Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension 440×220×44 mm
17.32×8.66×1.73 inches
Product Weight 2753.8 g (97.14 oz.)
Casing Material Metal
Installation
  • Desktop
  • Rackmount via Brackets

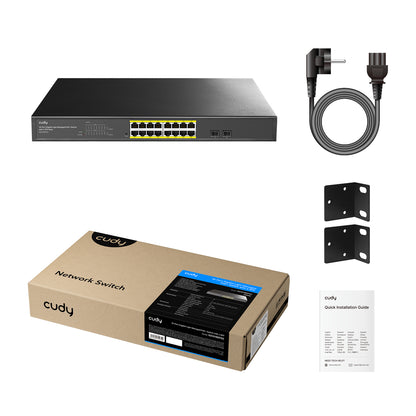

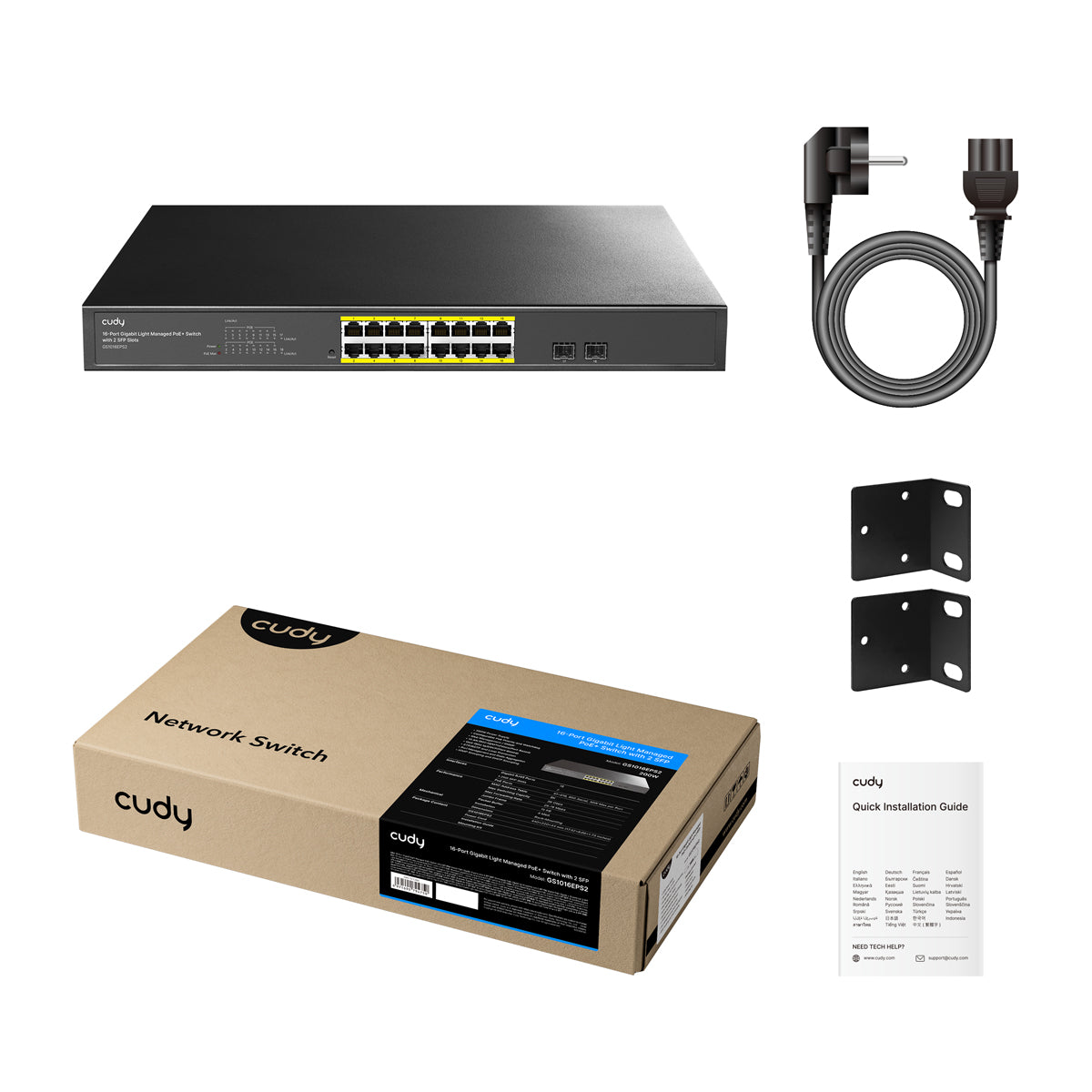

Package Content
Package Content
  • GS1016EPS2
  • Power Cord
  • Mounting Kit
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 487×307×84 mm
19.17×12.09×3.31 inches
Retail Package Weight EU: 3500.0 g (123.46 oz.)
Units per Carton 5
Carton Net Weight EU: 17.5 kg (38.58 lbs)
Carton Gross Weight EU: 18.6 kg (41.01 lbs)
Carton Dimension 51×44.3×32.5 cm
20.08×17.44×12.8 inches
