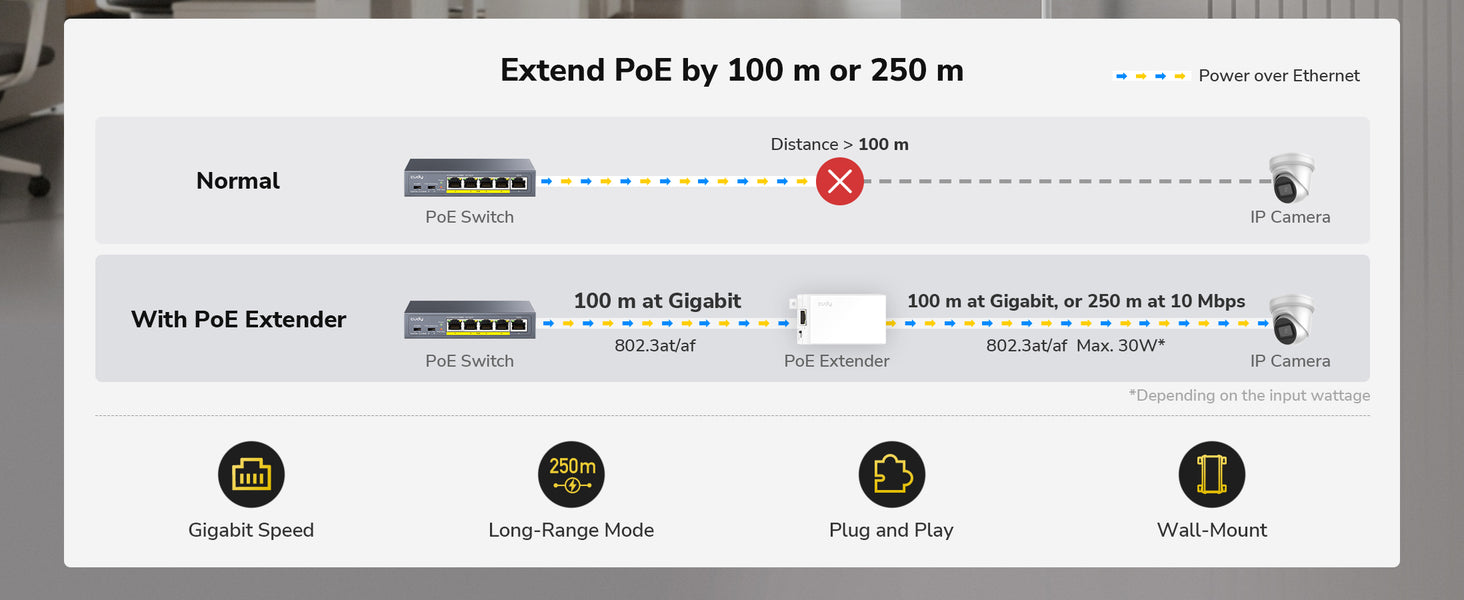

Max 250 m Distance

Connect Further. Deploy Flexibly.

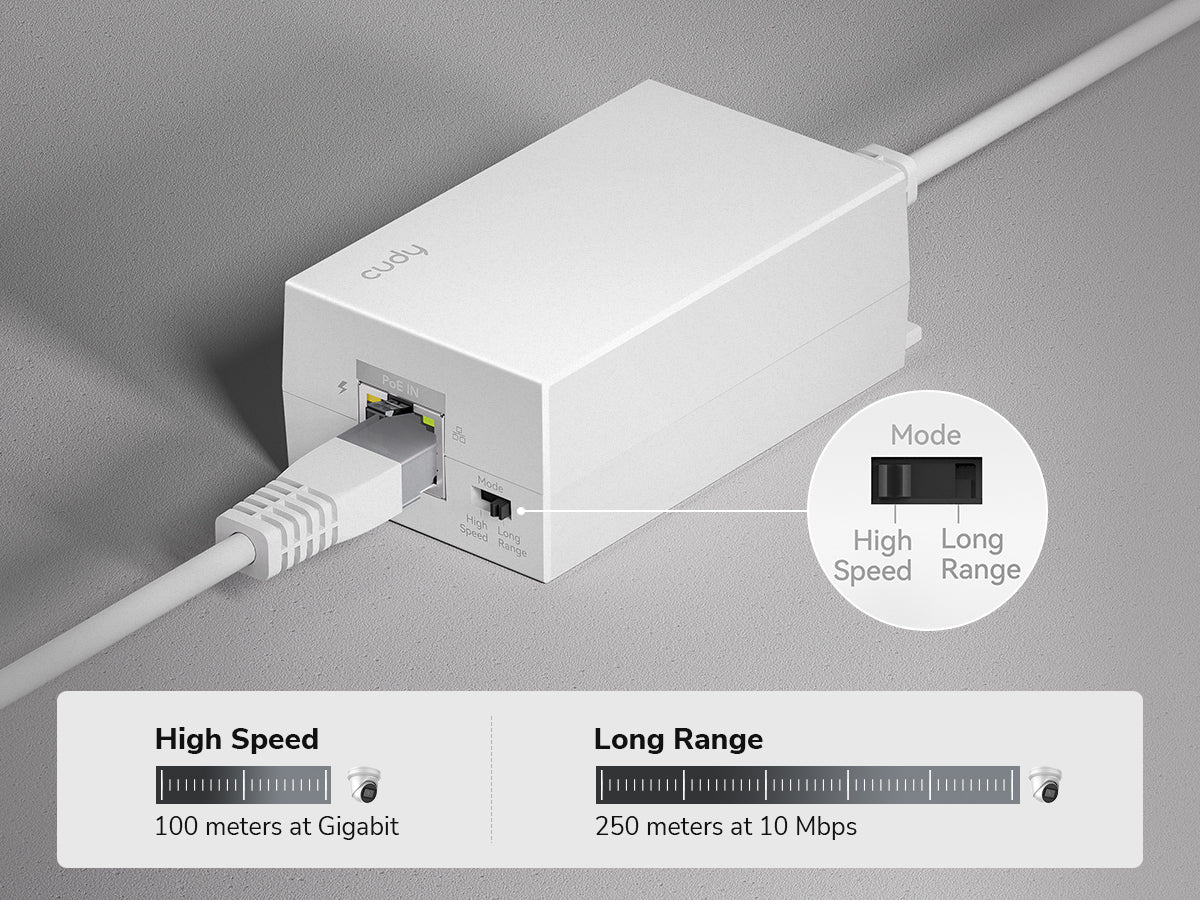

Choose the high-speed mode to establish a Gigabit connection that spans for another 100 m, or long-range mode to prolong the connection to 250 m by limiting the speed at 10 Mbps.

Max 250 m Distance

Connect Further. Deploy Flexibly.

Choose the high-speed mode to establish a Gigabit connection that spans for another 100 m, or long-range mode to prolong the connection to 250 m by limiting the speed at 10 Mbps.

Built for Consistent Networking 24/7

Shields Against Static Discharge

Dry office environment may harm the client with static discharge, and POE10 is equipped with level 3 ESD protection, handling 6kV contact and 8kV air ESD.

Tri-Level Client Protections

Provide more reliable networking with short-circuit protection, overvoltage protection, and polarity protection.

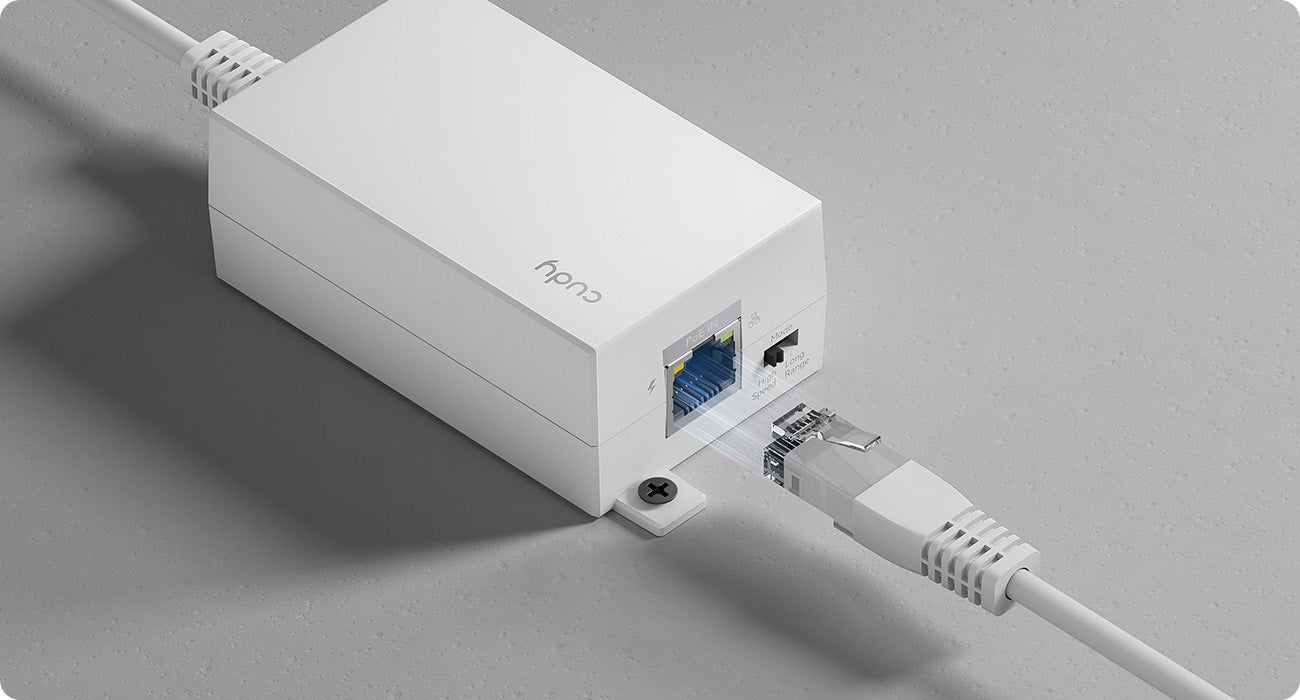

High-Speed. Plug and Play.

Gigabit Speed

Provides super-fast bandwidth suitable for connecting multiple cameras, high-speed access points, speakers down the line. *Connecting mulitple clients requries additional network switch at its end.

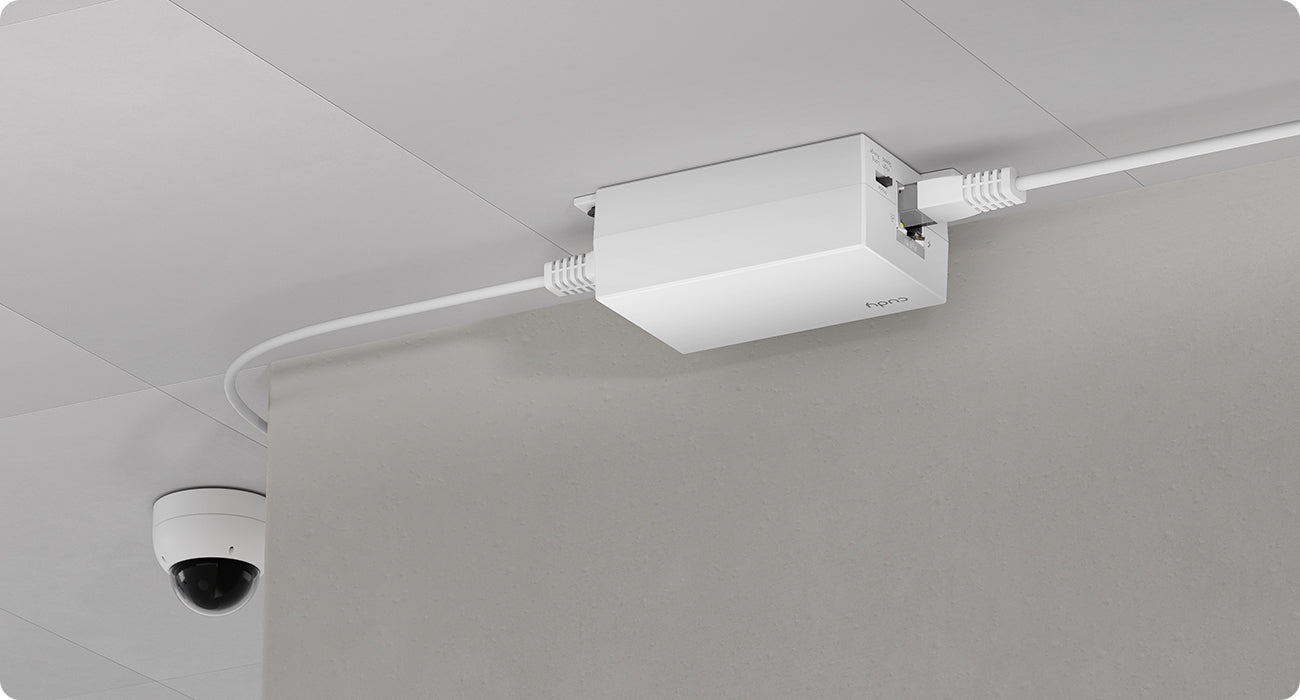

Wall-Mount Ready

Installation is straightforward with no configuration required. Mounting screws are included in the box.

NaN -Infinity

Extensor PoE

Name: Extensor PoE, POE10 2.0
Brand: Cudy

Extensor PoE, POE10 2.0

POE10 2.0

Variantes de producto

A Gigabit PoE extender that extends the PoE distance by up to 250m, featuring Long-Range mode for max. 250 meters extension.

Entrada GbE, salida GbE
802.3at/af Salida máxima de 30W
Entrada 802.3at/af
High-Speed/Long-Range Modes
Extend for 250 Meters Transmission
Montaje en pared

Ver todos los detalles

Versión del modelo
Versión del modelo	POE10 2.0
Protocols
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control 802.3af PoE 802.3at PoE
PoE
PoE	Uplink Stream	1× GbE, 802.3at/af
	Uplink PIN Assignment	Mode A / Mode B
	Downlink Stream	1× GbE, 802.3at/af
	Downlink Pin Assignment	Mode A
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Note: Distance from extender to switch depends on switch capability. Distance from extender to device follows extender rating
	Transimission Distance Note	250-meter transmission is only available under the Long-Range mode.
Interfaces
Interfaces	Physical Buttons	High-Speed/Long-Range DIP Switch
	LED	PoE Status of Each PoE Port Link/ACT of Each Ethernet Port
Power
Power	Power Methods	802.3at/af PoE
	Passive PoE Input	48V
	Power Input	≥30W is recommended
	Max Power Output	30W
	Max Power Output Note	The actual power output depends on input
	Max Power Consumption (W)	2W
Reliability
Reliability	Power Protection	Polarity Protection Overvoltage Protection Short-Circuit Protection
	EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
	Environment	Ambient Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~95% non-condensing Storage Humidity: 5%~95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Install in a Daisy Chain	Up to 3 extenders in a chain
	Installation	Desktop Wall-mount
	Dimension	Main Part: 80.1×48.9×31.9 mm 3.15×1.93×1.26 inches Each Bracket: 9 mm 0.35 inches
	Casing Material	Plastic
	Product Weight	58.4 g (2.06 oz.)
Package Content
Package Content	POE10 Mounting Kit Installation Guide
Ordering Information
Ordering Information	Retail Package Dimension	106.5×53×40 mm 4.19×2.09×1.57 inches
	Retail Package Weight	89.0 g (3.14 oz.)
	Units per Carton	100
	Carton Net Weight	8.9 kg (19.62 lbs)
	Carton Gross Weight	9.5 kg (20.94 lbs)
	Carton Dimension	45.2×22×29.4 cm 17.8×8.66×11.57 inches
