Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

Watchdog Guards the System

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

Built-In Modes for Practical Use Cases

VLAN Isolates Downlink Ports for Improved Safety

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Extend for 250 m Transmission

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

Exceptional Built-Quality for Stable Operation

Build Strong Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Shielded Ports. Solid Metal Casing.

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

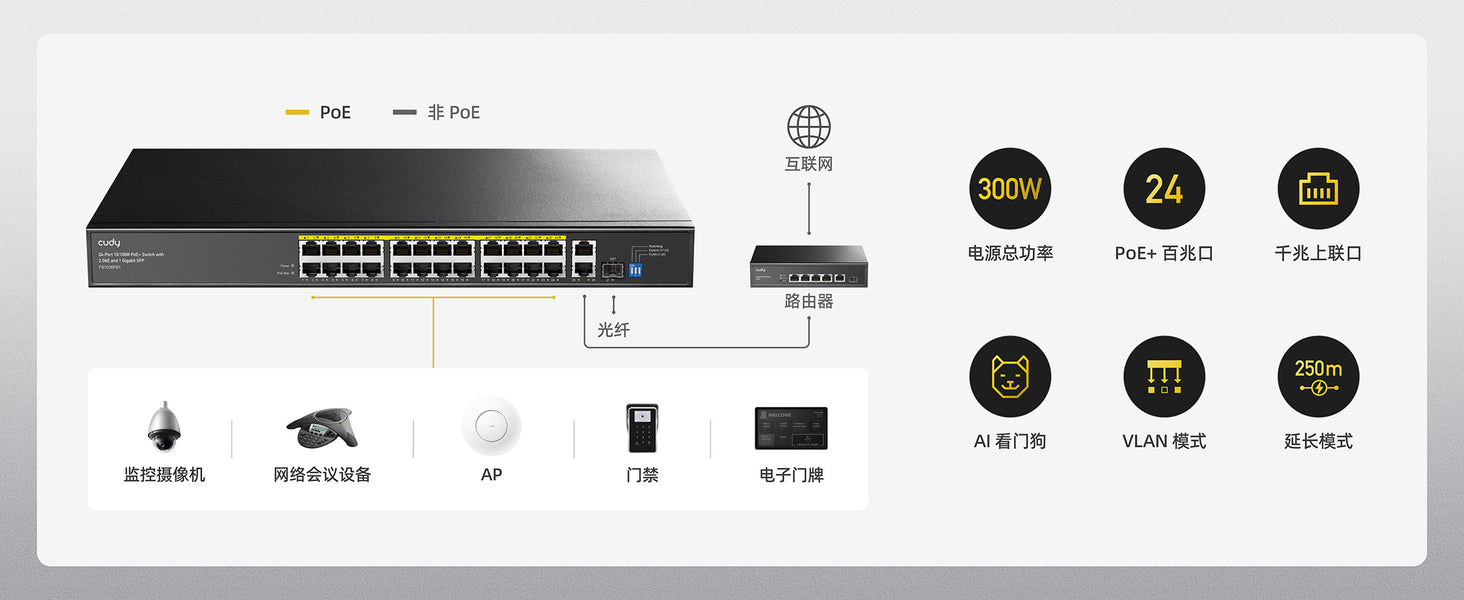

Versatile Scenarios

Surveillance

Office Networking

Campuses Wi-Fi

Accesses and Signages

Mounting Bracket Included

Standard 19 inches width for rack installation.

Mounting Bracket Included

Standard 19 inches width for rack installation.

跳至产品信息
1 / 1

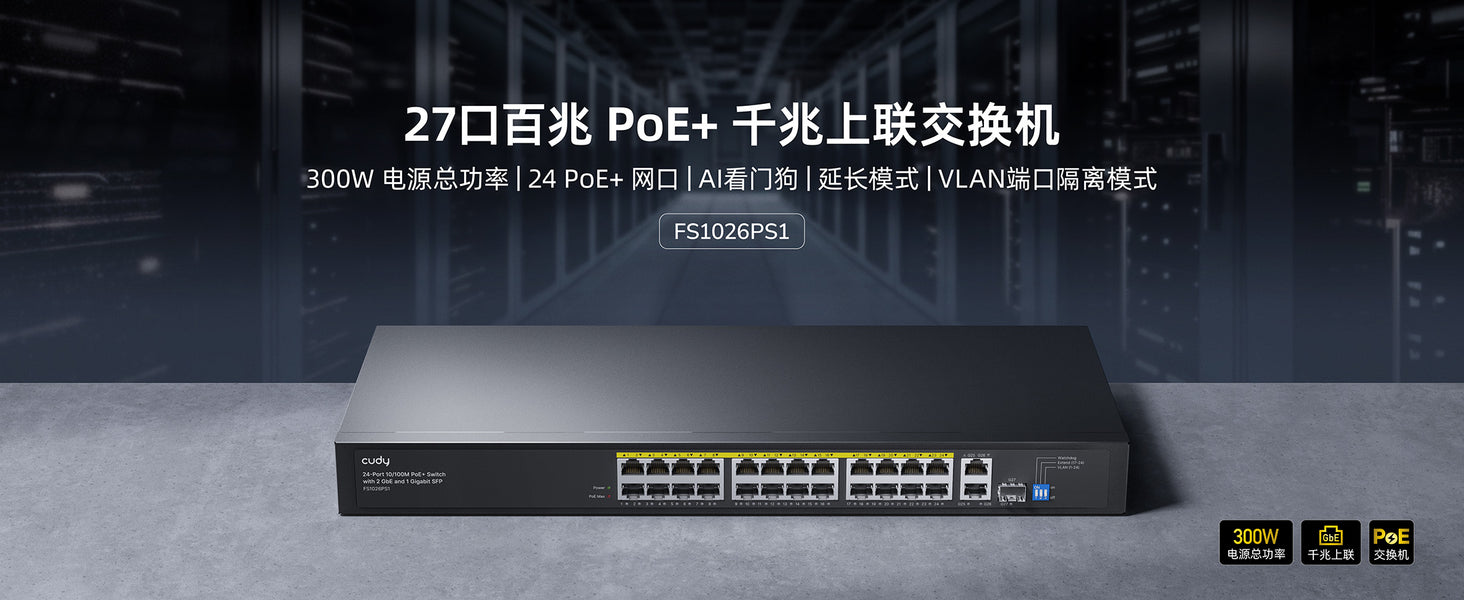

24口百兆 PoE+ 交换机(带3个千兆上联口)

24口百兆 PoE+ 交换机(带3个千兆上联口), FS1026PS1 4.0

FS1026PS1 4.0

一款百兆 PoE 交换机,带2个千兆上联电口和1个千兆上联 SFP 口,配备300W电源。该交换机支持扩展模式以实现250米传输距离;支持开启VLAN提升安全性;支持看门狗功能以自动识别修复无响应的终端设备。


  • 24× 百兆口,支持 802.3at/af 模式 A PoE
  • 2× 上联千兆口 + 1× 上联 SFP 口
  • 延长功能,VLAN隔离功能
  • 看门狗开关
  • PoE 功率告警指示灯
  • 根据功率智能调节散热风扇转速
  • 桌面安装,机架安装
  • 440×180×44 mm
查看完整详细信息
型号版本
型号版本 FS1026PS1 4.0
接口
接口 千兆 SFP 光口(个) 1
千兆 RJ45 网口(个) 2
百兆 RJ45 网口(个) 24
百兆 PoE RJ45 网口位置 #1~#24
PoE 单口最大功率 30W
PoE 网口备注 PoE 网口支持 IEEE 802.3at/af 标准.
智能供电管理 (PoE) 当 PoE 用电超过额定功率时,将优先断开最后上电的设备供电
延长模式网口 #17~#24
VLAN模式网口 #1~#24
电源口 AC 电源口
按钮和指示灯
按钮和指示灯 LED 指示灯
  • 电源
  • 网口连接/活动状态
  • PoE 接近上限提醒
按钮
  • 延长模式开关
  • VLAN 模式开关
  • 看门狗开关
按钮功能备注 PoE 看门狗开启状态下,对超过5分钟无任何网络活动的网口连接设备执行断电重启,开启 PoE 看门狗功能前请确保 PoE 设备的自动软件更新已关闭。
性能
性能 网线传输距离和速率
  • Cat.3 或更高级别网线: 传输距离100米,速率10Mbps
  • Cat.5 或更高级别网线: 传输距离100米,速率100Mbps
  • Cat.5e 或更高级别网线: 传输距离100米,速率1000Mbps
  • Cat.5e 或更高级别网线: 传输距离250米,速率10Mbps
网线传输距离和速率注释 仅上联网口支持千兆传输。 在开启延长模式时,延长模式端口支持250米远距离传输。
MAC 地址表 2048
最大交换容量 10.8Gbps
最大包转发率 8Mpps
巨型帧 2KB
数据包缓冲区 2Mbit
电源
电源 受电方式 交流
交流受电 100-240V~, 50/60Hz
电源总功率 300W
最大功耗(不含PoE) 7W
交换性能
交换性能 802.3 协议
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
可靠性
可靠性 接地方式
  • 三脚插头
  • 接地螺丝
EMS 电磁抗扰性能 IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
运行环境 运行环境温度: 0~40 ℃
储存温度: -40~70℃
运行湿度: 10~90% 非凝结
储存湿度: 10~95% 非凝结
尺寸与重量
尺寸与重量 尺寸 440×180×44 mm
重量 2208.9g
材质与安装
材质与安装 机身材质 合金
安装方式
  • 桌面摆放
  • 机架安装(使用挂耳)
包装清单
包装清单
  • FS1026PS1
  • 电源线
  • 安装配件
  • 安装手册
订购信息
订购信息 零售包装重量 EU: 2888.6g
零售包装尺寸 487×267×84mm
外箱尺寸 50×44×28.5 cm
箱装净重量 EU: 14.4kg
箱装总重量 EU: 15.5kg
