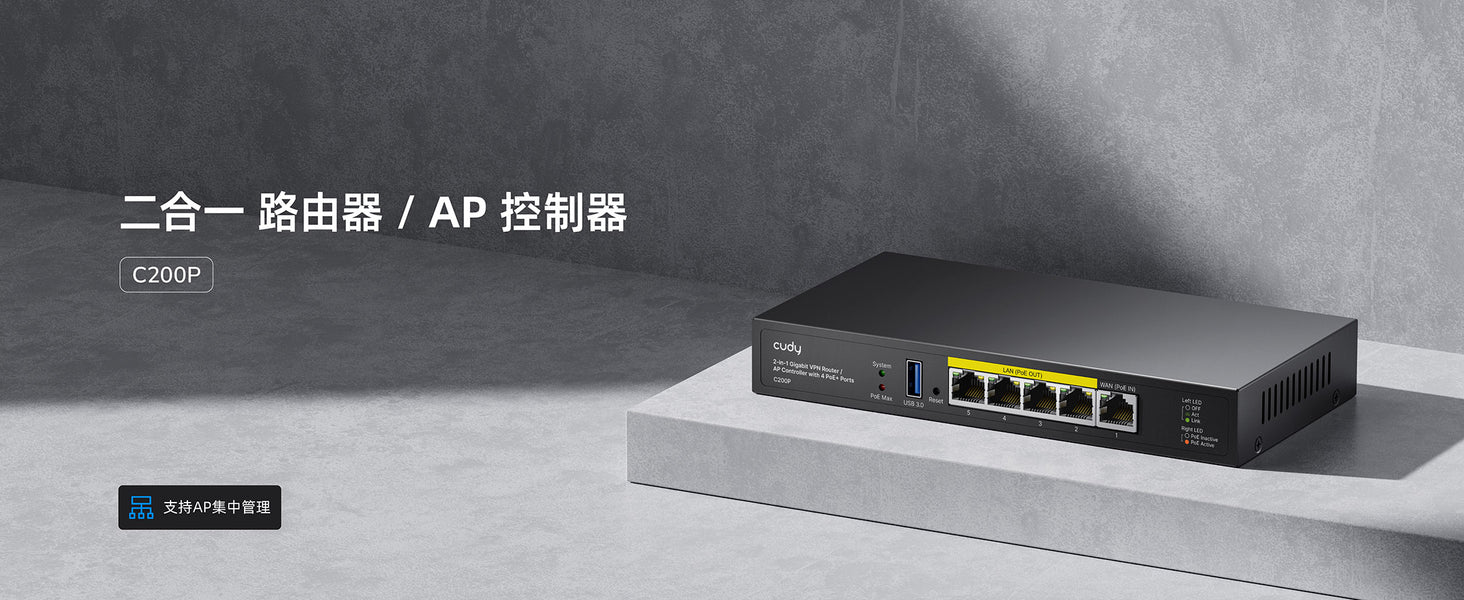

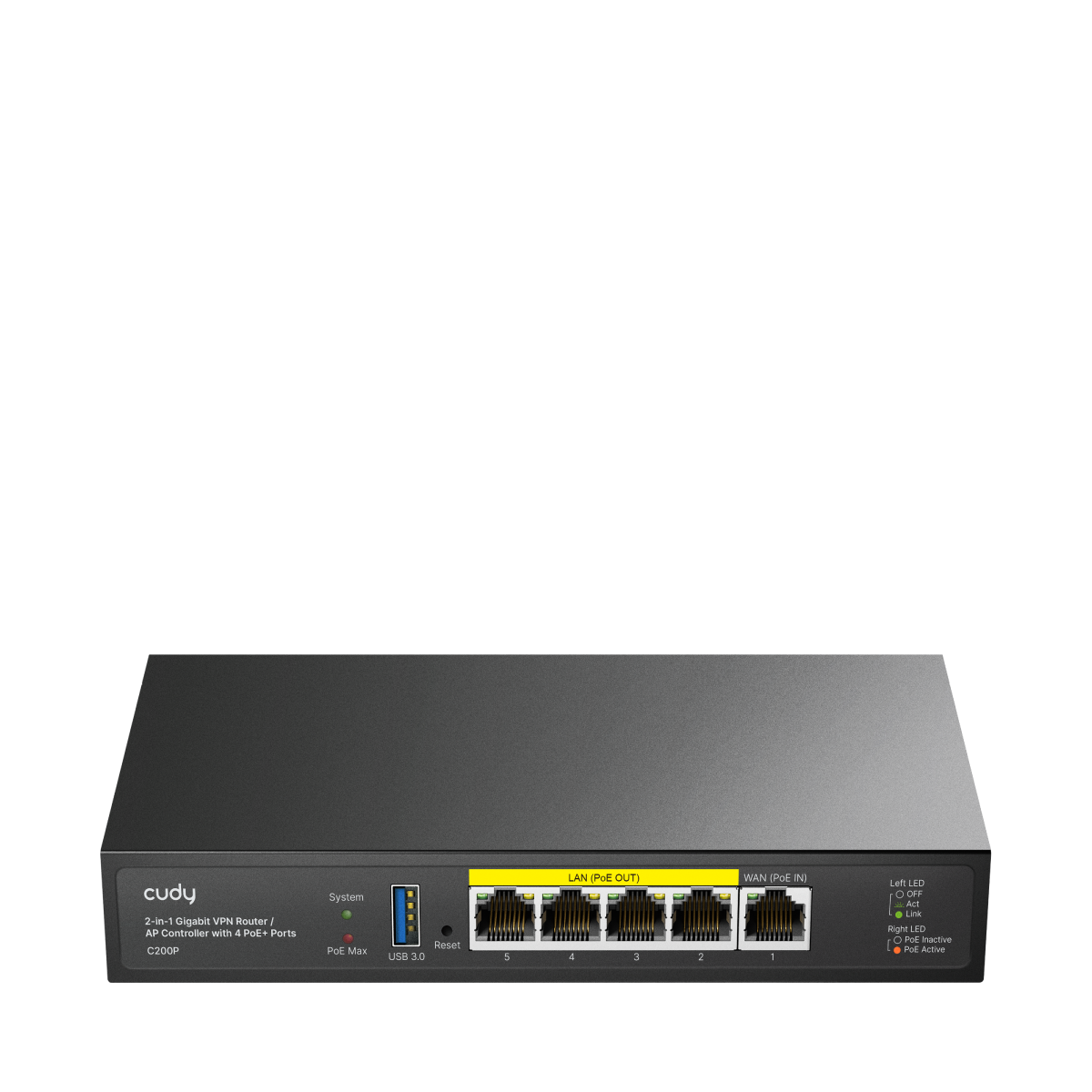

C200P
Amazon A+ Content

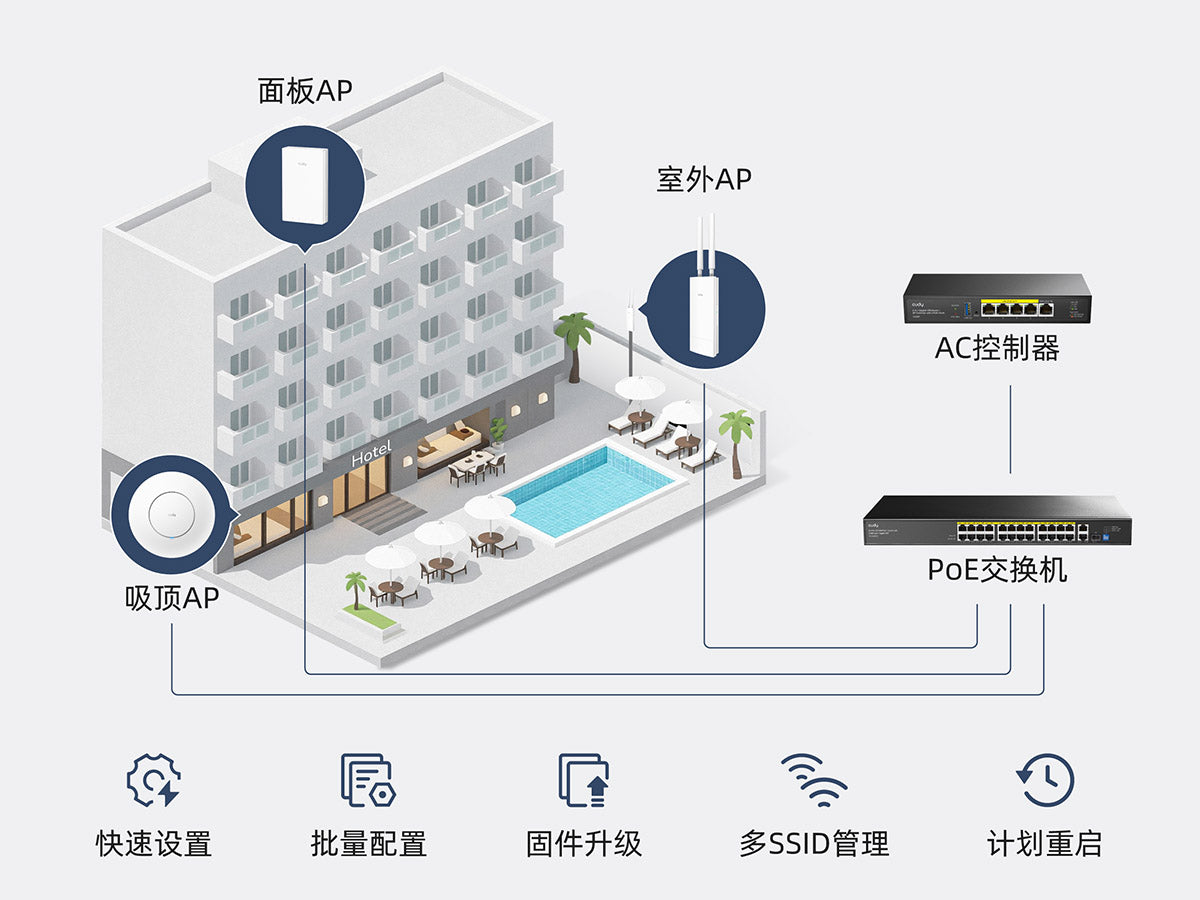

支持AP批量配置和管理
支持AP批量配置和管理
定制化访客登录门户
定制化访客登录门户
统一、便捷的无线网络管理

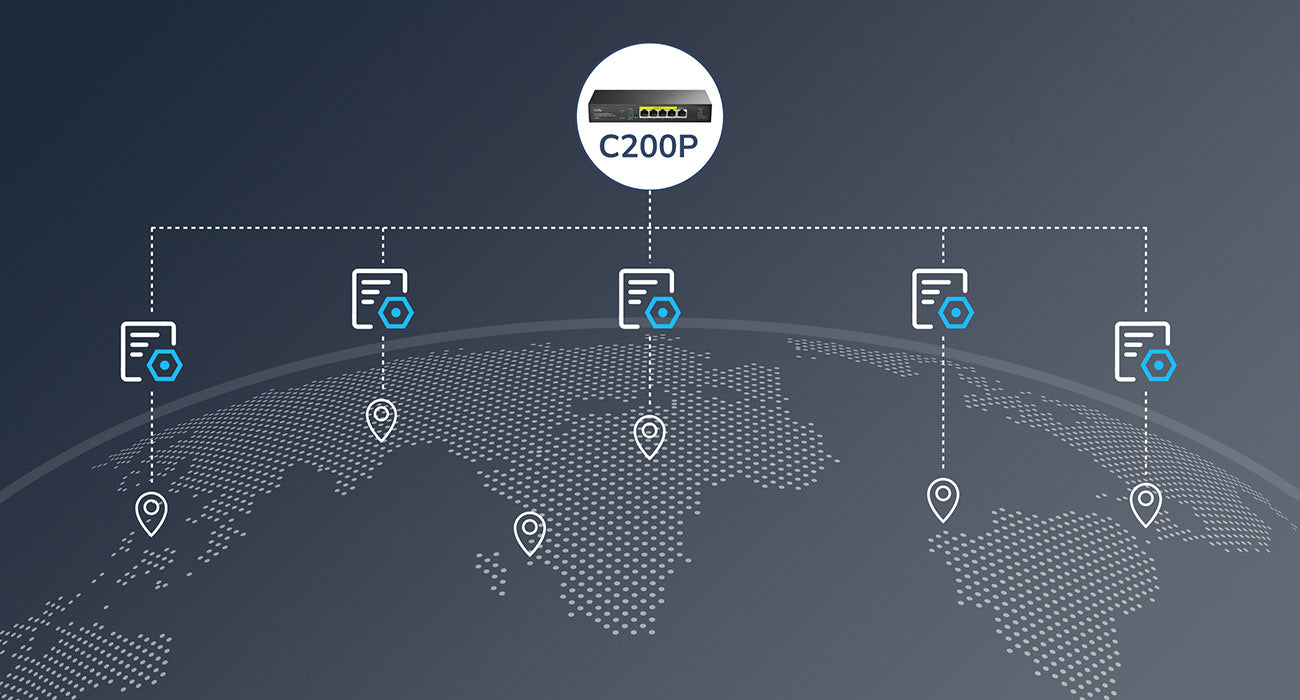

远程管理
任务自动化

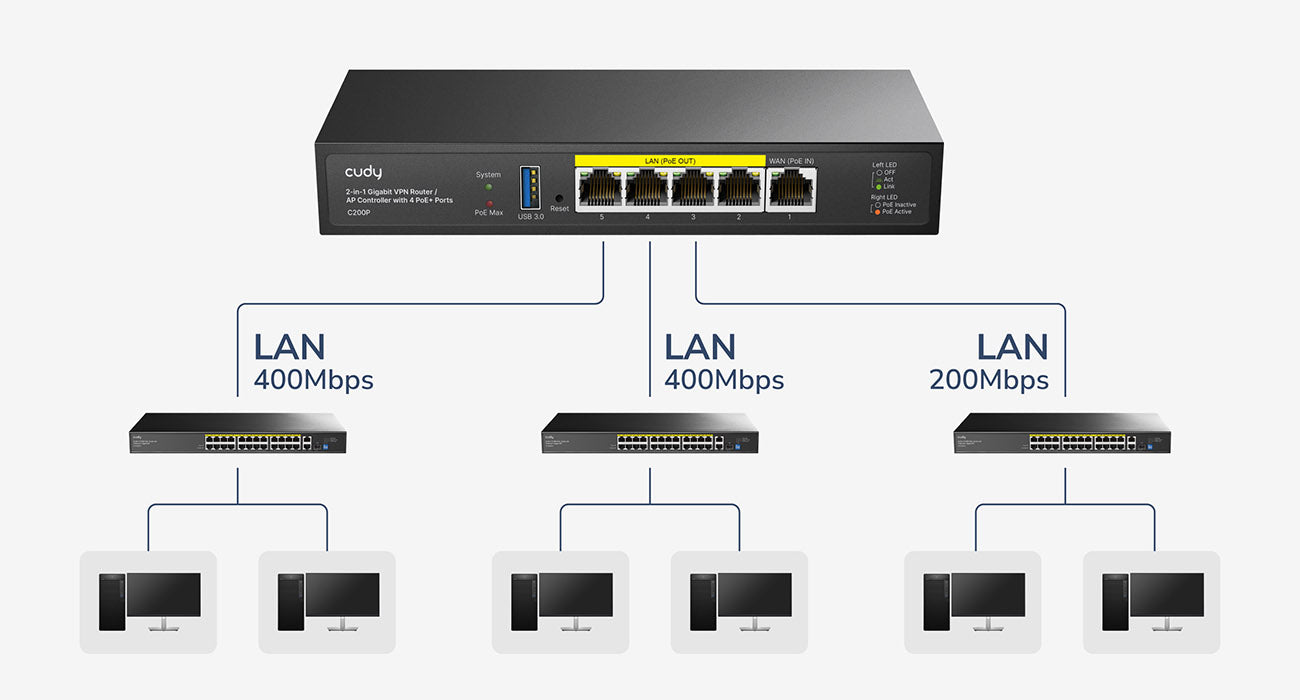

灵活的流量控制
紧凑型桌面设计
| 型号版本 | ||
|---|---|---|
| 型号版本 | C200P 1.0 | |
| CPU | ||
| CPU | CPU Details | 880 MHz Dual-Core |
| Memory/Storage | ||
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |

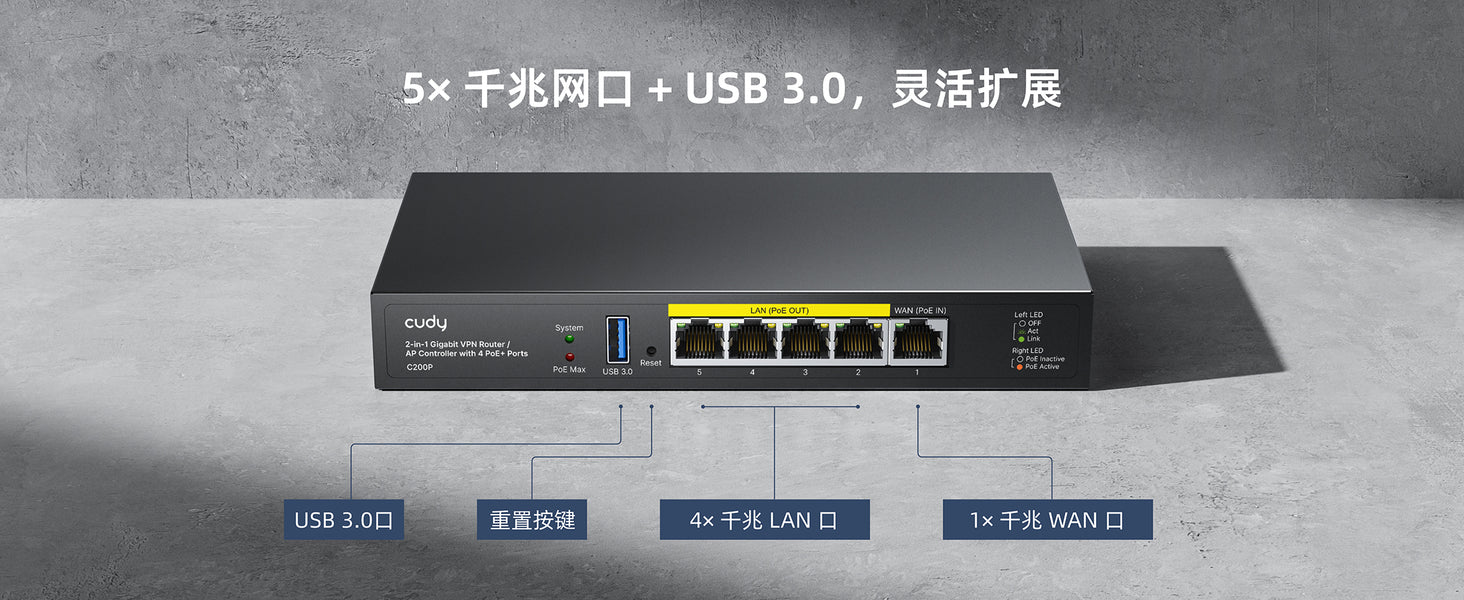

| Interfaces | ||
| Interfaces | Gigabit RJ45 Ports | 5 |
| Gigabit RJ45 PoE Ports | #2~#5 | |
| Max Power on a Single PoE Ports | 30W | |
| PoE Ports Notes | The PoE ports comply with IEEE 802.3at/af standards. | |
| Ethernet Notes | 1× WAN Port, 4× LAN Ports | |
| USB-A 3.0 Ports | 1 | |
| LED |
|
|
| Physical Buttons | Reset Button | |
| Power | ||
| Power | Power Input Type | DC Jack |
| Power Methods |
|
|
| Power Methods Note | The Ethernet ports provide PoE power only when the C200P is powered by DC. | |
| Power Input |
|
|
| Power Adapter In the Box |
Input: 100-240V~, 50Hz Output: 54V⎓1.11A |
|
| Max Power Consumption (W) |
Total: 60W PoE: 55W PoE (when USB Device is plugged in): 50W No PoE: 5W |
|
| Idle Power Consumption (W) | 2W | |
| Reliability | ||
| Reliability | EMC | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV |
| Environment |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 0% ~ 100% non-condensing |
|
| Grounding Methods | Grounding Point | |
| Certifications | ||
| Certifications | FCC, CE | |
| Mechanical | ||
| Mechanical | Installation |
|
| Casing Material | Metal | |

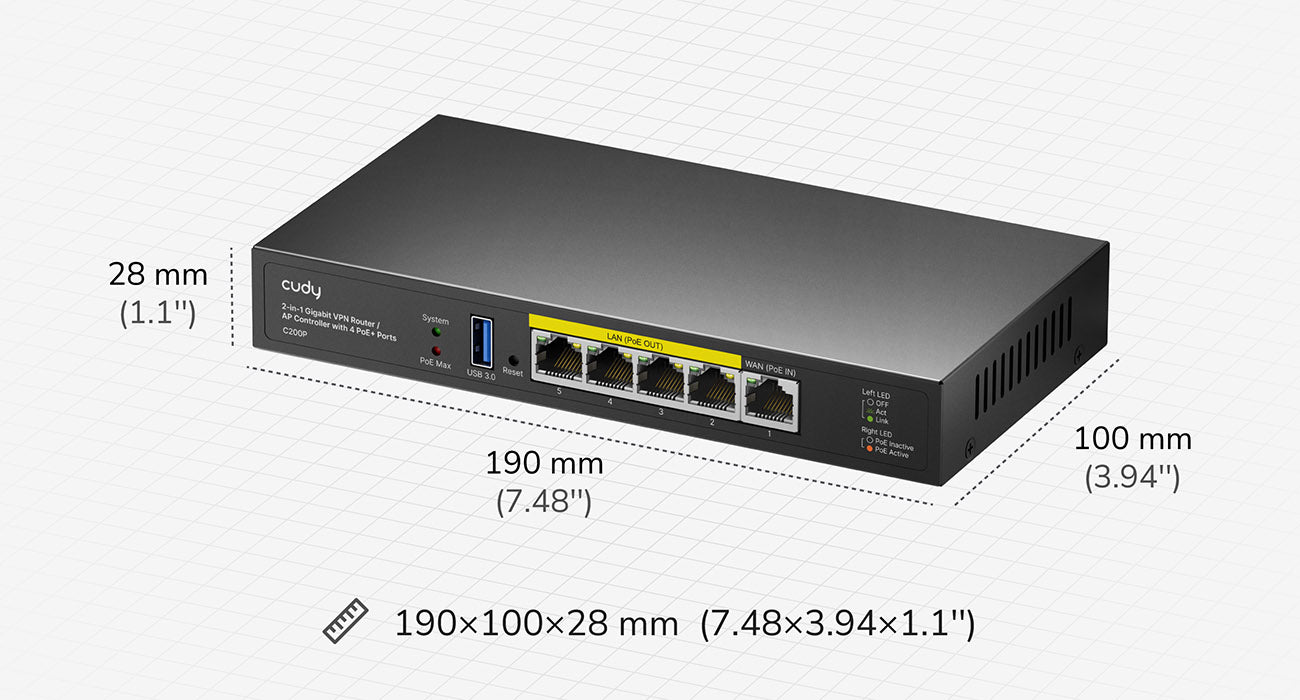

| Dimension |
190×100×28 mm 7.48×3.94×1.1 inches |
|
| Product Weight | 454.0 g (16.01 oz.) | |
| Package Content | ||
| Package Content |
|
|
| Ordering Information | ||
| Ordering Information | Retail Package Dimension |
209×132×81.5 mm 8.23×5.2×3.21 inches |
| Retail Package Weight | EU: 1024.0 g (36.12 oz.) | |
| Units per Carton | 10 | |
| Carton Net Weight | EU: 10.2 kg (22.49 lbs) | |
| Carton Gross Weight | EU: 10.9 kg (24.03 lbs) | |
| Carton Dimension |
43.8×42.8×15.1 cm 17.24×16.85×5.94 inches |
|
| Compatibility | ||
| Compatibility | Compatible Products | AP1300 1.0, AP3000 Outdoor 1.0, AP3000 1.0, AP1300 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP1300_P 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, AP1300D 1.0, AP1300E Wall 1.0, AP3600 1.0, AP6500 1.0, AP1300 2.0, AP3000S 1.0 |
| Mechanical | ||
| Mechanical | Dimension (1) |
190×100×28 mm 7.48×3.94×1.1 inches |
| Product Weight (1) | 454.0 g (16.01 oz.) | |
| Ordering Information | ||
| Ordering Information | Retail Package Dimension (1) |
209×132×81.5 mm 8.23×5.2×3.21 inches |
| Retail Package Weight (1) | EU: 1024.0 g (36.12 oz.) | |
| Units per Carton (1) | 10 | |
| Carton Net Weight (1) | EU: 10.2 kg (22.49 lbs) | |
| Carton Gross Weight (1) | EU: 10.9 kg (24.03 lbs) | |
| Carton Dimension (1) |
43.8×42.8×15.1 cm 17.24×16.85×5.94 inches |
|
| Compatibility | ||
| Compatibility | N/T Comp. Prod. (1) | AP1300 1.0, AP3000 Outdoor 1.0, AP3000 1.0, AP1300 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP1300_P 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, AP1300D 1.0, AP1300E Wall 1.0, AP3600 1.0, AP6500 1.0, AP1300 2.0, AP3000S 1.0 |
| 型号版本 | ||
|---|---|---|
| 型号版本 | C200P 1.0 | |
| 通用 | ||
| 通用 | WAN 口模式 |
|
| 最大连接数 | 25000 | |
| 网络 | ||
| 网络 | DHCP 服务器 |
|
| IP 版本 | IPv4/IPv6 | |
| IPv6 协议 |
|
|
| TTL 自定义 |
|
|
| IGMP |
|
|
| 转发功能 |
|
|
| 防火墙 |
|
|
| 应用层网关（ALG） |
|
|
| 应用 | ||

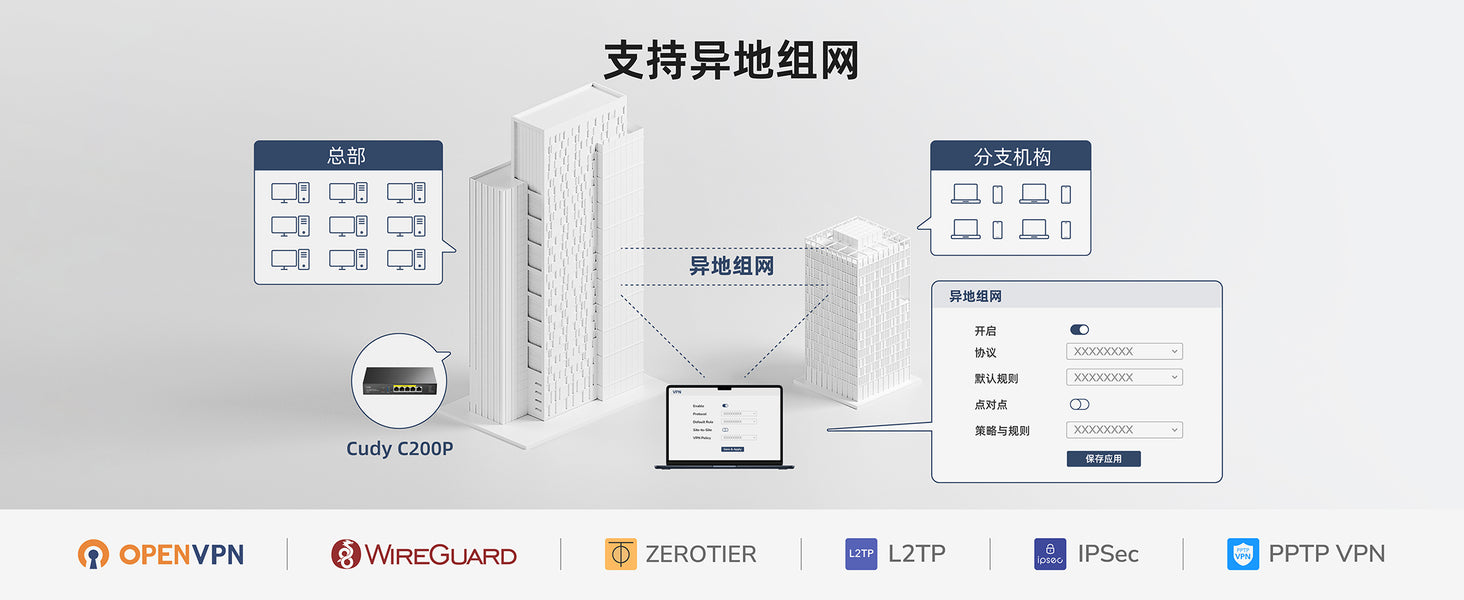

| 应用 | 异地组网服务器 |
|
| 异地组网客户端 |
|
|
| 异地组网性能 |
|
|
| 最大异地组网隧道数 |
|
|
| USB 功能 | Samba Server | |
| Wake on LAN 网络唤醒 | 支持 | |
| 在线检测 | 支持 | |
| 上网管理 | ||
| 上网管理 | 全局设备管理 |
|
| 指定设备管理 |
|
|
| 内容控制 |
|
|
| 系统 | ||
| 系统 | 本地管理方式 | 配置页面 |
| 远程管理方式 |
|
|
| 固件升级方式 | 本地升级 | |
| 可靠性功能 |
|
|
| 诊断工具 |
|
|
| 管理面板 | ||
| 管理面板 | 可视化窗口 |
|

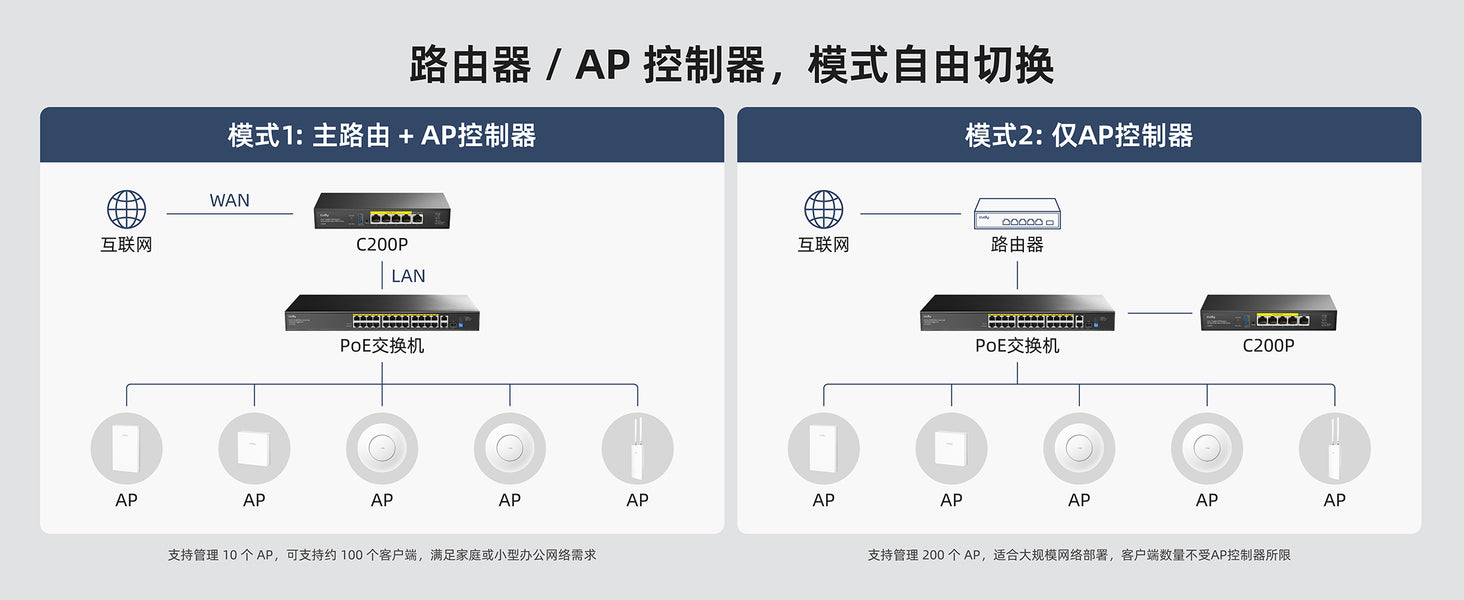

- In AP Controller Mode, the maximum number of manageable APs is 200. If using the external portal server feature, it is recommended to manage fewer than 200 APs.
