WiFi Yönlendirici
WR5000 1.0
Yakında gelecek
1 3

BE5000 2.5G Mesh Wi-Fi 7 Yönlendirici

BE5000 2.5G Mesh Wi-Fi 7 Yönlendirici, WR5000 1.0

WR5000 1.0

Toplam 5 Gbps hıza sahip, 3T3R ekstra kapsama alanı tasarımına sahip çift bantlı WiFi 7 yönlendirici, çoklu gigabit internet erişimi, oyun ve büyük ölçekli senaryolar için idealdir.

  • 5 Akışlı Çift Bantlı Wi-Fi 7
  • 4324 Mbps + 688 Mbps Wi-Fi 1
  • 1× 2.5GbE ve 4× GbE
  • 200 Bağlı Cihaz 2
  • Cudy Mesh, VPN Sunucusu ve İstemcisi
  • Cudy Uygulaması, Bulut Kontrolü
Tüm ayrıntıları görüntüle
Donanım Özellikleri
Yazılım Özellikleri
Model Versiyonu
Model Versiyonu WR5000 1.0
CPU
CPU CPU Details Quad-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3L
Wireless
Wireless 5 GHz Wi-Fi Speed 4324 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
5 GHz Wi-Fi Streams 3 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

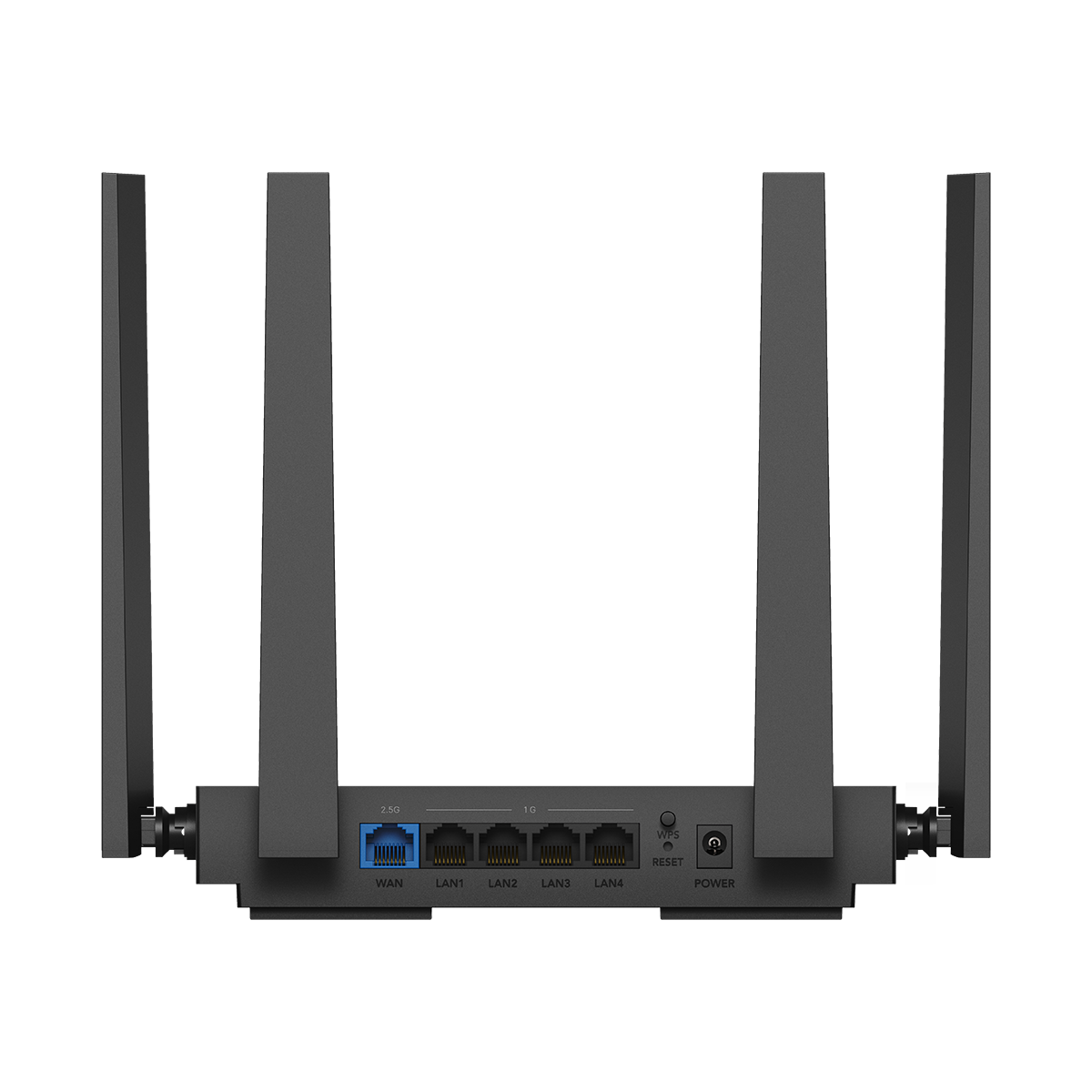

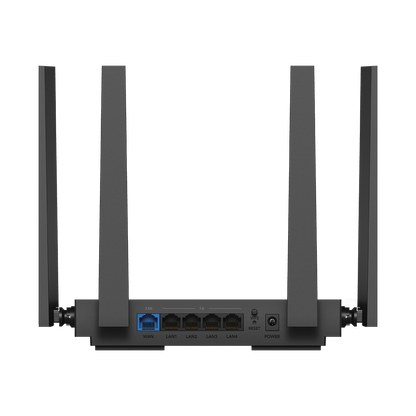

Interfaces
Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 4
Ethernet Notes The 2.5G port is WAN port, the Gigabit ports are LAN ports
LED
  • System
  • Internet
  • WAN
  • LAN
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
Physical Buttons
  • WPS Button
  • Reset Button
Power Interfaces DC Jack
Power
Power Power Methods DC
Power Input 12V⎓1.5A
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1.5A
Max Power Consumption (W) 14W
Idle Power Consumption (W) 4.9W
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension Main Part:
183.3×109×34 mm
7.22×4.29×1.34 inches
Antenna:
175 mm
6.89 inches

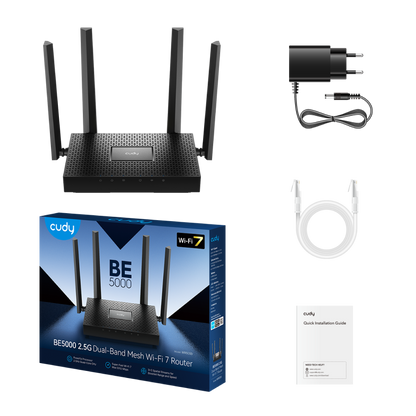

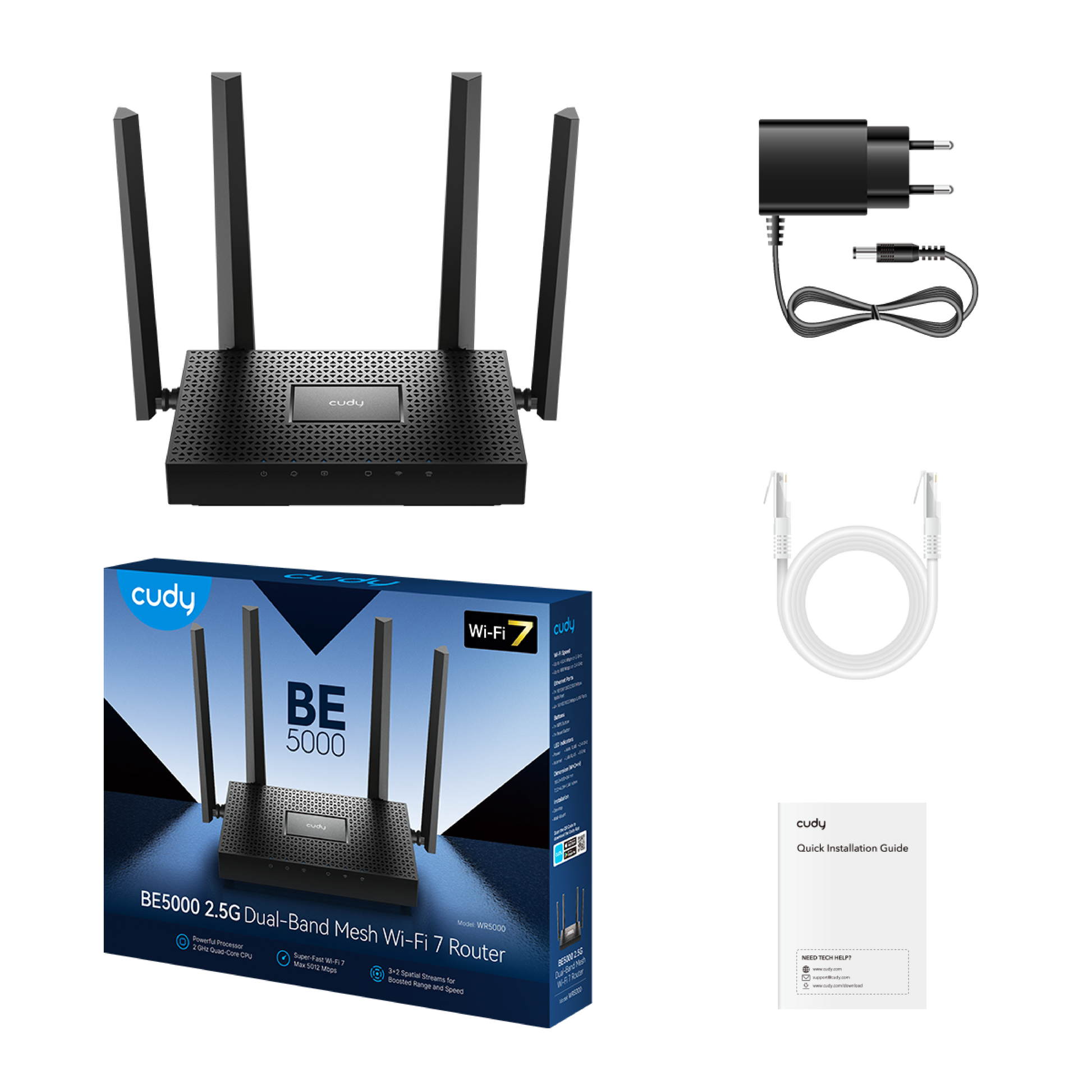

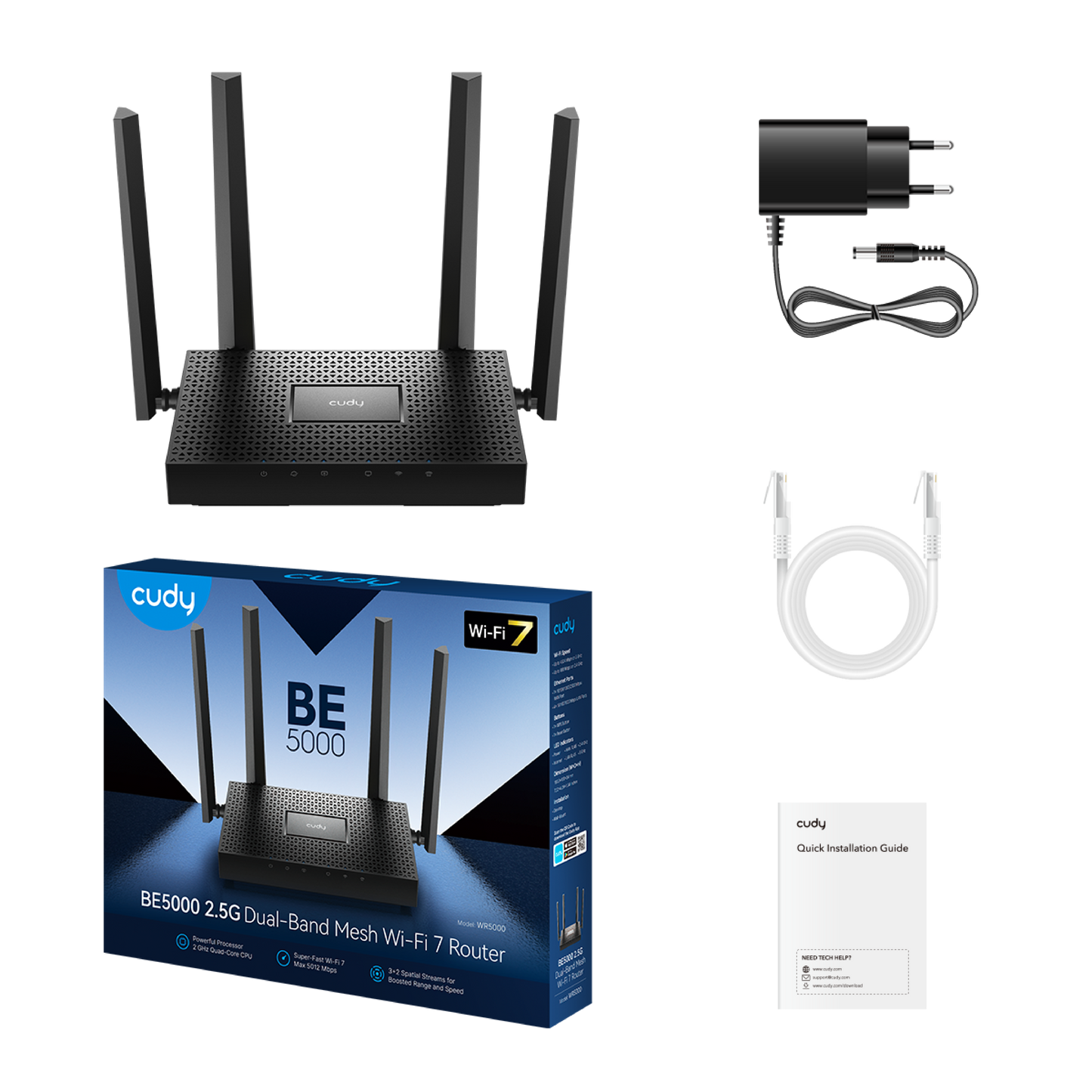

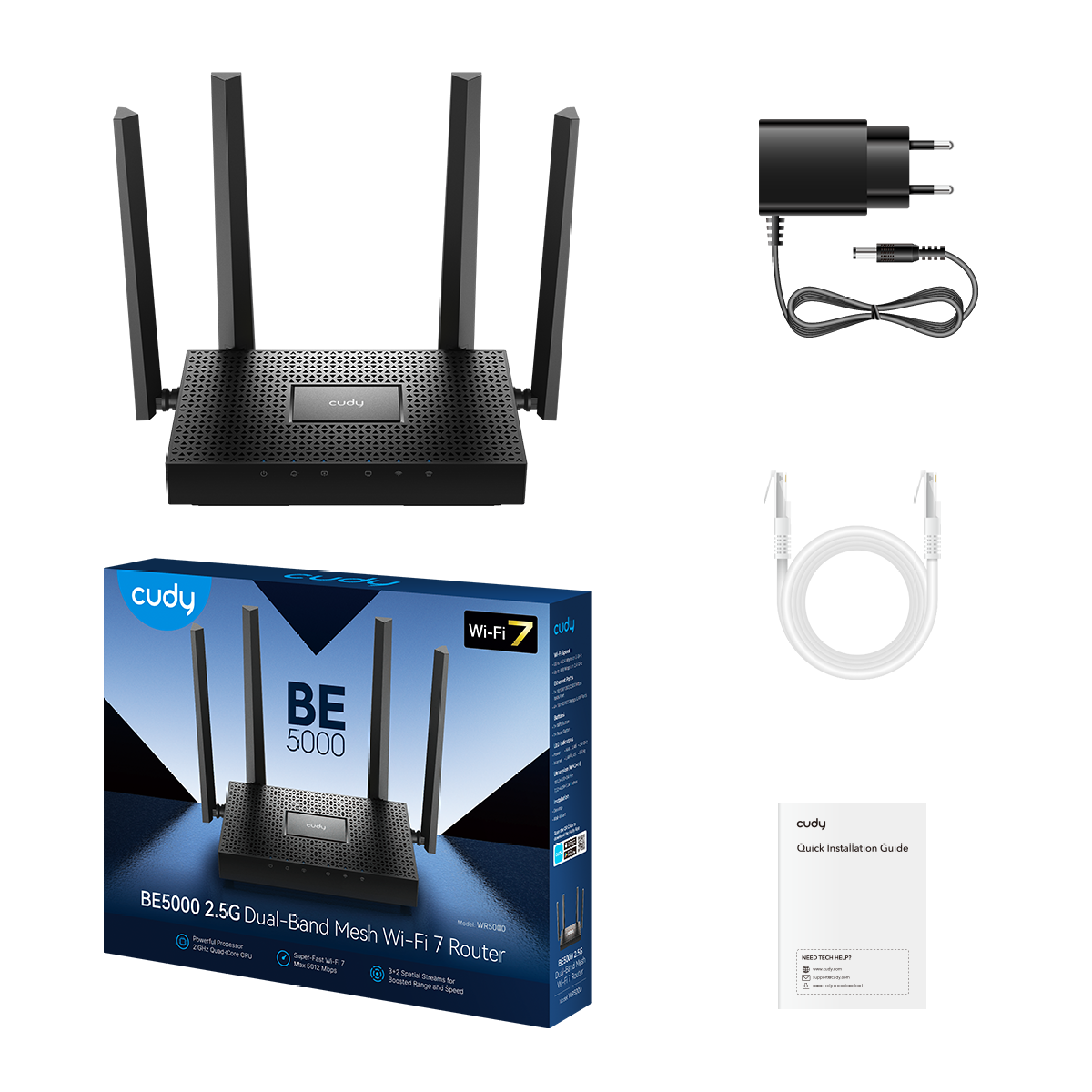

Package Content
Package Content
  • WR5000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 330×256×60 mm
12.99×10.08×2.36 inches
Units per Carton 10
Carton Dimension 52.8×31.7×34.7 cm
20.79×12.48×13.66 inches
Model Versiyonu
Model Versiyonu WR5000 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 7
Max Wi-Fi Modulation 4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
Multicast
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN
Online Detection
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. Gerçek kablosuz veri aktarım hızı, ağ koşullarına, istemci sınırlamalarına ve bina düzeni, engeller ve istemci konumu gibi çevresel faktörlere bağlı olarak değişiklik gösterecektir.
  2. Birden fazla cihaz için gerçek performans, kullanılan uygulama türlerinden, toplam kullanılabilir bant genişliğinden ve cihazlarınızın yeteneklerinden etkilenebilir. Eski Wi-Fi cihazlarının (eski standartlar) bağlanması genel verimliliği düşürebilir. Verimlilik özelliklerini kullanmak, bu özellikleri destekleyen uyumlu istemci cihazları gerektirir. Desteklenen verimlilik özellikleri hakkında daha fazla bilgiyi Teknik Özellikler elektronik tablosunun yazılım bölümünde bulabilirsiniz.
