AP1300
1 5

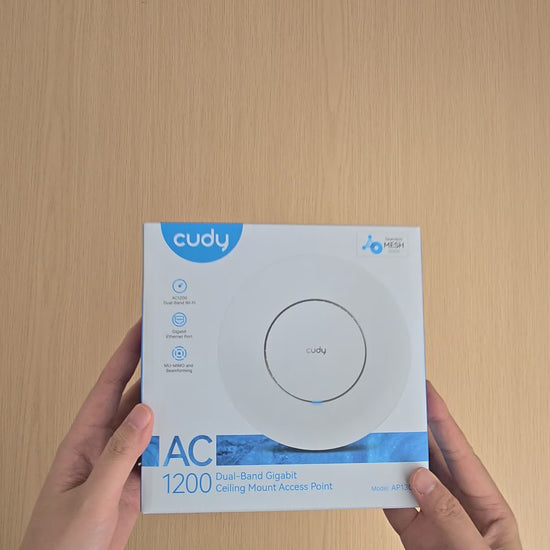

AC1200 Çift Bantlı Gigabit Wi-Fi Erişim Noktası

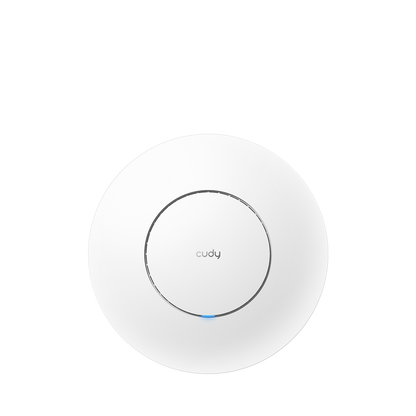

AC1200 Çift Bantlı Gigabit Wi-Fi Erişim Noktası, AP1300 2.0

AP1300 2.0

Ofisler, sınıflar, oteller ve küçük ofisler için tasarlanmış, duvara/tavana monte edilebilen kompakt bir WiFi erişim noktası.

  • 4 Akışlı Çift Bantlı Wi-Fi 5
  • 867 Mbps + 300 Mbps Wi-Fi 1
  • Gigabit Ethernet RJ45 Bağlantı Noktası
  • 802.3at/af, Pasif PoE, DC
  • 100 Bağlı Cihaz 2
  • 100 m² (1.100 ft²) alanı kapsar. 3
  • Φ171.4×41 mm (Φ6.75×1.61")
Tüm ayrıntıları görüntüle

Fast AC1200 Dual-Band Wi-Fi

Enjoy up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Dual-band connectivity helps deliver smoother video conferencing, cloud access, and everyday wireless performance.

Fast AC1200 Dual-Band Wi-Fi

Enjoy up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Dual-band connectivity helps deliver smoother video conferencing, cloud access, and everyday wireless performance.

Connect More, Reach Further

Reliable Connectivity for Busy Teams

Engineered for modern office demands, AP1300 supports 100+ devices simultaneously with reliable performance. From video conferences to cloud backups, it helps team members stay in sync with stable data transmission during daily business tasks.

Long Range Connectivity

Eliminate dead zones with optimized signal penetration. AP1300 delivers a consistent, high-speed Wi-Fi signal that reaches every corner of your space. Whether in a conference room or a corner office, experience a reliable connection that moves with your business.

Stay Connected as You Move

Seamless Wi-Fi for Every Space

Office

Reliable Wi-Fi for daily business operations.

Retail

Seamless networking for customers and staff.

Dormitory

Stable connectivity for shared living spaces.

Residence

Consistent coverage throughout the home.

Gigabit Uplink, Multiple Power Options

The Gigabit Ethernet port delivers stable wired performance. Flexible powering options include 802.3af/at PoE, Passive PoE (24–57V), and 12V DC.

Gigabit Uplink, Multiple Power Options

The Gigabit Ethernet port delivers stable wired performance. Flexible powering options include 802.3af/at PoE, Passive PoE (24–57V), and 12V DC.

Advanced Features

Central Management

Remotely manage the whole Wi-Fi system with Cudy AC.

Band Steering

Assigns devices to the less congested bands, optimizing the system performance.


Auto Channel Selection

Avoid signal interruptions with nearby access points.

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

Donanım Özellikleri
Yazılım Özellikleri
Model Versiyonu
Model Versiyonu AP1300 2.0
CPU
CPU CPU Details 880 MHz Dual-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Internal
5 GHz Antenna Gain Max 5.8 dBi
2.4 GHz Antenna Gain 3.0 dBi
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

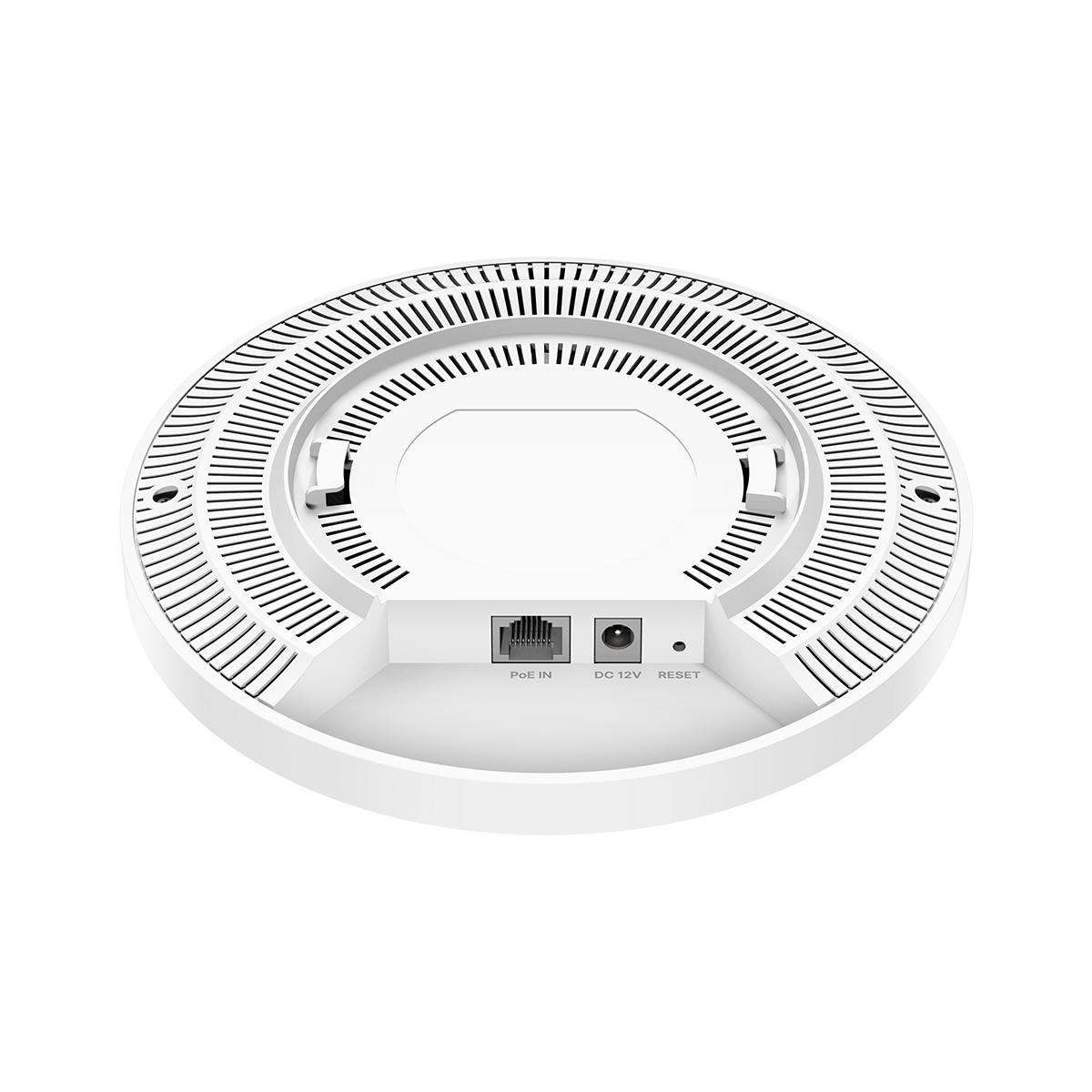

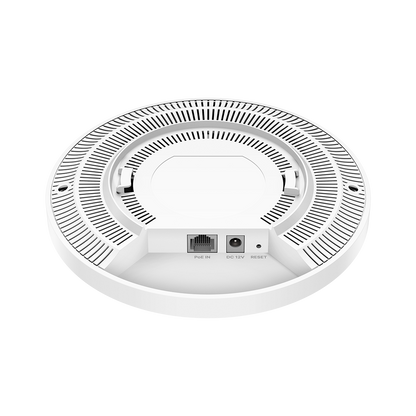

Interfaces
Interfaces Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power
Power Power Input Type
  • DC Jack
  • PoE via Ethernet Port
Power Methods
  • DC
  • Passive PoE
  • 802.3at/af PoE
Power Input
  • DC: 12V⎓1A
  • Passive PoE: 24-57V⎓
  • PoE: 802.3at/af
Max Power Consumption (W) Max (PoE): 11 W
Max (DC): 7.5 W
Idle Power Consumption (W) 4 W
Reliability
Reliability EMC ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications FCC, CE
Mechanical

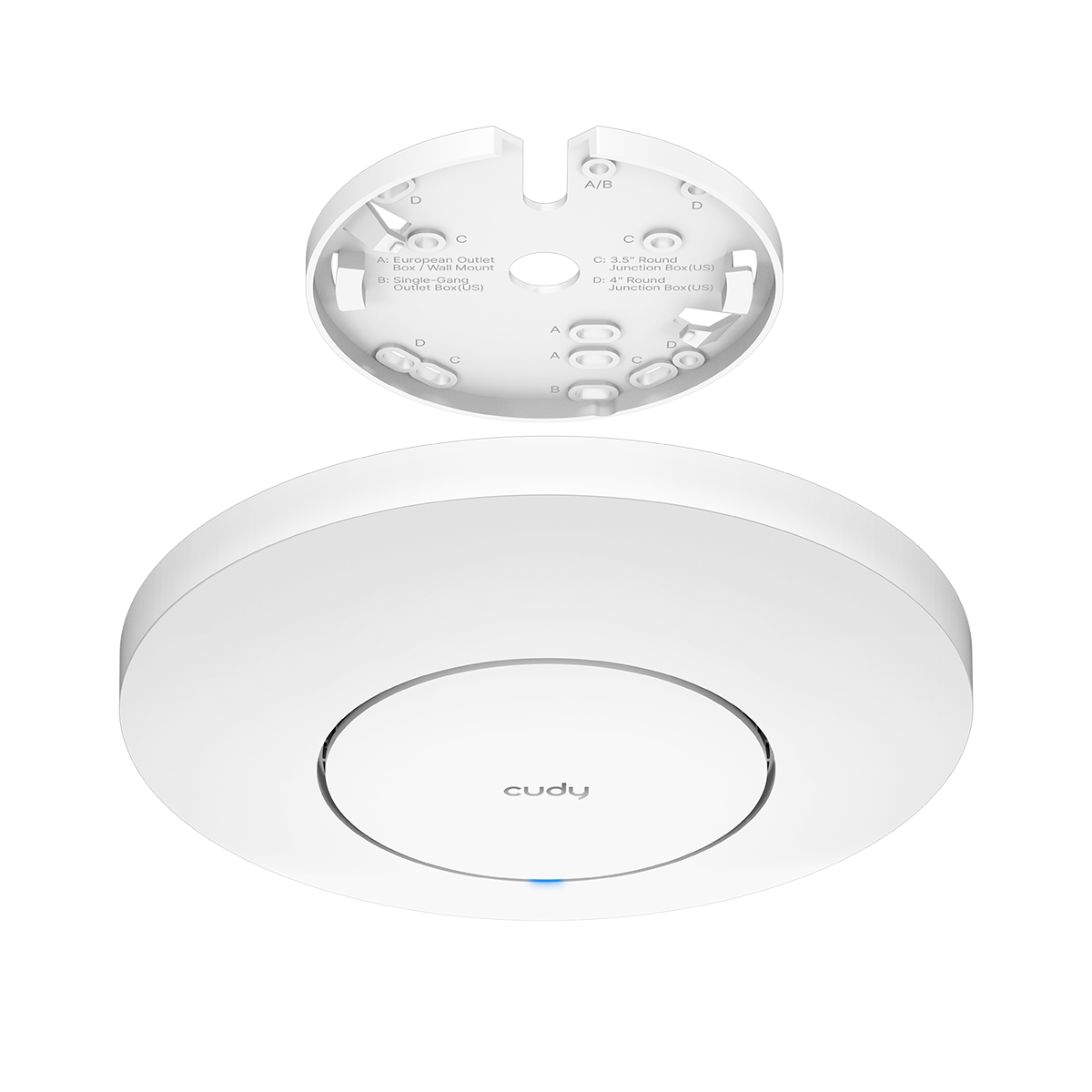

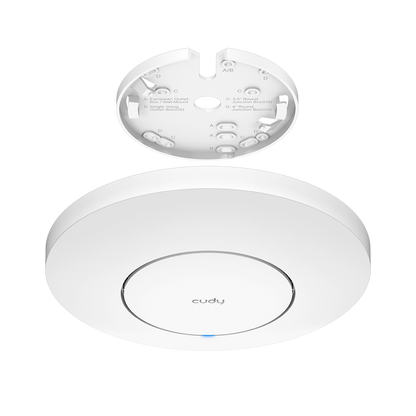

Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension Φ171.4×41 mm
Φ6.75×1.61 inches
Product Weight 234.5 g (8.27 oz.)

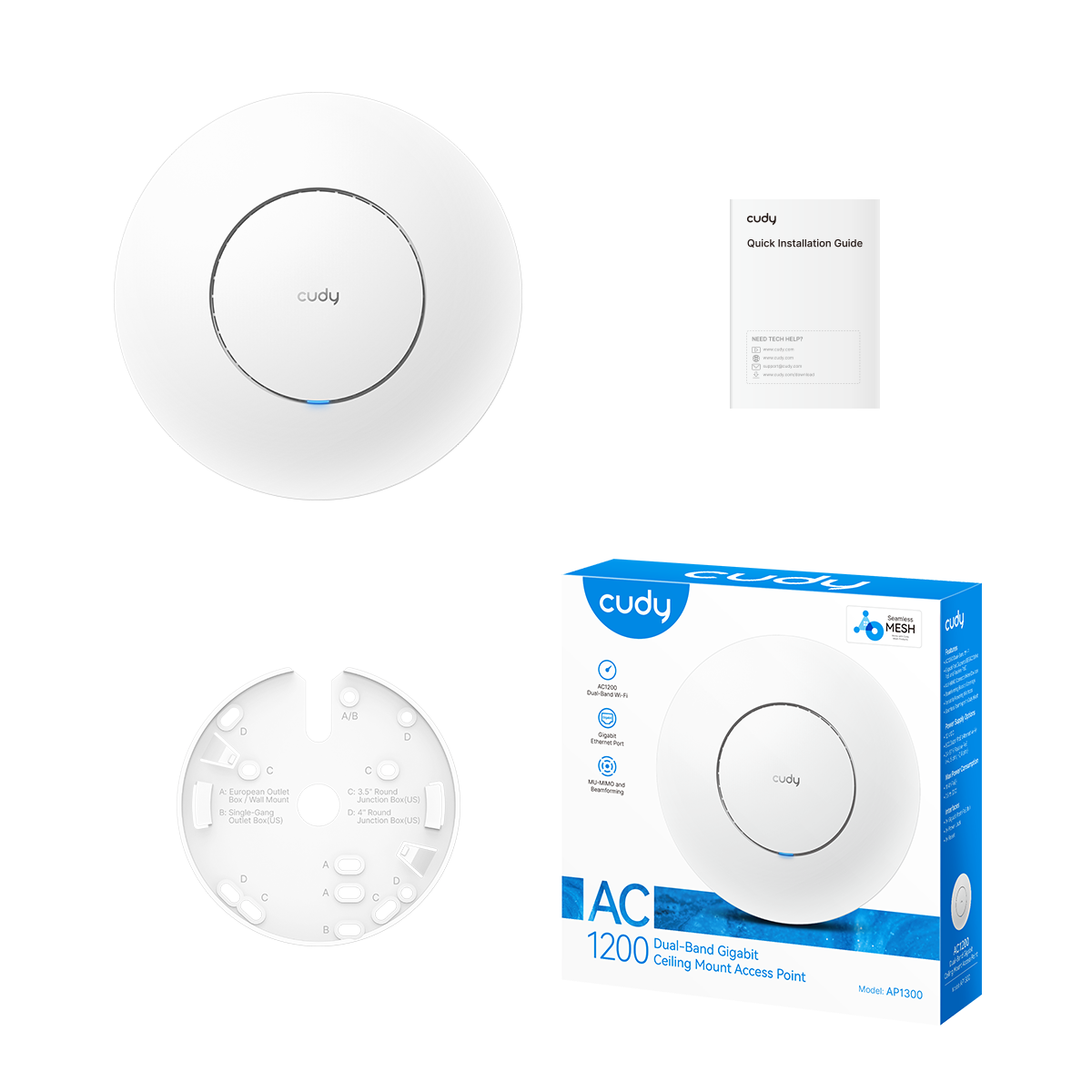

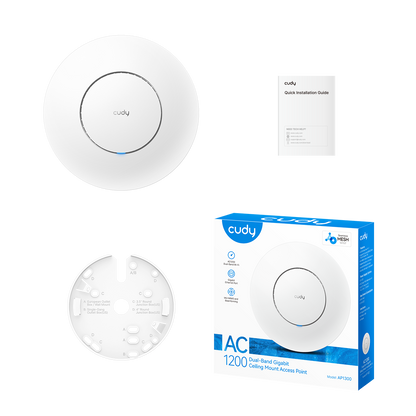

Package Content
Package Content
  • AP1300
  • Mounting Kit
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight EU: 339.0 g (11.96 oz.)
Retail Package Dimension 172×172×49 mm
6.77×6.77×1.93 inches
Units per Carton 30
Carton Net Weight EU: 10.2 kg (22.49 lbs)
Carton Gross Weight EU: 10.9 kg (24.03 lbs)
Carton Dimension 54.2×27.4×36.5 cm
21.34×10.79×14.37 inches
Uyumluluk
Uyumluluk Uyumlu Ürünler C200P 1.0, C500P 1.0
Uyumlu Aksesuarlar POE200 2.0, POE300 2.0, POE400H 1.0, POE400 2.0, POE350 2.0, POE200H 1.0, POE400X 2.0, POE350 3.0, POE400 3.0, POE300 3.0, POE52-30W 1.0, POE24-12W 1.0, POE48-18W 1.0
Model Versiyonu
Model Versiyonu AP1300 2.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 5
Max Wi-Fi Modulation 256-QAM
Wi-Fi Efficiency MU-MIMO
Wi-Fi Efficiency Note MU-MIMO available on 5 GHz
Max Capacity 128
Recommended Client Upper Limit 50
Wi-Fi Channel Width Auto/20/40/80 MHz
Wi-Fi Security WPA/WPA2/WPA3
Multi-SSID (Max Number) 8 SSIDs (Up to 4 SSIDs on each band), VLAN Support
WPS
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Internet Failover Sequence
  • WAN
  • WISP
Management
Management Multi-AP Management Via Cudy AP Controller
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
Multicast
IPTV/VLAN Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities Captive Portal
Captive Portal Authentication No Authentication, Local Password, External Portal Server
VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN
Online Detection
System
System LED Control
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. Gerçek kablosuz veri aktarım hızı, ağ koşullarına, istemci sınırlamalarına ve bina düzeni, engeller ve istemci konumu gibi çevresel faktörlere bağlı olarak değişiklik gösterecektir.
  2. Birden fazla cihaz için gerçek performans, kullanılan uygulama türlerinden, toplam kullanılabilir bant genişliğinden ve cihazlarınızın yeteneklerinden etkilenebilir. Eski Wi-Fi cihazlarının (eski standartlar) bağlanması genel verimliliği düşürebilir. Verimlilik özelliklerini kullanmak, bu özellikleri destekleyen uyumlu istemci cihazları gerektirir. Desteklenen verimlilik özellikleri hakkında daha fazla bilgiyi Teknik Özellikler elektronik tablosunun yazılım bölümünde bulabilirsiniz.
  3. Kablosuz kapsama alanı iddiası yalnızca referans niteliğindedir. Kapsama performansı, bina düzeni, engeller, trafik hacmi ve yoğunluğu ve cihaz konumu dahil olmak üzere çevresel faktörlere bağlı olarak değişiklik gösterecektir. En iyi kapsama alanı için lütfen cihazı Wi-Fi gerektiren alanın merkezi bir konumuna yerleştirin.
