GS108E

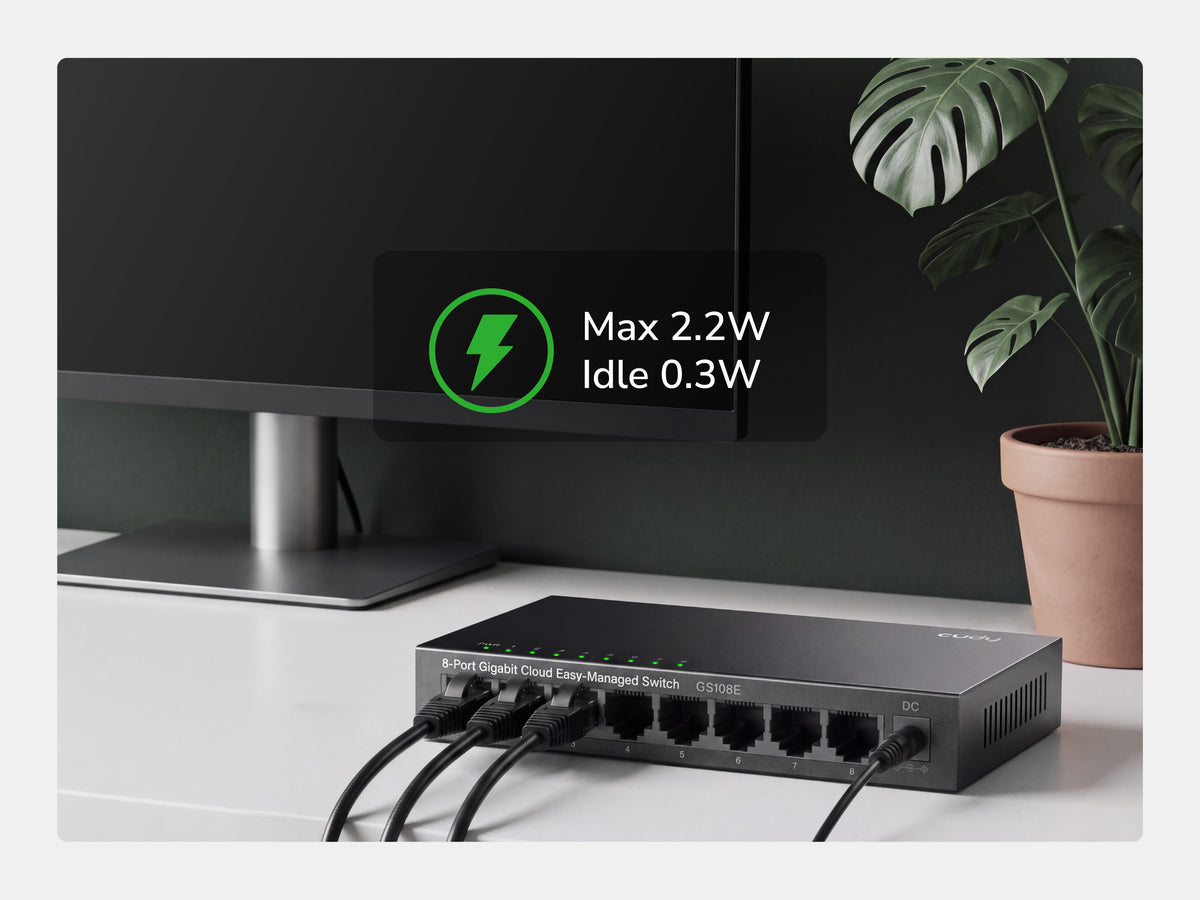

Power Efficient. Saves on Bills.

Unlike many 8-port smart switches that consume 5W or more, the GS108E consumes just 2.2W at most, cutting power consumption by more than half and significantly reducing the cost of running a 24/7 device.

Power Efficient. Saves on Bills.

Unlike many 8-port smart switches that consume 5W or more, the GS108E consumes just 2.2W at most, cutting power consumption by more than half and significantly reducing the cost of running a 24/7 device.

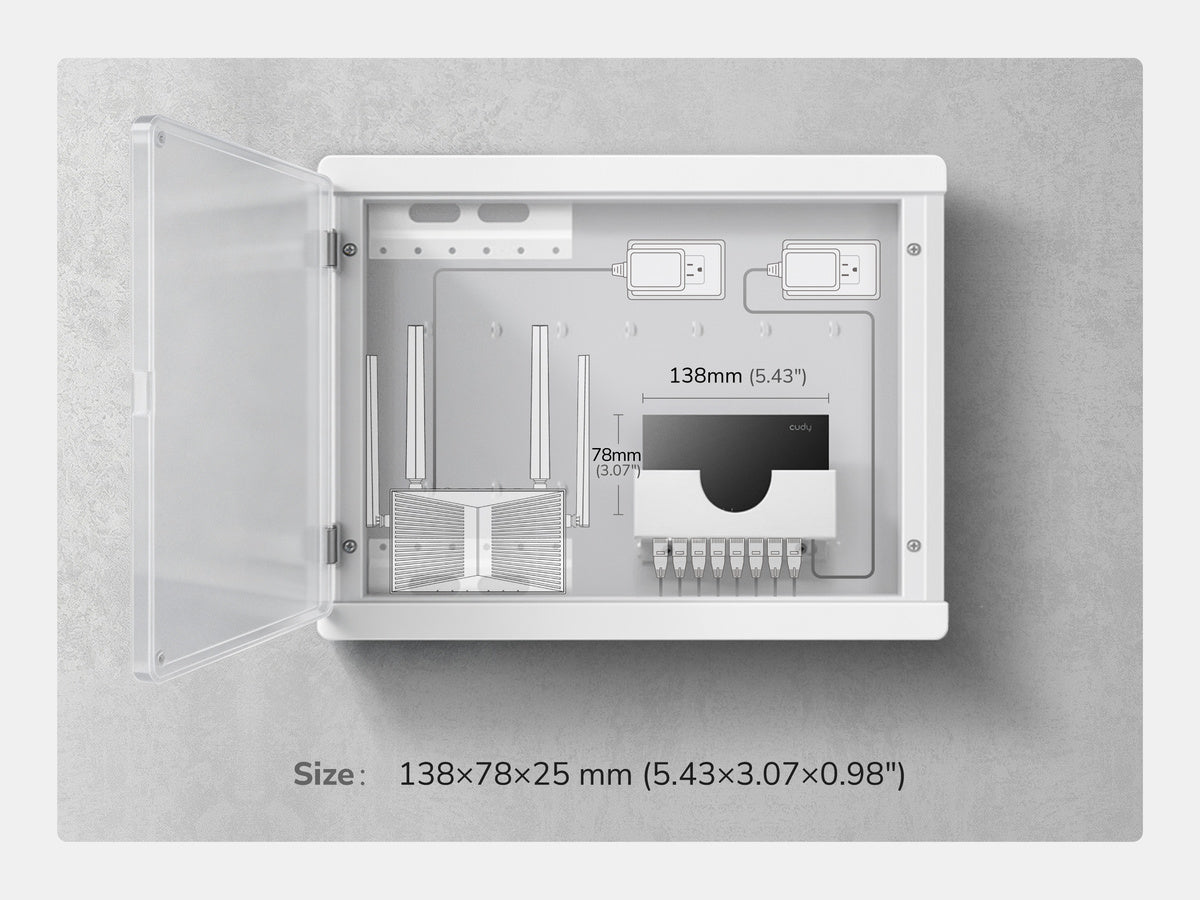

Compact Design. Rugged Metal.

Compact enough to fit in most home network distribution boxes, while the metal casing provides durable protection.

Compact Design. Rugged Metal.

Compact enough to fit in most home network distribution boxes, while the metal casing provides durable protection.

For Home Users

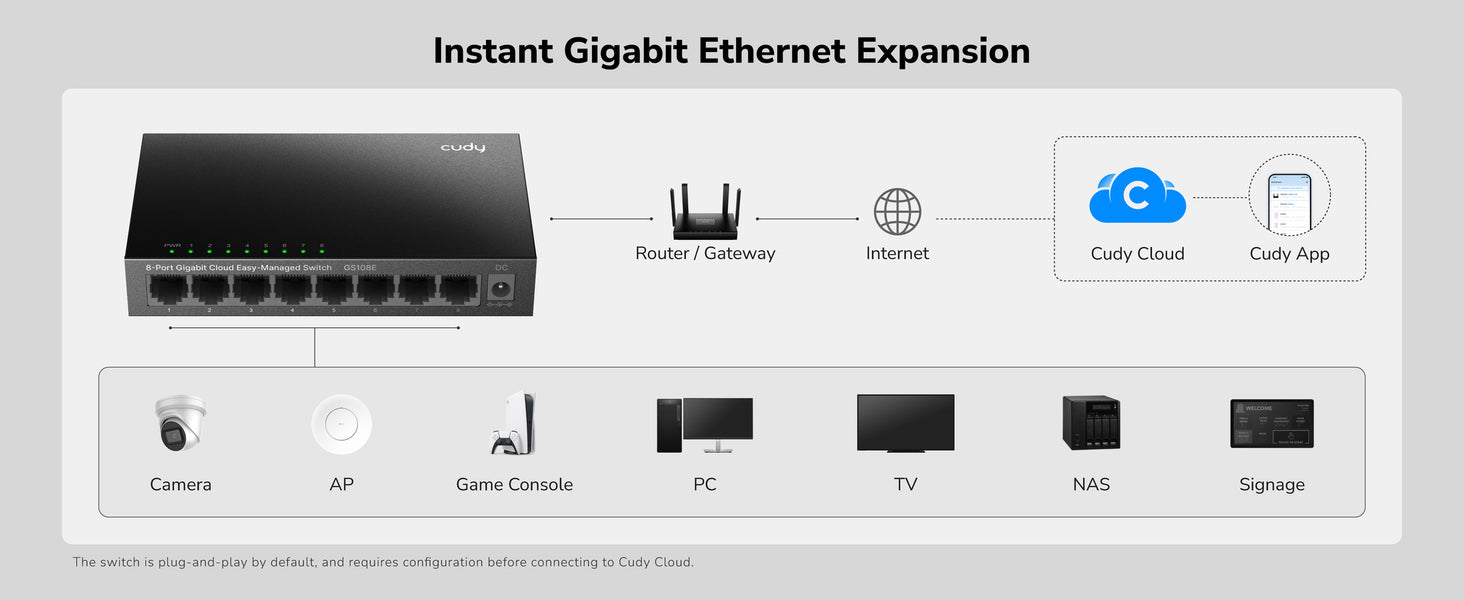

Easy Gigabit Expansion

Effortlessly expand your Gigabit ports with plug-and-play convenience.

For Home Users

Easy Gigabit Expansion

Effortlessly expand your Gigabit ports with plug-and-play convenience.

For Office Users

Advanced Networking Ready

Support essential L2 management features including tag VLAN, QoS, and port configuration for office network expansion.

For Office Users

Advanced Networking Ready

Support essential L2 management features including tag VLAN, QoS, and port configuration for office network expansion.

Cudy Cloud לניהול מרחוק

ניהול מרכזי

ניטור כל מתגי הענן שלך ב-Cudy, הניתנים לניהול בקלות, מלוח מחוונים אחד ומאוחד בתוך אפליקציית Cudy, הנגיש מכל מקום.

ניטור ותיקון בעיות מרחוק

כוונו את ההגדרות בטלפון שלכם דרך Cudy Cloud. אין צורך יותר להיכנס לאתר עבור משימה קטנה.

Secure and High-Performance Switching

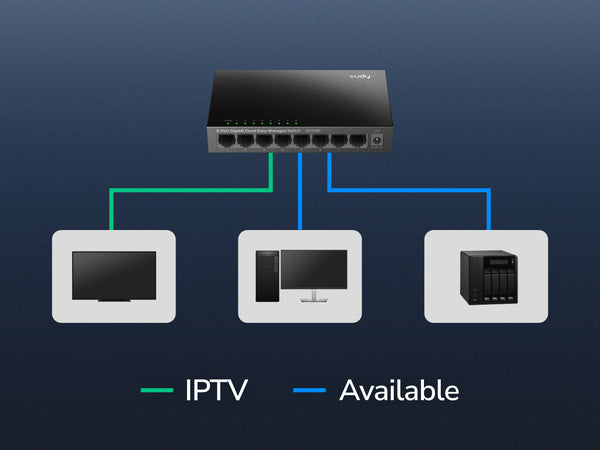

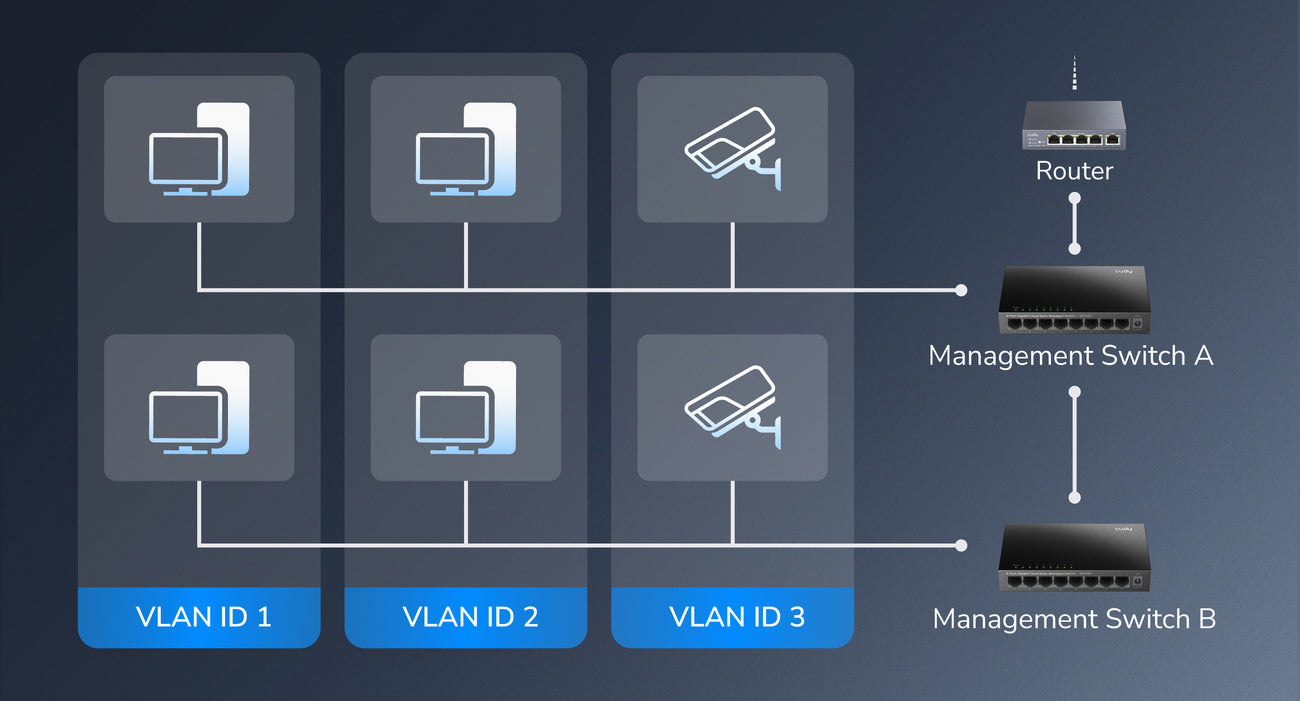

802.1Q/MTU/Port-Based VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

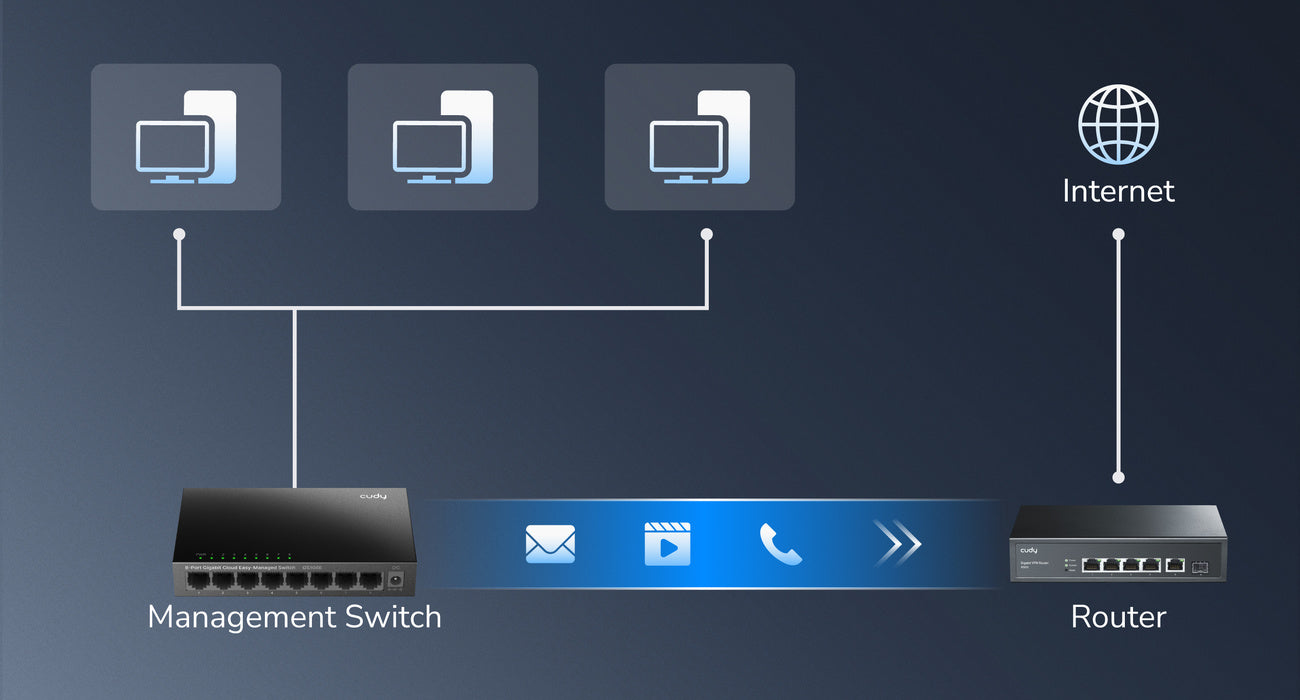

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Essential Management Features

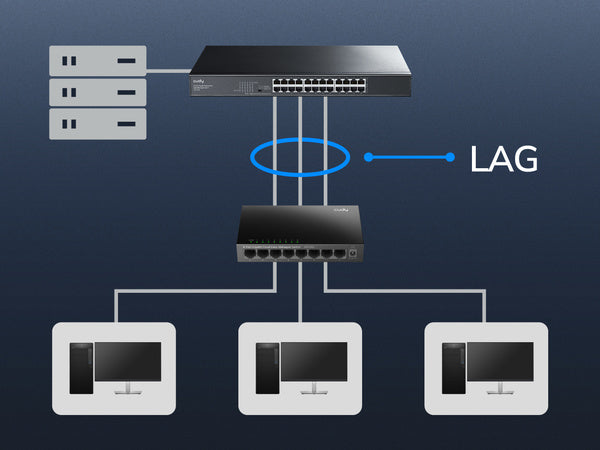

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

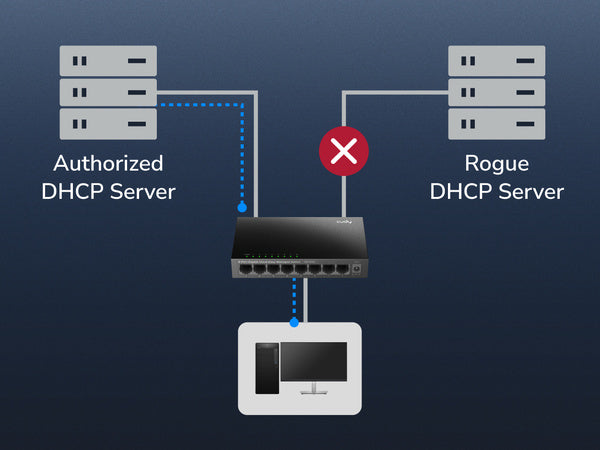

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

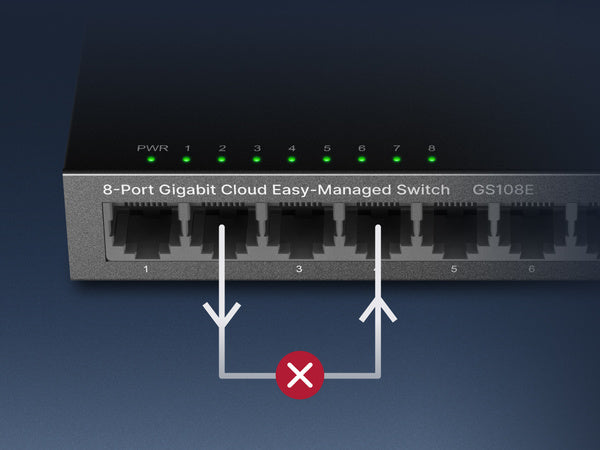

Loop Prevention

Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.

1 4

מתג ג'יגה-ביט עם 8 פורטים

מתג ג'יגה-ביט עם 8 פורטים, GS108E 2.0

GS108E 2.0

מתג 8-GbE עם תכונות ניהול חיוניות.

  • 8× יציאות אתרנט ג'יגה-ביט
  • VLAN (802.1Q/MTU/מבוסס פורטים)
  • QoS (802.1p/DSCP/מבוסס יציאה)
  • מראה פורט, צבירה סטטית וכו'
  • גילוי ומניעת לולאות
  • חטטנות DHCP, חטטנות IGMP
  • אפליקציית Cudy, בקרת ענן
  • שולחן עבודה, תלייה על הקיר
  • 138×78×25 מ"מ (5.43×3.07×0.98 אינץ')
View full details
גרסת דגם
גרסת דגם GS108E 2.0
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
Interfaces
Interfaces Gigabit RJ45 Ports 8
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
LED
  • Power
  • Link/ACT of Each Ethernet Port
Physical Buttons Reset Button
Performance
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
  • Cat. 6 or higher cable: 150 meters at Gigabit
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table 4096
VLANs 4096
Max Switching Capacity 16 Gbps
Max Forwarding Rate 11.904 Mpps
Jumbo Frame 15 KB
Packet Buffer 1.5 Mbit
Power
Power Power Input Type DC Jack
Basic Power Saving
Power Methods DC
Power Input 5V⎓0.55A
Power Adapter in the Box Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A
Max Power Consumption 2.2W
Idle Power Consumption 0.3W
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3az Power Saving
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
  • 802.1ab: LLDP/LLDP-MED
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
Port Mirror Sessions 4
Port Trunk Groups 4
Max Port Num per Port Trunk Group 7
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
  • DHCP Snooping
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
System
System Control Methods
  • Config Web Page
  • Cudy App
  • SNMP V1/V2
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
  • Cable Status/Length Diagnosis
  • Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension 138×78×25 mm
5.43×3.07×0.98 inches
Product Weight 208.0 g (7.34 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount

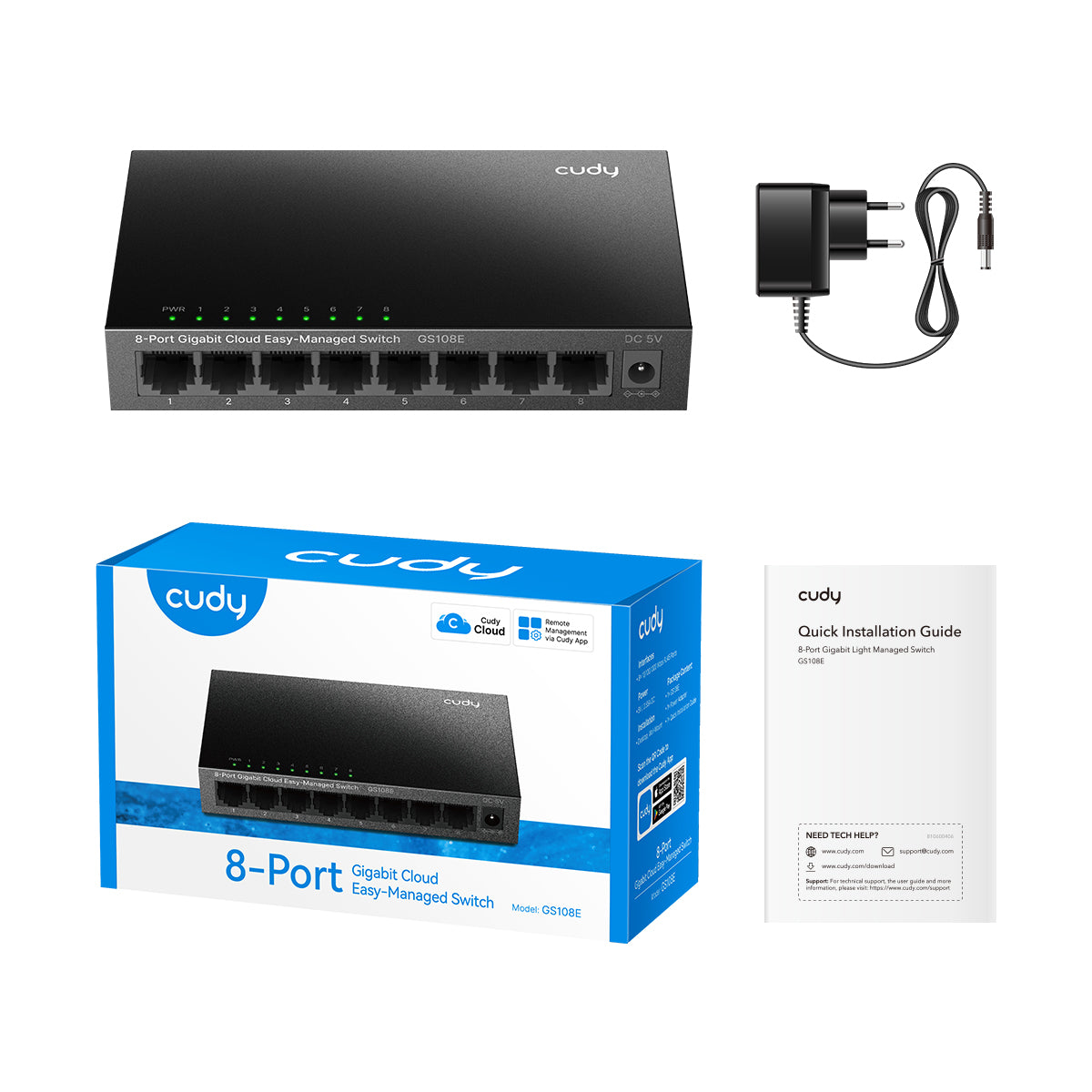

Package Content
Package Content
  • GS108E
  • Power Adapter
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension EU/US:
151×90.5×63 mm
5.94×3.56×2.48 inches
Retail Package Weight EU: 346.4 g (12.22 oz.)
Units per Carton EU/US: 40
Carton Net Weight EU: 13.9 kg (30.64 lbs)
Carton Gross Weight EU: 14.5 kg (31.97 lbs)
Carton Dimension EU/US: 48.5×32.5×27.8 cm
19.09×12.8×10.94 inches
