Customized Captive Portal

Enhance brand visibility with a customized login page. Captive portal lets you engage new users instantly and promote your brand as they connect to your network. Supports both no-authentication and local password portal types for flexible access control.

Customized Captive Portal

Enhance brand visibility with a customized login page. Captive portal lets you engage new users instantly and promote your brand as they connect to your network. Supports both no-authentication and local password portal types for flexible access control.

Manage Your APs Anytime, Anywhere

Manage multiple APs remotely through an intuitive web-based controller, with no subscription or license fees.

Manage Your APs Anytime, Anywhere

Manage multiple APs remotely through an intuitive web-based controller, with no subscription or license fees.

Easier and Smarter Network Maintenance

Network Segmentation with VLAN

Segment traffic and isolate devices with flexible VLAN and DHCP settings.

Per-SSlD Rate Limit

Limit Wi-Fi speed by SSlD to optimize network performance.

Optimize Roaming with RSSl Thresholds

Automatically disconnect weak-signal clients and steer devices to stronger APs to fine-tune the roaming experience in complex network environments.

Fast and Simple Wi-Fi Deployment

Quickly add APs to your network with one-click adoption and build a seamless Wi-Fi network with Cudy Mesh.

Flexible Installation, Robust Design

1 2

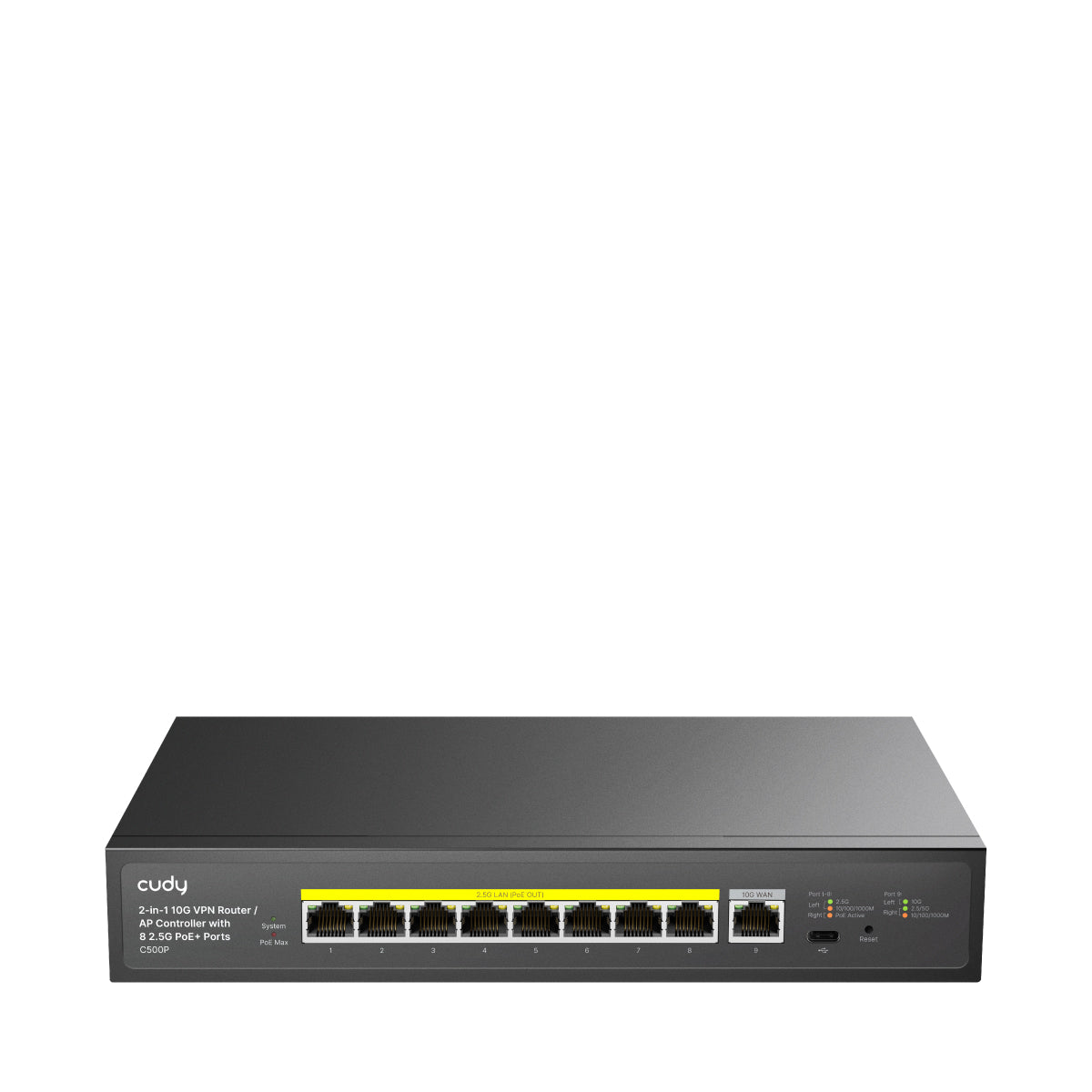

נתב VPN/בקר AP רב-ג'יגה-ביט 2 ב-1 עם 8 יציאות PoE+

נתב VPN/בקר AP רב-ג'יגה-ביט 2 ב-1 עם 8 יציאות PoE+, C500P 1.0

C500P 1.0

בקר חומרה רב-ג'יגה-ביט התומך במצבי Gateway או Bypass לניהול מרכזי של AP ונתבים. אידיאלי לשיפור תחזוקת רשת בקנה מידה גדול באמצעות הגדרת אצווה.

  • ניהול 500 נקודות גישה 1
  • יציאת RJ45 10G
  • 8× יציאות PoE 2.5GbE
  • תפוקת PoE מקסימלית של 30W לכל פורט
  • 1× יציאת USB-C
  • פורטל שבוי
  • שרת ולקוח VPN

Compatible products:

AP1300 1.0, AP3000 Outdoor, AP3000, AP1300 Outdoor, AP11000, AP3000_P, AP1300_P, AP1300 Wall, AP3000 Wall, AP3000E Wall, AP1300D, AP1300E Wall, AP3600, AP6500, AP1300 2.0, AP3000S
View full details
גרסת דגם
גרסת דגם C500P 1.0
CPU
CPU CPU Details 1.5 GHz Quad-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Interfaces
Interfaces 10G RJ45 Ports 1
2.5G RJ45 Ports 8
2.5G RJ45 PoE Ports #1~#8
Max Power on a Single PoE Ports 30W
PoE Ports Notes The PoE ports comply with IEEE 802.3at/af standards.
Ethernet Notes 1× WAN Port, 8× LAN Ports
USB-C 3.0 Ports 1
USB-C Notes 5V/2A
LED
  • System
  • PoE Max Status
  • Speed/Link/ACT/PoE Status of Each PoE Port
Physical Buttons Reset Button
Power
Power Power Input Type AC Inlet
Power Methods AC
Power Adapter In the Box 100-240V~,50/60Hz, max 200W
Max Power Consumption (W) PoE: 170W
PoE (when USB Device is plugged in): 150W
Idle Power Consumption (W) 7.5W
Reliability
Reliability EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 0% ~ 100% non-condensing
Grounding Methods Grounding Point
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Casing Material Metal
Dimension 270×182.1×44 mm
10.63×7.17×1.73 inches

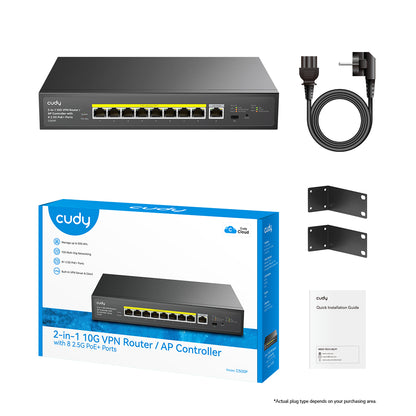

Package Content
Package Content
  • C500P
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
  • Mounting Kit
Ordering Information
Ordering Information Retail Package Dimension 367×245×84 mm
14.45×9.65×3.31 inches
Units per Carton 5
Carton Dimension 38×44×26.5 cm
14.96×17.32×10.43 inches
תְאִימוּת
תְאִימוּת מוצרים תואמים AP1300 1.0, AP3000 Outdoor 1.0, AP3000 1.0, AP1300 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP1300_P 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, AP1300D 1.0, AP1300E Wall 1.0, AP3600 1.0, AP6500 1.0, AP1300 2.0, AP3000S 1.0
  1. במצב בקר AP, המספר המרבי של נקודות AP הניתנות לניהול הוא 500. אם משתמשים בתכונת שרת הפורטל החיצוני, מומלץ לנהל פחות מ-500 נקודות AP.
