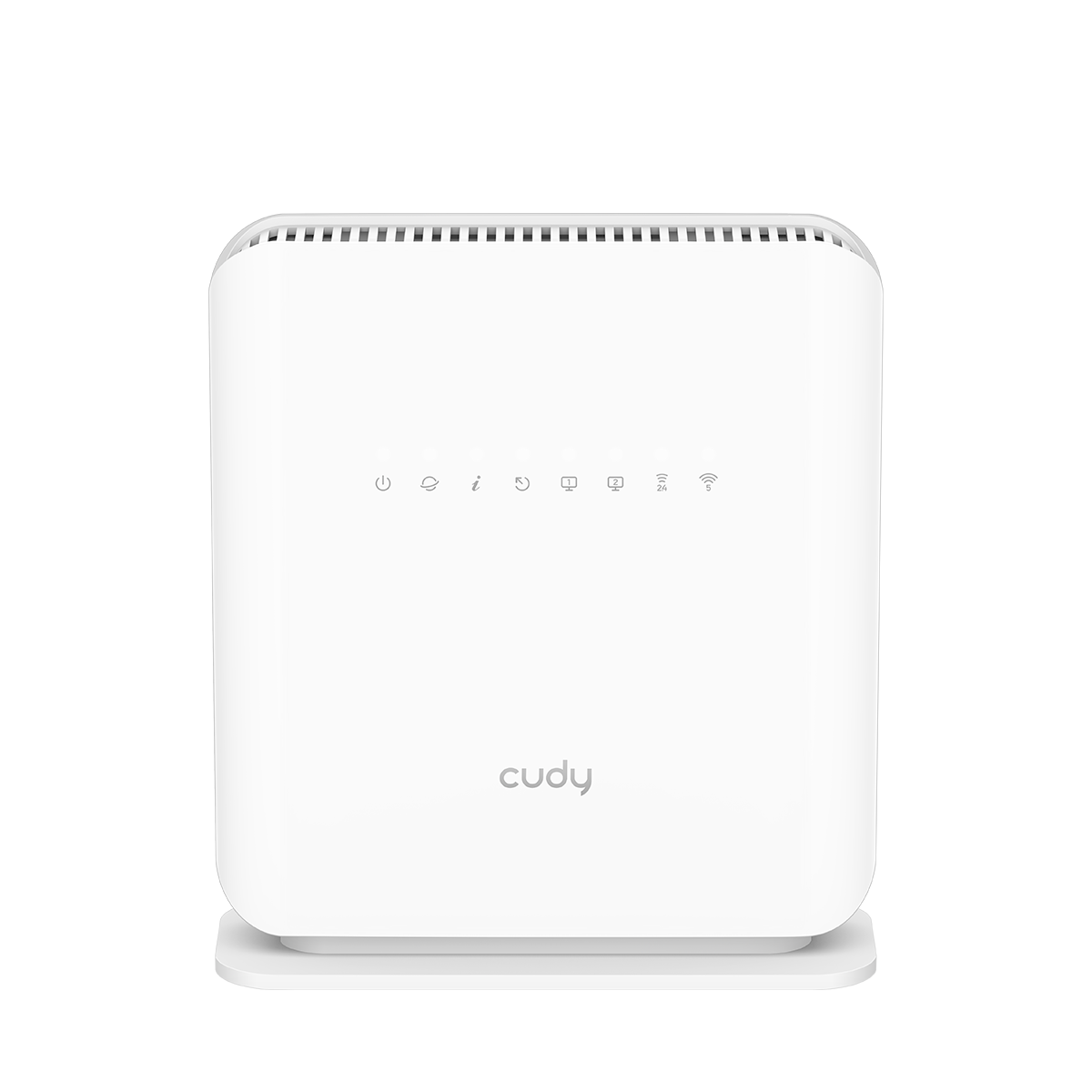

Routeur VoIP Gigabit sans fil double bande AX3000 xPON avec port USB

Routeur VoIP Gigabit sans fil double bande AX3000 xPON avec port USB, GP3000S 1.0

GP3000S 1.0

Un routeur xPON Wi-Fi 6 doté d'un port USB 3.0, VoIP, modes doubles GPON/EPON, CWMP, OMCI, IPTV (IGMP Proxy/Bridge/Tag VLAN) et EasyMesh, adapté au déploiement de solutions FTTH.

  • Max 2.48 Gbps GPON / 1.25 Gbps EPON
  • Wi-Fi 6 double bande à 4 flux
  • Wi-Fi 2402 Mbps + 574 Mbps 1
  • 1 emplacement SC/APC
  • 4× GbE et 1× FXS RJ11
  • 1 port USB 3.0
  • TR069/TR098/TR111/TR143/TR181
  • EasyMesh
Afficher tous les détails
Spécifications matérielles
Spécifications du logiciel
Version du modèle
Version du modèle GP3000S 1.0
CPU
CPU CPU Details 1 GHz Dual-Core ARM Cortex-A53 CPU
Memory/Storage
Memory/Storage Flash/ROM 256 MB (2 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3L
xPON
xPON Protocols
  • GPON (ITU G. 984 standard | Class B+)
  • EPON (802.3ah)
Speed GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream,EPON: 1.25 Gbps Downstream / Upstream
Wavelength TX: 1310 nm
RX: 1490 nm
Max Transmission Distance 20 km
Wireless
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA
  • 5 GHz: 2× External
  • 2.4 GHz: 2× External
Beamforming True
Range Performance Max: 200 m (656 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces SC/APC Port 1
Gigabit RJ45 Ports 4
Ethernet Notes 1× LAN/WAN port, the rest are LAN ports.
FXS Ports 1× RJ11
USB-A 3.0 Ports 1
Max USB Power Output 5V⎓1.5A
LED
  • Power
  • PON
  • LOS
  • Internet
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
  • WPS
  • LAN
Physical Buttons
  • Power On/Off Button
  • Reset Button
  • WPS Button
  • Wi-Fi On/Off Button
Power Input DC Jack
Power
Power Power Methods DC
DC Input 12V 1.5A
Power Adapter Input: 100-240V~, 50/60 Hz
Output: 12V⎓1.5A
Reliability
Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 173×123.8×33 mm
6.81×4.87×1.3 inches
Package Content
Package Content
  • GP3000S
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 304×268×54 mm
11.97×10.55×2.13 inches
Mechanical
Mechanical Casing Material Plastic
Ordering Information
Ordering Information Units per Carton 20
Carton Dimension 55.6×55.5×32.5 cm
21.89×21.85×12.8 inches
Version du modèle
Version du modèle GP3000S 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 256
Recommended Client Upper Limit 100
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes xPON Wi-Fi Router
Mesh EasyMesh R4
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
USB Functions Samba Server
Wake on LAN True
Online Detection True
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • TR069/TR098/TR111/TR143/TR181
  • OMCI
  • OAM
Firmware Upgrade
  • Local Update
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • Wi-Fi Speed
General
General Multi-Band Backhaul True
  1. Le débit réel des données sans fil varie en fonction des conditions du réseau, des limitations du client et des facteurs environnementaux, notamment la disposition du bâtiment, les obstacles et l'emplacement du client.
