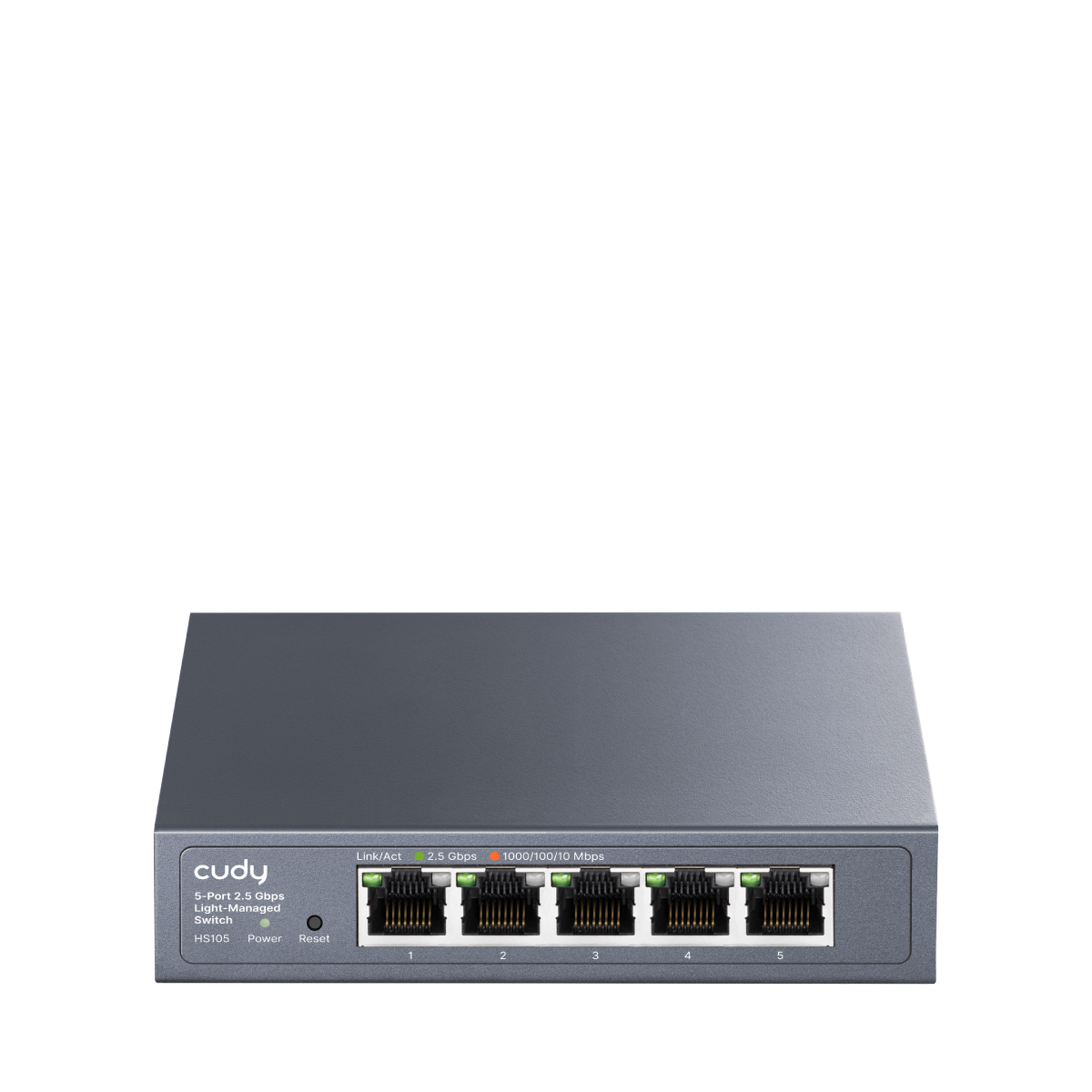

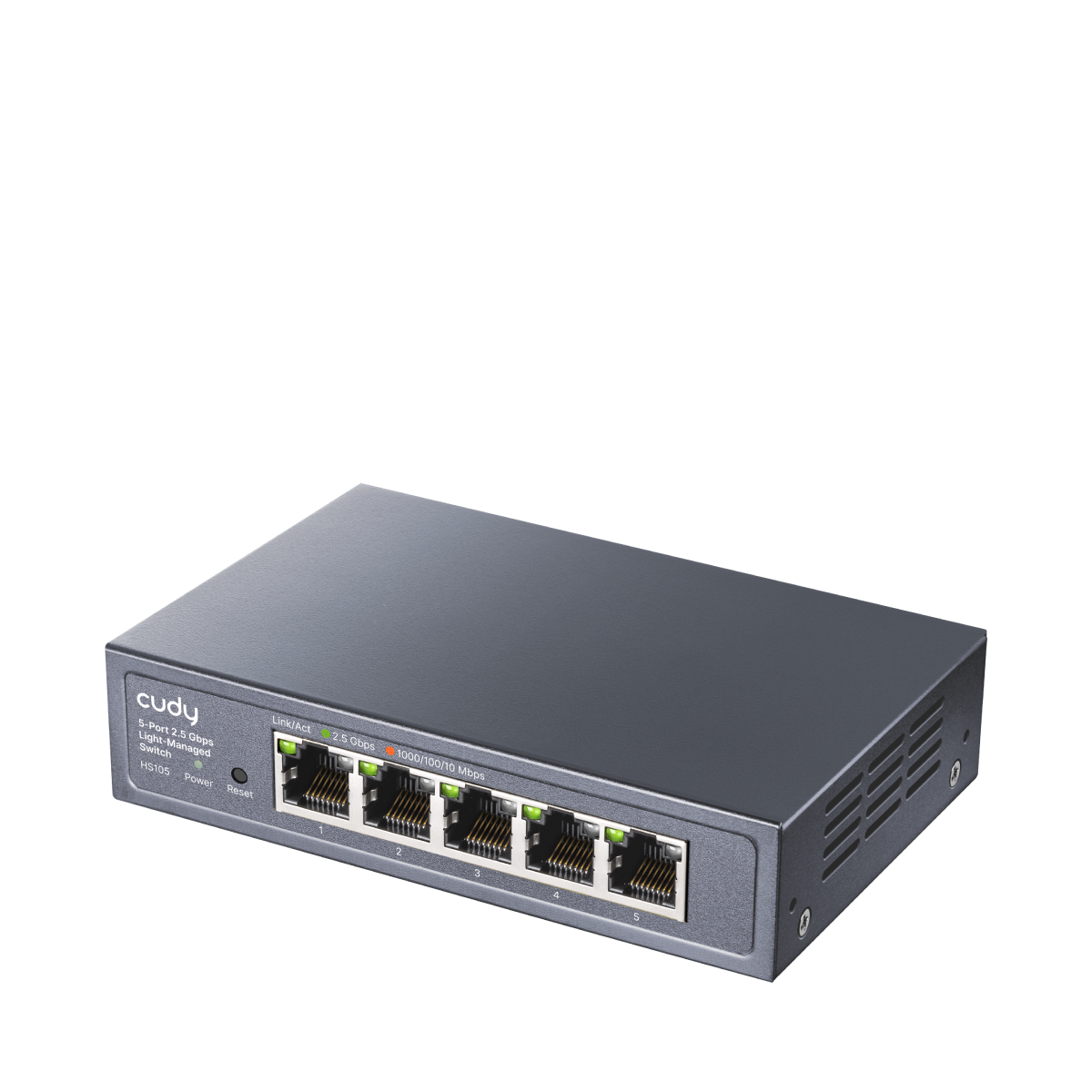

Commutateur géré par la lumière 5 ports 2,5 G

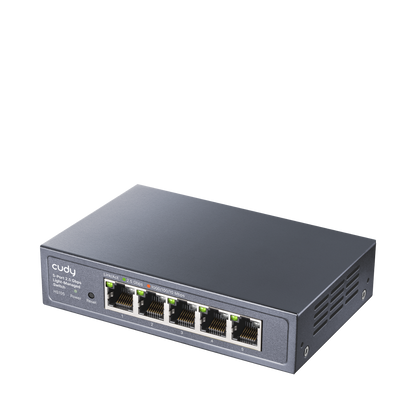

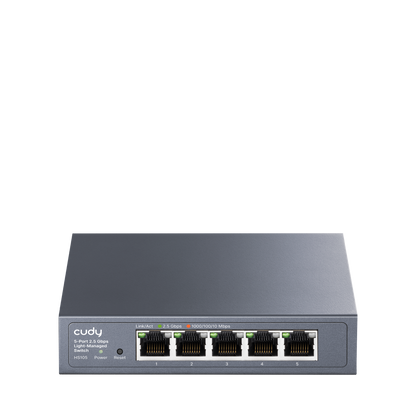

Commutateur géré par la lumière 5 ports 2,5 G, HS105 3.0

HS105 3.0

Un commutateur 2,5G à 5 ports avec fonctionnalités de gestion et boîtier métallique, idéal pour l'extension du réseau filaire 2,5 Gbit/s pour les NAS ou les demandes gourmandes en bande passante.

  • 5 ports Ethernet 2,5 G
  • Web Management
  • VLAN, QoS, Port Trunk, etc
  • Loop Prevention
  • EEE (802.3az Économie d'énergie)
  • Bureau, montage mural
  • 119 × 85 × 28 mm (4,69 × 3,35 × 1,1")
Afficher tous les détails
Version du modèle
Version du modèle HS105 3.0
Interfaces
Interfaces 2.5G RJ45 Ports 5
Shielded RJ45 Port True
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
LED
  • Power
  • Speed/Link/ACT of Each Ethernet Port
Power Input DC Jack
Physical Buttons Reset Button
Performance
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at 2.5 Gbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table 4096
Max Switching Capacity 25 Gbps
Max Forwarding Rate 18.6 Mpps
Jumbo Frame 9 KB
Packet Buffer 4 Mbit
Power
Power Basic Power Saving True
Power Methods DC
DC 12V⎓1A
Power Adapter Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption 6W
Idle Power Consumption 1.6W
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3bz 2.5GBASE-T
  • 802.3az Power Saving
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
Port Mirror Sessions 1
Port Trunk Groups 2
Max Port per Port Trunk Groups 4
L2 Features
  • Loop Prevention
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability Grounding Methods Grounding Point
EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 4kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
System
System Control Methods Config Web Page
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension 119×85×28 mm
4.69×3.35×1.1 inches
Casing Material Metal
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • HS105
  • Power Adapter
  • Installation Guide
  • Mounting Kit
Ordering Information
Ordering Information Retail Package Dimension 165×123×60 mm
6.5×4.84×2.36 inches
Units per Carton 20
Carton Dimension 37.6×26.4×33.8 cm
14.8×10.39×13.31 inches
