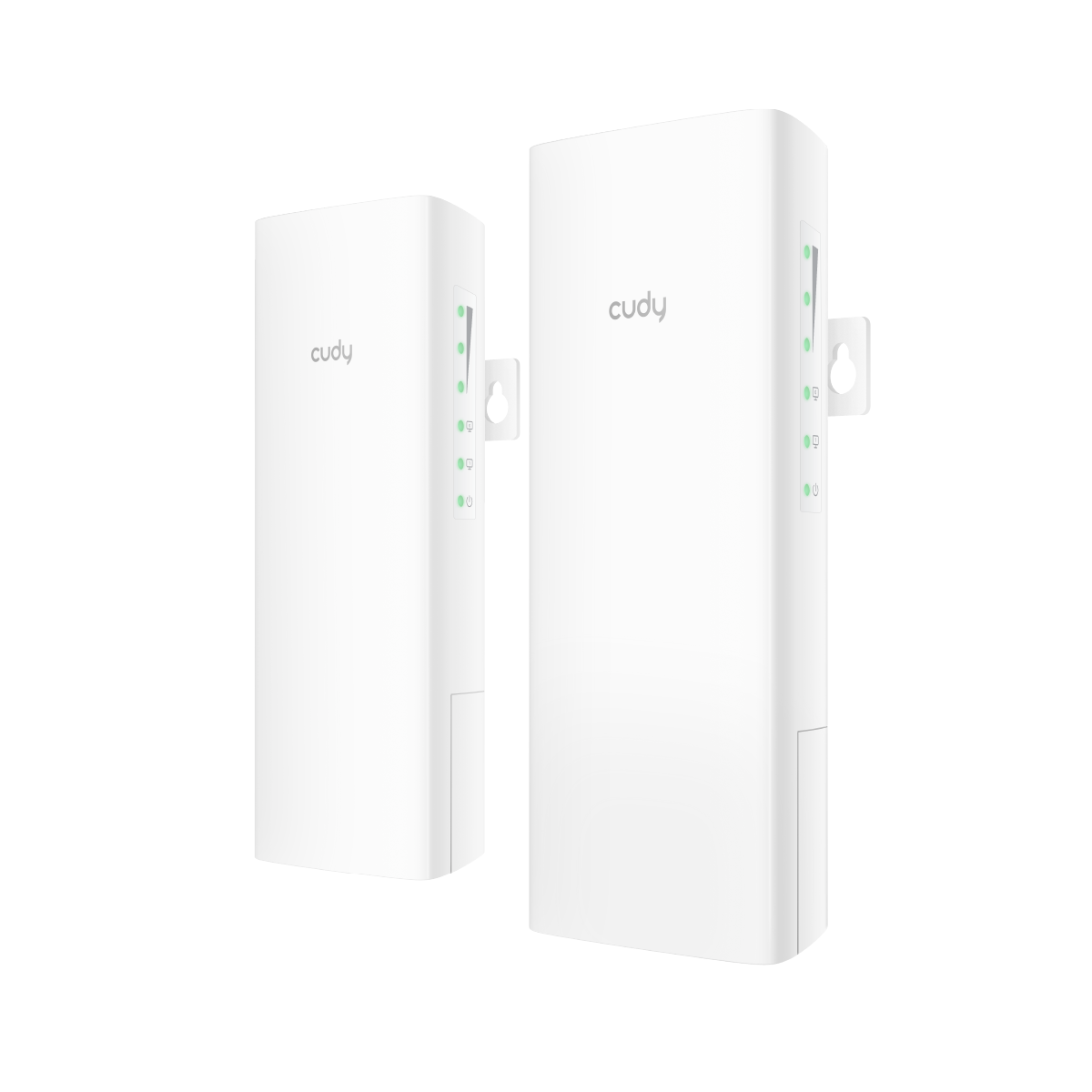

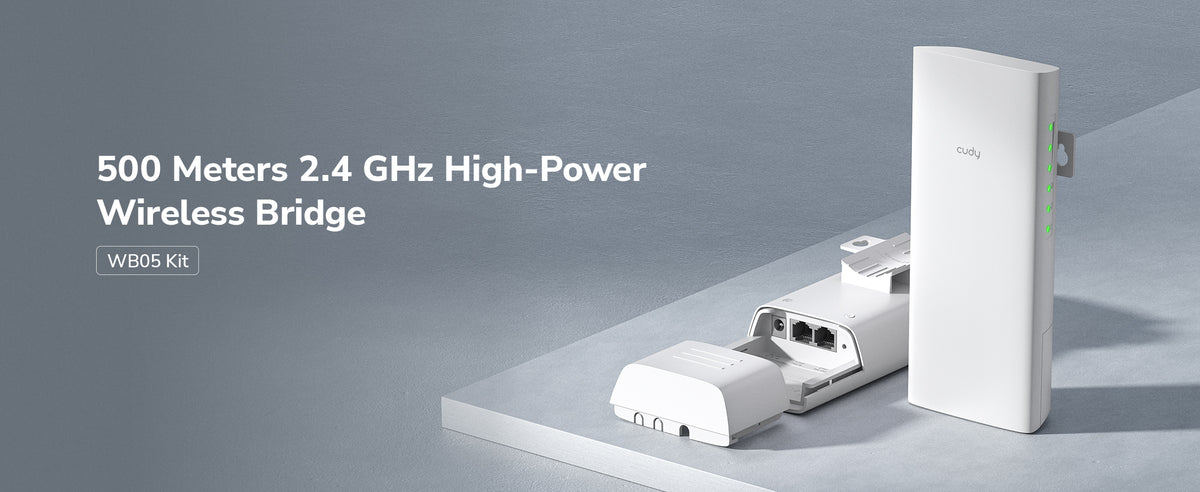

500 Meters 2.4 GHz High-Power Wireless Bridge

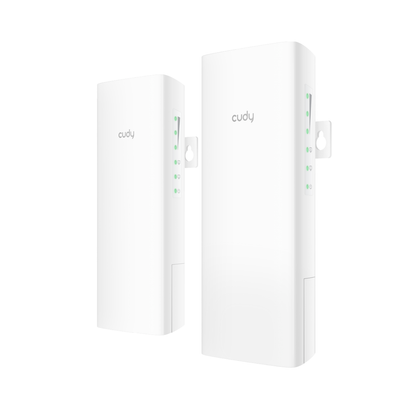

500 Meters 2.4 GHz High-Power Wireless Bridge, WB05 Kit 1.0

WB05 Kit 1.0

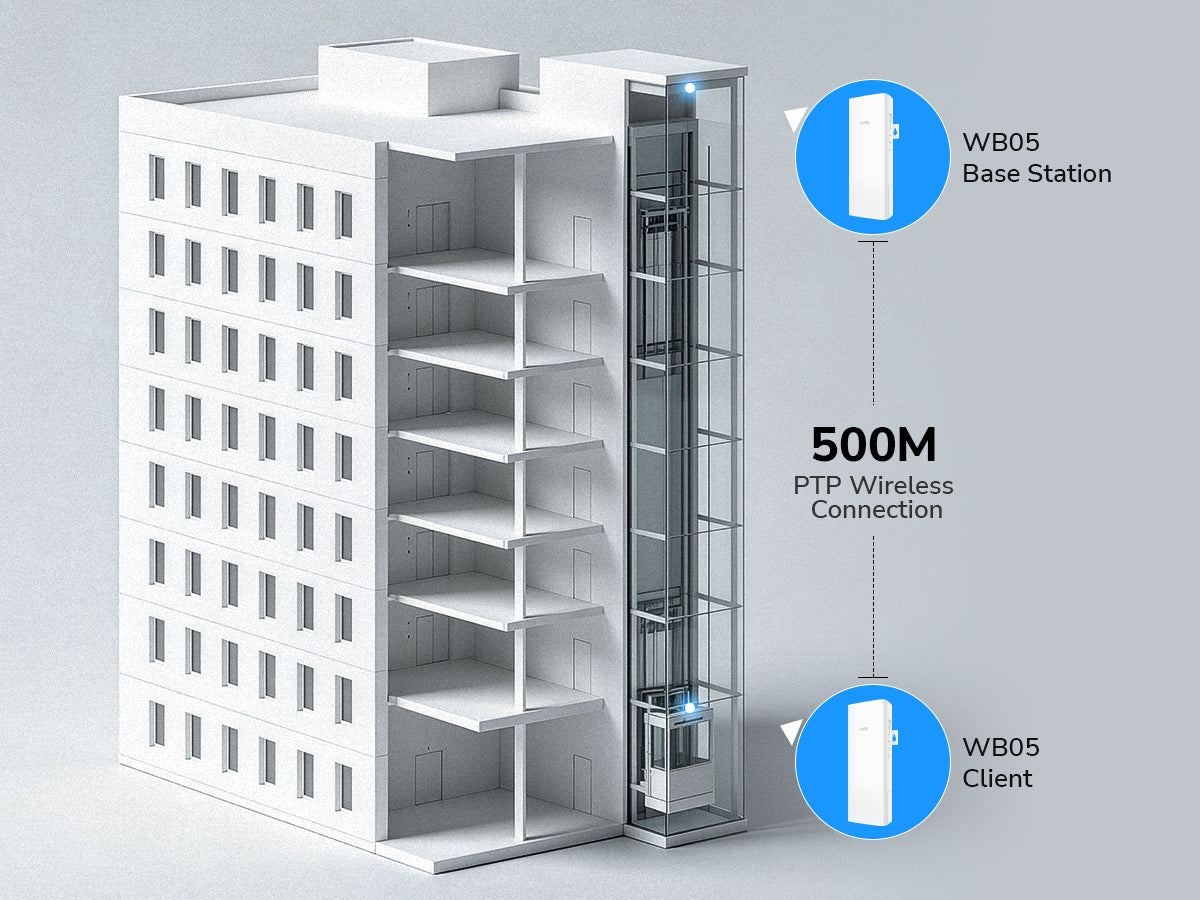

A 2.4 GHz wireless bridge designed to deliver stable and long-range connectivity up to 500 meters. Ideal for campuses, farms, and elevator surveillance PtP deployment.

  • 300 Mbit/s Wi-Fi 1
  • DC, Passive PoE
  • PoE Passthrough
  • 8 dBi High-Gain Antennas
  • IP55, -30~60°C (-30~140°F), 4kV Surge
View full details
Riistvara andmed
Tarkvara spetsifikatsioonid
Mudeli versioon
Mudeli versioon WB05 Kit 1.0
CPU
CPU CPU Details 580 MHz Single-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Wireless
Wireless 2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 2× Internal
2.4 GHz Antenna Gain Max 8 dBi
FEM or PA/LNA 2.4 GHz: 2× Internal
Beamwidth (H×V) 80° × 60°
Range Performance Max: 500 m (1640 ft)
Interfaces

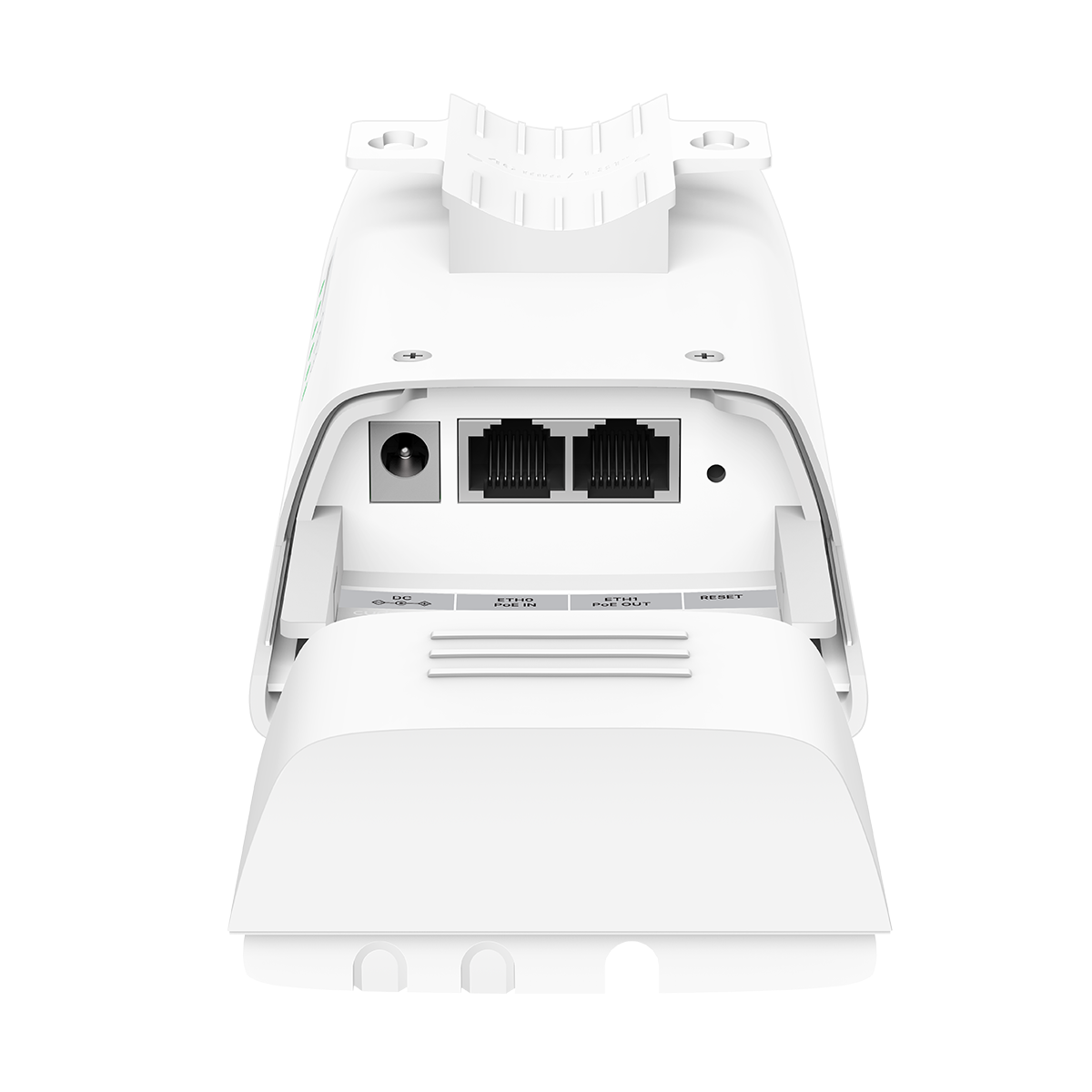

Interfaces 10/100 Mbps RJ45 Ports 2
Ethernet Notes ETH0 accepts PoE powering, ETH1 supports PoE passthrough (Optional)
PoE Passthrough Requirement Optional: PoE Passthrough is Off by default. Requires enabling in the configuration page and a 48V or higher PoE input on ETH0.

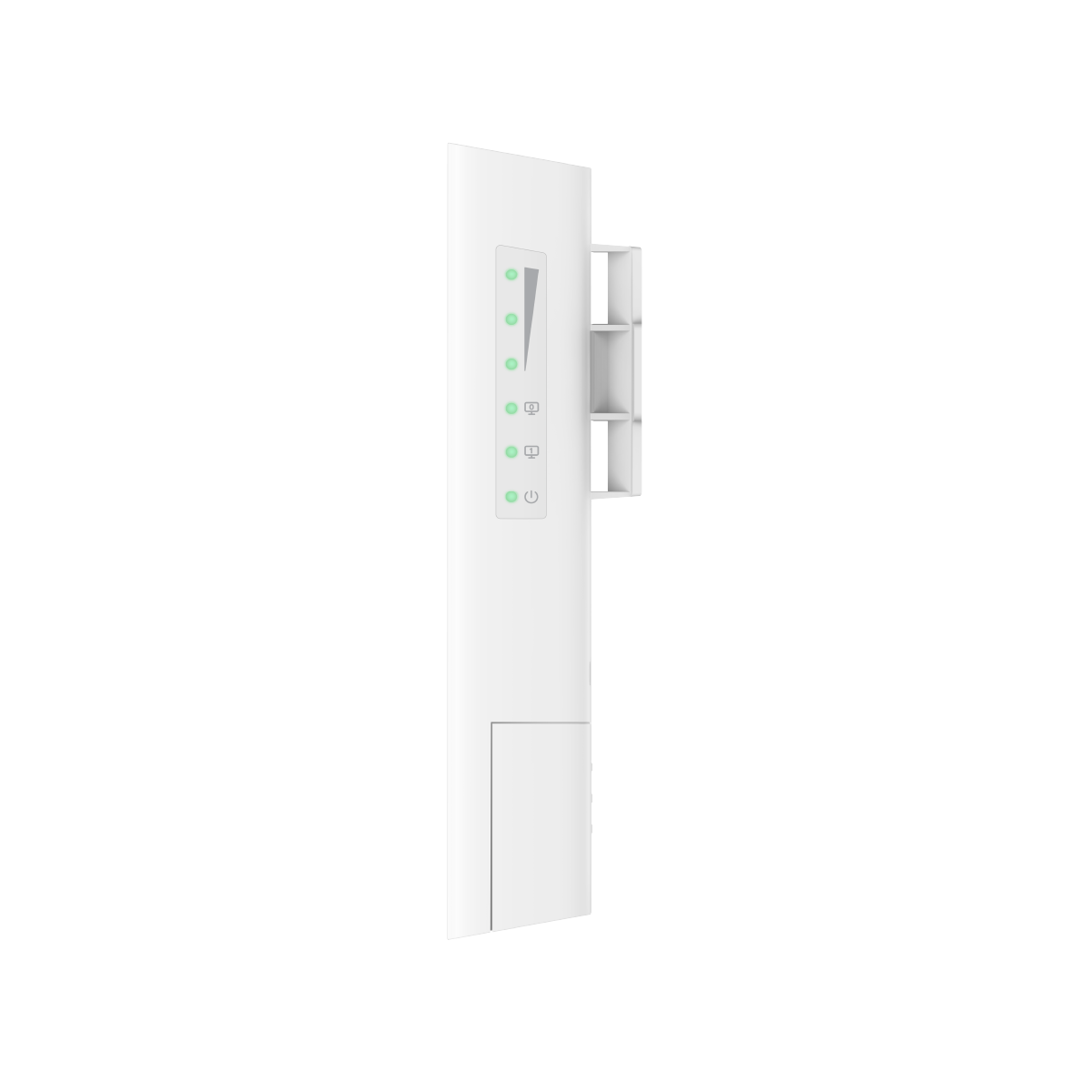

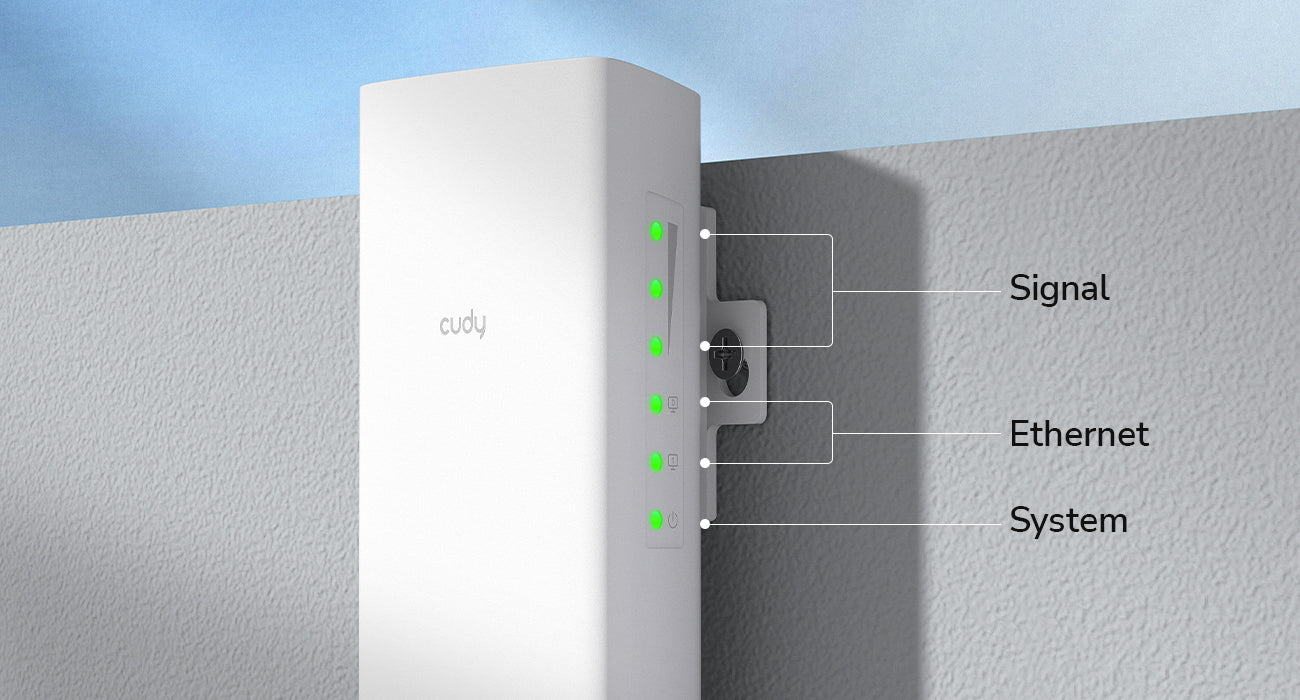

LED
  • System
  • Signal Strength
  • Ethernet
Physical Buttons
  • Reset Button
  • WPS Button

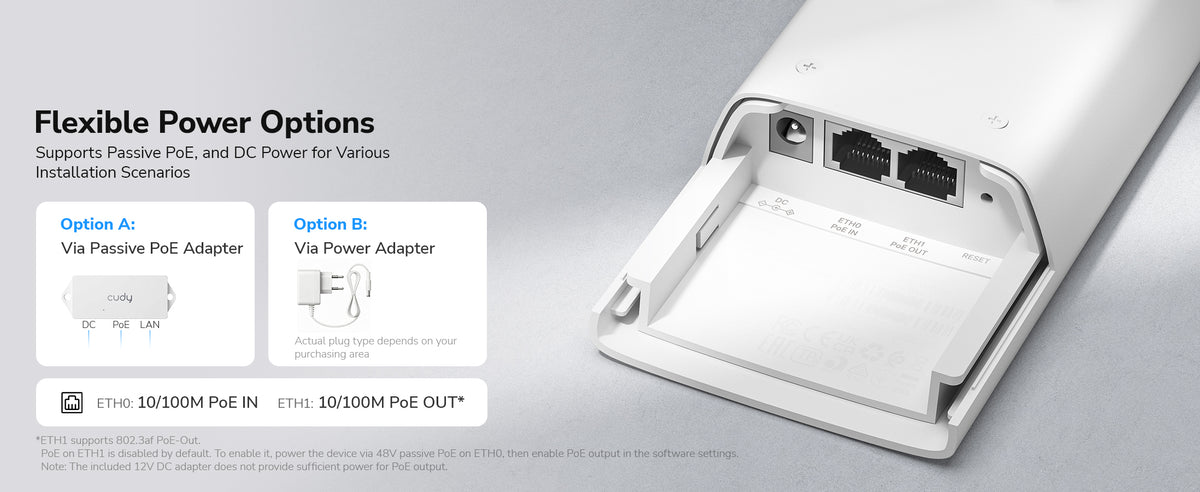

Power
Power Power Input Type
  • DC Jack
  • PoE via Ethernet Port
Power Methods
  • DC
  • Passive PoE
Power Input
  • DC: 12V⎓1A
  • Passive PoE: 12-57V⎓
Max Power Consumption (W) 4.5W
Idle Power Consumption (W) TBD
Reliability
Reliability EMC IEC/EN 61000-4-2 ESD Level 4: Contact 8kV, Air 15kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment
  • Operating Temperature: -30 ℃ ~ 60 ℃ (-22 ℉ ~140 ℉)
  • Operating Temperature with Normal Air Flow: -30 ℃ ~ 70 ℃ (-22 ℉ ~158 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 5% ~ 90% non-condensing
  • Storage Humidity: 0% ~ 100% non-condensing

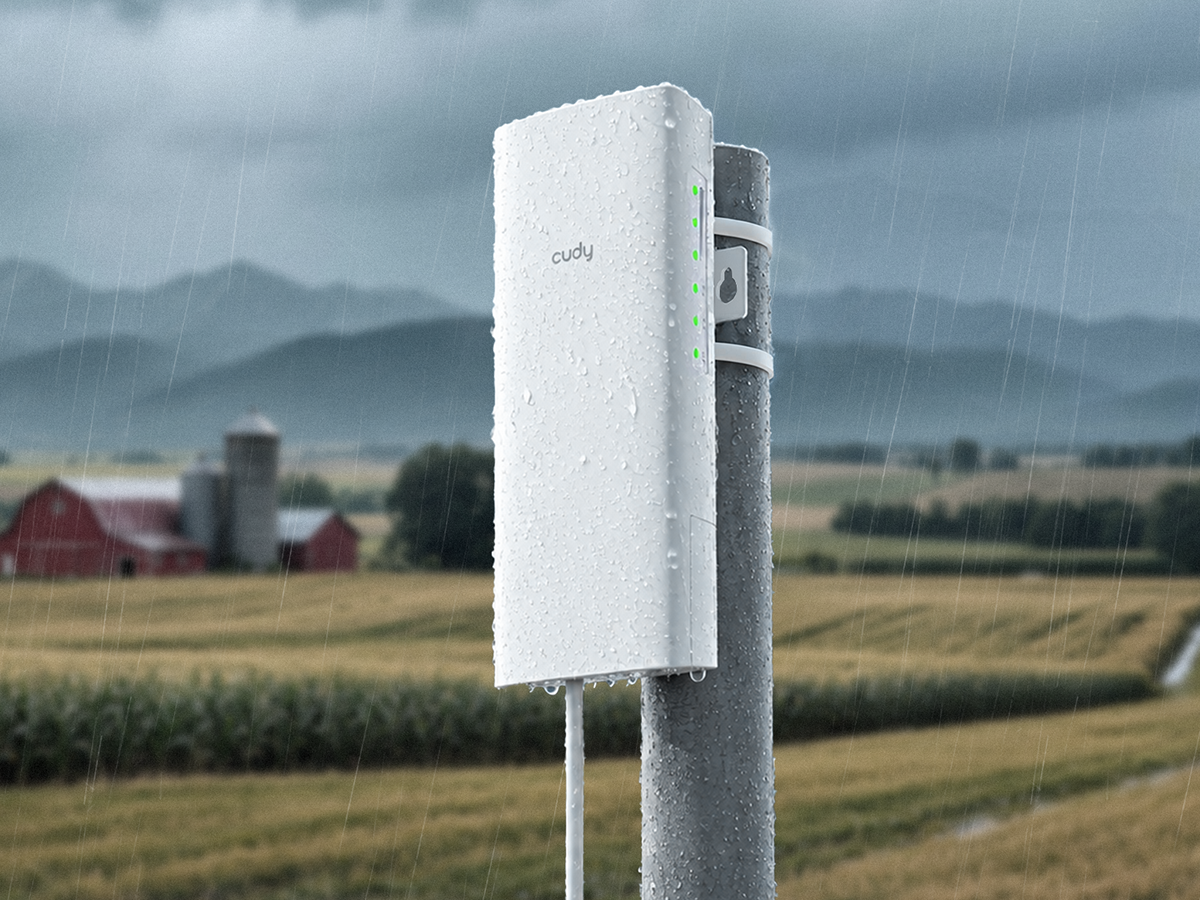

Ingress Protection Rating IP55
Certifications
Certifications FCC, CE
Mechanical

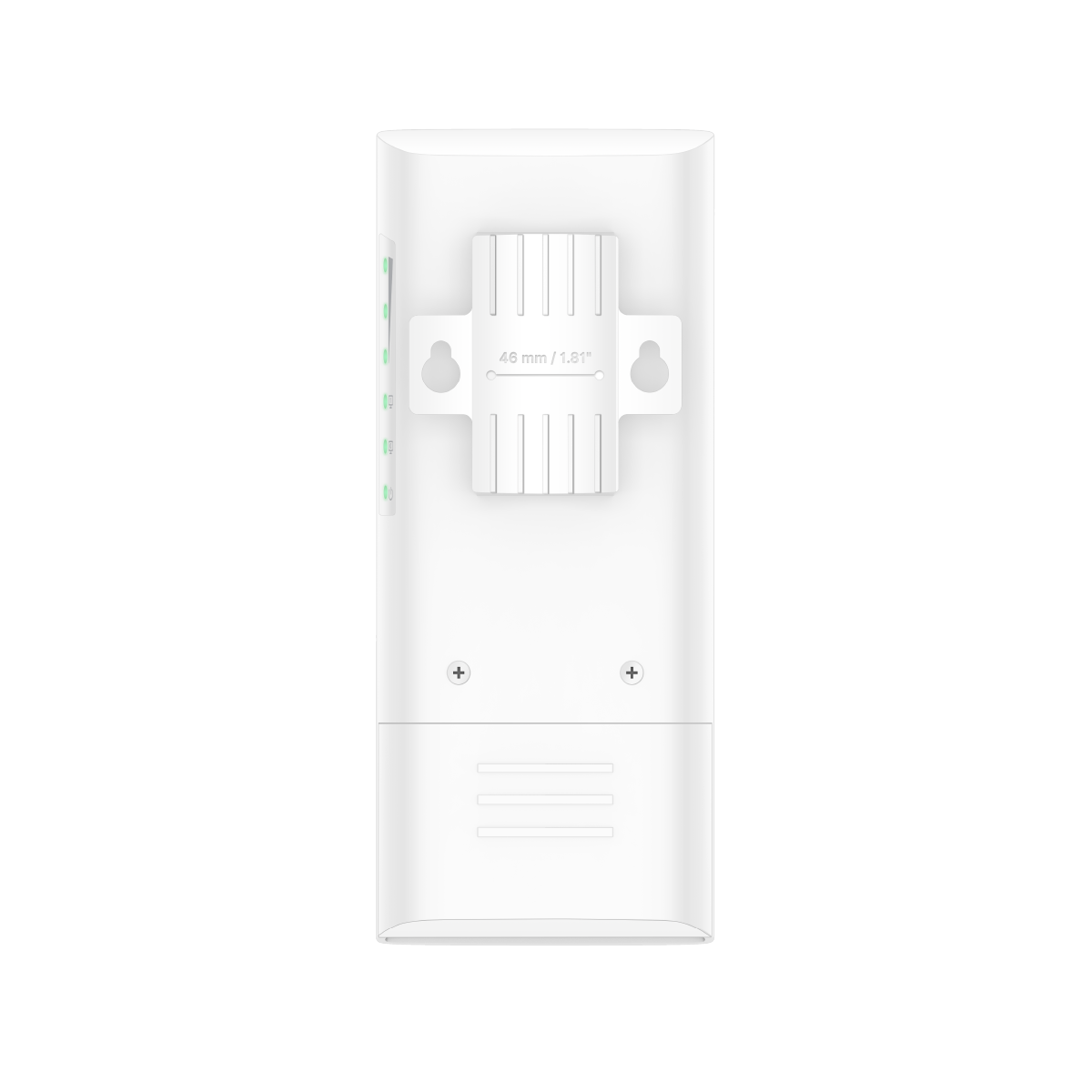

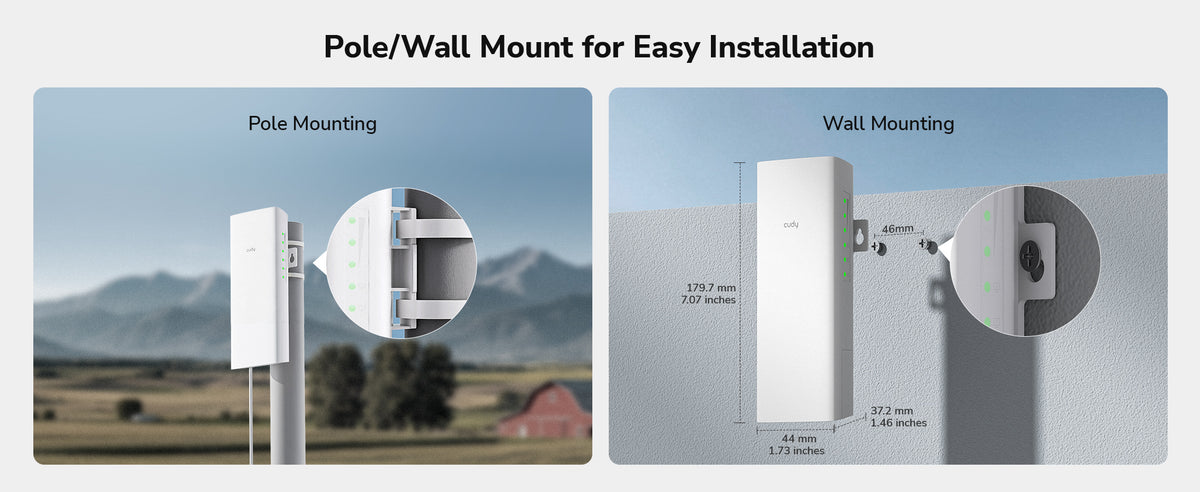

Mechanical Installation
  • Wall-mount
  • Pole-mount
Dimension 240×100×53.7 mm
9.45×3.94×2.11 inches

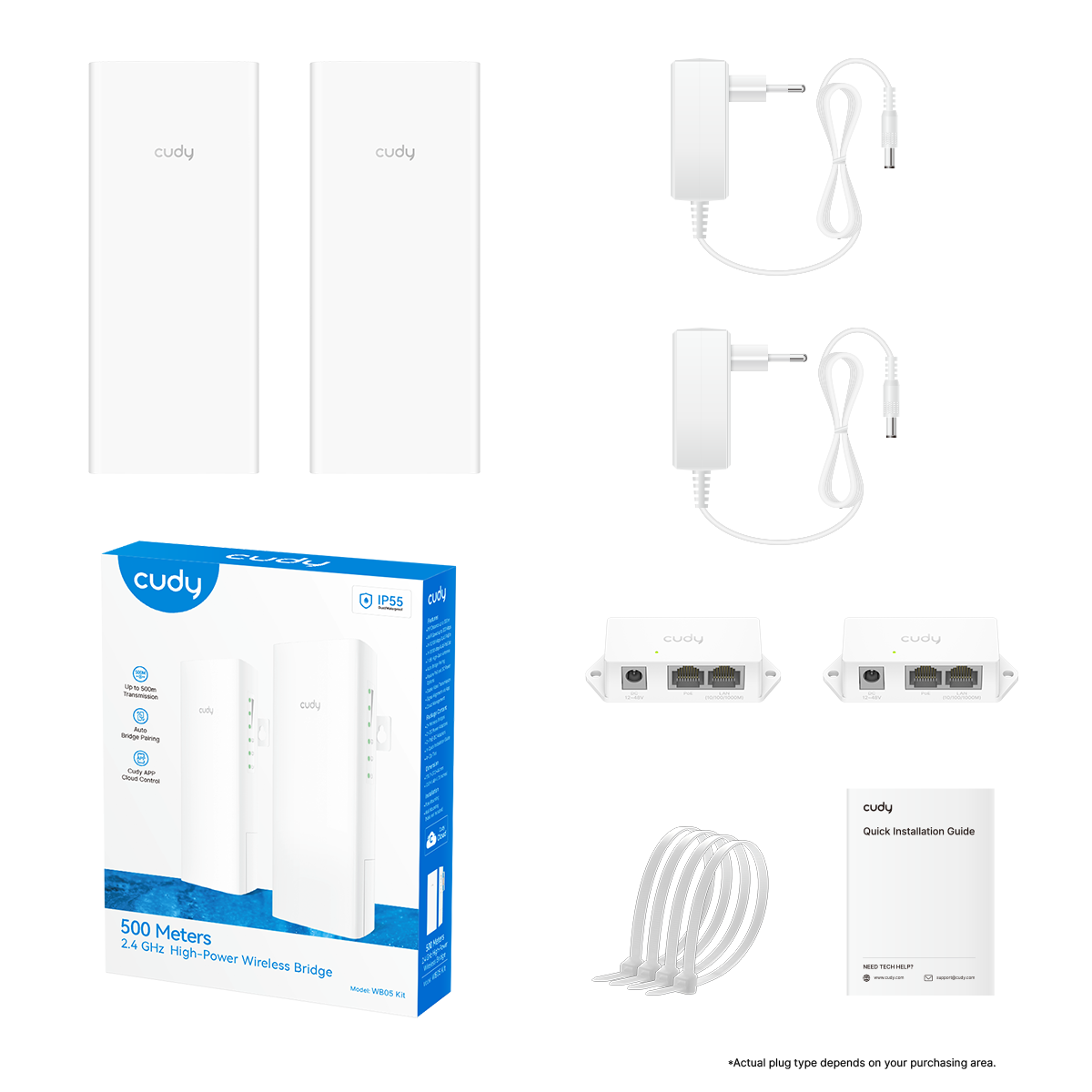

Package Content
Package Content
  • WB05 Kit
  • PoE Adapter
  • Power Cable
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Mudeli versioon
Mudeli versioon WB05 Kit 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 4
Max Wi-Fi Modulation 64-QAM
Max Wi-Fi Channel Width 80 MHz
Wi-Fi Security WPA/WPA2/WPA3
General
General Operation Modes
  • PtP Base Station
  • PtP Client
System
System LED Control
Local Control Method
  • Config Web Page

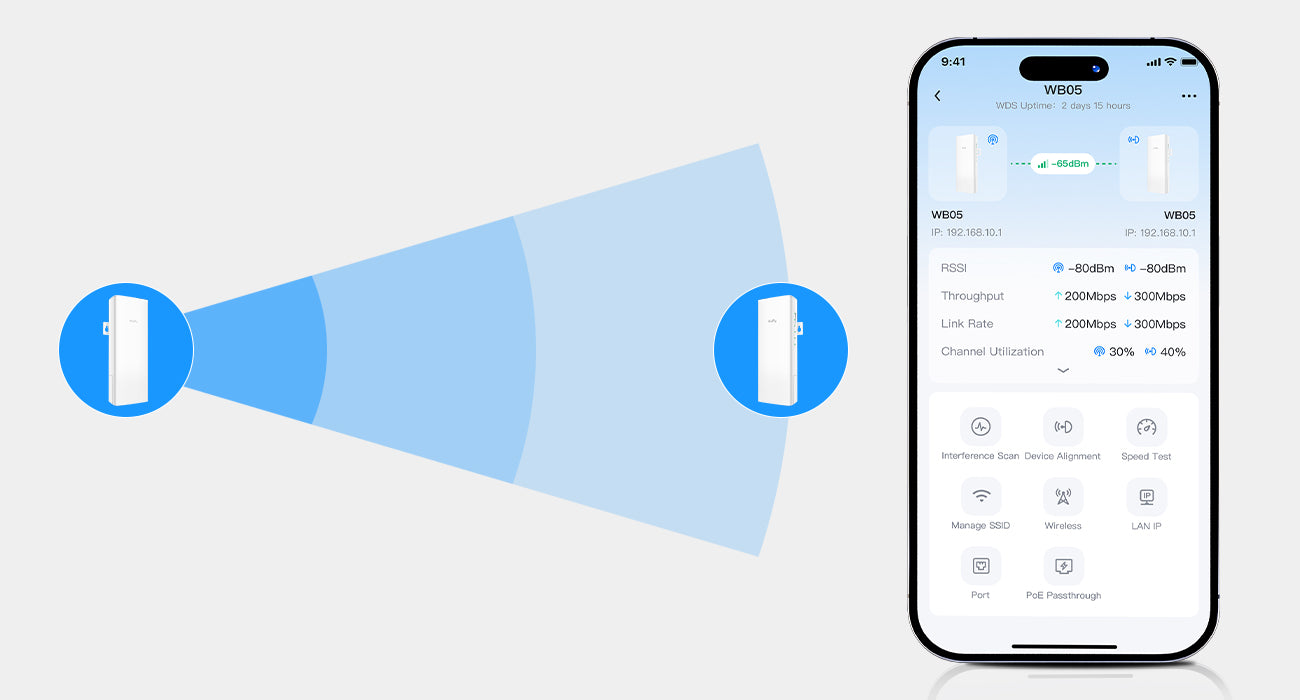

  • App Control
Remote Control Method App Control
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore

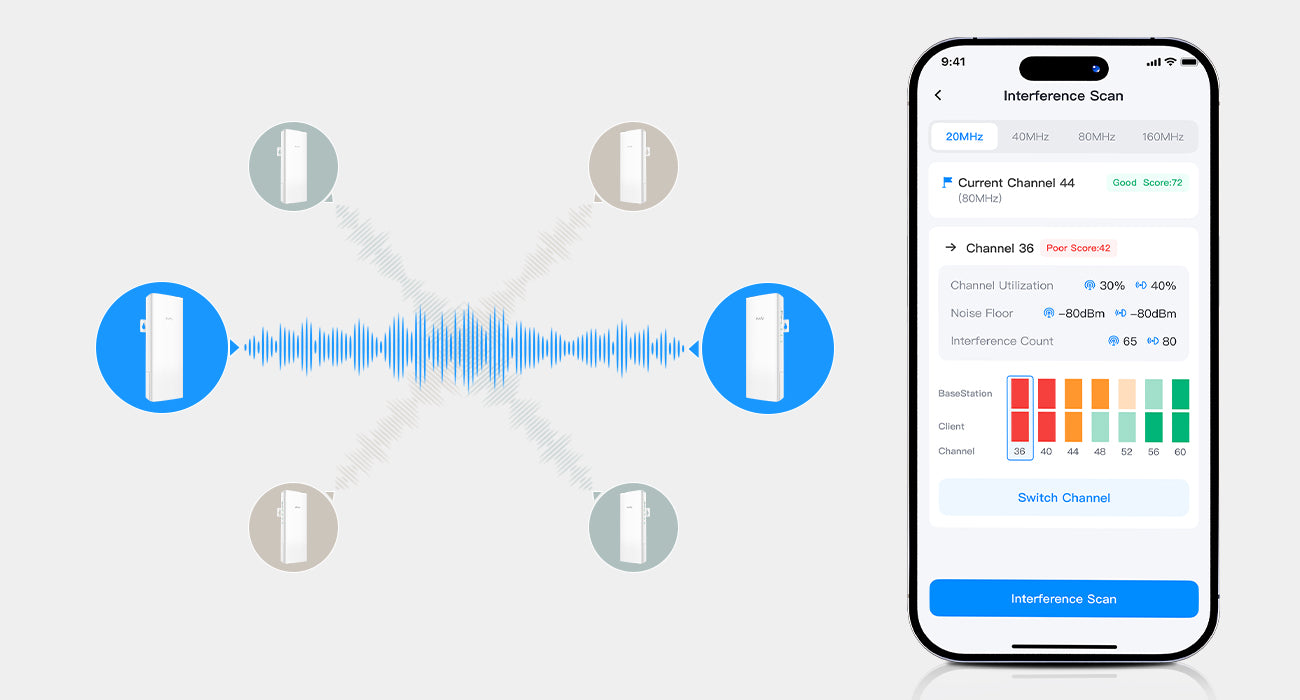

Diagnostic Tools Pairing Tools
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • LAN Status
  • System Version

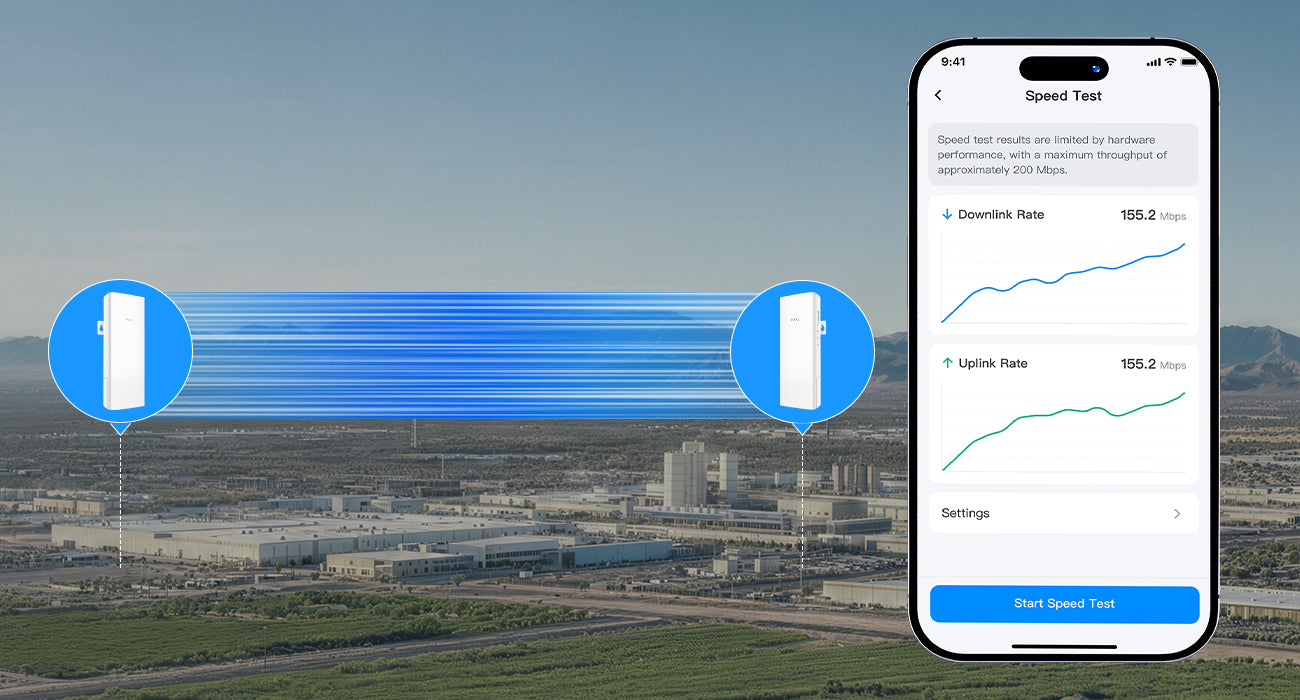

Charts
  • Throughput
  • RSSI
  • Latency
  1. Tegelik traadita andmeside läbilaskevõime sõltub võrgu tingimustest, kliendi piirangutest ja keskkonnateguritest, sealhulgas hoone paigutusest, takistustest ja kliendi asukohast.
