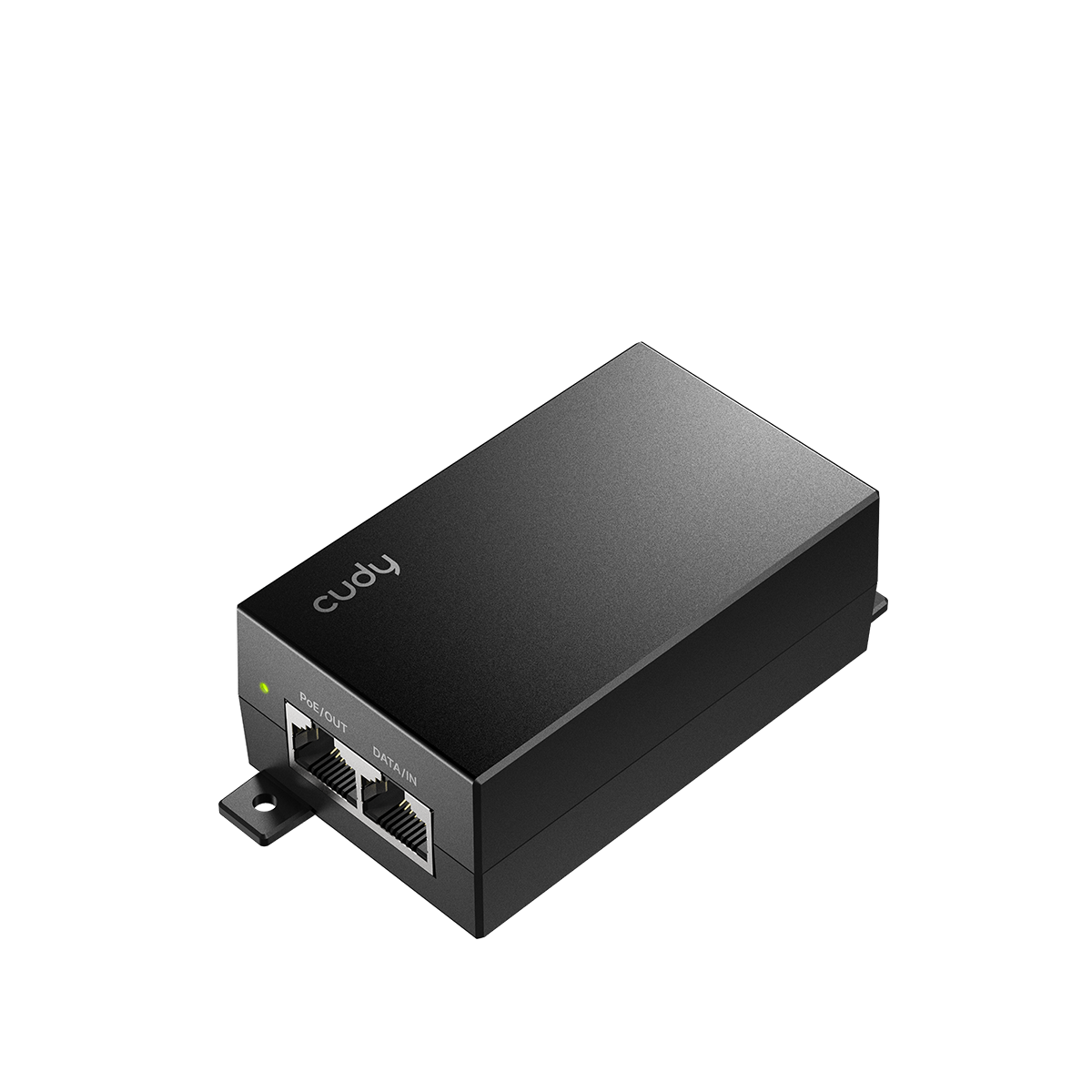

Gigabit 48V 18W Passive PoE Adapter

Name: Gigabit 48V 18W Passive PoE Adapter, POE48-18W 1.0
Brand: Cudy

Gigabit 48V 18W Passive PoE Adapter, POE48-18W 1.0

Product variants

A wall-mounted passive 48V PoE adapter with 18W power supply for powering up the PoE device.

Model Version
Model Version	POE48-18W 1.0
Protocols
Protocols	802.3 Protocols	802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair
PoE
PoE	Uplink Stream	1× GbE
	Downlink Stream	1× GbE, Passive PoE
	Downlink Pin Assignment	Mode B
	Transimission Distance	Cat. 5e or higher cable: 100 meters at Gigabit Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Interfaces
Interfaces	LED	Power
	Power Input	AC Inlet
Power
Power	AC	100-240V, 50/60Hz, 0.5A
	Max Power Output	18W, 48V⎓0.38A
Reliability
Reliability	Power Protection	Surge Protection ESD Protection Overvoltage Protection Short-Circuit Protection
	EMC	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 4kV
	Grounding Methods	Three-Prong Plug
	Safety	IEC/EN 62368
	Environment	Ambient Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~95% non-condensing
Certifications
Certifications	FCC, CE, CCC
Mechanical
Mechanical	Installation	Desktop Wall-mount
	Dimension	Main Part: 80.1×48.9×31.9 mm 3.15×1.93×1.26 inches Each Bracket: 9 mm 0.35 inches
	Casing Material	Plastic
Package Content
Package Content	POE48-18W Power Cord Mounting Kit Installation Guide
