Stable Wi-Fi for High-Density Environments

Deliver fast and stable wireless performance in busy environments like meeting rooms and offices. With Multi-Link Operation (MLO), the access point combines multiple bands to achieve higher throughput and lower latency, ensuring smooth video conferencing, data sharing, and real-time collaboration.

Stable Wi-Fi for High-Density Environments

Deliver fast and stable wireless performance in busy environments like meeting rooms and offices. With Multi-Link Operation (MLO), the access point combines multiple bands to achieve higher throughput and lower latency, ensuring smooth video conferencing, data sharing, and real-time collaboration.

Ultra-Performance 10G SFP+ Fiber Uplink

With 10G SFP+ uplink support, AP6500 goes beyond the limits of standard Gigabit connections, ensuring high-throughput, low-latency fiber connectivity and offering a reliable, future-proof solution for enterprise and commercial networks.

Ultra-Performance 10G SFP+ Fiber Uplink

With 10G SFP+ uplink support, AP6500 goes beyond the limits of standard Gigabit connections, ensuring high-throughput, low-latency fiber connectivity and offering a reliable, future-proof solution for enterprise and commercial networks.

Seamless Wi-Fi for Everywhere

Campus

Hospitality

Conference Center

Shopping Mall

Advanced Business Features

Captive Portal

Improve your brand awareness by displaying a customized login page for new clients.

Band Steering

Assign devices to less congested bands.

Auto Channel Selection

Avoid signal interruptions with nearby access points.

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

1 10

BE6500 Ceiling Mount Dual-Band Wi-Fi 7 Access Point

BE6500 Ceiling Mount Dual-Band Wi-Fi 7 Access Point, AP6500 1.0

AP6500 1.0

2 Versions Available

A wall/ceiling-mounted WiFi 7 AP designed for high-demand deployments in hospitality, education, and transportation environments, featuring a 10G SFP slot and a 2.5G PoE IN port.

  • 6-Stream Dual-Band Wi-Fi 7
  • Broadcom 2 GHz Quad-Core CPU
  • 5765 Mbps + 688 Mbps Wi-Fi 1
  • 1× 10G SFP, 1× 2.5GbE PoE IN
  • 802.3at, Passive PoE, DC
  • Multi-AP Management 2
  • Captive Portal, Multi-SSID
  • 200 Connected Devices 3
View full details
Hardware Specs
Software Specs
Model Version
Model Version AP6500 1.0
CPU
CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Wireless
Wireless 5 GHz Wi-Fi Speed 5765 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
5 GHz Wi-Fi Streams 4 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 6× Internal
FEM or PA/LNA
  • 5 GHz: 4× External
  • 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Interfaces 10G SFP+ Slots 1
2.5G RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Interfaces
  • DC Jack
  • PoE via Ethernet Port
Power
Power Power Methods
  • DC
  • Passive PoE
  • 802.3at PoE
Power Input
  • DC: 12V⎓1.5A
  • Passive PoE: 48-57V⎓
  • PoE: 802.3at/af
Power Adapter In the Box AP6500 | No adapter in the box
AP6500_P | PoE Adapter in the box:
Input: 100-240V~, 50/60Hz
Output: 48V⎓ Passive PoE
Max Power Consumption (W) 18 W
Reliability
Reliability Advanced Hardware Watchdog
EMC ESD: Contact: 4kV; Air: 8kV
Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension 231.9×231.9×57.1 mm
9.13×9.13×2.25 inches
Product Weight 536.0 g (18.91 oz.)

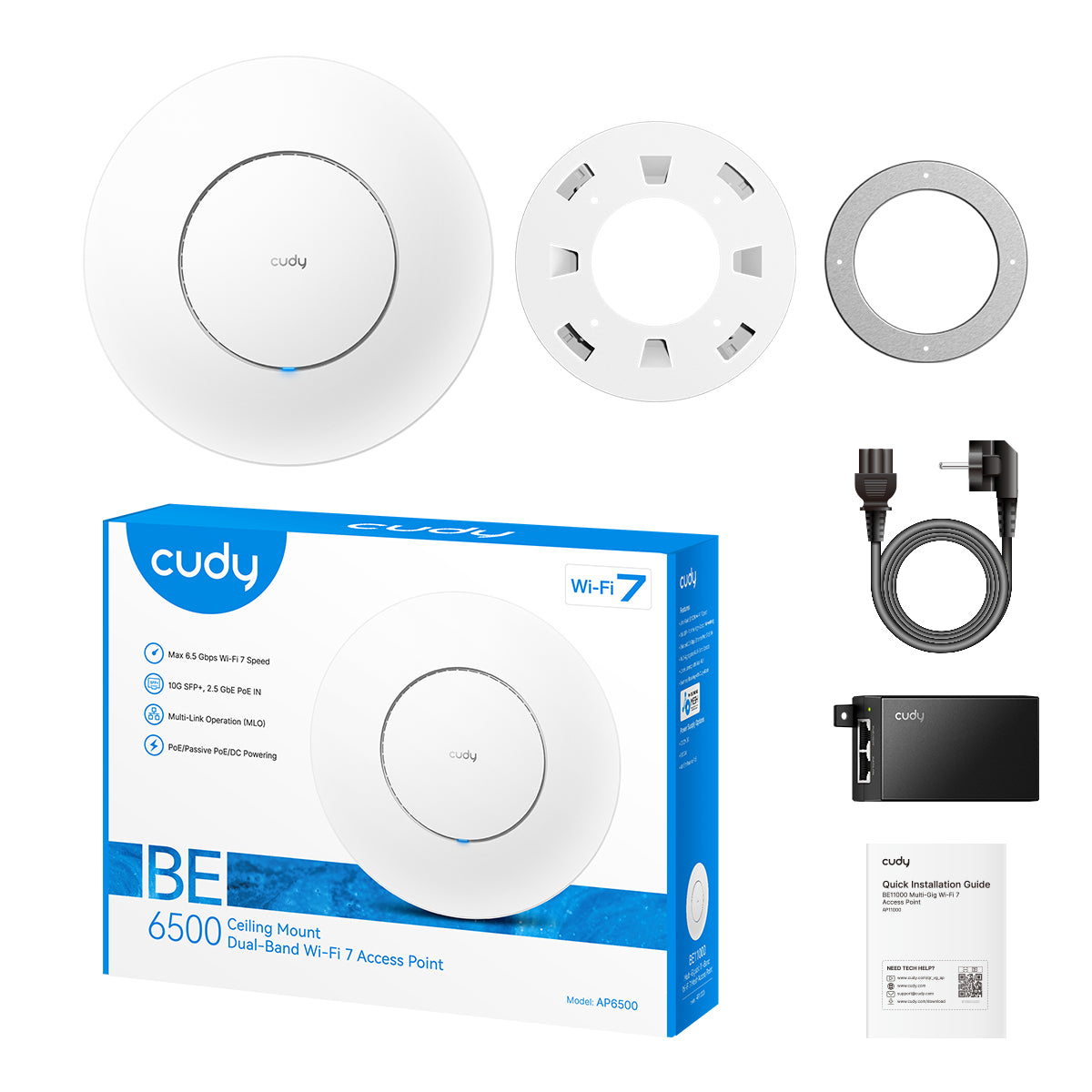

Package Content
Package Content
  • AP6500
  • Mounting Kit
  • Installation Guide
  • PoE Adapter (_P Model Only)
  • Ethernet Cable (_P Model Only)
Ordering Information
Ordering Information Retail Package Weight EU: 929.3 g (32.78 oz.)
Retail Package Dimension 310×238×73 mm
12.2×9.37×2.87 inches
Units per Carton 10
Carton Net Weight EU: 9.3 kg (20.5 lbs)
Carton Gross Weight EU: 10.2 kg (22.49 lbs)
Carton Dimension 49.5×38.7×33.2 cm
19.49×15.24×13.07 inches
Compatibility
Compatibility Compatible Products C200P 1.0
Compatible Accessories POE400H 1.0, POE200H 1.0, POE52-30W 1.0, POE48-18W 1.0
Note Choose with caution: some suggested models may not deliver speeds that match the device’s maximum capability.
Model Version
Model Version AP6500 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 7
Max Wi-Fi Modulation 4K-QAM
Wi-Fi Efficiency
  • MLO
  • MRU
  • Puncturing
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Multi-SSID (Max Number) 8 SSIDs (Up to 4 SSIDs on each band), VLAN Support
WPS
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities Captive Portal
VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN
Online Detection
Management
Management Multi-AP Management Supported via Cudy AP Controller
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • Wi-Fi Speed
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. Cudy AP Controller is required to enable this feature.
  3. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
