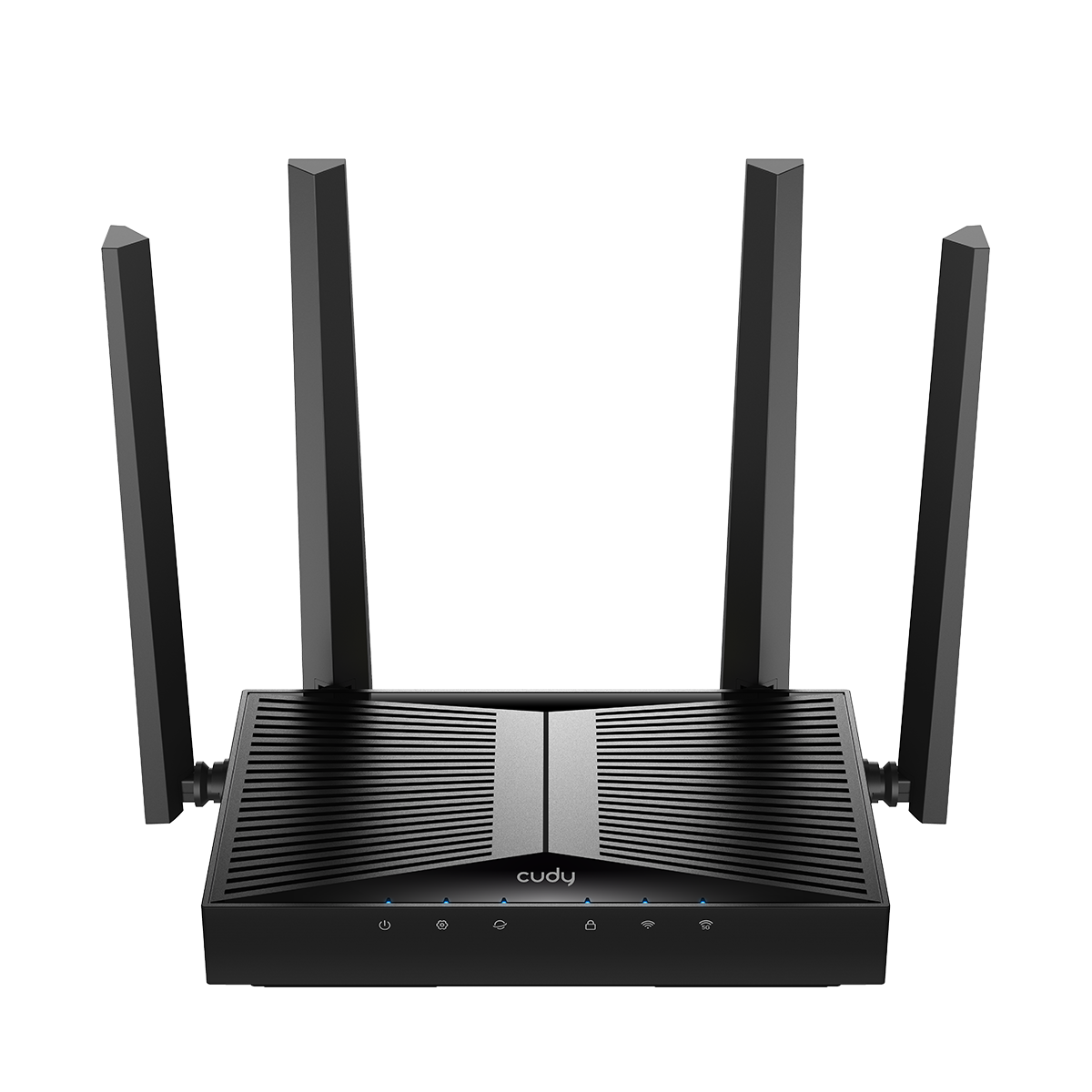

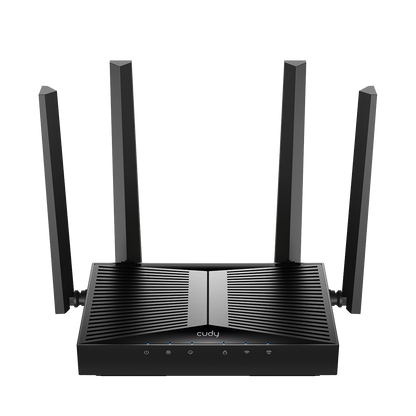

WR3600H
2.0
- BE21000 10G
- BE11000 4× 2.5G
- BE6500 2.5G
- BE6500 Black
- BE5000 2.5G
- BE3600 2.5G
- BE3600 Black
- BE3600 White
- BE3600 Mini
- AX3000 2.5G PoE
- AX3000 2.5G
- AX3000 5-GbE
- AX3000 5-GbE
- AX3000 4-GbE
- AX3000 Mini
- AX1500
- AC1200 5-GbE USB
- AC1200 5-GbE
- AC1200 3-GbE
- AC1200 Mini
- AC1200 5-FE
- AC1200 4-FE
- N300 High-Power
- N300
Planning
Amazon A+ Content
| Model Version | ||
|---|---|---|
| Model Version | WR3600H 2.0 | |
| CPU | ||
| CPU | CPU Details | 1.2 GHz Dual-Core |
| Memory/Storage | ||
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | ||
| Wireless | 5 GHz Wi-Fi Speed | 2882 Mbps |
| 2.4 GHz Wi-Fi Speed | 688 Mbps | |
| Wi-Fi Antennas | 4× Fixed | |
| 5 GHz Antenna Gain Max | 5.5 dBi | |
| 2.4 GHz Antenna Gain Max | 5.4 dBi | |
| FEM or PA/LNA |
|
|
| Interfaces | ||
| Interfaces | Physical Buttons |
|
| 2.5G RJ45 Ports | 2 | |
| Gigabit RJ45 Ports | 3 | |
| Ethernet Notes | 1× 2.5G WAN port, 1× 2.5G LAN port, 3× Gigabit LAN ports | |
| Power | ||
| Power | Power Input Type | DC Jack |
| Interfaces | ||
| Interfaces | LED |
|
| Power | ||
| Power | Power Methods | DC |
| Power Input | 12V⎓1.5A | |
| Max Power Consumption (W) | 14W | |
| Reliability | ||
| Reliability | Environment |
|
| Mechanical | ||
| Mechanical | Dimension |
Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches |
| Installation |
|
|
| Package Content | ||
| Package Content |
|
|
| Ordering Information | ||
| Ordering Information | Retail Package Dimension |
330×256×60 mm 12.99×10.08×2.36 inches |
| Wireless | ||
| Wireless | 5 GHz Wi-Fi Streams | 2 Spatial Streams |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams | |
| Power | ||
| Power | Power Adapter In the Box |
Input: 100-240V~, 50/60Hz Output: 12V⎓1.5A |
| Wireless | ||
| Wireless | Range Performance |
Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| Wall Performance |
Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
|
| Ordering Information | ||
| Ordering Information | Units per Carton | 10 |
| Carton Dimension |
52.8×31.7×34.7 cm 20.79×12.48×13.66 inches |
|
| Wireless | ||
| Wireless | Beamforming | |
| Certifications | ||
| Certifications | FCC, CE | |
| Model Version | ||
|---|---|---|
| Model Version | WR3600H 2.0 | |
| Wireless | ||
| Wireless | Wi-Fi Standards | Wi-Fi 7 |
| Max Wi-Fi Modulation | 4K-QAM | |
| Wi-Fi Efficiency |
|
|
| Max Capacity | TBD | |
| Recommended Client Upper Limit | TBD | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | ||
| General | ||
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
|
|
| Multi-Band Backhaul | ||
| WAN Mode |
|
|
| Notes | Cudy Mesh and related backhaul features will be available with later firmware upgrade. | |
| Network | ||
| Network | QoS | Per-User Rate Limiting |
| DHCP |
|
|
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
|
|
| Multicast | ||
| IPTV/VLAN |
|
|
| TTL Customization |
|
|
| IGMP |
|
|
| Forwarding |
|
|
| Firewall |
|
|
| Application Layer Gateway |
|
|
| Utilities | ||
| Utilities | VPN Server |
|
| VPN Client |
|
|
| DNS Options |
|
|
| DNS over TLS Providers |
|
|
| Wake on LAN | ||
| Online Detection | ||
| Management | ||
| Management | Parental Controls |
|
| All Devices Management |
|
|
| Per-Devices Management |
|
|
| Content Management |
|
|
| System | ||
| System | LED Control | |
| Local Control Method |
|
|
| Remote Control Method |
|
|
| Firmware Upgrade |
|
|
| Reliability |
|
|
| Diagnostic Tools |
|
|
| Languages |
|
|
| Dashboard | ||
| Dashboard | Panel |
|
| Charts |
|
|
- Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
- The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
