5G NR SA/NSA Outdoor Router

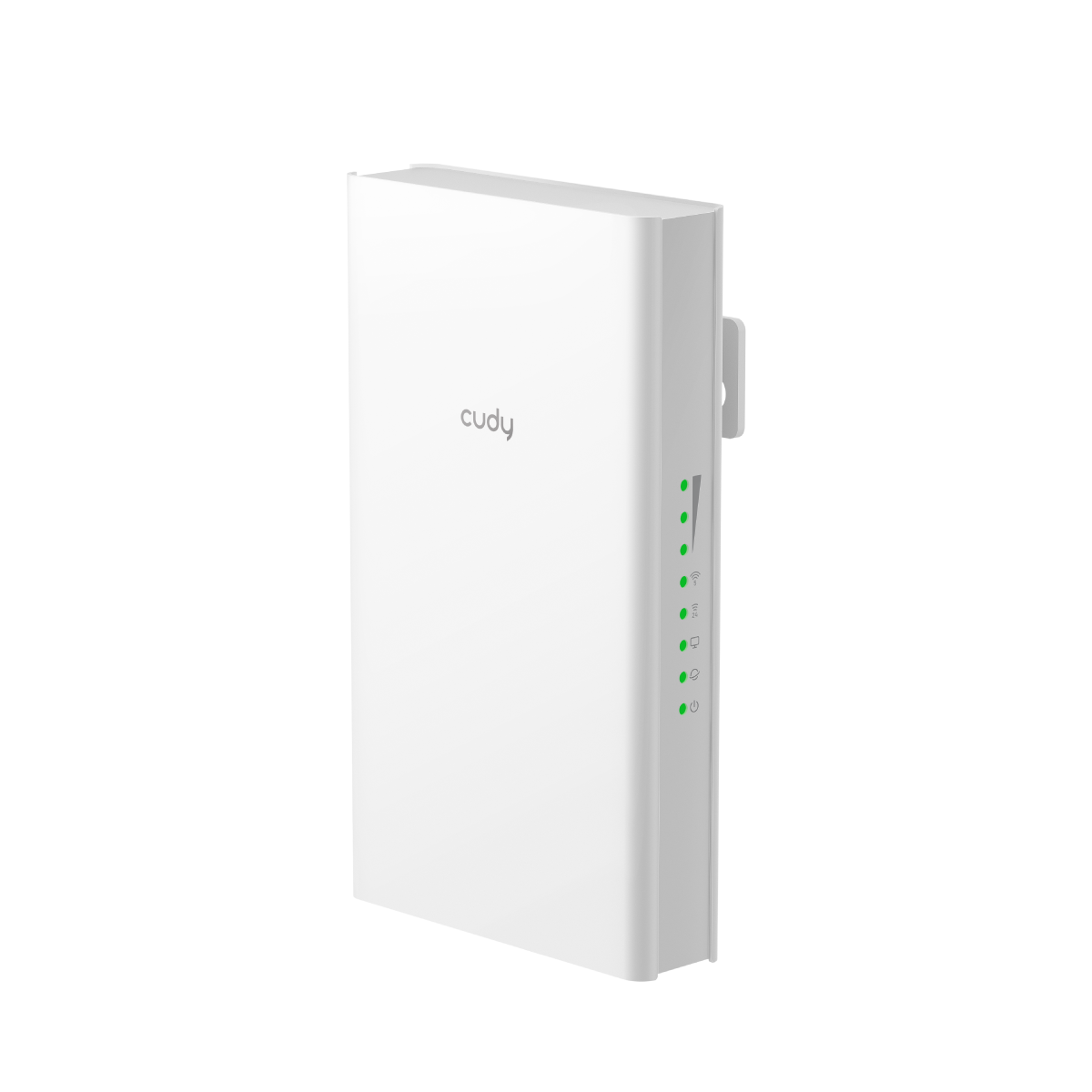

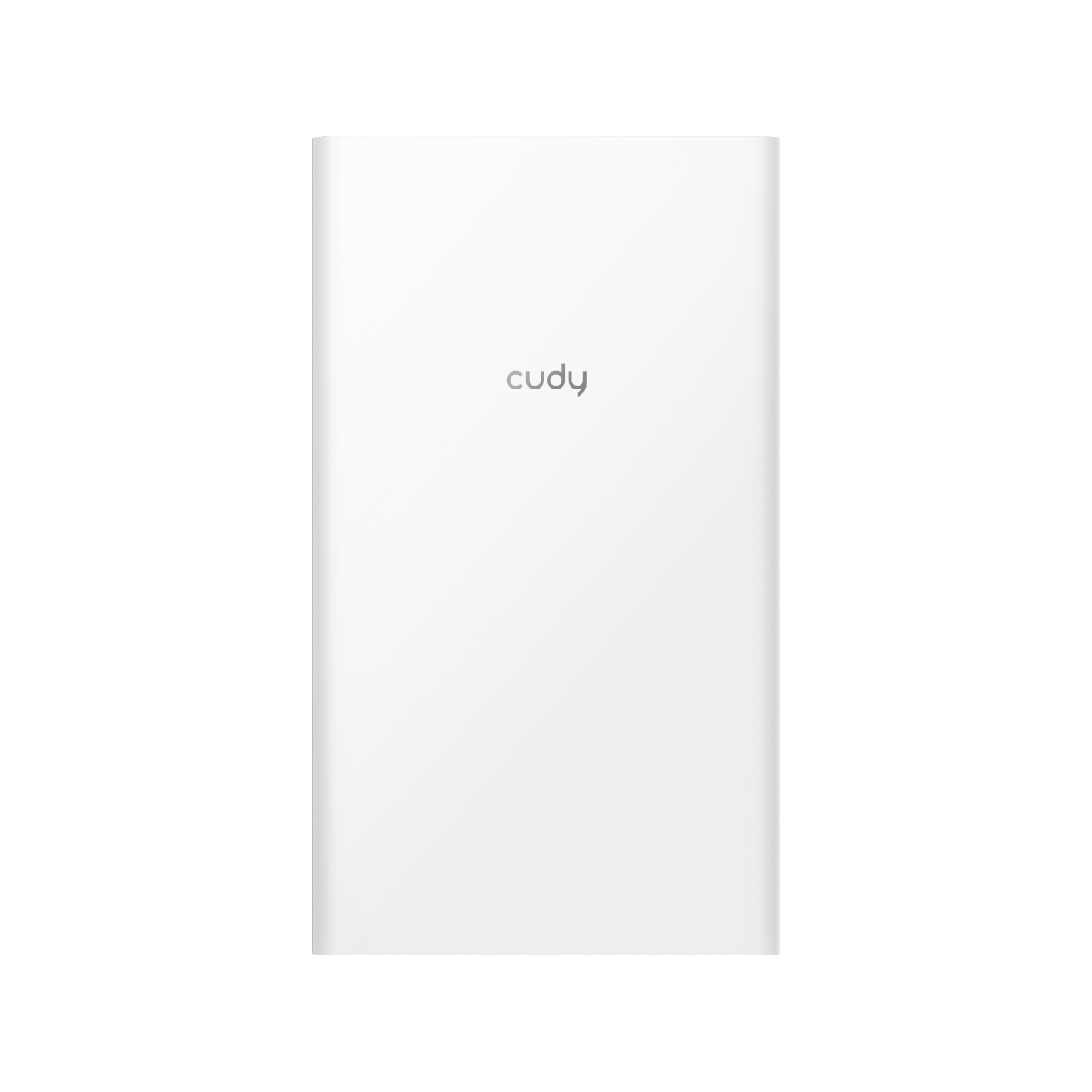

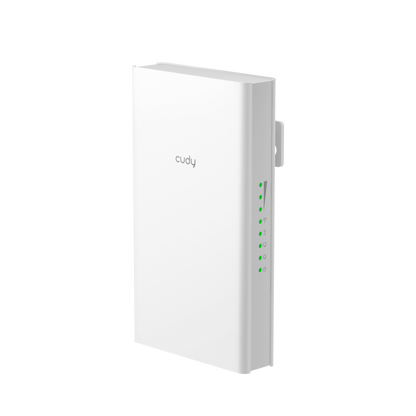

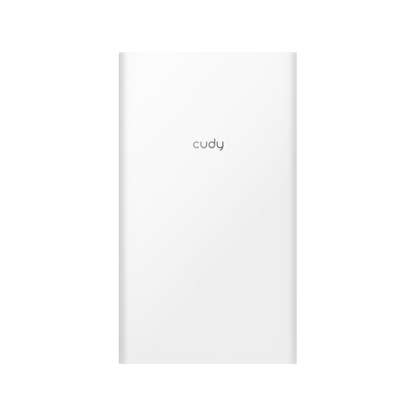

5G NR SA/NSA Outdoor Router, P2 ODU 1.0

P2 ODU 1.0

A 5G NR SA/NSA outdoor CPE with a maximum download speed of 2.6 Gbps. Featuring dual SlM slots with optional eSlM and a 2.5G Ethernet port, it is ideal for premium FWA deployments.

  • IP67, -40~70°C (-40~158°F), 6kV Surge
  • 5G Rel. 15 with Max 2.6 Gbps DL 1
  • 5G/4G Dual Connectivity, 4×4 MIMO
  • 1× 2.5 Gbps Ethernet Port (PoE In)
  • 2× Nano SIM Slots
  • 802.3at PoE
  • Cudy App, Cloud Control
  • Cudy Mesh Controller
  • TR069/TR098/TR111/TR143/TR181
  • Pole/Wall/Sill-Mount/Table Stand 2
View full details
Hardware Specs
Software Specs
Model Version
Model Version P2 ODU 1.0
CPU
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 512 MB (4 Gbit) DDR3
Cellular
Cellular Cellular Standards
  • 5G Rel. 15
  • DL 4G Cat. 12/ UL 4G Cat. 13
Cellular Antennas 6× Internal
SIM Options
  • 2× Nano SIM Slots
  • eSIM (Optional for ISP Orders)
Available Versions EU
EU Version Cellular
EU Version Cellular Suitable Region Europe, Middle East, Africa, Asia-Pacific, Latin America
Max DL Speed 2.6 Gbps (NSA), 2 Gbps (SA)
Max UL Speed 650 Mbps (NSA), 1 Gbps (SA)
Advanced 5G+4G Dual Connectivity, DL 4×4, UL 2×2 MIMO
Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/38/40/41/66/77/78
LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66
WCDMA: B1/2/5/8
Wireless
Wireless 2.4 GHz Wi-Fi Speed 287 Mbps
2.4 GHz Wi-Fi Streams 1T1R
Wi-Fi Antennas Internal
FEM or PA/LNA 2.4 GHz: 1× Internal
Interfaces
Interfaces Physical Buttons Reset Button
2.5G RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED
  • Power
  • Internet
  • Cellular
  • LAN
Power Input PoE via Ethernet Port
Power
Power Power Methods 802.3at PoE
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 802.3at PoE
Max Power Consumption (W) TBD
Idle Power Consumption (W) TBD
Reliability
Reliability EMC IEC/EN 61000-4-2 ESD Level 4: Contact 8kV, Air 15kV
IEC/EN 61000-4-5, Level X Surge: Power: DM 6kV, CM 6kV; RJ45: CM 6kV
Environment Operating Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Dimension 110×35×190 mm
4.33×1.38×7.48 inches
Installation
  • Desktop
  • Wall-mount
  • Pole-mount
  • Sill-mount
Package Content
Package Content
  • P2 ODU
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
  • Mounting Kit
Model Version
Model Version P2 ODU 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi For System Configuraiton Only
Wi-Fi Security WPA/WPA2/WPA3
General
General Operation Modes Cellular Router
Cellular APN
  • Band Select (Band Lock)
  • Cellular Mode Select
  • Data Roaming
  • APN Profile
  • Manual APN Profile
  • MBN
  • MTU Value
Cellular Mode
  • 5G NSA Only
  • 5G SA Only
  • 4G Only
  • Auto
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Reliability
  • Timed Reboot
  • Backup and Restore
Dashboard
Dashboard Panel
  • Internet Status
  • Devices Management
  • Cellular Status
  • SMS Send and Receive
  • WAN Status
  • LAN Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Cellular Speed
  • Internet Speed
  1. Actual cellular speeds will vary depending on carrier conditions and environmental factors such as cellular base station location/distance, nearby clients density, building layout, and physical obstacles.
  2. Pole/Wall-Mount Kit included by default. Other options are avaialble for ISP orders.
