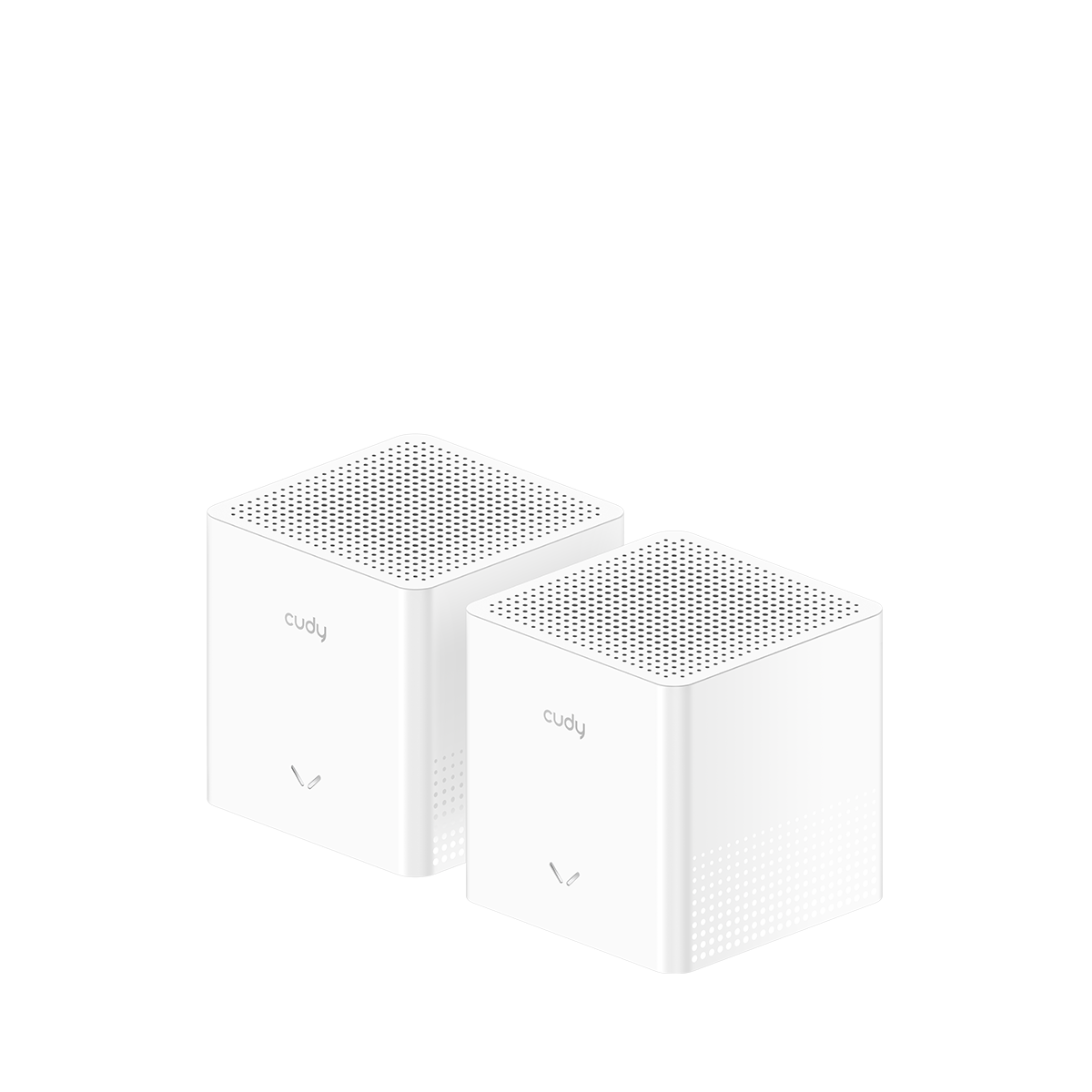

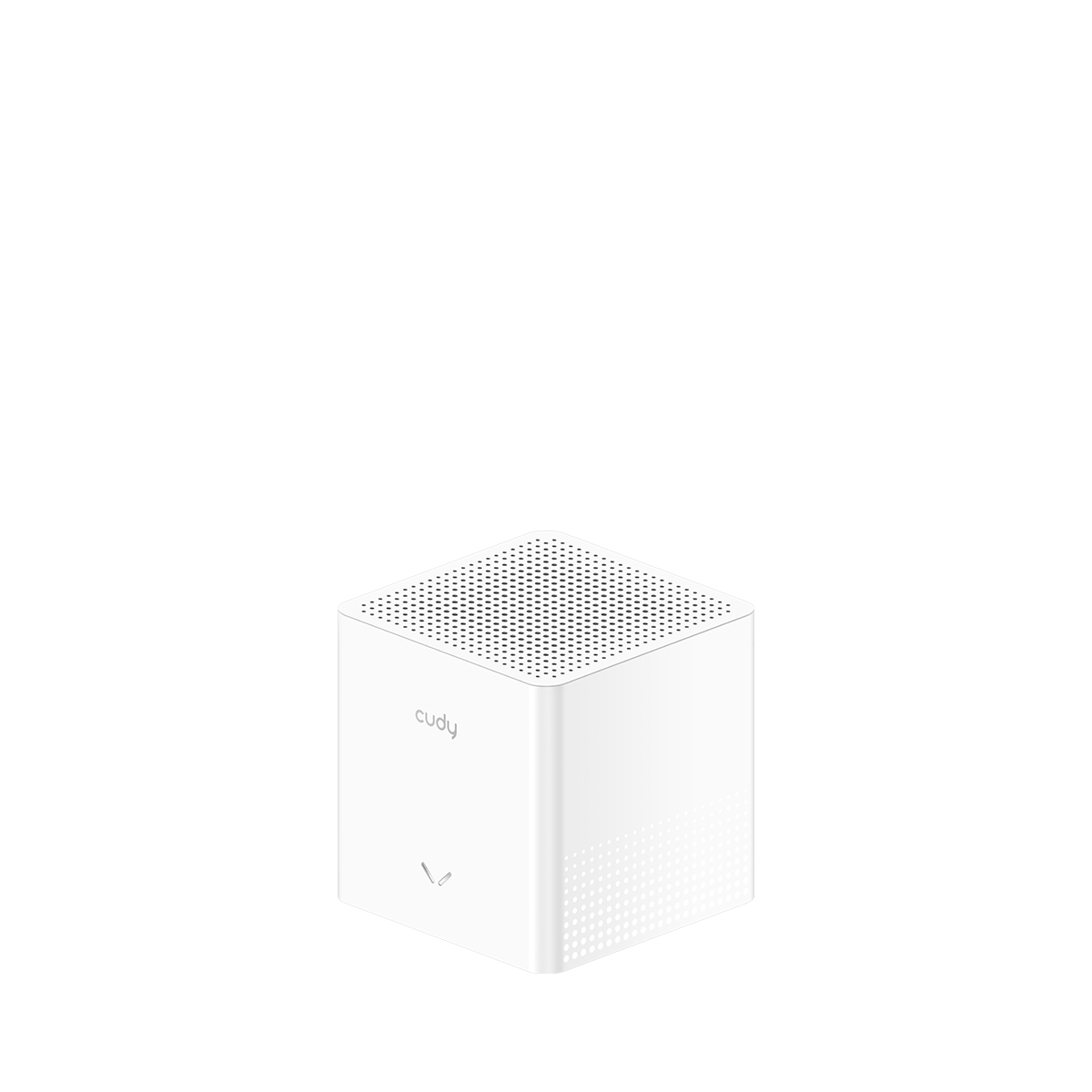

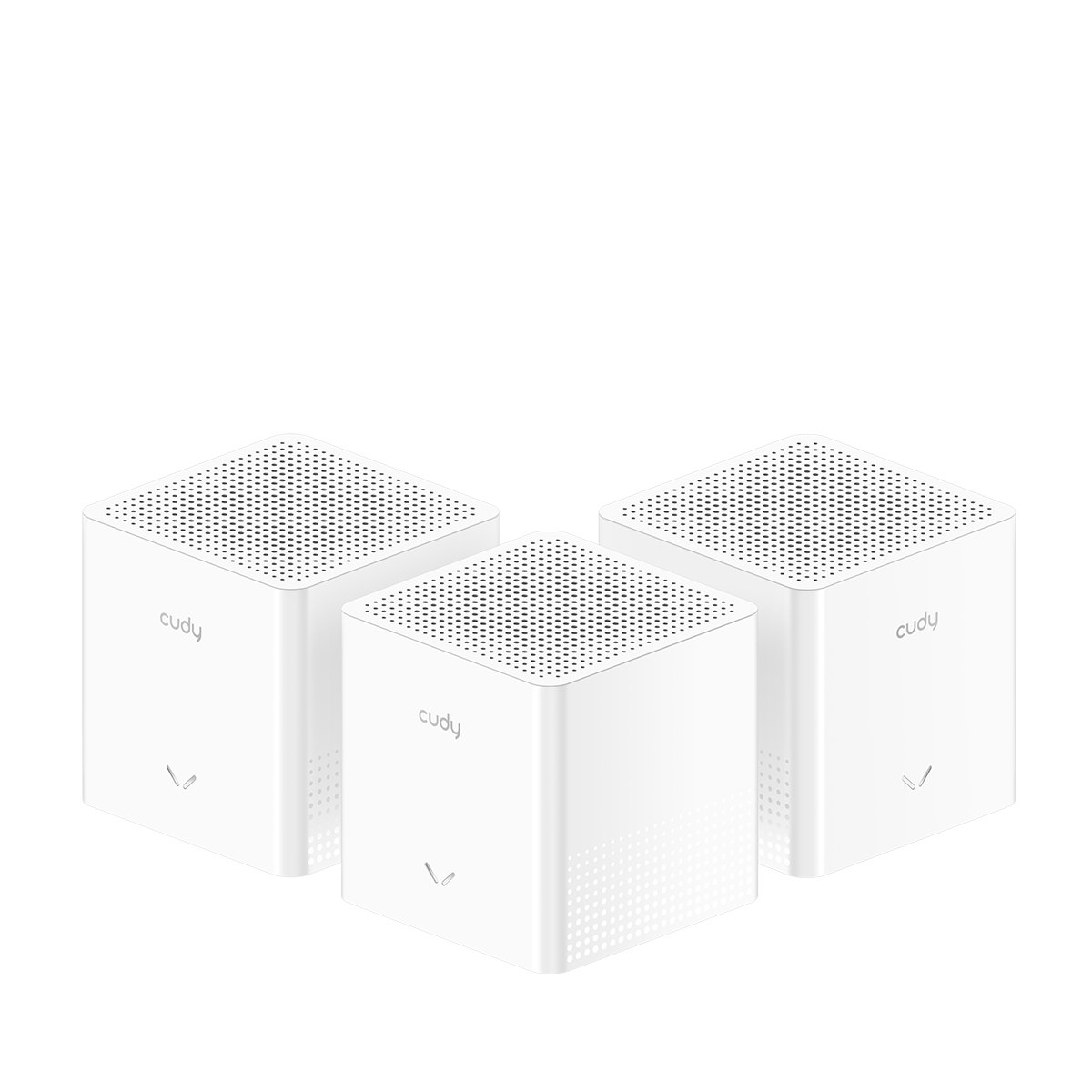

AX3000 2.5G Mesh Wi-Fi 6 System

AX3000 2.5G Mesh Wi-Fi 6 System, M3000S 1.0

M3000S 1.0

Pack

A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.

  • 1.3 GHz Dual-Core CPU
  • 4-Stream Dual-Band Wi-Fi 6
  • 2402 Mbps + 574 Mbps Wi-Fi 1
  • 200 Connected Devices 2
  • Fast Roaming
  • Cudy Mesh, VPN Server and Client
  • Multi-Band Simultaneous Backhaul
  • Cudy App, Cloud Control
View full details
Hardware Specs
Software Specs
Model Version
Model Version M3000S 1.0
Memory/Storage
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Internal
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference 2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
Interfaces
Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 1
Ethernet Notes The 2.5G port is the WAN port, the Gigabit port is LAN port
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 11.5W
Idle Power Consumption (W) 4.2W
Reliability
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications FCC, CE
Mechanical
Mechanical Installation Desktop
Package Content
Package Content
  • M3000S
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Model Version
Model Version M3000S 1.0
Wireless
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
  • OFDMA
  • MU-MIMO
  • BSS Color
Max Capacity 512
Recommended Client Upper Limit 200
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
Guest Network 2.4 GHz, 5 GHz
WPS True
General
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul True
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
TTL Customization
  • Extend
  • Spoof
  • Custom
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
Utilities
Utilities VPN Server
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
VPN Client
  • WireGuard
  • OpenVPN
  • IPsec
  • Zerotier
  • PPTP
  • L2TP
DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
Wake on LAN True
Online Detection True
Management
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filter
  • IP Filter
System
System LED Control True
Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
Dashboard
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
