Industrial Router

IR02

Overview
Features
Specs
Download

Network Interfaces

4G, Wi-Fi, and Ethernet Connectivity

Establish stable connections with dual nano-SIM slots, Ethernet, and WISP, with automatic failover between connections. The detachable cellular antennas included in the box feature magnetic bases for easy external mounting.

Network Interfaces

4G, Wi-Fi, and Ethernet Connectivity

Establish stable connections with dual nano-SIM slots, Ethernet, and WISP, with automatic failover between connections. The detachable cellular antennas included in the box feature magnetic bases for easy external mounting.

Industrial Interfaces

7 Types of Interfaces

Versatile interfaces meet the networking, control, and data acquisition needs of various devices. The interfaces include: Ethernet, RS232, RS485, DI-Dry, DO-Dry, and Wi-Fi.

Industrial Interfaces

7 Types of Interfaces

Versatile interfaces meet the networking, control, and data acquisition needs of various devices. The interfaces include: Ethernet, RS232, RS485, DI-Dry, DO-Dry, and Wi-Fi.

Compact Size

Fits in Boxes, Instruments, and Vending Machines

Designed for tight-space embedding, this device provides stable internet even in confined environments. Download the datasheet from the Cudy Download Center for detailed measurements between ports and indicators.

Compact Size

Fits in Boxes, Instruments, and Vending Machines

Designed for tight-space embedding, this device provides stable internet even in confined environments. Download the datasheet from the Cudy Download Center for detailed measurements between ports and indicators.

Robust Protections

Works in Heat, Cold, Shock, Vibration, EMC Interference

Built with a robust design and high-quality components, the device achieves Level 3 EMC performance. Its compact enclosure and efficient thermal design help it withstand shock and vibration, support reliable operation across a wide temperature range, and ensure long-term durability.

Robust Protections

Works in Heat, Cold, Shock, Vibration, EMC Interference

Built with a robust design and high-quality components, the device achieves Level 3 EMC performance. Its compact enclosure and efficient thermal design help it withstand shock and vibration, support reliable operation across a wide temperature range, and ensure long-term durability.

VPN and Network Protection

Comprehensive Data Security

Supports WireGuard, OpenVPN, IPSec, Zerotier, PPTP, and L2TP, along with comprehensive security settings to protect client data and devices from leaks and attacks while maintaining overall system stability.

VPN and Network Protection

Comprehensive Data Security

Supports WireGuard, OpenVPN, IPSec, Zerotier, PPTP, and L2TP, along with comprehensive security settings to protect client data and devices from leaks and attacks while maintaining overall system stability.

Dependable in Critical Scenarios

Transport

Enterprise/Retail

Smart City

Manufacturing

1 2

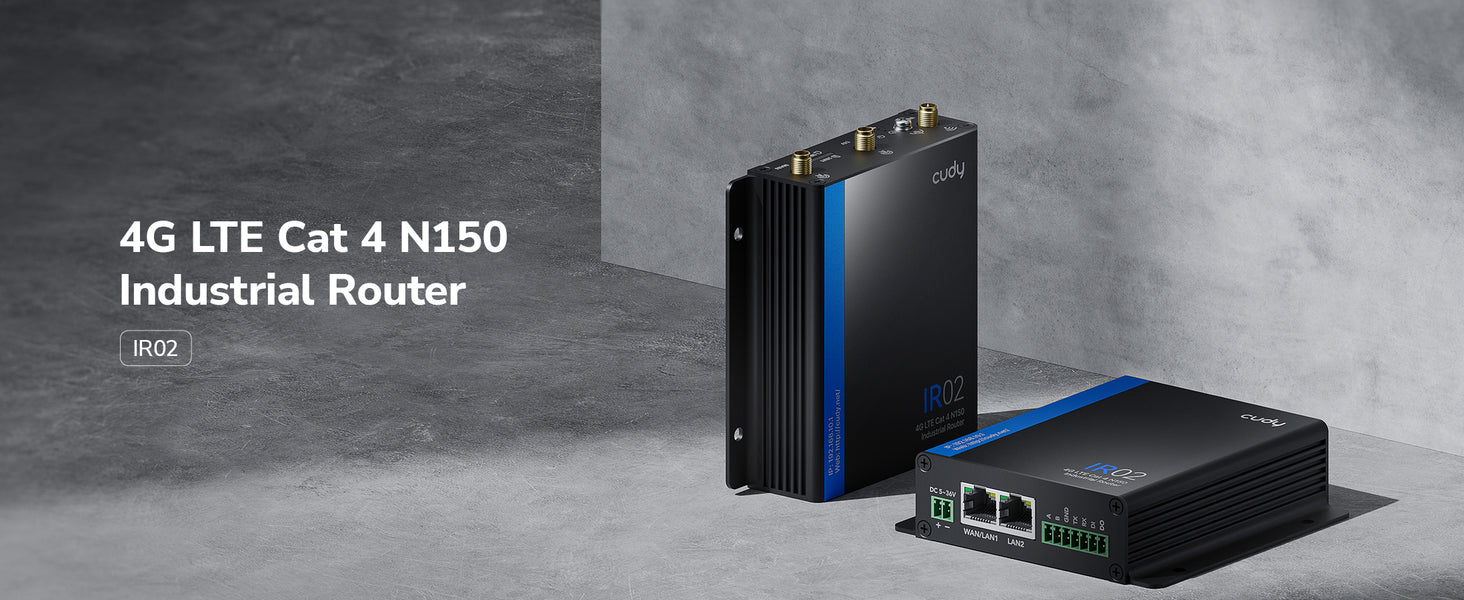

4G LTE Cat 4 N150 Industrial Wi-Fi Router

4G LTE Cat 4 N150 Industrial Wi-Fi Router, IR02 1.0

IR02 1.0

Product variants

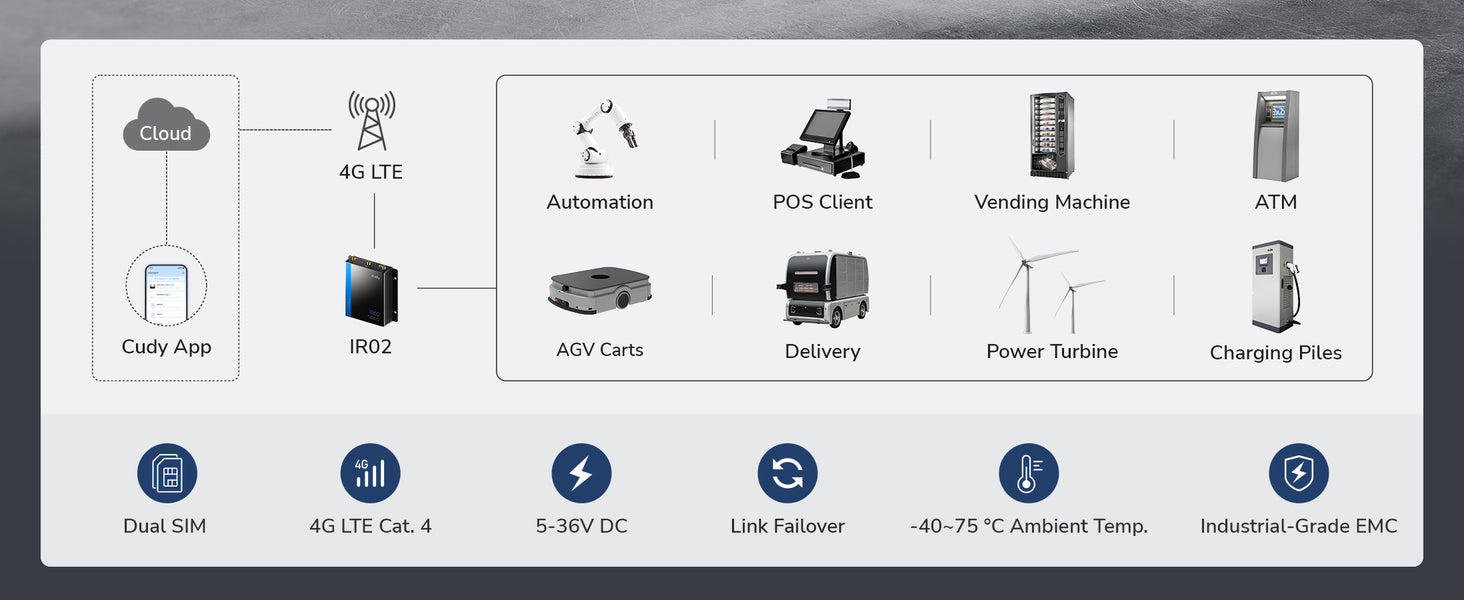

A compact cellular Wi-Fi router designed for branch connectivity scenarios such as vending machines, ATMs, chain stores, franchise outlets, highway toll stations, and logistics machines.

4G Cat. 4 with Max 150 Mbps DL ¹
2× SIM Slots
150 Mbps Wi-Fi ²
Serial (RS232/485), IO
IP30, -40~75°C (-40~167°F), EN61373
Level 3 EMC Protection
Wall-Mount
104.4×103×28.3 mm (4.11×4.06×1.11")

View full details

Hardware Specs

Software Specs

Model Version
Model Version	IR02 1.0
CPU
CPU	CPU Details	580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR2
Cellular
Cellular	Cellular Standards	4G Cat. 4
	Cellular Antennas	2× Detachable
	Detachable Cellular Antennas Connector	SMA Female
	SIM Options	2× Nano SIM Slots
	Available Versions	EU, US, ME, LA
EU Version Cellular
EU Version Cellular	Suitable Region	Europe, Middle East, Africa, SEA, Australia, New Zealand
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8
US Version Cellular
US Version Cellular	Suitable Region	United States, Canada
	Max DL Speed	150 Mbps
	Max UL Speed	50 Mbps
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B2/4/5/12/13/14/66/71 WCDMA: B2/4/5
LA Version Cellular
LA Version Cellular	Suitable Region	Latin America, Australia, New Zealand
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/2/3/4/5/7/8/28/66 LTE-TDD: B40 WCDMA: B1/2/4/5/8 GSM: B2/3/5/8
ME Version Cellular
ME Version Cellular	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 35 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/8 GSM: B3/8
Wireless
Wireless	2.4 GHz Wi-Fi Speed	150 Mbps
	2.4 GHz Wi-Fi Streams	1T1R
	Wi-Fi Antennas	1× Detachable
	Detachable Wi-Fi Antennas Connector	RP-SMA Female
	FEM or PA/LNA	2.4 GHz: Internal
	Range Performance	Max: 80 m (262 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 10 cm (4'')

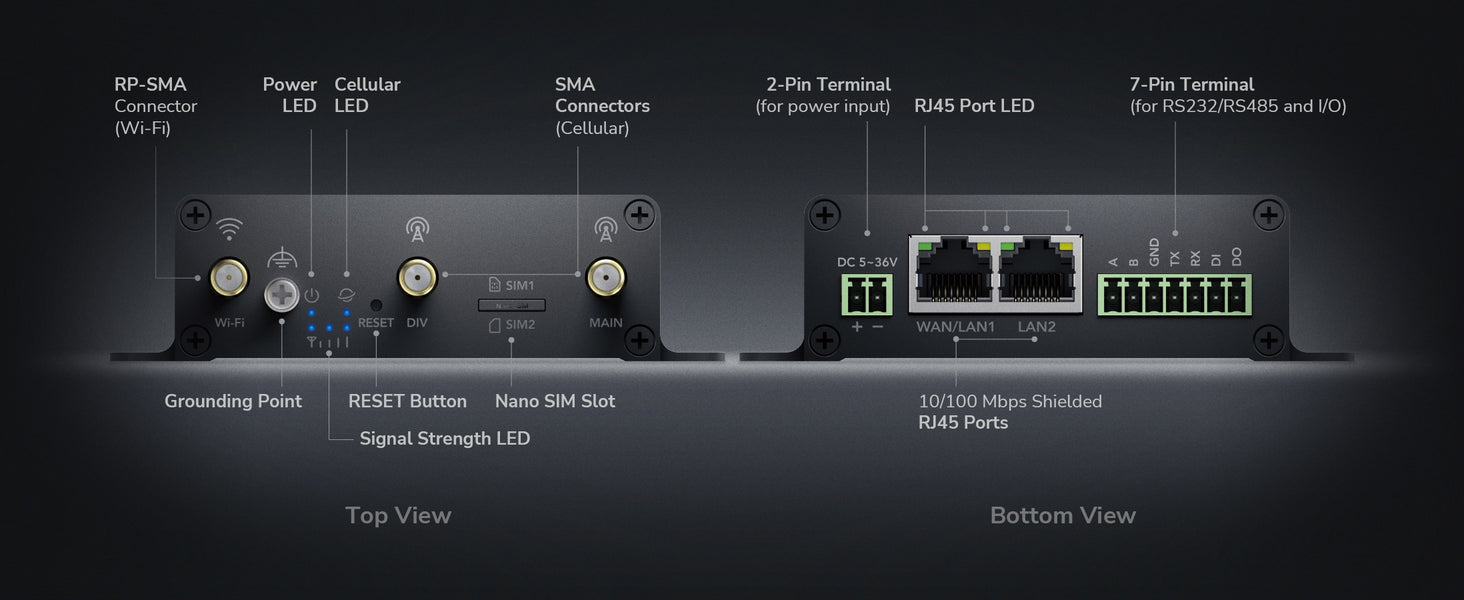

Interfaces
Interfaces	Physical Buttons	Reset Button
	10/100 Mbps RJ45 Ports	2
	Ethernet Notes	Port 1 is WAN/LAN configurable, and the rest are LAN ports
	Industrial Sockets	1× 7-PIN
	7-PIN Industrial Socket Protocols	RS232 RS485 2× RS485 (Only for Customized Model) Note: Socket shared with IO
	IO	1× Digital Galvanically Isolated Input (0-4V for state 0 \| 9-30V for state 1) 1× Normally Open contacts of the internal Non-Latching Relay (Max. 30V⎓250mA) 1× GND for Digital Input / Digital Output Note: The I/O function uses the 7-pin socket. Only one of the I/O or serial functions can be enabled at a time.
	LED	Power Cellular Cellular Signal Strength Link/ACT of Each Ethernet Port
	Power Interfaces	2-PIN DC
Power
Power	Power Methods	DC
	Power Input	5-36V⎓
	Power Adapter in the Box	Input: 100-240V~, 50/60Hz Output: 12V⎓1A
	Max Power Consumption (W)	7.0W
	Idle Power Consumption (W)	1.0W
Reliability
Reliability	Grounding Methods	Grounding Point
	EMC	IEC/EN 61000-4-2 ESD Level 3: Contact 6kV, Air 8kV IEC/EN 61000-4-3 RS Level 3: 80 MHz to 6 GHz: 10 V/m IEC/EN 61000-4-4 EFT Level 3: Power Ports 2kV, Data Ports 1kV IEC/EN 61000-4-5 Surge Level 3: CM 2kV, DM 1kV IEC/EN 61000-4-6 Level 3 CS: 10V IEC/EN 61000-4-8, Level 3 PFMF IEC/EN 61000-4-9, Level 3 IEC/EN 61000-4-10, Level 3
	Power Protection	Polarity Protection Overvoltage Protection Surge Protection
	Shock	IEC/EC 60068-2-27
	Vibration	IEC/EN 60068-2-6
	Free Fall	IEC/EN 60068-2-32
	Ingress Protection Rating	IP30
	Environment	Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉) Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~185 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Casing Material	Metal
	Dimension	Device: 104.4×103×28.3 mm 4.11×4.06×1.11 inches Mounting Space: 188×104.4×28.3 mm 7.4×4.11×1.11 inches
	Product Weight	218.6 g (7.71 oz.)
	Installation	Wall-mount

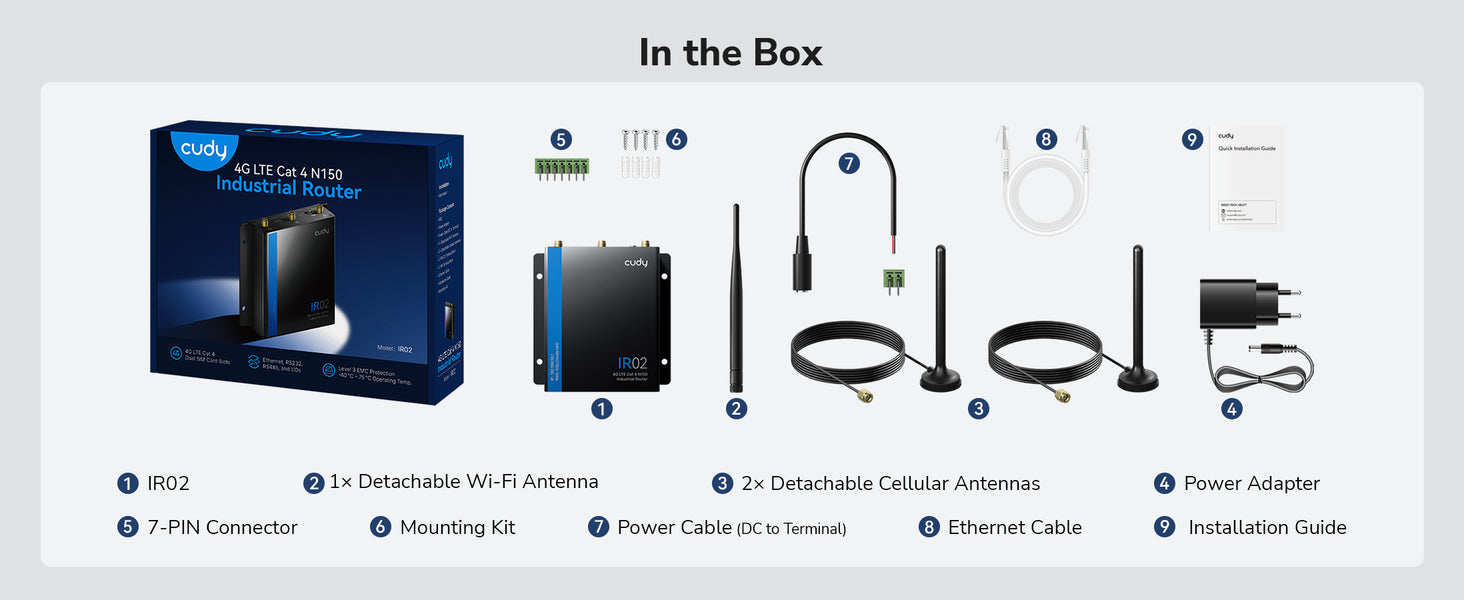

Package Content
Package Content	IR02 Power Adapter Power Cable Detachable Wi-Fi Antennas Detachable Cellular Antennas 2-PIN Connector 7-PIN Connector Ethernet Cable Mounting Kit Installation Guide
Ordering Information
Ordering Information	Retail Package Weight	EU: 566.7 g (19.99 oz.)
	Retail Package Dimension	200×162×57 mm 7.87×6.38×2.24 inches
	Units per Carton	20
	Carton Net Weight	EU: 11.3 kg (24.91 lbs)
	Carton Gross Weight	EU: 12.0 kg (26.46 lbs)
	Carton Dimension	42.5×31.4×34.6 cm 16.73×12.36×13.62 inches

Model Version
Model Version	IR02 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 4
	Max Wi-Fi Modulation	64-QAM
	Max Capacity	128
	Recommended Client Upper Limit	20
	Max Wi-Fi Channel Width	40 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz
	WPS	True (In Web Management)
General
General	Operation Modes	Cellular Router Wi-Fi Router WISP
	Cellular APN	Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MTU Value
	Cellular Mode	4G Only 3G Only Auto
	WAN Mode	DHCP Static IP PPPOE L2TP PPTP
	Internet Failover Sequence	WAN WISP Cellular
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	VPN Server	WireGuard OpenVPN PPTP L2TP
	VPN Client	WireGuard OpenVPN PPTP L2TP
	DNS Options	Manual DNS Rebind Protection Override Clients' DNS
	Online Detection	True
Input/Output
Input/Output	Status Panel	Real-Time Input Status,Relay Status Control
	Input Method Select	Digital Input
	Digital Input Trigger	Rising Falling Both
	Input Rules	Type Select,Delayed Execution,Output Type ,Output State,Revert Period,Maintain State after Reboot
	Trigger Actions	Activate Output,Send SMS,SIM Switch,Turn On Wi-Fi,Turn Off Wi-Fi,Reboot
	Output Schedulers	Output Type,Target State,Repeat
Serial
Serial	Modes	TCP Client,TCP Server,UDP,Modbus TCP over Serial Gateway
Management
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	Local Control Method	Config Web Page App Control
	Remote Control Method	App Control Config Page via HTTP Config Page via HTTPS TR069
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
	Reliability	Timed Reboot Backup and Restore
Dashboard
Dashboard	Panel	Internet Status Devices Management Cellular Status WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Cellular Speed Internet Speed WISP Speed Wi-Fi Speed

Actual cellular speeds will vary depending on carrier conditions and environmental factors such as cellular base station location/distance, nearby clients density, building layout, and physical obstacles.
Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
