AP1300E Wall 1.0

Coming Soon

Overview
Features
Specs
Download

AC1200 Dual-Band

Fast, Reliable Wi-Fi in Every Room

Dual-band WiFi allows newer devices to stream on the less congested 5 GHz band, ensuring smooth video calls, 4K playback and gaming, while IoT and legacy devices stay reliably connected on 2.4 GHz band.

AC1200 Dual-Band

Fast, Reliable Wi-Fi in Every Room

Dual-band WiFi allows newer devices to stream on the less congested 5 GHz band, ensuring smooth video calls, 4K playback and gaming, while IoT and legacy devices stay reliably connected on 2.4 GHz band.

Built for Modern Spaces

Effortlessly integrates into any Interior

With its sleek, minimalist design, the device fits naturally into any room without disrupting your décor, delivering high-performance Wi-Fi while staying visually unobtrusive.

Efficient Heat Dissipation

Equipped with multiple cooling vents, the AP1300 Wall prevents overheating to maintain proper temperature and stable performance, even under heavy workloads.

Seamless Experiences in Multiple Scenarios

Apartment

Enjoy dedicated, high-speed Wi-Fi in every unit with zero signal overlap. Its sleek, low-profile design blends seamlessly into modern interiors.

Dormitory

Provide secure, high-speed access for each user without cross-room interference or weak zones. Designed to handle multiple users across closely packed rooms.

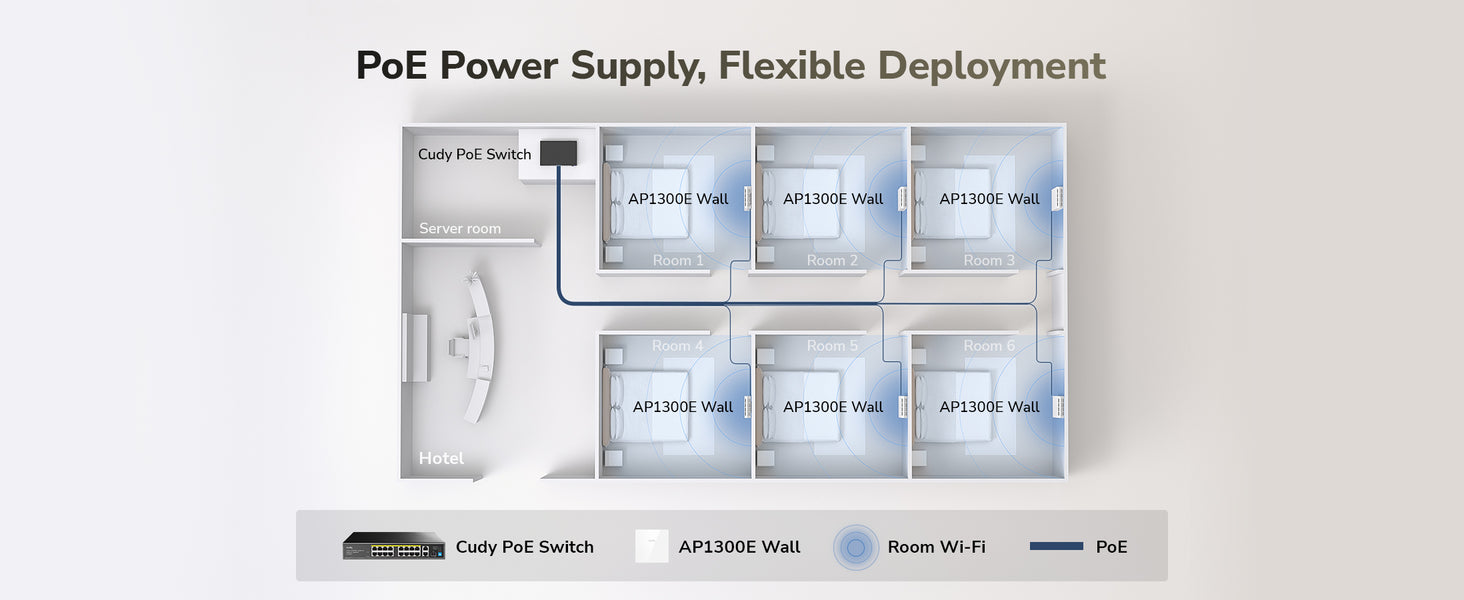

Hotel

Covers up to 50 m² (540 ft²), delivering fast, secure Wi-Fi in every guest room. Sleek design and easy integration with VoIP, IPTV, and other devices.

Office

Ensure reliable connectivity for each workspace or meeting room. Perfect for flexible, room-based deployments in modern offices.

Gigabit Wired Connection

Equipped with two Gigabit Ethernet ports——including one that supports PoE IN, AP1300 Wall allows your VoIP phones, IPTV, or other wired devices to stay reliably connected to the network for smooth calls and streaming.

Gigabit Wired Connection

Equipped with two Gigabit Ethernet ports——including one that supports PoE IN, AP1300 Wall allows your VoIP phones, IPTV, or other wired devices to stay reliably connected to the network for smooth calls and streaming.

Effortless Wall-Mount Installation

Fits perfectly in a standard electrical box. It simplifies setup by eliminating the need for complex wiring or additional equipment.

Effortless Wall-Mount Installation

Fits perfectly in a standard electrical box. It simplifies setup by eliminating the need for complex wiring or additional equipment.

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Centralized AP Management

Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

NaN -Infinity

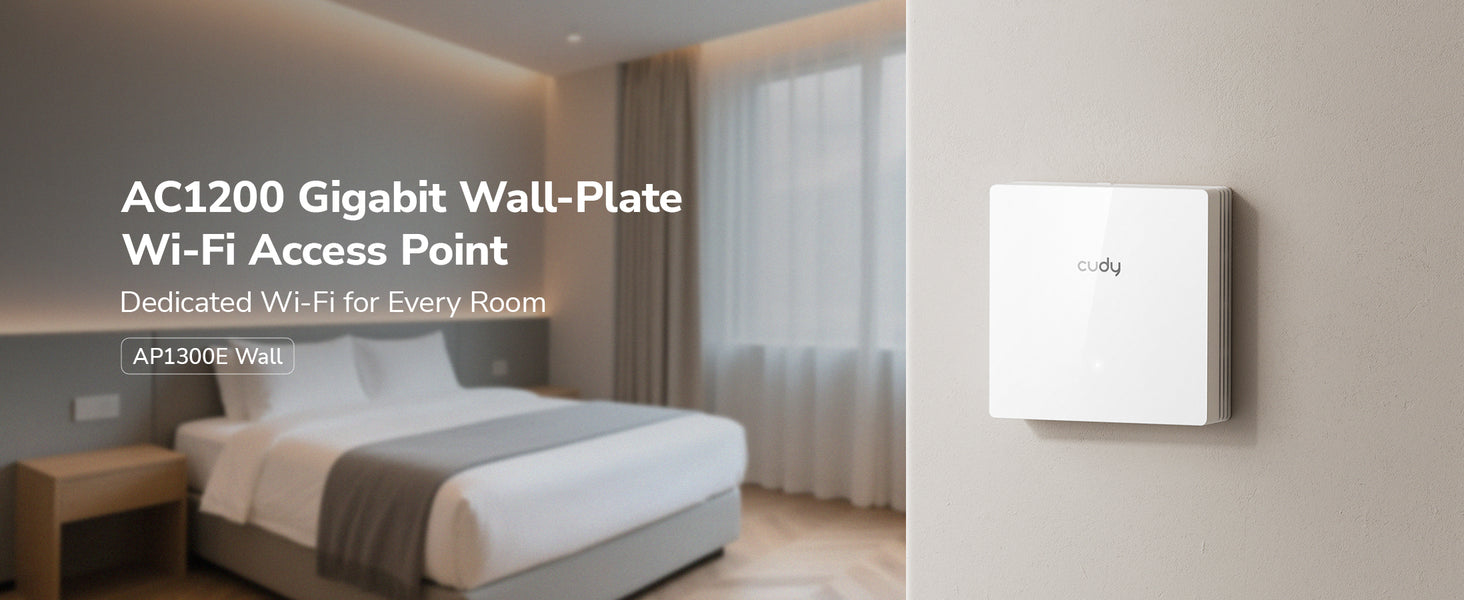

AC1200 86mm Wall-Plate Wi-Fi Access Point

AC1200 86mm Wall-Plate Wi-Fi Access Point, AP1300E Wall 1.0

AP1300E Wall 1.0

Product variants

A compact wall-mounted WiFi AP with two Gigabit port ideal for single-room coverage in hospitality environments.

4-Stream Dual-Band Wi-Fi 5
867 Mbps + 300 Mbps Wi-Fi ¹
1× GbE PoE In, 1× GbE
802.3at/af, Passive PoE
Watchdog, Schedule Reboot
Covers 50 m² (540 ft²) ²
40 Connected Devices ³

View full details

Hardware Specs

Software Specs

Model Version
Model Version	AP1300E Wall 1.0
CPU
CPU	CPU Details	880 MHz Dual-Core CPU
Memory/Storage
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR3
Wireless
Wireless	5 GHz Wi-Fi Speed	867 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	4× Internal
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	True
	Range Performance	Max: 80 m (262 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
Interfaces	Gigabit RJ45 Ports	2
	Ethernet Notes	Port 1 Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button LED On/Off Button (Configurable to control LED and Wi-Fi)
	Power Input	PoE via Ethernet Port
Power
Power	Power Methods	Passive PoE 802.3at/af PoE
	Passive PoE Input	48V
	Max Power Consumption (W)	Max (PoE) : 10 W Max (DC): NA
	Idle Power Consumption (W)	4 W
Reliability
Reliability	Advanced	Hardware Watchdog
	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Mechanical	Installation	Wall-mount
	Dimension	86×86×43 mm 3.39×3.39×1.69 inches
Package Content
Package Content	AP1300E Wall Installation Guide Mounting Kit

Model Version
Model Version	AP1300E Wall 1.0
Wireless
Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	40
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Multi-SSID (Max Number)	8 SSIDs (Up to 4 SSIDs on each band)
General
General	Operation Modes	Access Point
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	True
Network
Network	DHCP	Server
	IP Versions	IPv4
	IGMP	IGMP Snooping
Utilities
Utilities	Wake on LAN	True
Management
Management	All Devices Management	Wi-Fi Time Schedule
System
System	LED Control	True
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Dashboard	Panel	Internet Status Mesh Status Devices Management LAN Status Wi-Fi Status DHCP Server Status System Version Connected Devices
	Charts	Mesh Topology Wi-Fi Speed

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Additionally, using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
