GS108ES2

Super-Fast Gigabit

Eight 10/100/1000 Mbps Ethernet ports enable instant transferring of data. Two SFP allows long-distance connections.

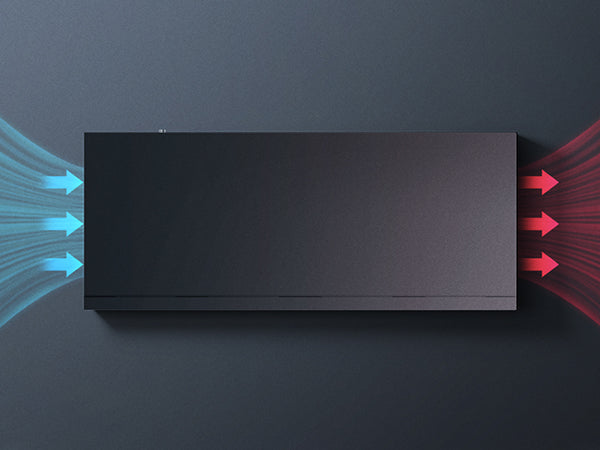

Quiet Fanless Cooling

Metal casing enables effcient cooling, delivering stable performance.

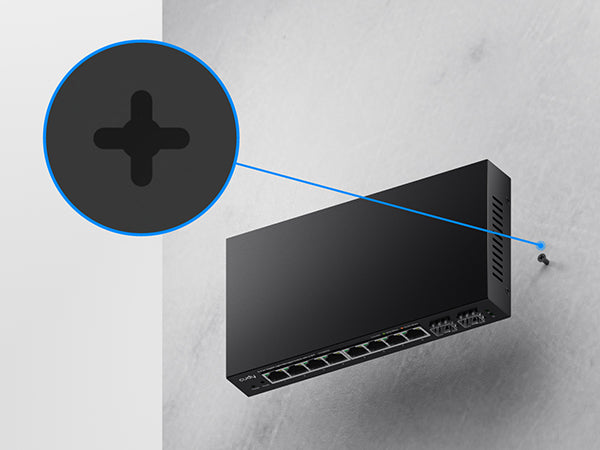

Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement demand.

Extra Electrical Protection

Improves connection reliability with built-in lightning surge and ESD protection.

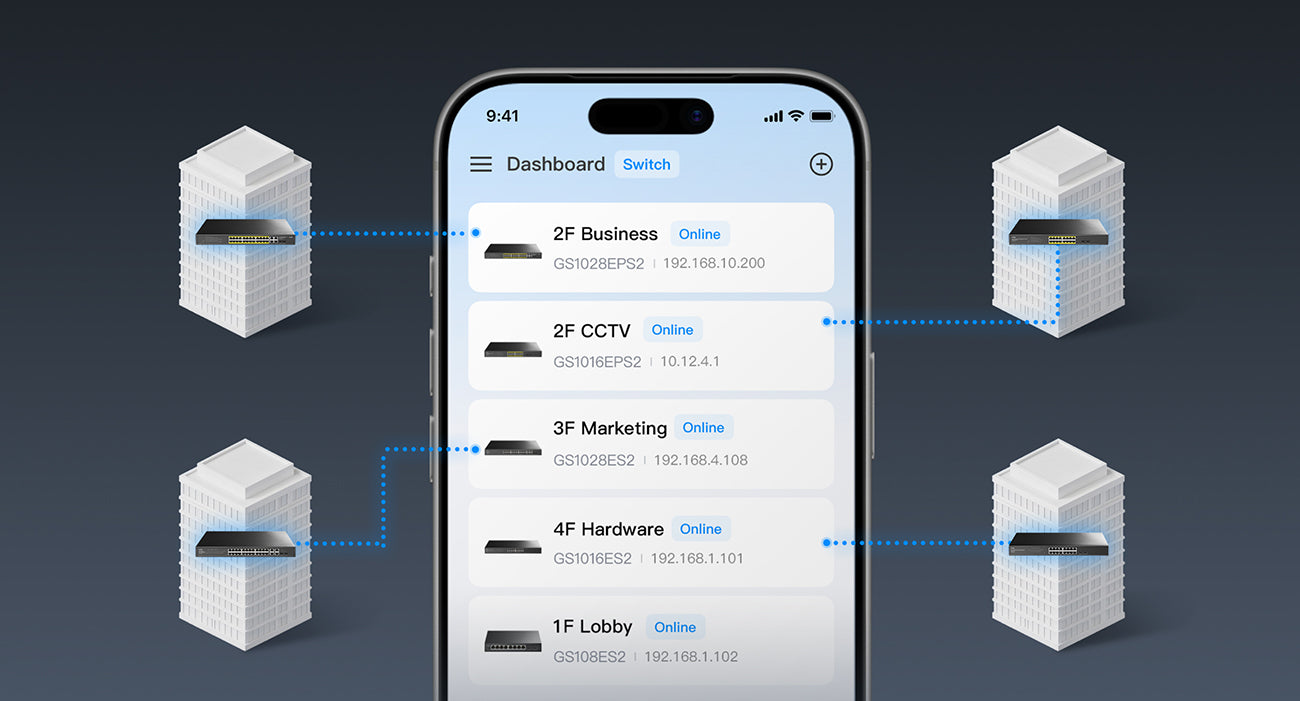

Cudy Cloud for Remote Management

Centralized Management

Monitor all your Cudy easy-managed cloud switches from a single, unified dashboard within the Cudy App, accessible from anywhere.

Monitor and Fix Issues Remotely

Tweak settings on your phone via Cudy Cloud. No need to go to the site anymore for a small task.

Secure and High-Performance Switching

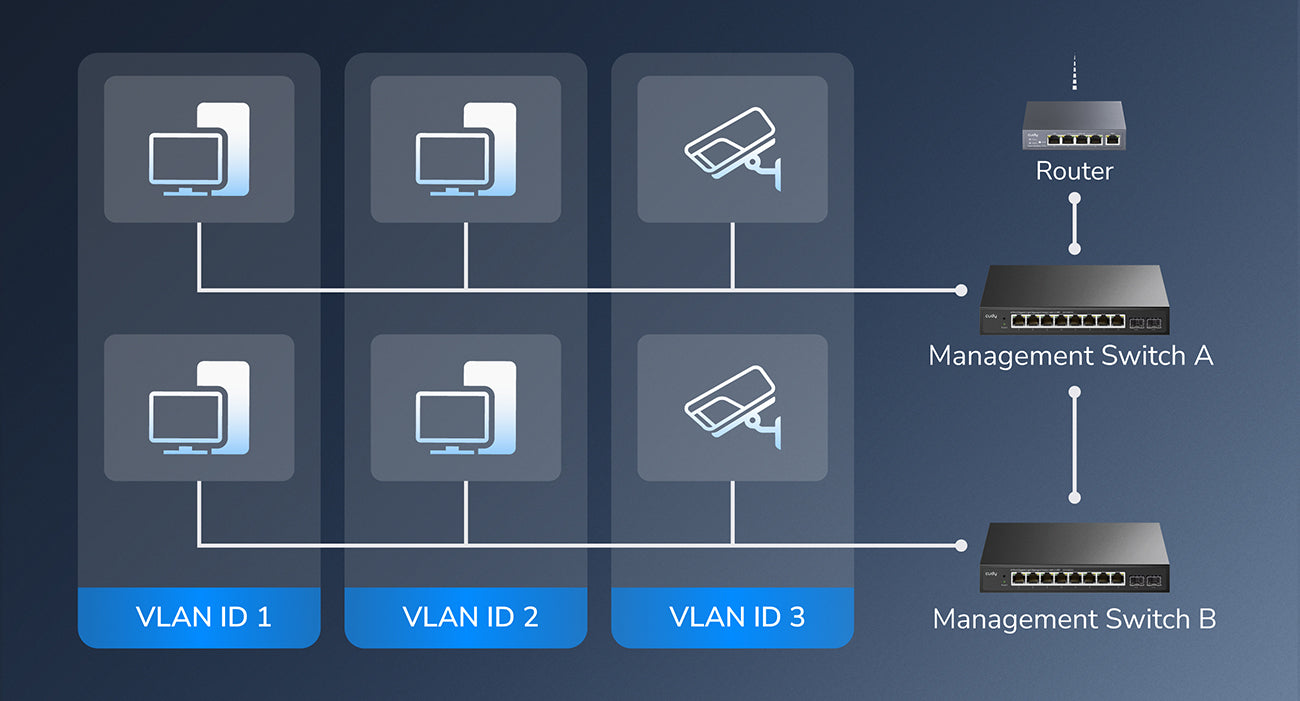

802.1Q/MTU/Port-Based VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

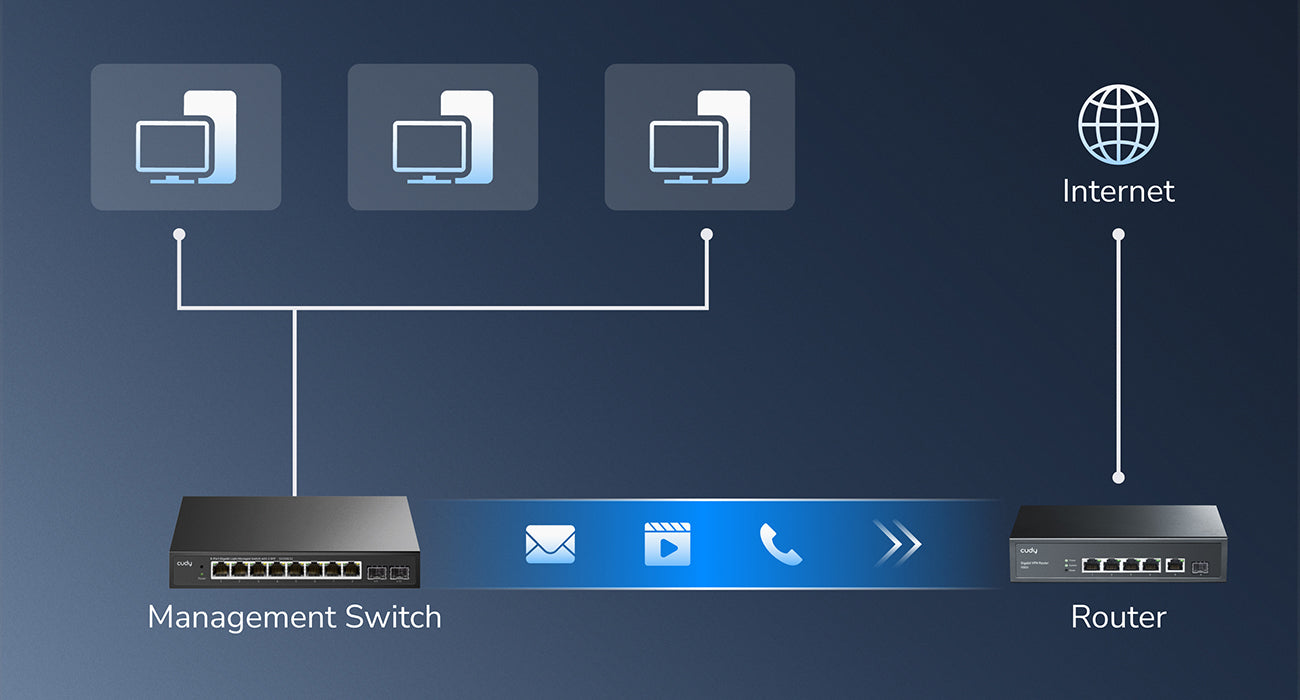

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

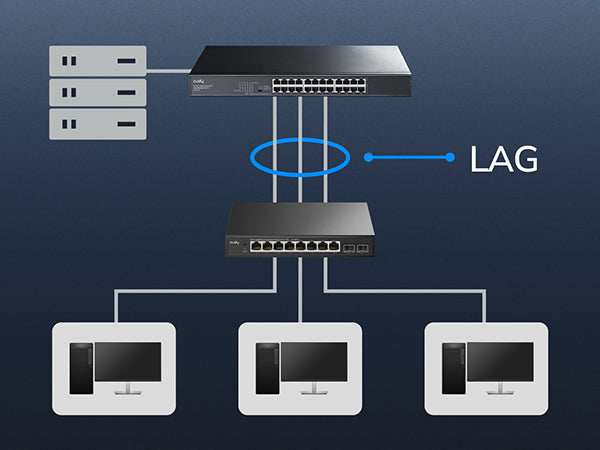

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

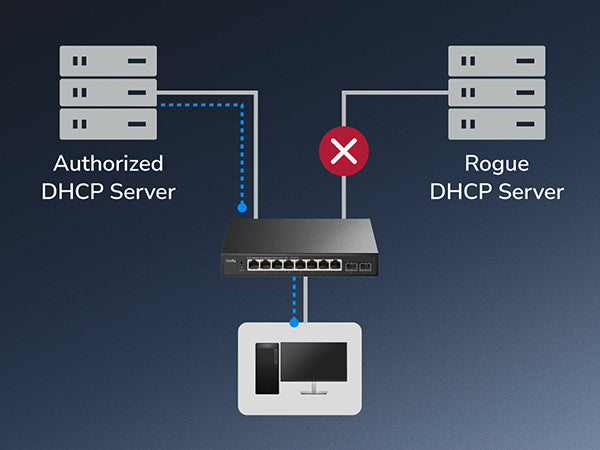

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

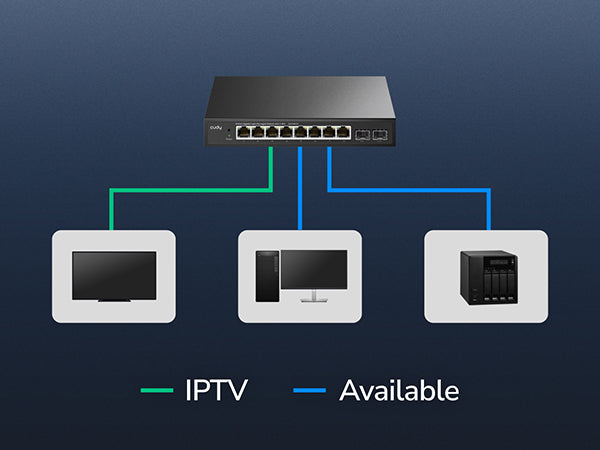

Traffic Optimization

Identifies the multicast groups with IGMP Snooping and sends data to the exact ports instead of broadcasting them.

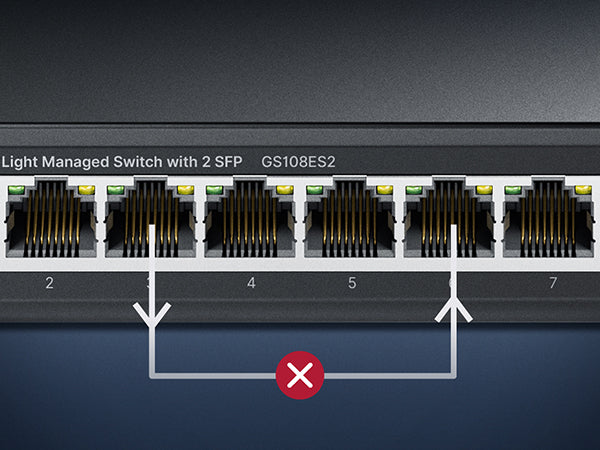

Loop Detection/Prevention

Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.

1 2

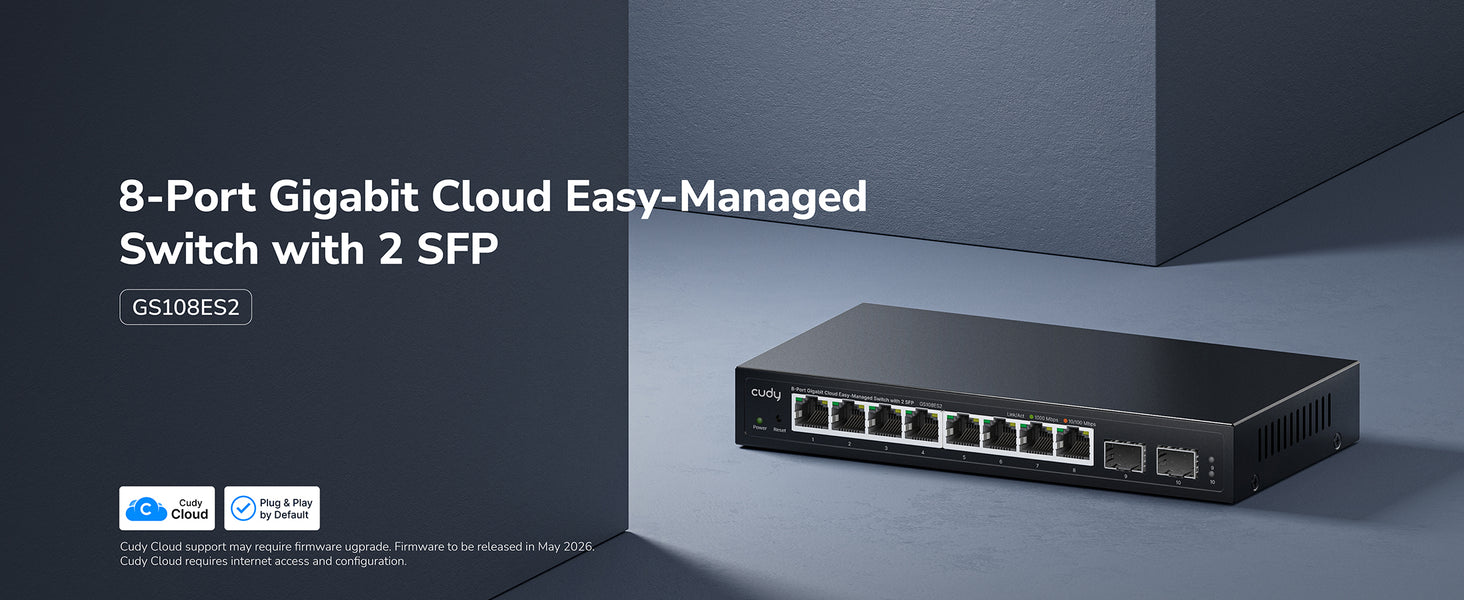

8-Port Gigabit Easy-Managed Switch with 2 SFP

8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0

GS108ES2 1.0

A 8-GbE, 2-SFP switch with management features.

  • 8× GbE, 2× 1.25G SFP
  • Gerenciamento Web, SNMP
  • VLAN (802.1Q/MTU/Voz/Baseado em Porta)
  • QoS (802.1p/DSCP/Baseado em porta)
  • Port Mirror, Static Aggregation, etc
  • Loop Detection and Prevention
  • Espionagem DHCP, espionagem IGMP
  • Mesa, montagem na parede
  • 190×100×26 mm (7,48×3,94×1,02")
Ver informações completas
Versão do modelo
Versão do modelo GS108ES2 1.0
Memory/Storage
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR

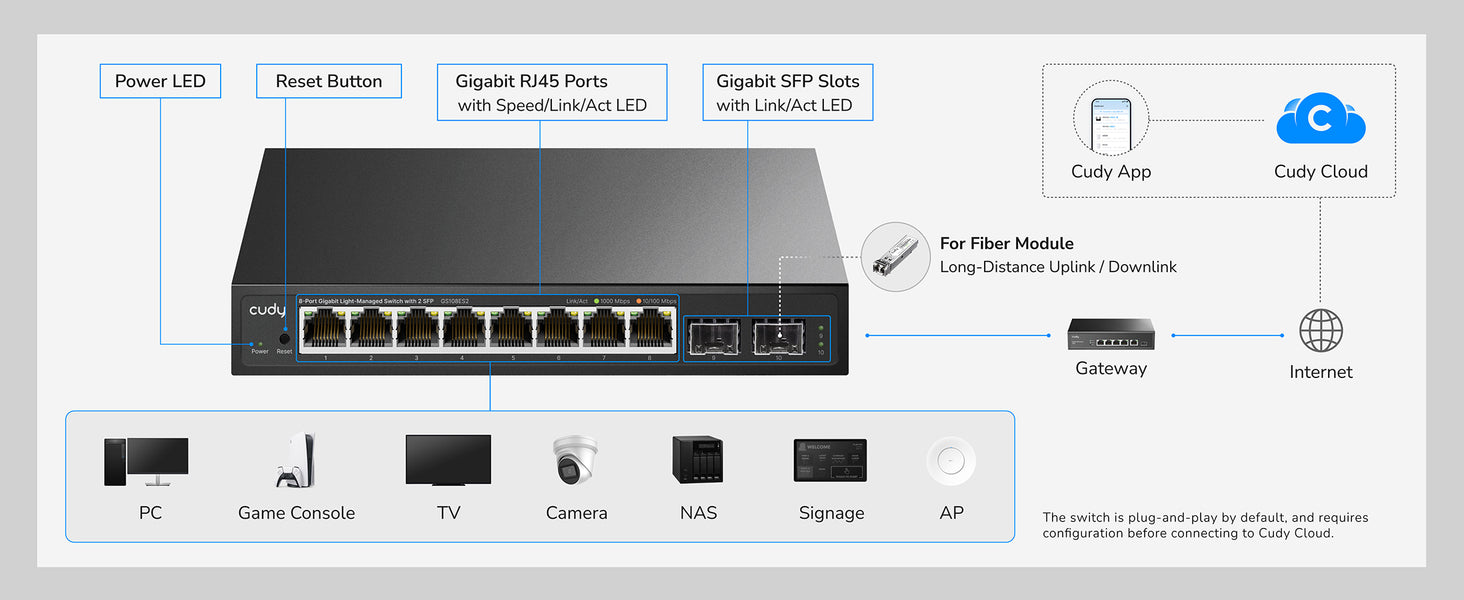

Interfaces
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 8
Shielded RJ45 Port
Extend Mode Ports Configurable
VLAN Mode Ports Configurable
LED
  • Power
  • Link/ACT of Each Ethernet Port
Power Interfaces DC Jack
Physical Buttons Reset Button
Performance
Performance Max Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
  • Cat. 6 or higher cable: 150 meters at Gigabit
Copper Speed and Distance Note 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 4096
VLANs 4096
Max Switching Capacity 21 Gbps
Max Forwarding Rate 14.88 Mpps
Jumbo Frame 15 KB
Packet Buffer 1.5 Mbit
Power
Power Basic Power Saving
Power Methods DC
Power Input 12V⎓1A
Power Adapter in the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption 4.5W
Idle Power Consumption 0.9W
Switching
Switching 802.3 Protocols
  • 802.3x Flow Control
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3az Power Saving
802.1 Protocols
  • 802.1p: LAN Layer 2 QoS/CoS
  • 802.1q: VLAN Bridge Operation
Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
Port Mirror Sessions 2
Port Trunk Groups 2
Max Port Num per Port Trunk Group 4
L2 Features
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
Reliability
Reliability Grounding Methods Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level X Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
System
System Control Methods Config Web Page
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools Ping
Languages
  • English
  • Bengali
  • German
  • Spanish
  • French
  • Portuguese
  • Russian
  • Arabic
  • Indonesian
  • Hindi
  • Urdu
  • Traditional Chinese
  • Simplified Chinese
Mechanical
Mechanical Dimension 190×100×28 mm
7.48×3.94×1.1 inches
Product Weight 461.5 g (16.28 oz.)
Casing Material Metal
Installation
  • Desktop
  • Wall-mount
Package Content
Package Content
  • GS108ES2
  • Power Adapter
  • Installation Guide
Ordering Information
Ordering Information Retail Package Dimension 209×132×81.5 mm
8.23×5.2×3.21 inches
Retail Package Weight EU: 714.9 g (25.22 oz.)
Units per Carton 10
Carton Net Weight EU: 7.2 kg (15.87 lbs)
Carton Gross Weight EU: 7.9 kg (17.42 lbs)
Carton Dimension 43.8×42.8×15.1 cm
17.24×16.85×5.94 inches
