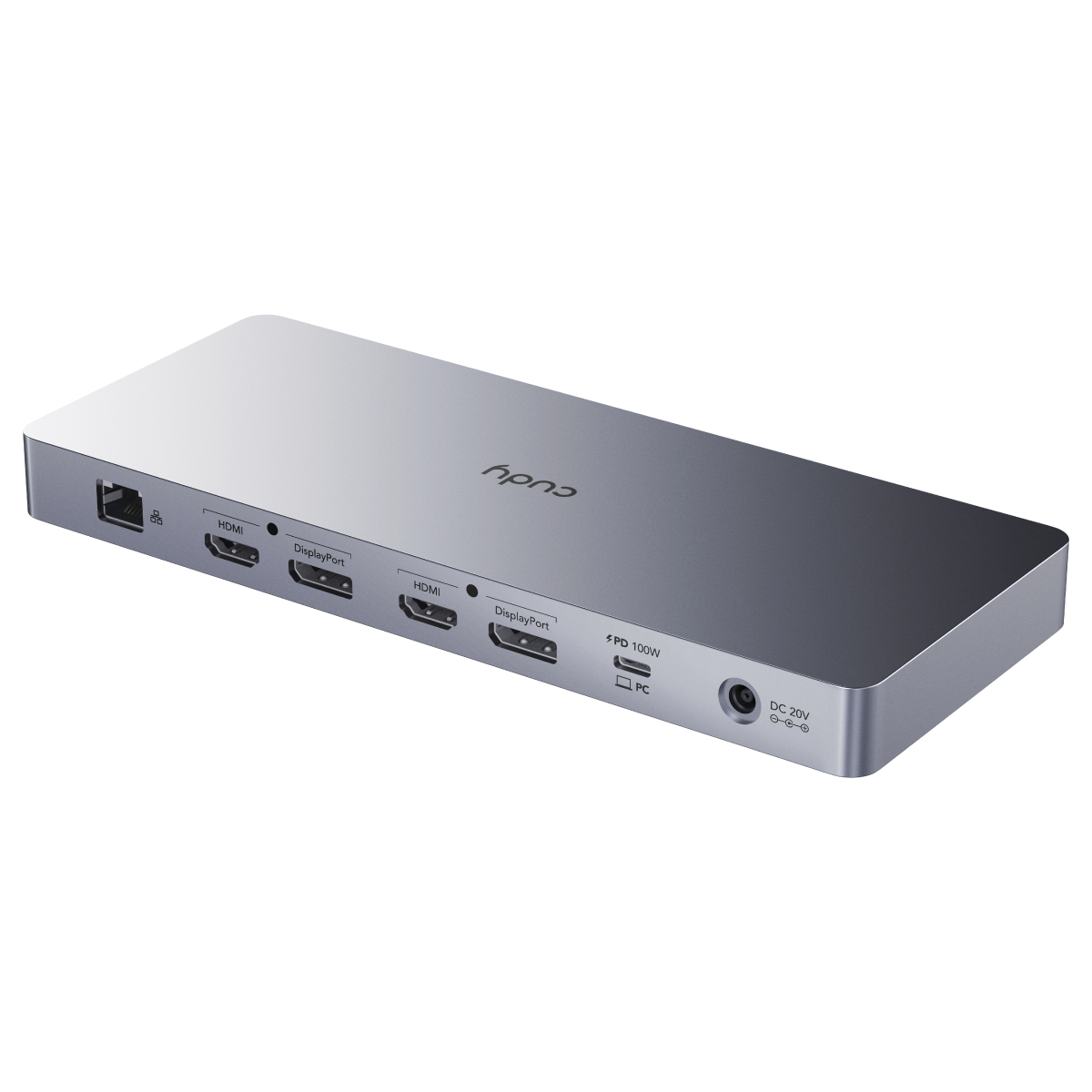

Dual 4K USB-C Dock with 100 W PD, Model: CS700

  • Chipset DisplayLink 6950-N
    Upstream USB USB-C 3.2 Gen 2 Ports (10 Gbps, Max 100W Charging )
    Video Output 2× DisplayPort 1.2a
    2× HDMI 2.0
    Supporting resolution up to—
    1× 5K (5120×2880) 60 Hz, or
    2× 4K (4096×2160) 60 Hz
    USB 2× USB-C 3.2 Gen 2 Ports (10 Gbps, Max 15W Charging Each)
    4× USB-A 3.2 Gen 2 Ports (10 Gbps, Max 5W Charging Each)
    Network 1× Gigabit RJ45 Port
    Audio and Mic 1× 3.5 mm Combo Jack
    Buttons Power On/Off
    Power Supply  External Power Adapter
    Input: 100 ~ 240 V, 50/60 Hz
    Output: 20 V ⎓ 7.5 A
    Max Power Consumption: 150W
    Idle Power Consumption: 5W
    Casing Silver Gray Color, Matte Finish
    Made from a Single Block of Aluminum
    (CNC Machining)
    Anti-Scratch Design
    (Al6061 T5 Base Material, Sandblasting, and Anodization)
    Security 1× Kensington Security Slot
    Dimension (WDH) 210×85×15.5 mm
    8.27×3.35×0.61 inches
    Weight ~ 350 g
    Package Content Docking Station
    Power Adapter
    USB-C to USB-C Cable
    Quick Installation Guide
    Hardware Requirement Requires a USB-C 3.2 Gen 2 / USB4 / Thunderbolt 3/4 Port
    Compatible OS Windows 7 or later
    macOS 10.14 or later
    Ubuntu LTS 18.04 or later
    ChromeOS build RS1 or later
    Android 5 or higher (Max 1× 1080P. File/Ethernet Disabled)
    Environment Operating Temperature: -20–60 °C (-10–140 °F)
    Storage Temperature: -40–70 °C (-40–158 °F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
    Warranty Limited warranty for 2 years
• DisplayLink DL-6950-N chipset
• Dual 4K video output with dual HDMI 2.0 ports and dual DP 1.2a ports
• 100 Watts Fast Charge PD with four charging profiles
• 2× 10 Gbps USB-C 3.2 Gen2 (15W per port)
• 4× 10 Gbps USB-A 3.2 Gen2 (5W per port)
• 1× Gigabit Ethernet, 1× Audio combo port
• Compatible with systems with a USB-C 3.2 Gen 2/USB4/Thunderbolt port
