SFP+ to 10G RJ45 SM10GL

SM 10GL Copper Small Form Pluggable (SFP) transceivers are based on
the SFP Multi Source Agreement (MSA) . They are compatible with the
10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified
in IEEE Std 802.3 . SM 10GL uses the SFP's RX_LOS(must be pulled up on
host) pin for link indication. If pull up or open SFP's TX_DISABLE pin,
PHY IC be reset.

Cable Length

Line Side	Cable	Reach	Host Interface
10Gbase-T	CAT6A	30m	10GBase-R
5Gbase-T	CAT5E	50m	10GBase-R
2.5Gbase-T	CAT5E	50m	10GBase-R
1000base-T	CAT5E	100M	10GBase-R
100base-Tx	CAT5E	100M	10GBase-R
10base-Tx	CAT5E	100M	10GBase-R

SFP to Host Connector Pin Out

Pin	Symbol	Name/Description	Ref
1	VEET	Transmitter Ground (Common with Receiver Ground)	1
2	TFAULT	Transmitter Fault. Not supported.
3	TDIS	Transmitter Disable. Laser output disabled on high or open.	2
4	MOD_DEF(2)	Module Definition 2. Data line for Serial ID.	3
5	MOD_DEF(1)	Module Definition 1. Clock line for Serial ID.	3
6	MOD_DEF(0)	Module Definition 0. Grounded within the module.	3
7	Rate Select	No connection required
8	LOS	High indicates no linked. low indicates linked.
9	VEER	Receiver Ground (Common with Transmitter Ground)	1
10	VEER	Receiver Ground (Common with Transmitter Ground)	1
11	VEER	Receiver Ground (Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver Non-inverted DATA out. AC Coupled
14	VEER	Receiver Ground (Common with Transmitter Ground)	1
15	VCCR	Receiver Power Supply
16	VCCT	Transmitter Power Supply
17	VEET	Transmitter Ground (Common with Receiver Ground)	1
18	TD+	Transmitter Non-Inverted DATA in. AC Coupled.
19	TD-	Transmitter Inverted DATA in. AC Coupled.
20	VEET	Transmitter Ground (Common with Receiver Ground)	1

Notes:

1. Circuit ground is connected to chassis ground
2. PHY disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V
3. Should be pulled up with 4.7k - 10k Ohms on host board to a voltage
between 2.0 V and 3.6 V. MOD_DEF(0) pulls line low to indicate module is
plugged in.

Figure 1. Diagram of host board connector block pin numbers and names

+3.3V Volt Electrical Power Interface

The SM 10GL has an input voltage range of 3.3 V +/- 5%. The 4V
maximum voltage is not allowed for continuous operation.

+3.3 Volt Electrical Power Interface
Parameter	Symbol	Min	Typ	Max	unit	Notes/Conditions
Supply Current	Is		800	1000	mA	3.3W max power over full range of voltage and temperature. See caution note below
Input Voltage	Vcc	3.13	3.3	3.47	V	Referenced to GND
Maximum Voltage	Vmax			4	V
Surge Current	Isurge		TBD		mA	Hot plug above steady state current. See caution note below

Caution: Power consumption and surge current are higher than the specified values in the SFP MSA

Low-Speed Signals

MOD_DEF(1) (SCL) and MOD_DEF(2) (SDA), are open drain CMOS signals

(see section VII, "Serial Communication Protocol"). Both MOD_DEF(1) and

MOD_DEF(2) must be pulled up to host_Vcc.

Low-Speed Signals,Electronic Characteristics
Parameter	Symbol	Min	Max	unit	Notes/Conditions
SFP Output LOW	VOL	0	0.5	V	4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP Output HIGH	VOH	host_Vcc -0.5	host_Vcc + 0.3	V	4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP Input LOW	VIL	0	0.8	V	4.7k to 10k pull-up to Vcc, measured at SFP side of connector
SFP Input HIGH	VIH	2	Vcc + 0.3	V	4.7k to 10k pull-up to Vcc, measured at SFP side of connector

High-Speed Electrical Interface

All high-speed signals are AC-coupled internally

High-Speed Electrical Interface, Transmission Line-SFP
Parameter	Symbol	Min	Typ	Max	unit	Notes/Conditions
Line Frequency	fL		125		MHz	5-level encoding, per IEEE 802.3
Tx Output Impedance	Zout,TX		100		Ohm	Differential, for all frequencies between 1MHz and 125MHz
Rx Input Impedance	Zin,RX		100		Ohm	Differential, for all frequencies between 1MHz and 125MHz

High-Speed Electrical Interface, Host-SFP
Parameter	Symbol	Min	Typ	Max	unit	Notes/Conditions
Single ended data input swing	Vinsing	250		1200	mV	Single ended
Single ended data output swing	Voutsing	350		800	mV	Single ended
Rise/Fall Time	Tr,Tf		175		psec	20%-80%
Tx Input Impedance	Zin		50		Ohm	Single ended
Rx Output Impedance	Zout		50		Ohm	Single ended

General Specifications

General

Parameter

Symbol

Min

Typ

Max

unit

Notes/Conditions

Data Rate

100

Gb/sec

IEEE 802.3 compatible.

See Notes 1,2 below

Notes: Clock tolerance is +/- 50 ppm

Environmental Specifications

Automatic crossover detection is enabled. External crossover cable is not required

Environmental Specifications
Parameter	Symbol	Min	Typ	Max	unit	Notes/Conditions
Operating Temperature	Top	0		60	°C	Case temperature
Storage Temperature	Tsto	-40		85	°C	Ambient temperature

Serial Communication Protocol

All SFPs support the 2-wire serial communication protocol outlined in the

SFP MSA. These SFPs use an MCU, can be accessed with address of A0h.

Serial Bus Timing, Requirements
Parameter	Symbol	Min	Typ	Max	unit	Notes/Conditions
I2C Clock Rate		0		200,000	Hz

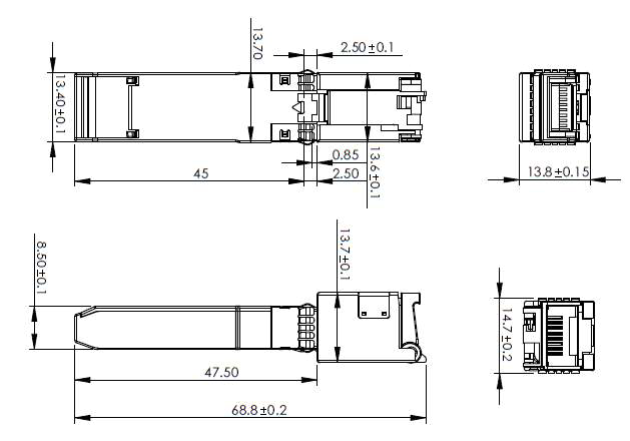

Mechanical Specifications (Unit:mm)

● Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T on line port
● Support 10Gbase-R on host port
● Hot-pluggable SFP footprint
● Compact RJ-45 connector assembly
● RoHS compliant and lead-free
● Single +3.3V power supply
● 10 Gigabit Ethernet over Cat 6a cable
● Ambient Operating temperature: 0°C to +60°C
